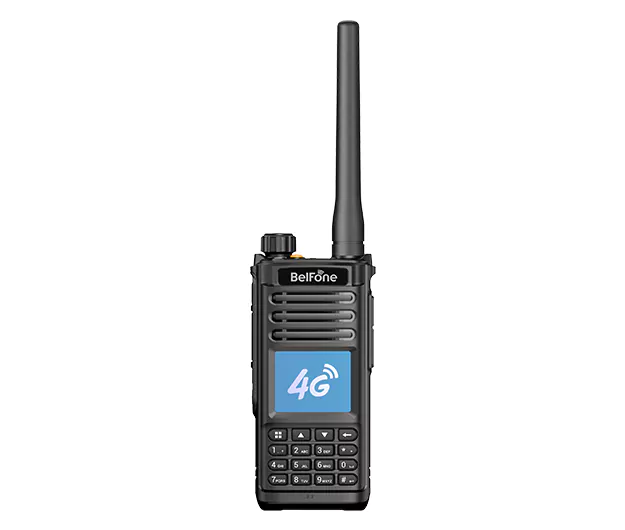

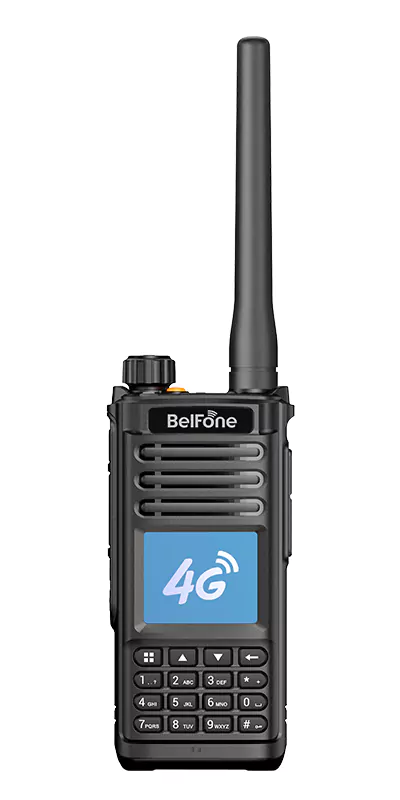

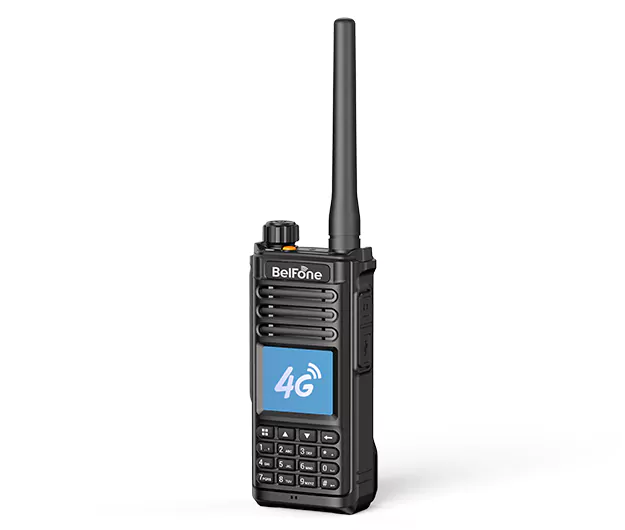

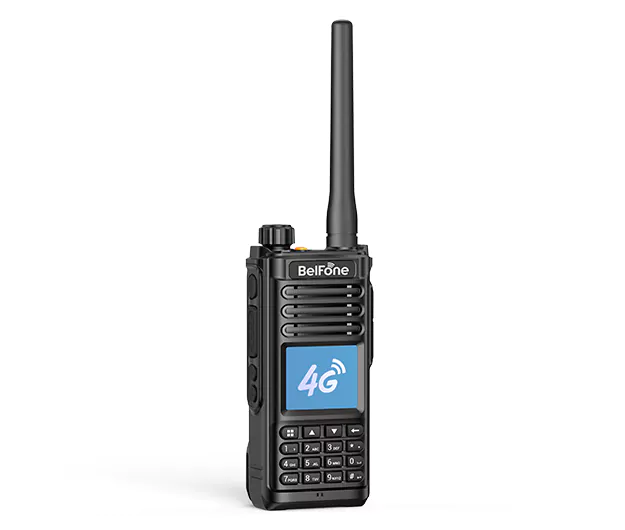

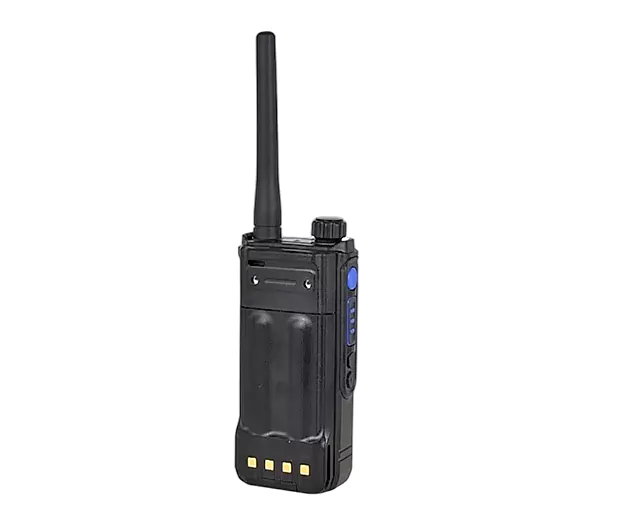

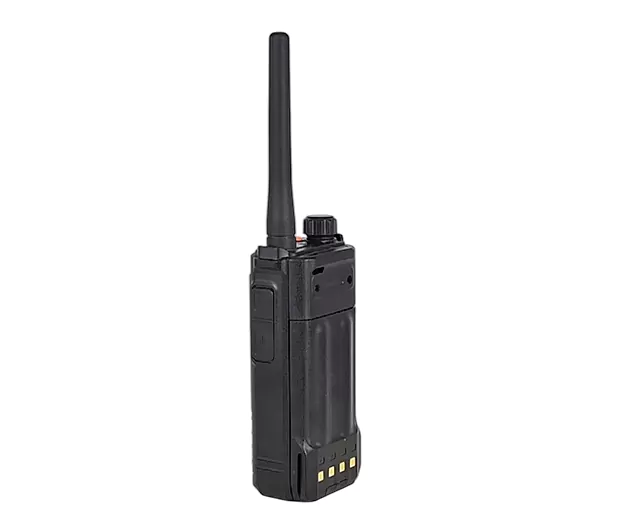

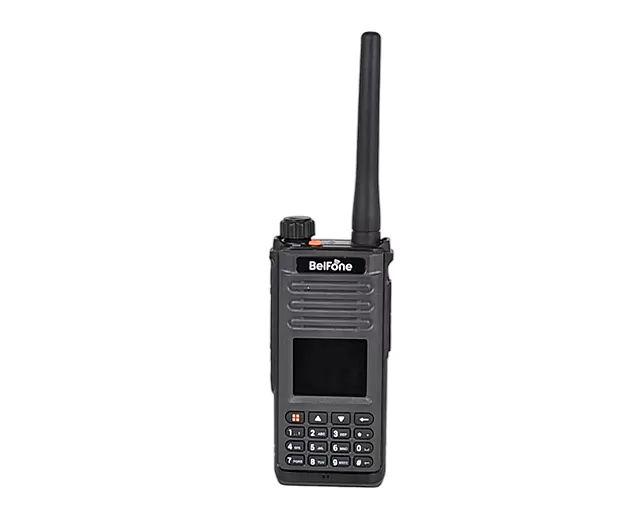

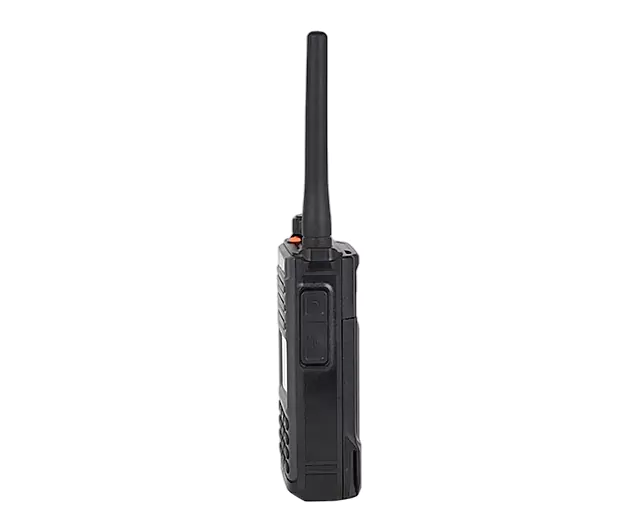

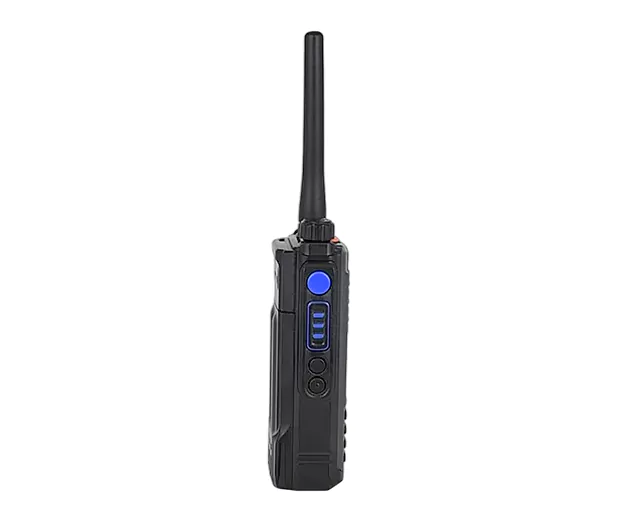

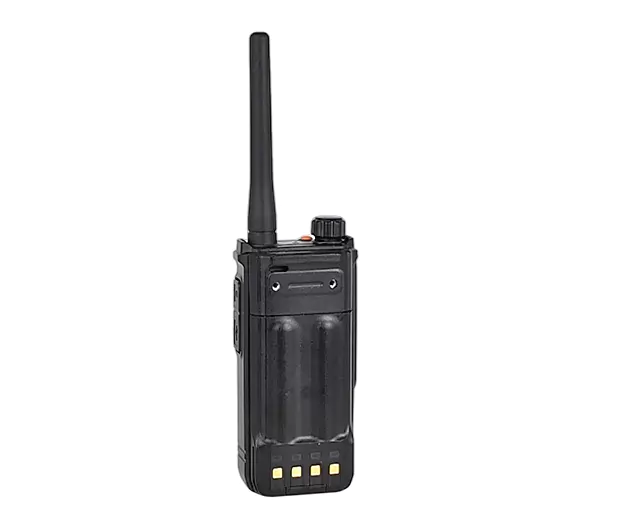

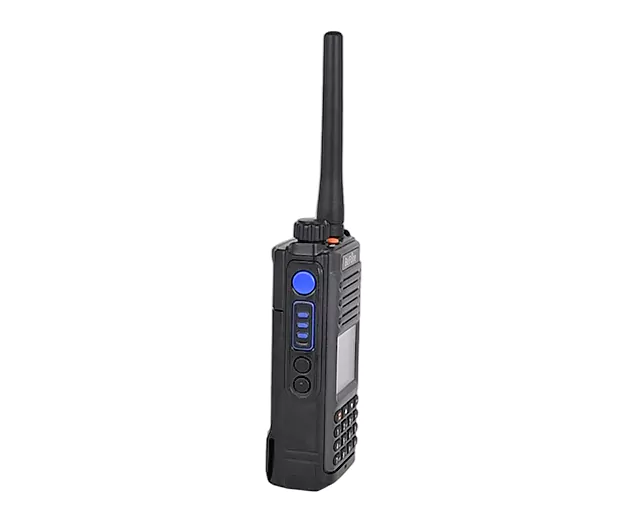

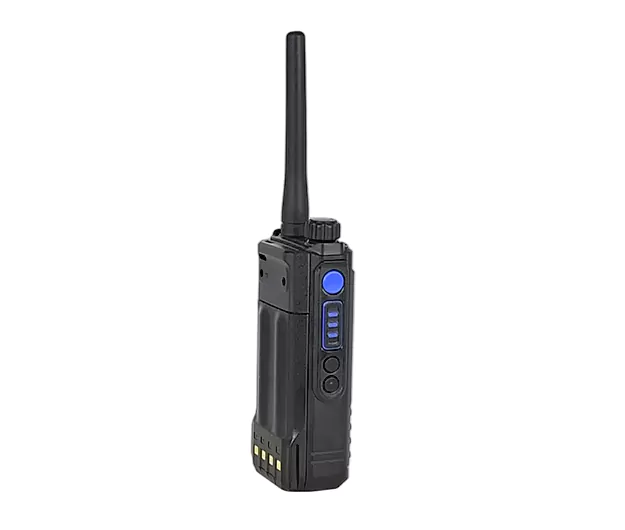

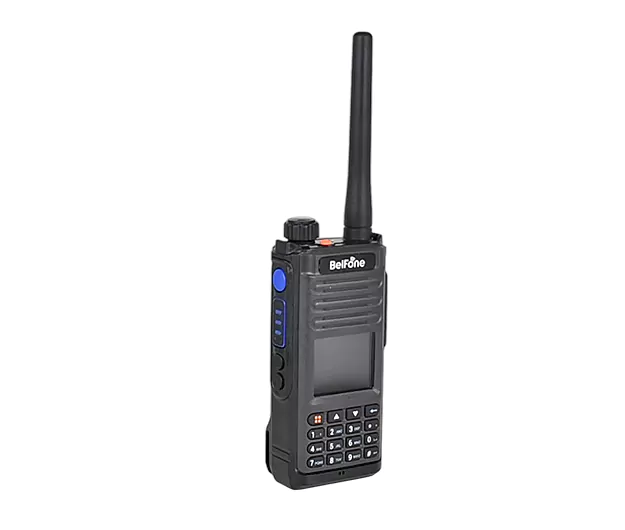

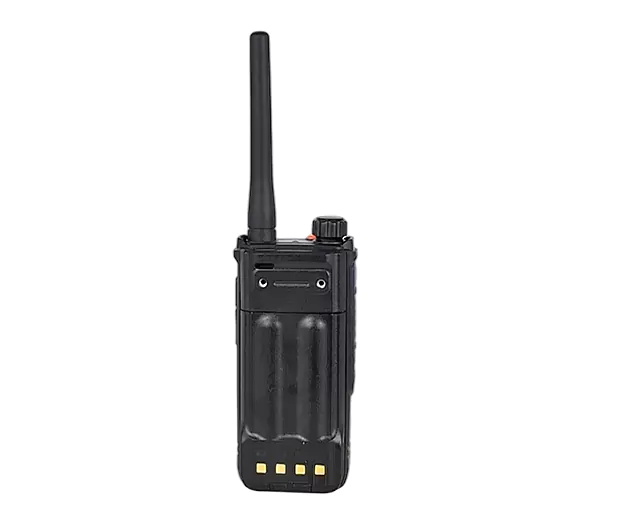

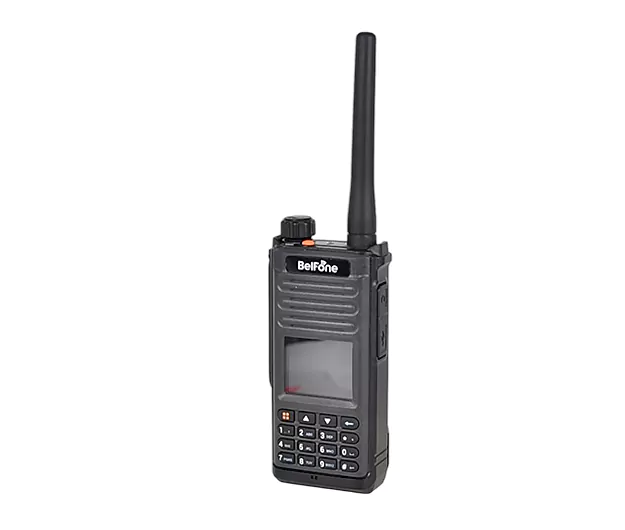

BF-TP800

Hybrid Portable Radio

OEM/ODM

TP800 is a new advanced multi-mode radio which integrates public broadband and narrowband PMR technology to provide critical voice and data services. It brings flexible useability of public network, private network, mixed network and gateway mode, and performance advancements like split-screen, dual PTT, GPS, recording, Bluetooth, etc., to be convenient and benefit for every aspect of radio experience. Designed to meet diversified requirements, it ensures mission-critical reliability, accelerat

Inquiry

BF-TP800

Hybrid Portable Radio

Highlights
Videos
Specifications
Accessories
Related Products
Applications
Download

Highlights

Multi-mode Hybrid, Flexible Communications

A multimode radio works in DMR, analog and PoC（public 4G/3G/2G）mode, which could always keep contact, to communicate whenever and wherever.

Intelligent Gateway Mode

This smart radio provides outstanding connectivity of PMR （DMR or analog） and PoC, brings all the advantages of narrowband and broadband technologies, bridging the voice communication over different networks.

Intuitive Multi-Active Split-screen

Designed with full keypad, 1.77”transflective LCD, it offers you the choice of narrowband broadband display up and down.

5000mAh Extended Battery Life

It comes with a 14-hour smart lithium battery and a built-in PTC protection to guarantee the safety and reliability.

Support 4G/3G/2G, national limitless communication.

2
Dual PTT of PMR and Poc to call at ease and high efficiency.

2

WEB-based public network dispatch to provide multi-functions like private/group call, GPS, query, RFID, data, messagess, etc.

2
Flexible Multi-Optional Functions

GPS positioning Bluetooth Recording Low battery voice alert

Support 4G/3G/2G, national limitless communication.

Dual PTT of PMR and Poc to call at ease and high efficiency.

WEB-based public network dispatch to provide multi-functions like private/group call, GPS, query, RFID, data, messagess, etc.

Flexible Multi-Optional Functions

GPS positioning Bluetooth Recording Low battery voice alert

Videos

Specifications

General

Frequency Range	VHF: 136-174MHZ； UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channel Capacity	100
Channel Spacing	12.5KHz/ 25KHz
Working Voltage	DC 3.7V
Frequency Stability	±1.5ppm
Antenna Impedance	50Ω
Battery Capacity	5000 mAh
Average Battery Life（5/5/90）	Public Network: 14hours； PMR Network: 11 hours
Dimension	123* 60* 30mm (Excluding antenna)
Weight	300g (Excluding battery)
Network Standards	LTE-FDD: B1/B3/B5/B8； LTE-TDD: B38/B39/B40/B41；WCDMA: B1/B8 TD-SCDMA: B34/B39

Transmitter

Power Output	High power: 4.0 ±0.2W; Low power: 1.0 ±0.2W
4FSK Modulation	12.5KHz data only: 7K60FXD； 12.5KHz data and voice: 7K60FXE
Modulation Limitation	±2.5KHz
Spurious Emission	-36 dBm 1GHz/ -30 dBm 1GHz
Adjacent Channel Power	≤-60dB
Frequency Response	+1/-3dB
Audio Distortion	0.03

Receiver

Digital Sensitivity	5% BER: 0.25 V
Analog Sensitive	0.22uV (12 dB SINAD)
Intermodulation	60dB
Adjacent Channel Selection	50dB
Spurious Suppression	ETSI/TIA603: 55dB
FM Noise	40dB
Frequency Response	+1/-3 dB
Rated Audio Power	1.5W
Rated Audio Distortion	≤5%
Conduction Radiation	3%(typical)
GPS Precision	Horizontal Accuracy 10m (with good signal)
