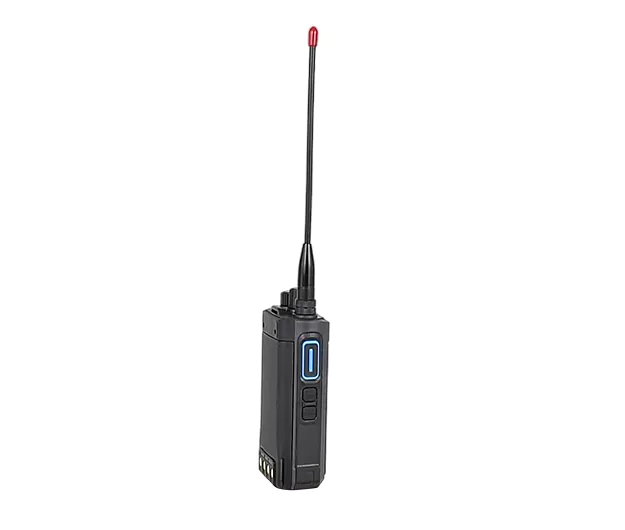

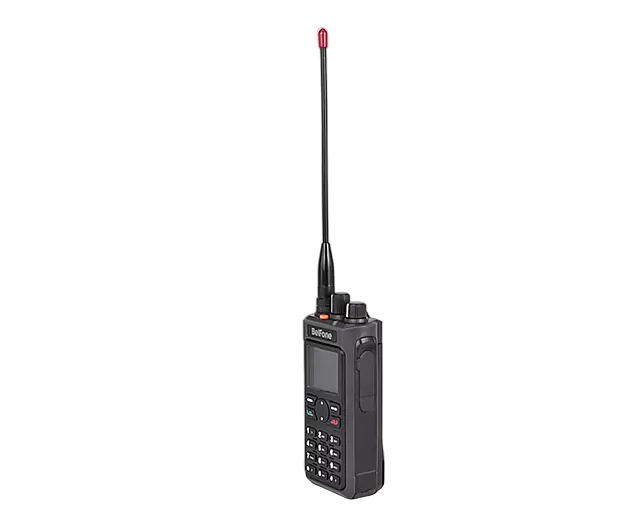

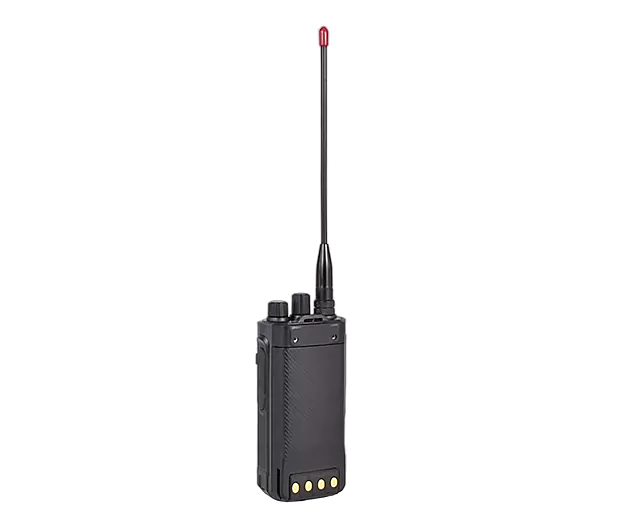

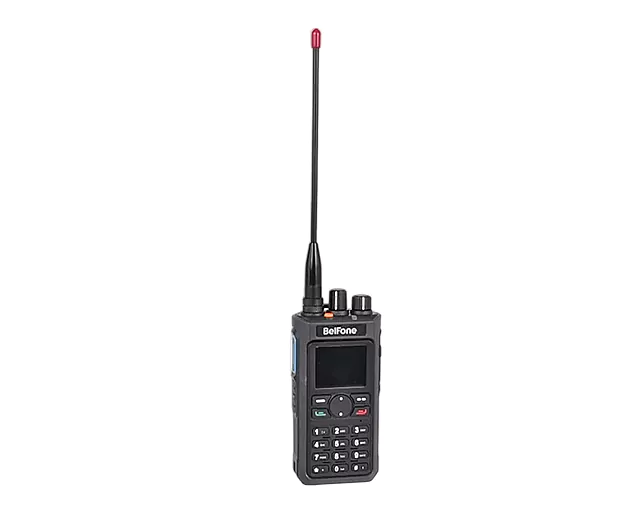

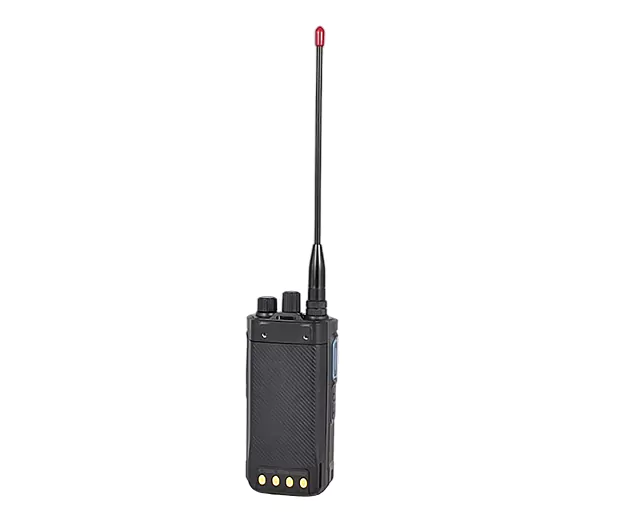

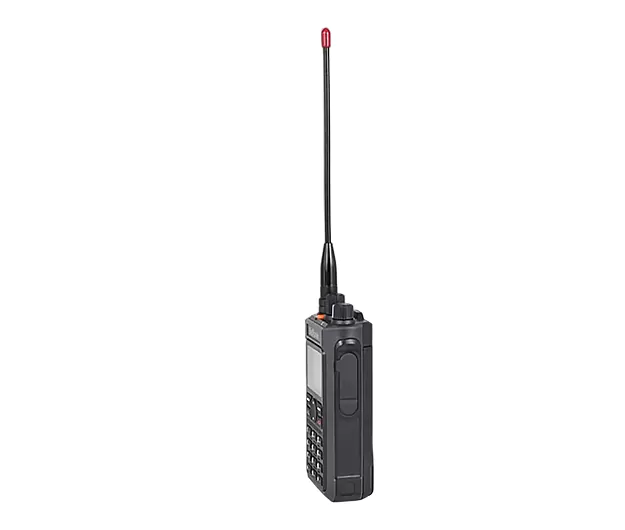

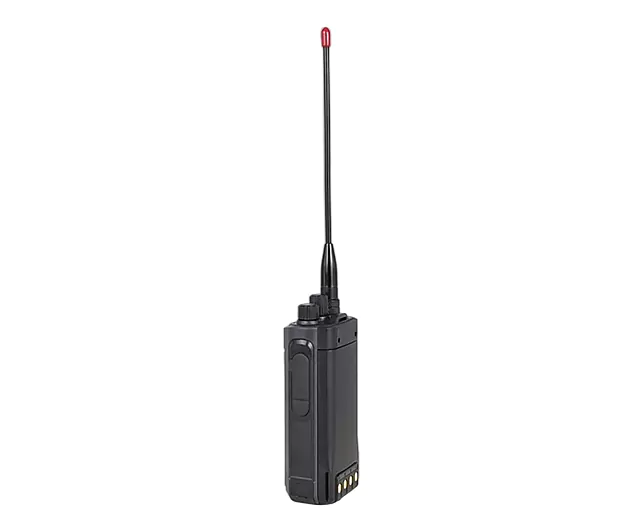

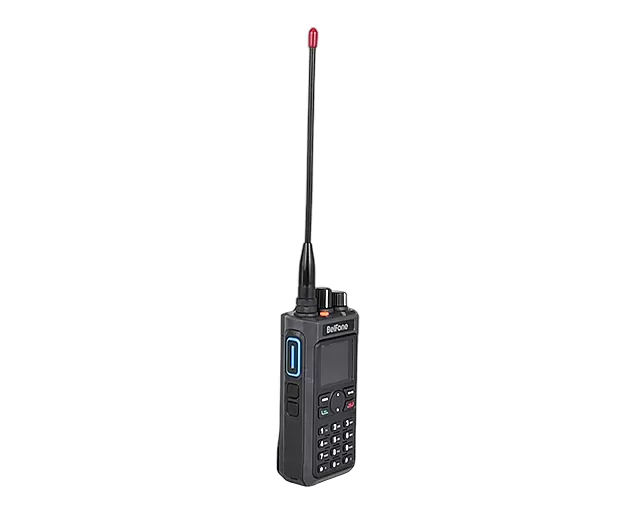

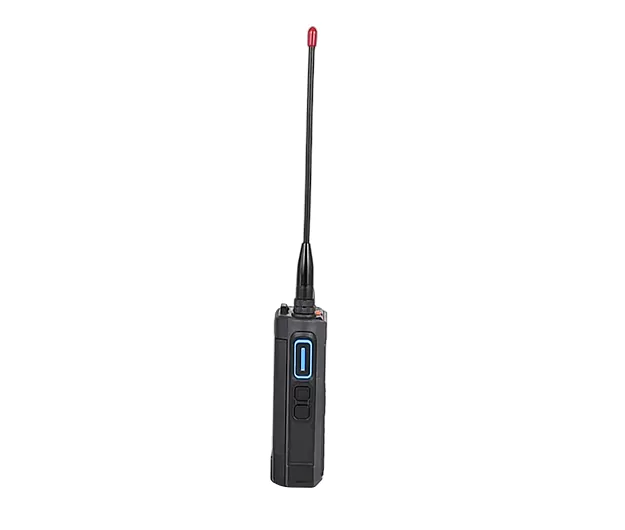

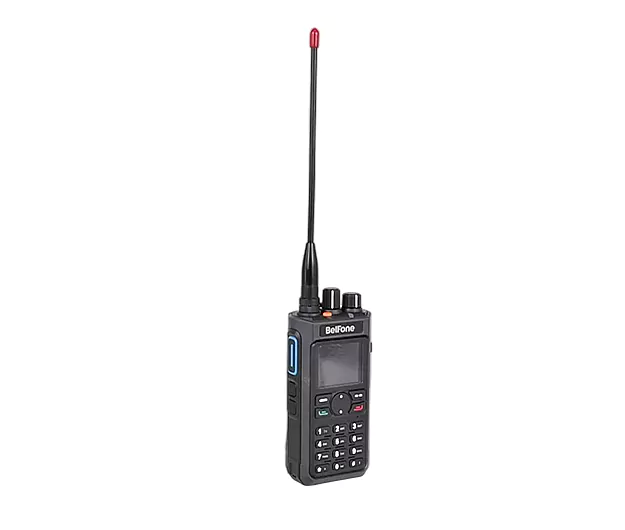

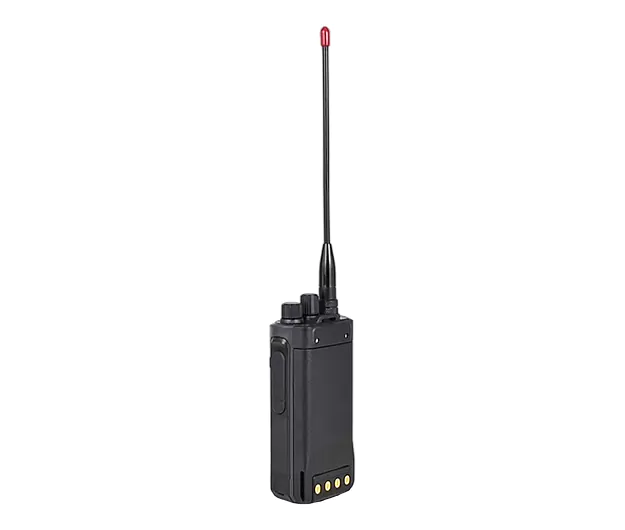

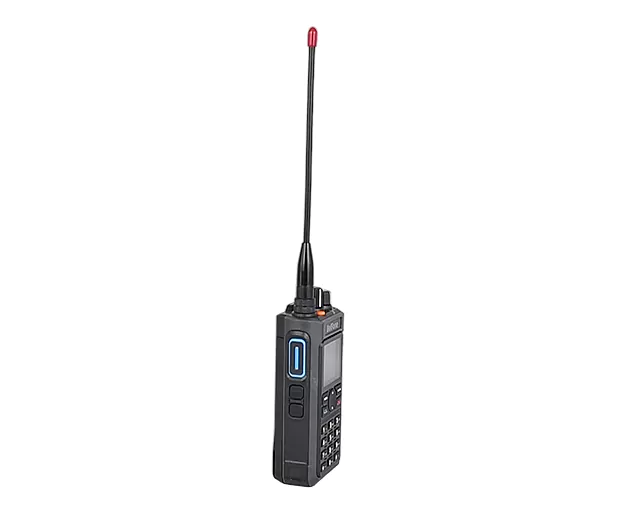

BF-TD588UV

UV Band Digital Radio

DMR Amateur Ham NOAA APRS OEM/ODM
BF-TD588 amateur UV band radio integrates advanced digital technology, delivers excellent dual band transmission capacity, dual frequency standby, clear audio, enhanced features, and offers high playability. Whether for daily communication or outdoor activity use, it provides ham radio operators with stable and efficient communication support.
Inquiry
Inquiry
BF-TD588UV
UV Band Digital Radio
Inquiry

Highlights

User Friendly Design

The BF-TD588UV is built with high-quality engineering material and features a non-slip textured design that ensures a firm grip even in slippery or harsh environments. Equipped with a 1.77-inch display, full numeric keypad, and clear UI this radio brings simpler and more intuitive operation, further enhancing user experience.


Dual Standby

BF-TD588 is a dual-band amateur radio that features good communication effect, supports UHF and VHF single and dual standby switching, featuring excellent communication effectiveness. The UHF band delivers clear audio in urban areas communication due to its strong penetration capability, while the VHF band brings an extended communication range for communications in wilderness areas.


Large Storage Capacity

BF-TD588 supports 400 channels and 64 zones, enhancing communication stability and reliability, allowing flexible channel switches, and avoiding busy channel/interference issues. The address books can store up to 2000 contacts, enabling group management and facilitating touch calling.

APRS (Automatic Position Reporting System)

BF-TD588UV incorporates analog APRS functionality, allowing it to automatically upload personal information and transmit information in real time without resorting to the network connection. Providing reliable guarantees for operations in mountainous and complex terrain areas lacking communication network coverage, ensuring real-time monitoring of personnel's location, and securing personal safety.

MIC Audio Noise Reduction

BF-TD588UV incorporates analog APRS functionality, allowing it to automatically upload personal information and transmit information in real time without resorting to the network connection. Providing reliable guarantees for operations in mountainous and complex terrain areas lacking communication network coverage, ensuring real-time monitoring of personnel's location, and securing personal safety.

Multiple Encryptions

BF-TD588UV features advanced AES256/ARC4 encryption to encrypt audio and data signals, ensuring communication privacy and information security.

Multiple Mode Positioning

BF-TD588UV supports GPS, Beidou, GLONASS, and Galileo positioning, enabling precise real-time outdoor satellite real-time positioning. Coupled with voice call location display technology, the recipient's call interface can show the direction information of the caller.

Safety Warning and Monitoring

BF-TD588UV enables multiple alarms and personal safety monitoring, including on-key alert, work alone, and man down. Allowing automatic emergency alarm uploading to secure personal safety at first time, and nip risks in the bud.

VFO/MR Mode

The BF-TD588UV supports VFO/MR mode switch. When in VFO mode, rotate the channel encoder or directly input frequencies in the numeric keypad to adjust frequencies, and rotate the channel encoder to switch channels when in MR mode, providing convenience for users to switch channels based on communication requirements flexibly.

NOAA Broadcast

BF-TD588 supports NOAA weather forecasting and warning, allowing it to scan hazardous weather channels nearby and transmit to your area even without mobile phone services. When the weather emergency alert function is on, the radio will automatically push warnings from designated NOAA broadcast stations. This is particularly useful for hikers, climbers, campers, and other outdoor users.

Rich Functionality

The BF-TD588UV dual-band amateur digital radio is designed with extensive features catering to outdoor users, supporting weather forecasting, FM radio, 15-hour recording, etc. In outdoor settings, it's suitable for receiving broadcasts and weather updates. Additionally, it supports optional Bluetooth peripherals for a more user-friendly experience, handling communication needs with ease, making it the ideal choice for both outdoor activities and commuting.

Specifications

General
Frequency Range 136-174 MHz/400-480 MHz
Mode DMR
Channel Capacity 4000
Zone 64
Channel Spacing 12.5KHz/25KHz
Working Voltage DC 7.4V (±20%)
Battery Capacity 2000 mAh
Average Battery Life(5/5/90) Digital 21 Hours; Analog 15 Hours
Frequency Stability ±0.5ppm
Antenna Impedance 50Ω
Working Current RX: 300mA; TX: 800mA
Display TFT,128*160RGB,1.77 inches
Keypad 18 buttons on front
Dimension 58(L)*36(W)*121(H)mm
Weight 288g(including battery)
Recording Time 15 Hours
Bluetooth BT5.0
Transmitter
Power Output <5W
4FSK Modulation 12.5kHz Only data:7K60FXD 12.5kHz Data and voice:7K60FXE
FM Modulation 12.5 kHz:8K50F3E;
Modulation Limitation ±2.5kHz @ 12.5kHz;
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≥60dB
Frequency Response +1/-3 dB
Free time slot power ≤-57dBm
Digital Vocoder AMBE
Receiver
Digital Sensitivity 5% BER:0.22uV
Analog Sensitive 0.165uV (12dB SINAD)
Intermodulation ≥65dB
Adjacent Channel Selection ≥60dB
Spurious Suppression ≥65 dB
FM Noise -40dB
Frequency Response +1/-3 dB
Rated Audio Power 0.5W
Maximum Audio Power 2W
Rated Audio Distortion 3% (Typical)
Harmonic suppression ≤-57dBm
If Rejection ≤70dBm
Co-channel suppression ≤70dBm
Image Rejection ≤70dBm
Conduction Radiation ≤-57dBm
Spurious radiation ≤-57dBm
Block ≤90dBm
GPS Precision Horizontal Accuracy≤-2.5m(With good signal)
TTFF(first location)Cold Boot < 1 Minute
TTFF(first location)Hot Boot < 10 Seconds
TTFF Recapture < 10 Seconds
Environmental Specifications
Operational Temperature -20℃—+60℃
Storage Temperature -30℃—+85℃
ESD(Electrostatic Protection) ±5kV(Contact Discharge); ±8kV (Air Discharge)
Dust & Water Proof IP54
