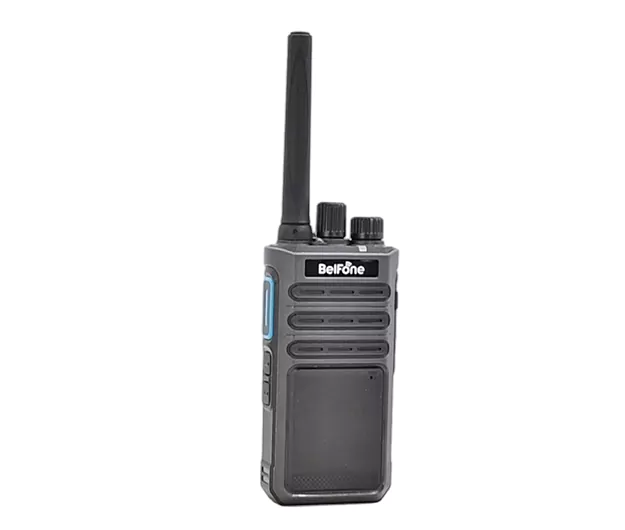

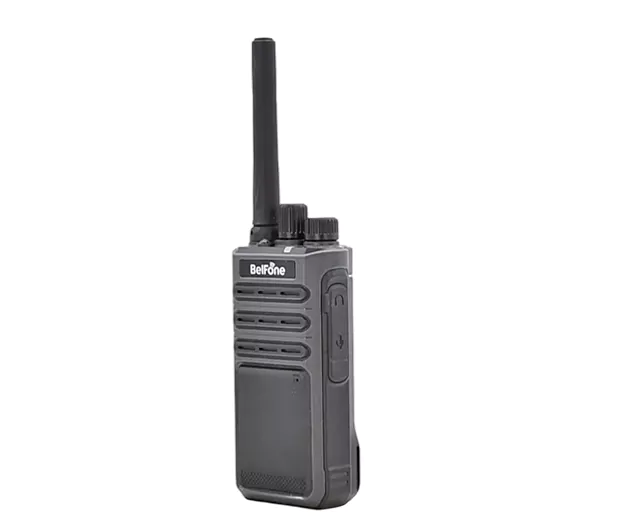

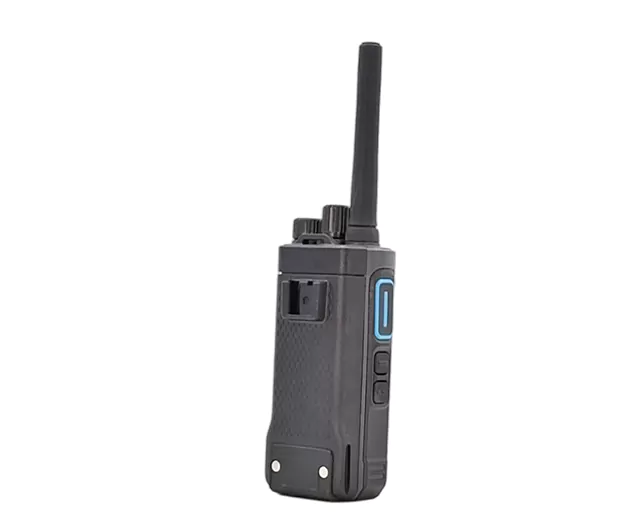

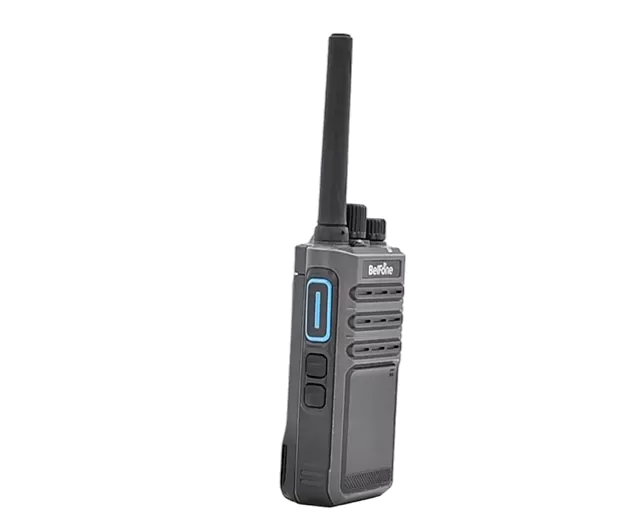

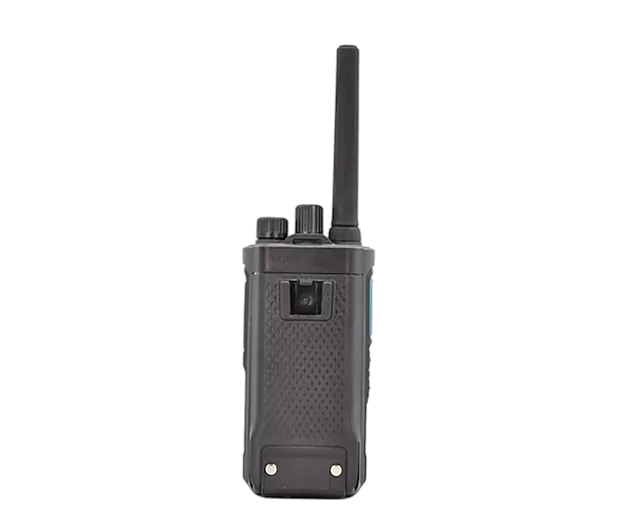

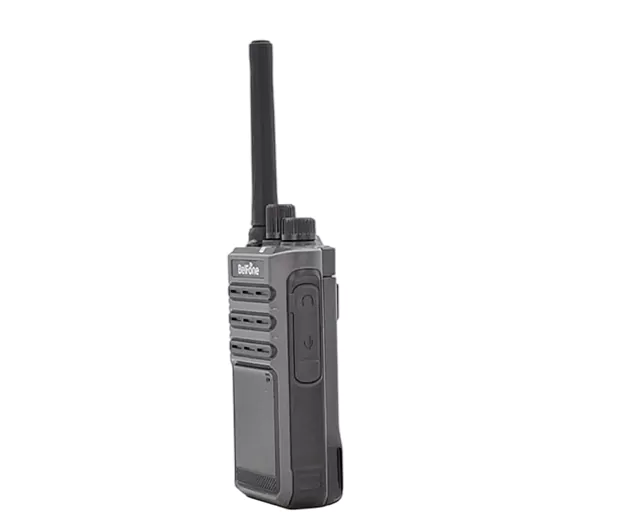

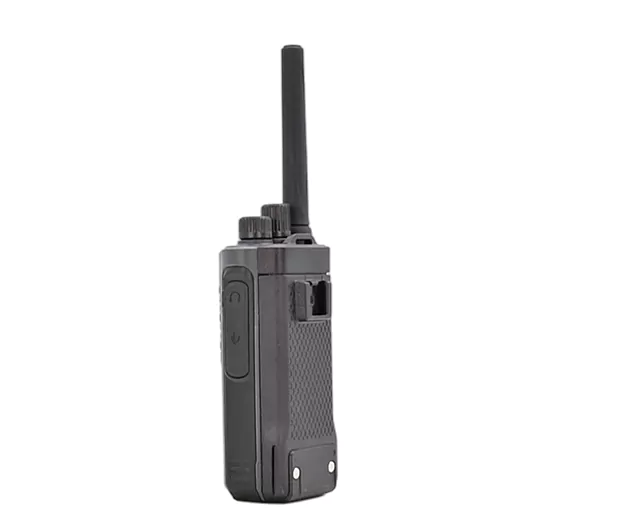

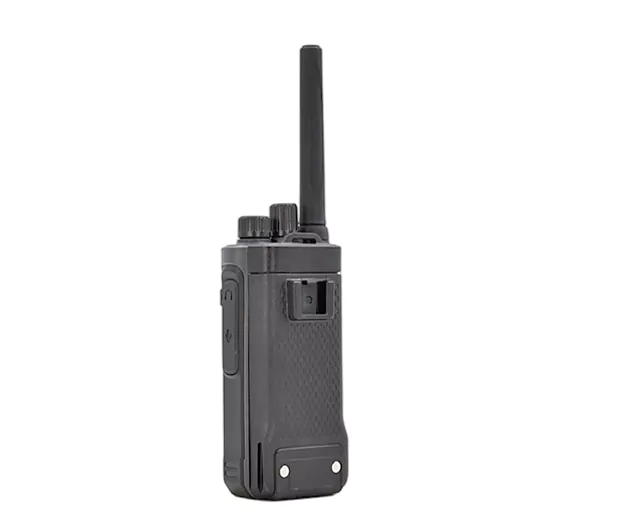

BF-AP5016
Analog Two-Way Radio
Drag to Spin
360°

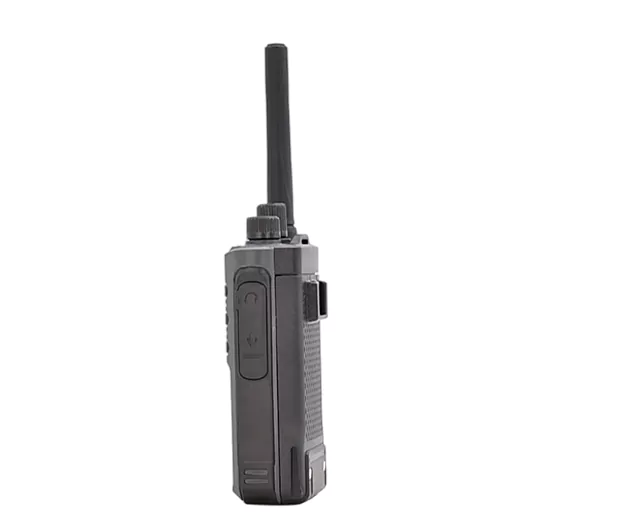

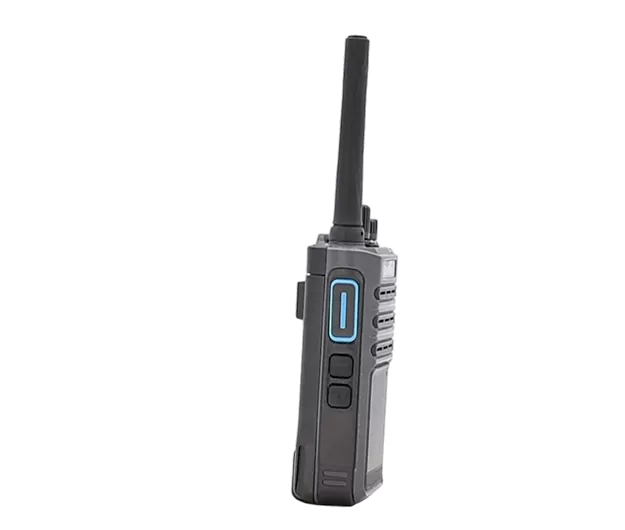

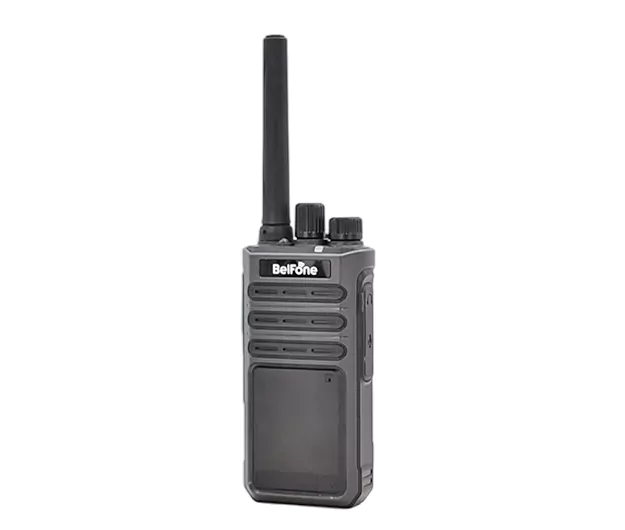

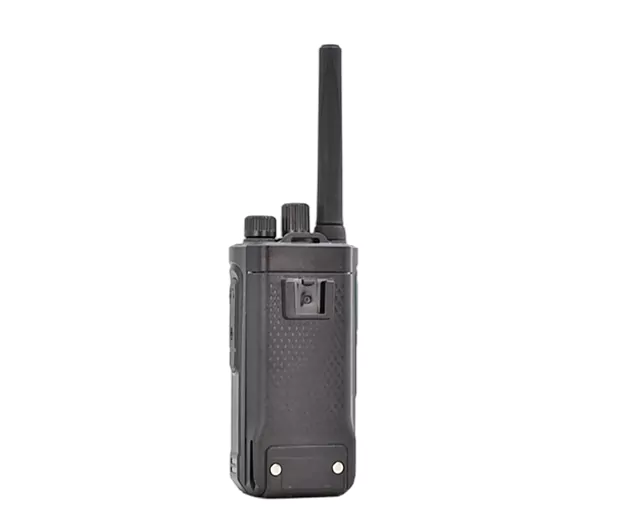

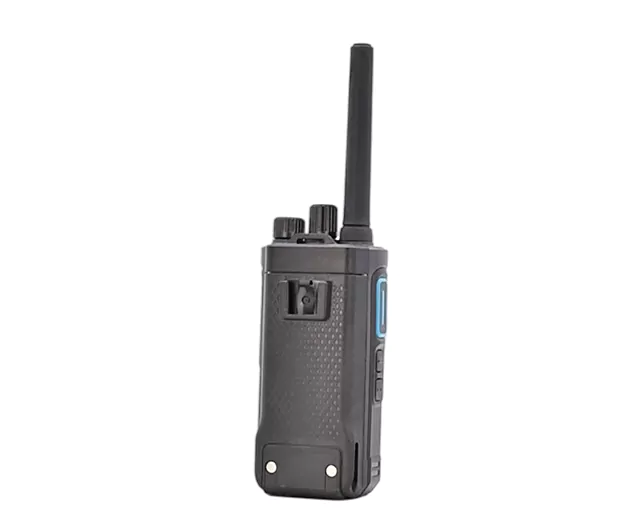

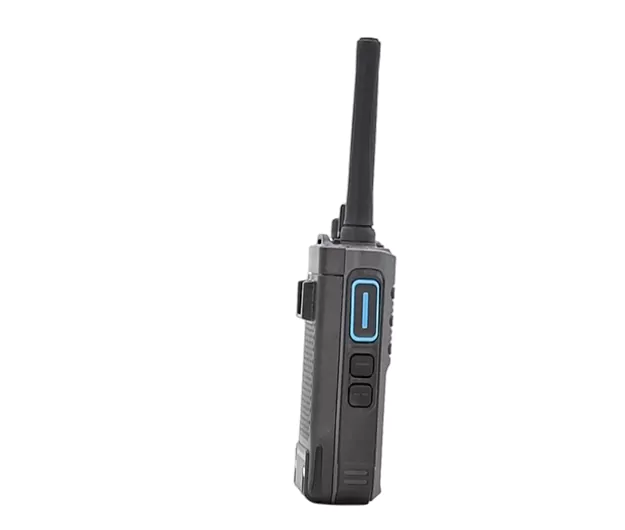

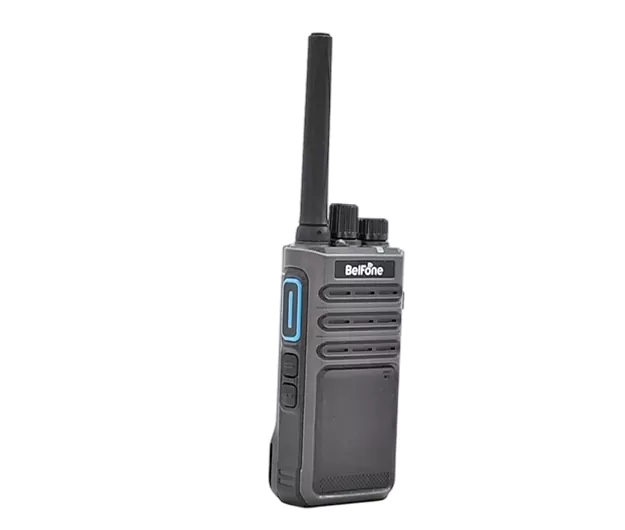

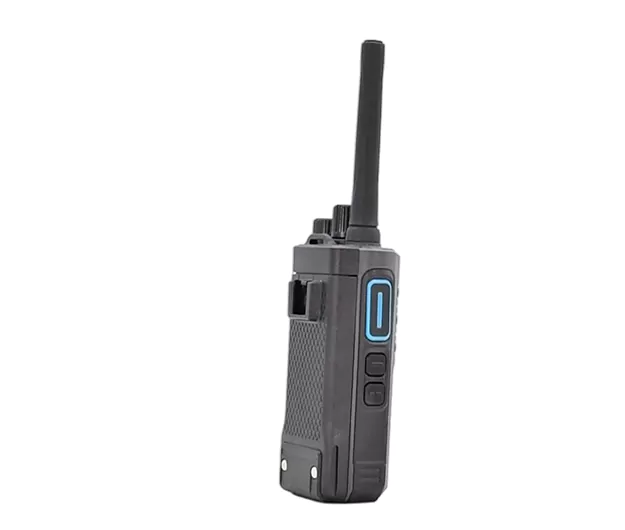

BF-AP5016 Analog Two-Way Radio
BF-AP5016, the new generation high power analog two-way radio, can adapt multi-scenes for its many outstanding advantages in many aspects like modern design, strong signal penetration, long battery life, excellent sound quality, drop resistance and compression ability, etc., guaranteeing continuity and reliability effectively.
Inquiry
Inquiry
Highlights
VOX
High Power
Squelch Level
Channel Matching
Type-C Charging Mode
Busy Channel Locking
Special Signal Mode
Noise Reduction (Optional)
High Power
Squelch Level
Channel Matching
Type-C Charging Mode
Busy Channel Locking
Special Signal Mode
Noise Reduction (Optional)
Specifications
General
| Frequency Range | UHF: 400-480MHz |
| Channel Capacity | 16 |
| Channel Spacing | 25 KHz /12.5 KHz |
| Frequency Stability | ≤±2.5 ppm |
| Antenna Impedance | 50Ω |
| Working Voltage | DC 7.4V (±20%) |
| Battery Capacity | 1800mAh |
| Dimension | 54*33*113mm |
| Weight | 214g |
Transmitter
| Power Output | ≤5W |
| 4FSK Modulation | 11KφF3E/16KφF3E |
| FM Modulation | ≤±2.5KHz /±5.0KHz |
| Adjacent Channel Power | 60dB |
| Audio Distortion | ＜5% |
Receiver
| Analog Sensitive | ≤-122dBm(12dB SINAD) |
| Intermodulation | ≥60dB(Wide)/ 55dB (Narrow) |
| Adjacent Channel Selection | ≥60dB(Wide)/ 55dB(Narrow) |
| Spurious Suppression | ≥60dB(Wide)/ 55dB(Narrow) |
| Rated Audio Power | 0.5W |
| Rated Audio Distortion | ≤5% |
Environmental Specifications
| Operational Temperature | -20℃～+60℃ |
| Storage Temperature | -30℃～+70℃ |
