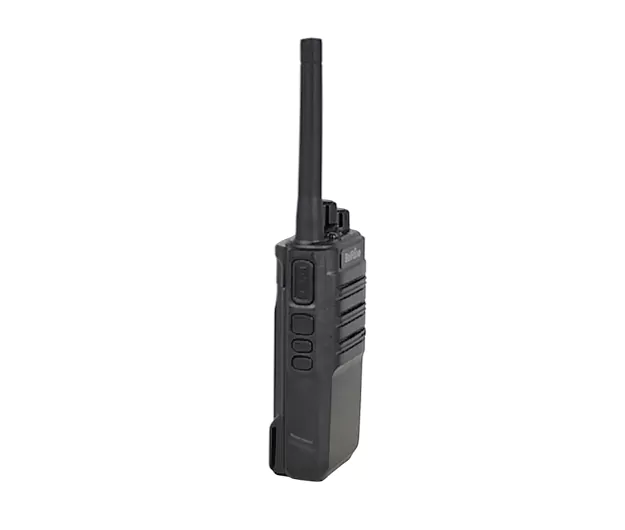

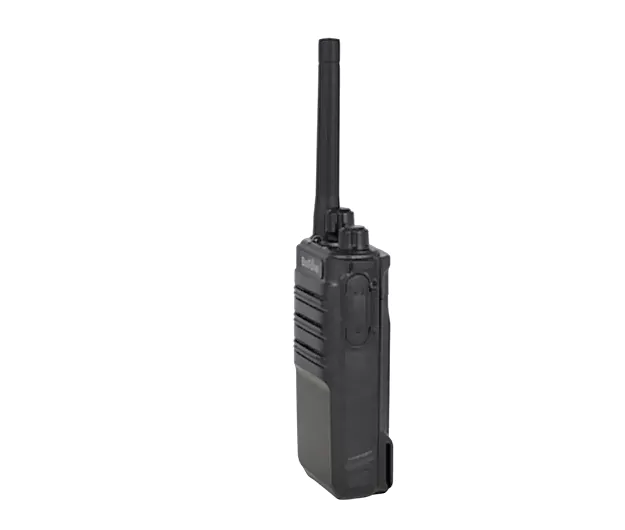

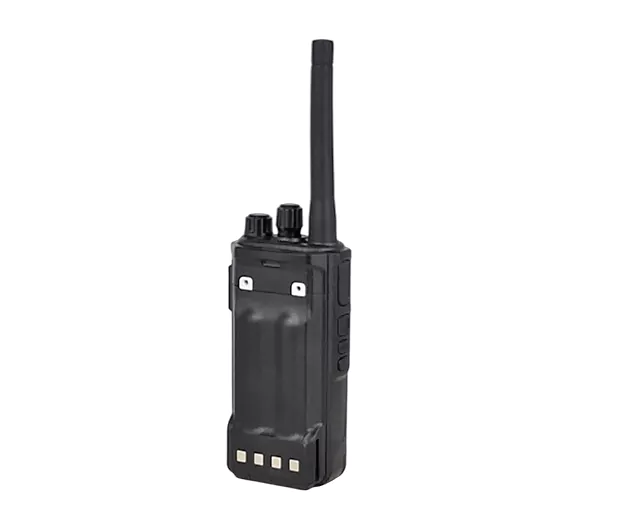

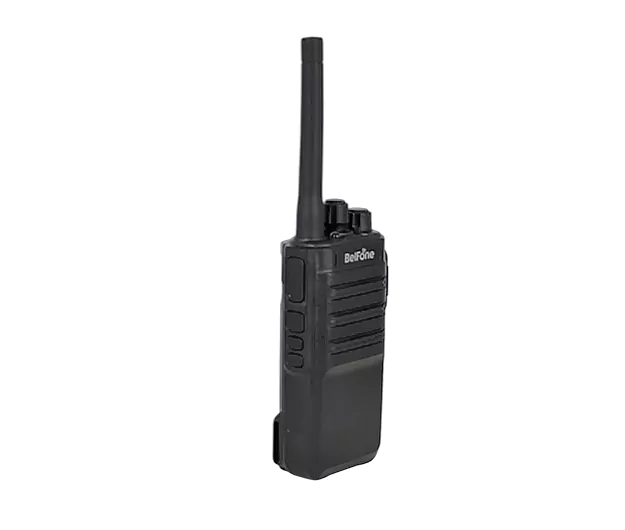

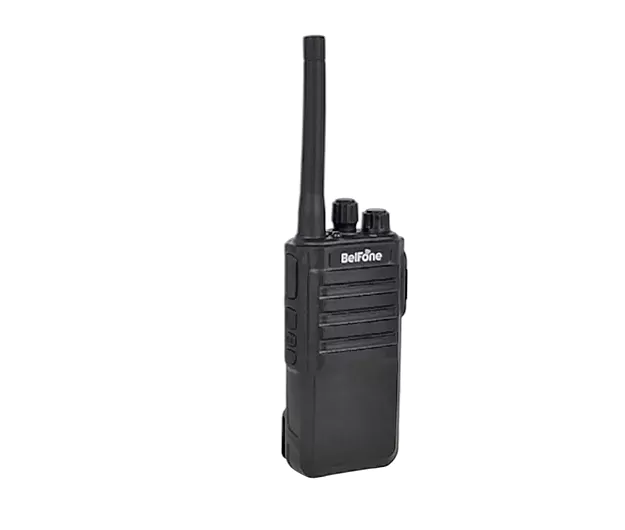

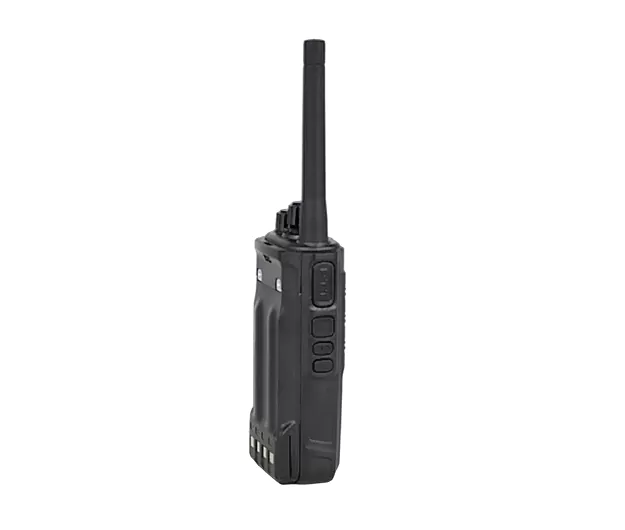

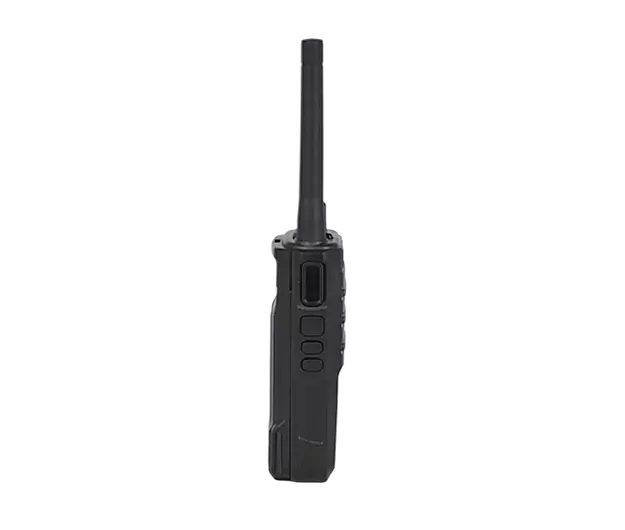

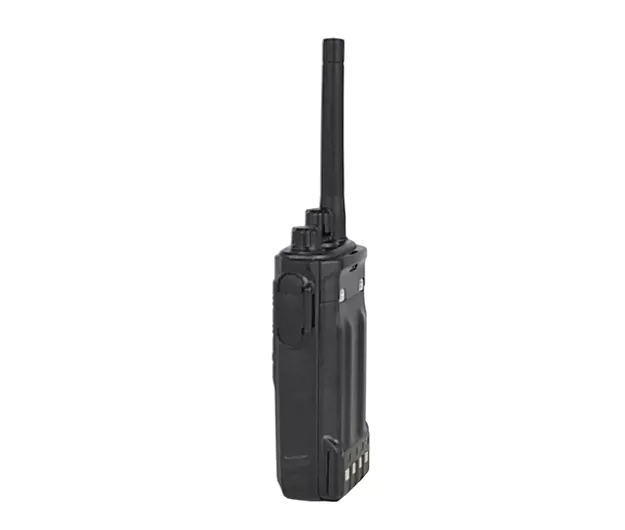

BF-500

Analog Portable Two-Way Radio

OEM/ODM

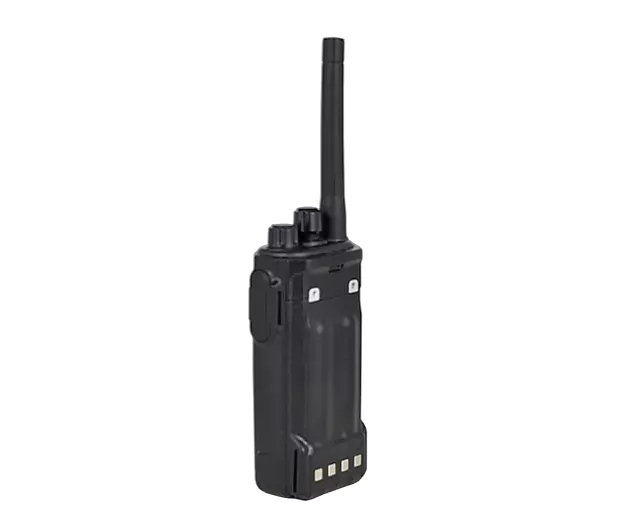

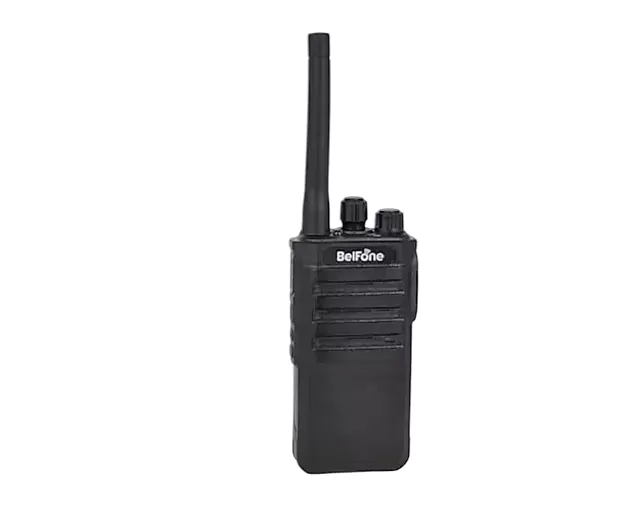

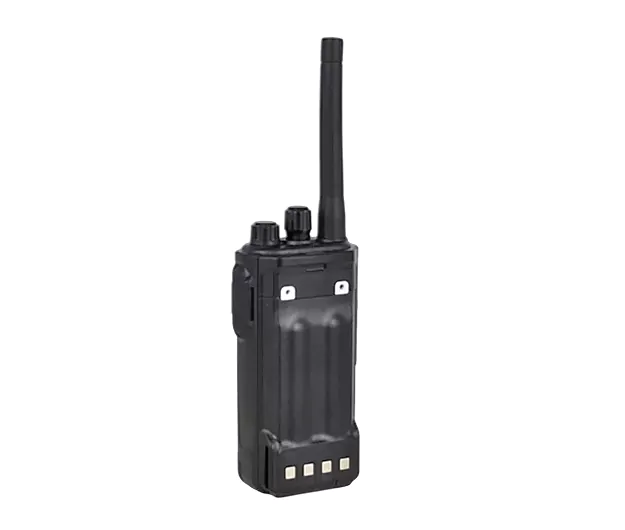

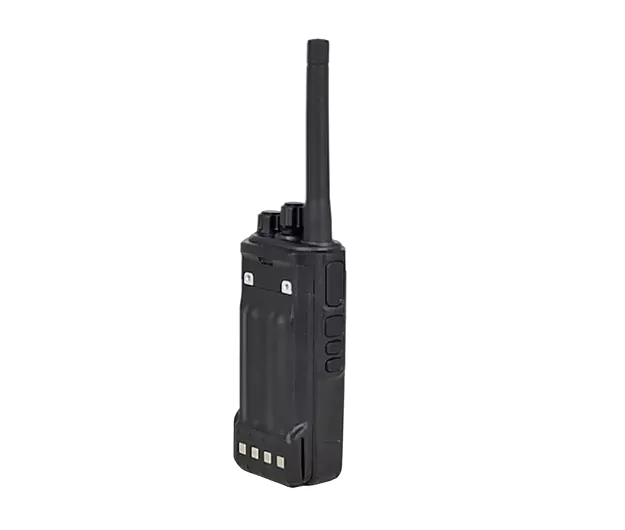

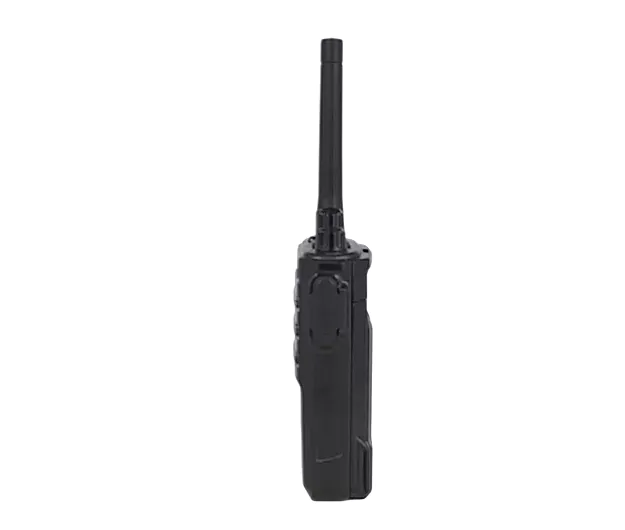

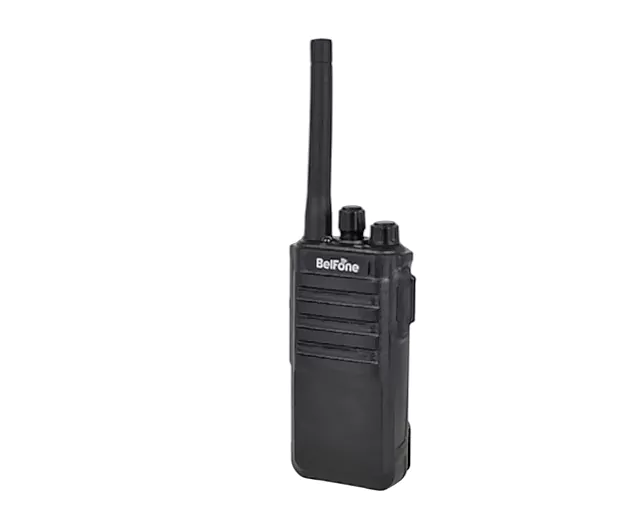

BF-500 is a compact and durable two-way radio with two PTT buttons. While one PTT button comes with a preset channel, with the other the user can switch channels via the channel switch knob. BF-500, when not transmitting, is on standby for signals from both channels. With a 4000mAh battery capacity the standby time is greatly prolonged. Moreover, the multi-functional built-in torchlight and battery indicator contribute to the convenience of BF-500. This is an ideal analog solution for users with
Inquiry
Inquiry
BF-500
Analog Portable Two-Way Radio
Inquiry

Highlights

Long Battery Life
Two PTT Buttons
CTCSS/CDCSS
Battery Indicator
Noise Cancellation
Built-in Flashlight

Specifications

General
Frequency Range UHF: 400-480MHz
Channel Capacity 16
Channel Spacing 25 KHz /12.5 KHz
Antenna Impedance 50Ω
Working Voltage DC 3.7V (±20%)
Battery Capacity 4000mAh
Average Battery Life(5/5/90) 27h
Frequency Stability ≤±2.5 ppm
Dimension 59(L)*36(W)*115(H)mm
Weight 252g(Including Battery)
Transmitter
Power Output ≤5W
FM Modulation 11KφF3E/16KφF3E
Maximum Frequency Deviation ≤±2.5KHz /±5.0KHz
Audio Distortion <5%
Adjacent Channel Power 60dB
Receiver
Analog Sensitive ≤-123dBm(12dB SINAD)
Adjacent Channel Selection ≥60dB(Wide)/ 55dB (Narrow)
Intermodulation ≥60dB(Wide)/ 55dB (Narrow)
Spurious Suppression ≥60dB(Wide)/ 55dB (Narrow)
Rated Audio Power Rated: 0.5W; Max: 0.9W
Rated Audio Distortion ≤5%
Environmental Specifications
Operational Temperature -20℃~+60℃
Storage Temperature -30℃—+85℃
