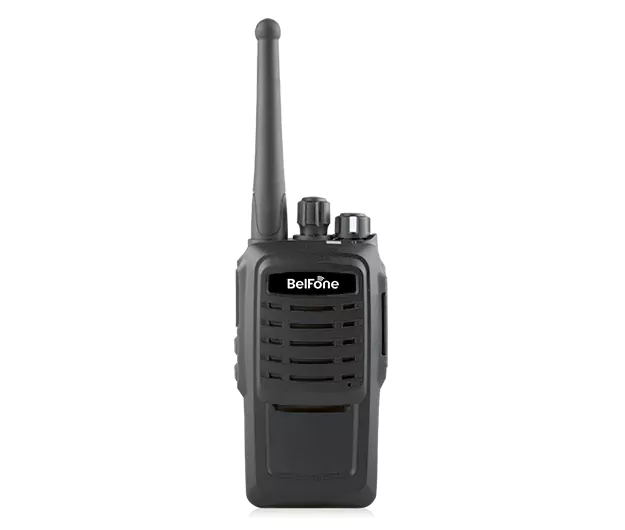

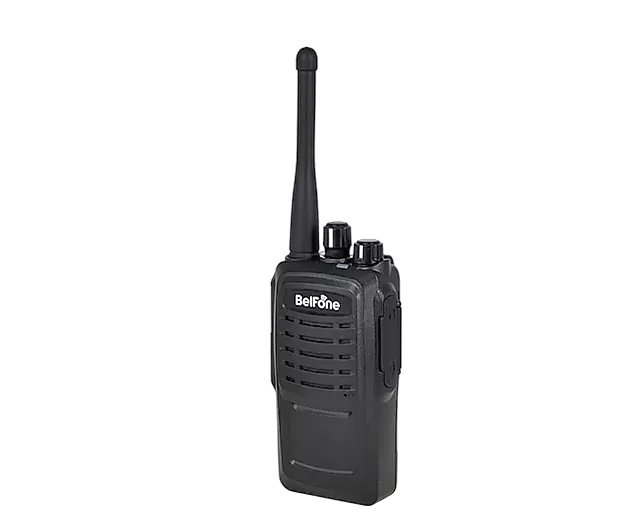

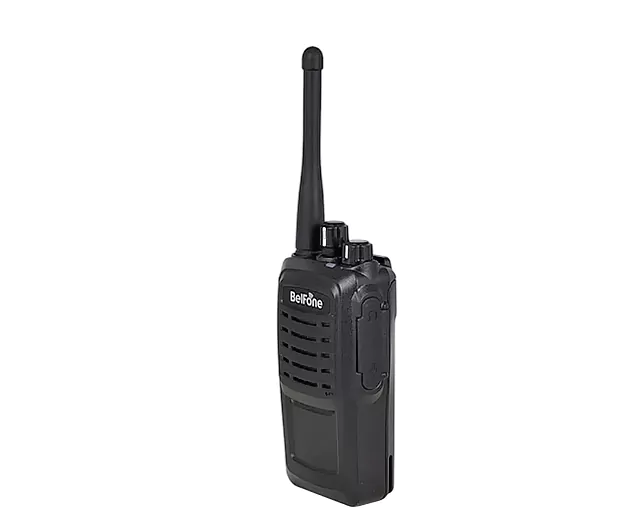

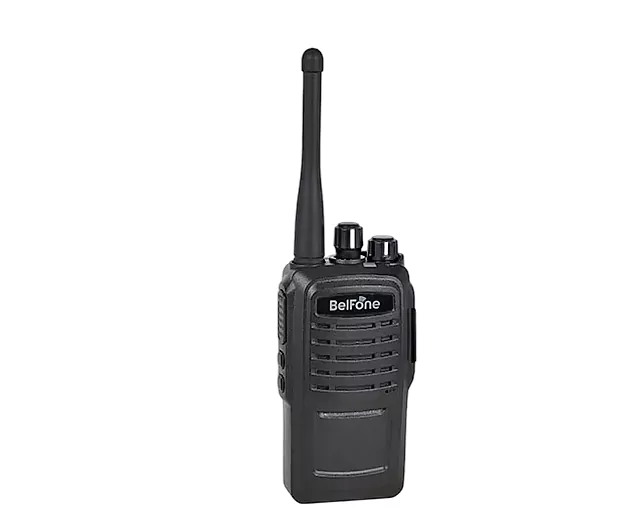

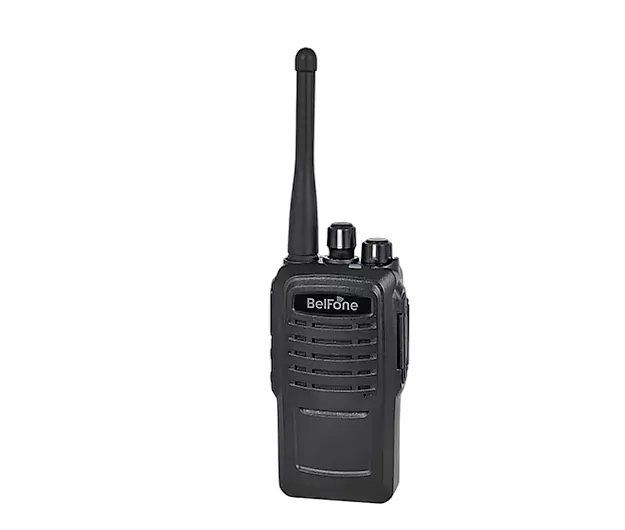

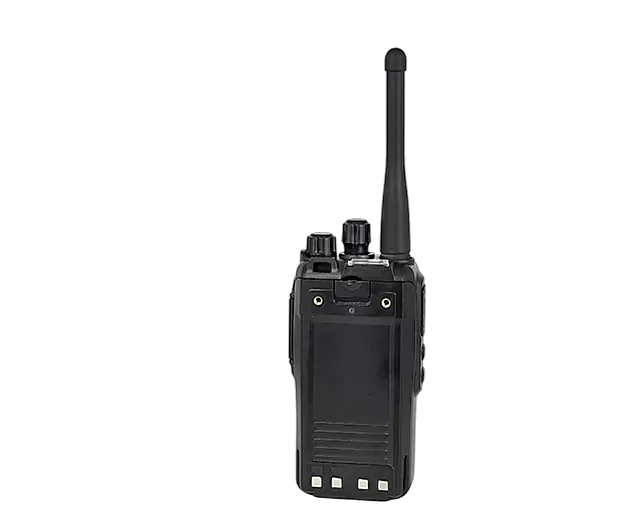

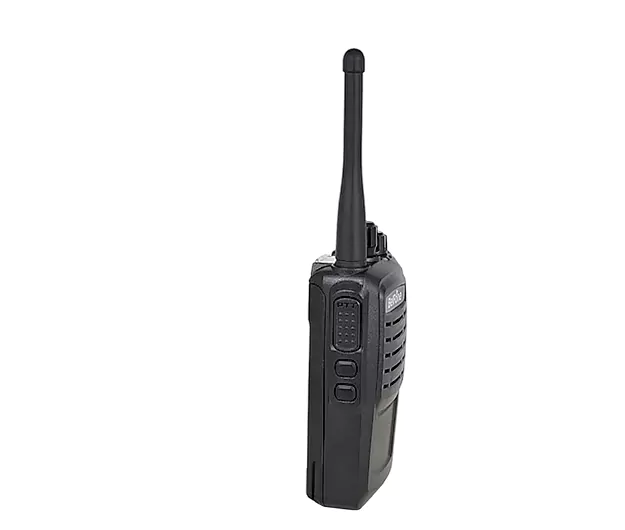

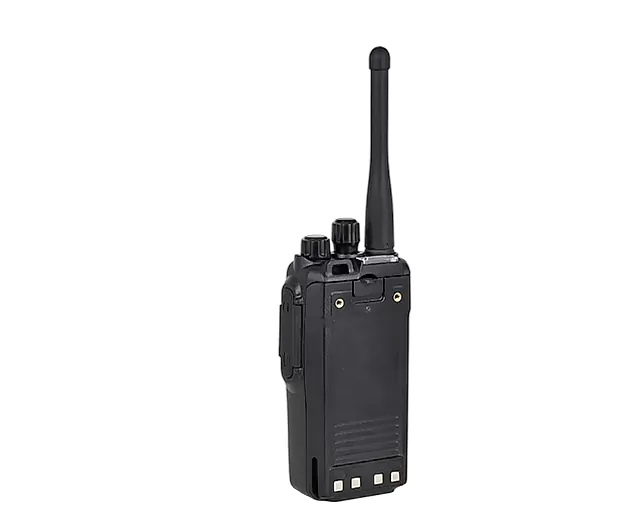

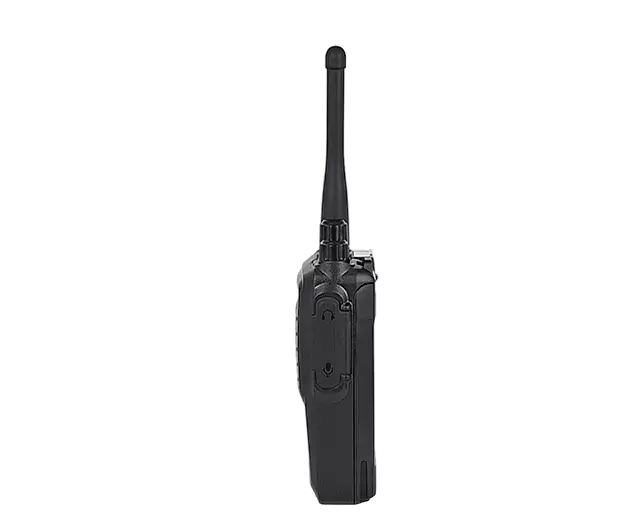

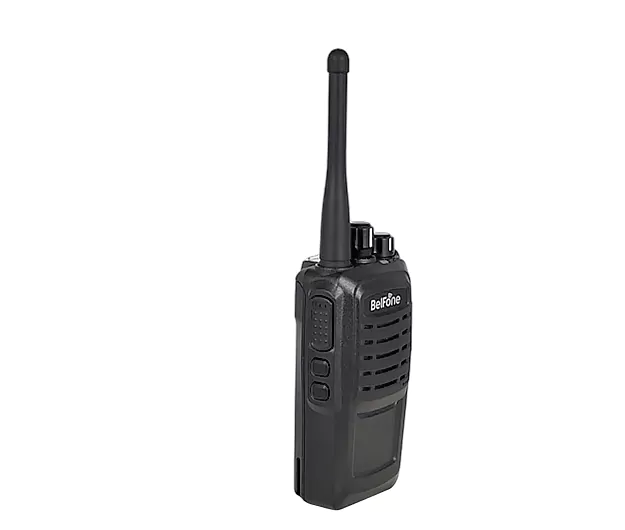

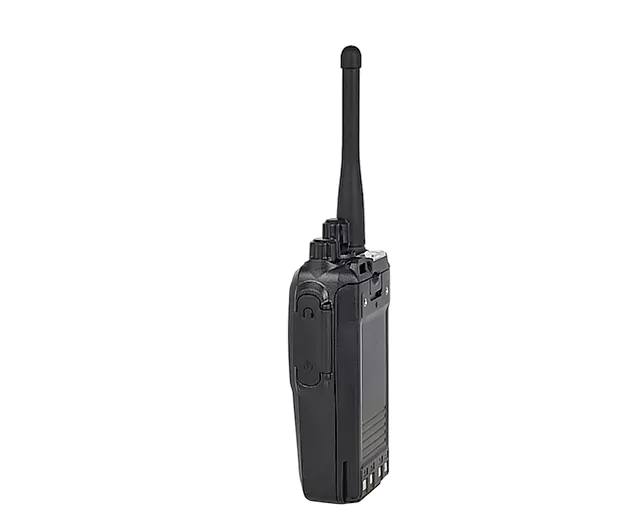

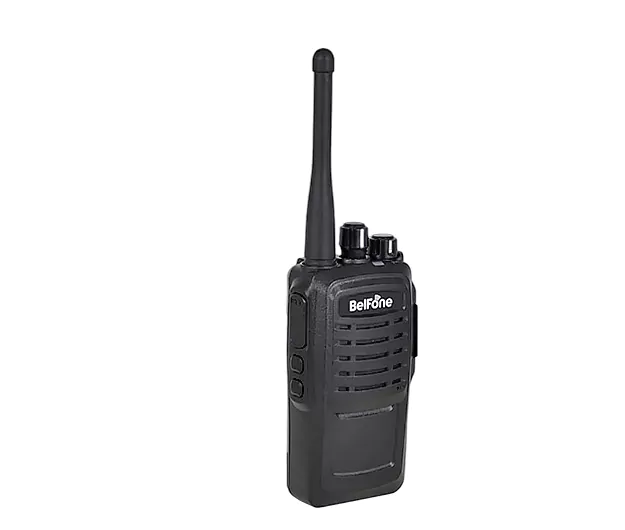

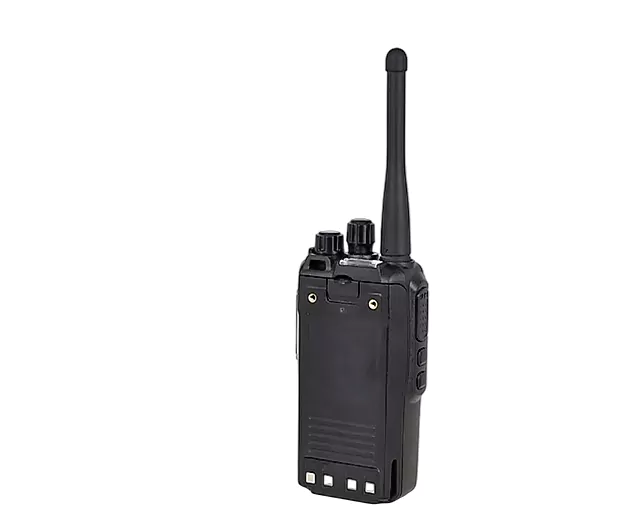

BF-530
Analog Portable Two Way Radio
BF-530
Analog Portable Two Way Radio
OEM/ODM
BF-530 is a professional FM two-way radio with switchable transmitting powers, selectable squelch levels, programmable bandwidth and other advanced analog features. It is designed to deliver more safety and efficiency into your work and life. Its application ranges across many fields of work, such as restaurants, warehouses, outdoor activities, etc.
Inquiry
Inquiry
Highlights
H/L Power Switchable
Busy Channel Lockout(BCL)
Programmable Bandwidth
PC Programming
CTCSS/CDCSS
Squelch Levels(0-9)
Busy Channel Lockout(BCL)
Programmable Bandwidth
PC Programming
CTCSS/CDCSS
Squelch Levels(0-9)
Specifications
General
| Frequency Range | VHF:136-174 MHz / UHF:400-470MHz |
| Channel Capacity | 16 |
| Channel Spacing | 25 KHz /12.5 KHz |
| Antenna Impedance | 50Ω |
| Working Voltage | DC 7.4V (±20%) |
| Battery Capacity | 2600mAh |
| Average Battery Life（5/5/90） | 27h |
| Frequency Stability | ≤±2.5 ppm |
| Dimension | 61(L)*38.2(W)*110.6(H) mm |
| Weight | 241g(including battery) |
Transmitter
| Power Output | ≤5W |
| FM Modulation | 16K0F3E(wide)/18K50F3E(narrow) |
| Noise and Harmonic | ≤-36dBm |
| FM Noise | ≤-40dB |
| Audio Distortion | ≤5% |
| Adjacent Channel Power | ≥65 dB(Wide)/60 dB(Narrow) |
| Modulation Limitation | ≤5KHz(Wide)/2.5KHz(Narrow) |
Receiver
| Analog Sensitive | ≤0.2μV(Wide)/ 0.25μV (Narrow) |
| Adjacent Channel Selection | ≥60dB(Wide)/ 55dB (Narrow) |
| Intermodulation | ≥60dB(Wide)/ 55dB (Narrow) |
| Spurious Suppression | ≥60dB(Wide)/ 55dB (Narrow) |
| SNR | ≥45dB(Wide)/ 40dB (Narrow) |
| Rated Audio Power | Rated: 0.5W; Max:0.9W |
| Rated Audio Distortion | ≤5% |
Environmental Specifications
| Operational Temperature | -20 ～+60℃ |
| Storage Temperature | -30℃—+85℃ |
