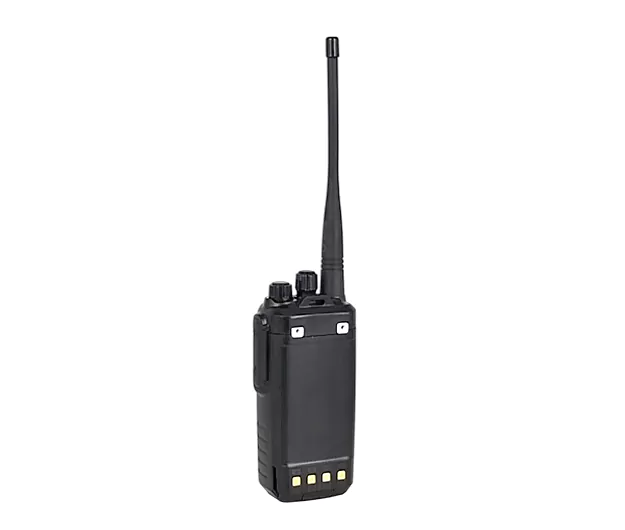

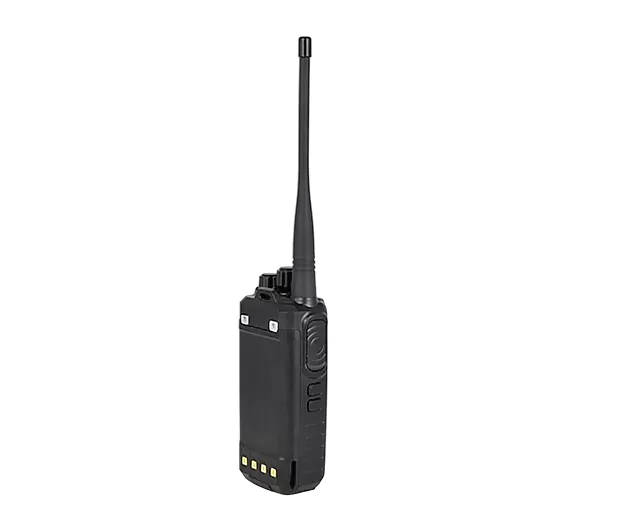

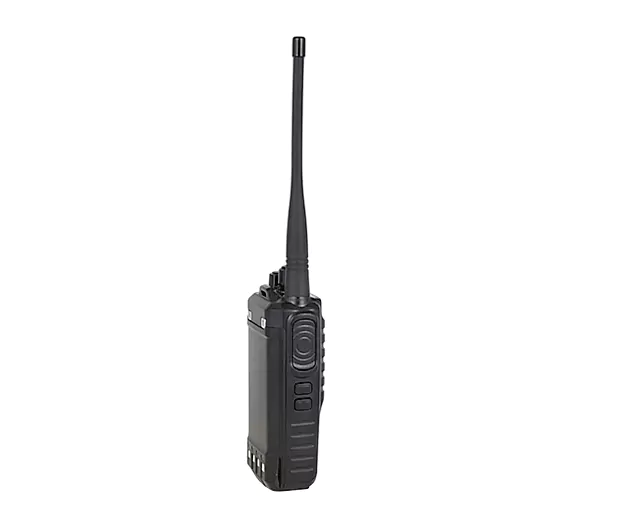

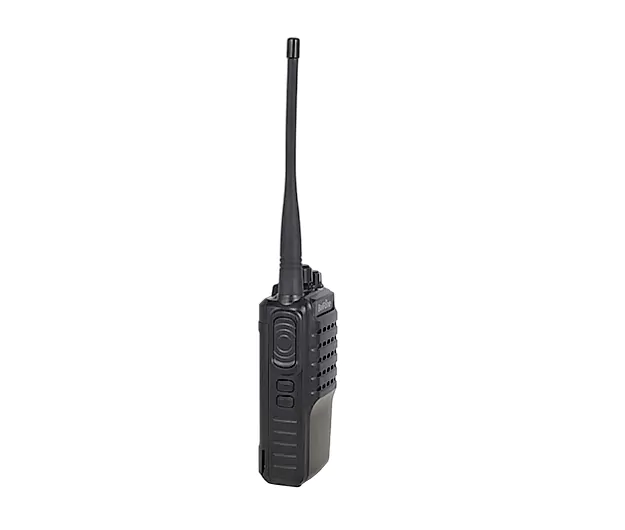

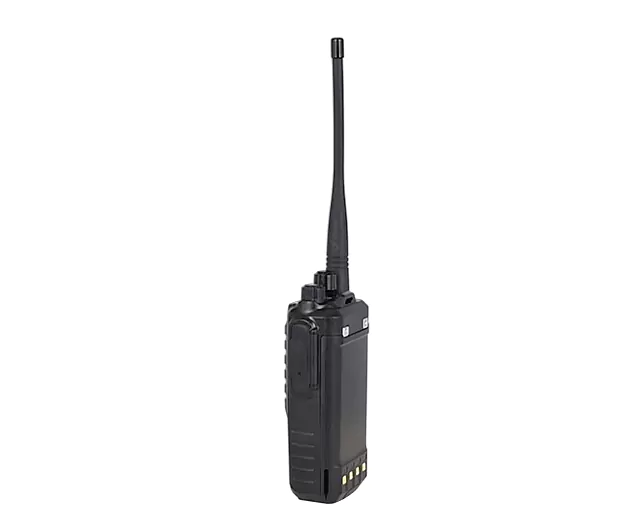

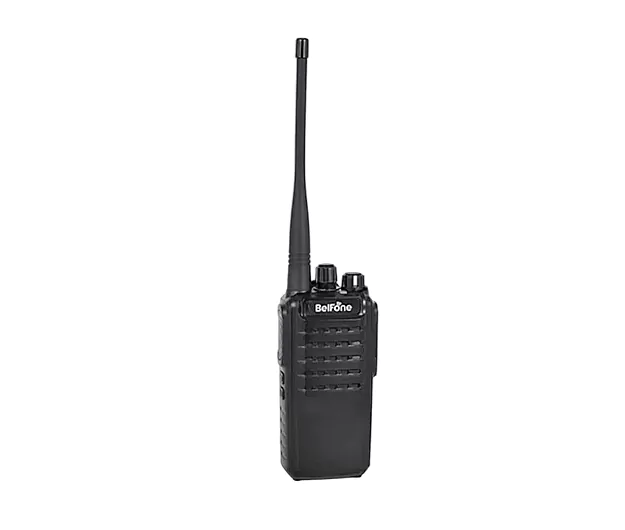

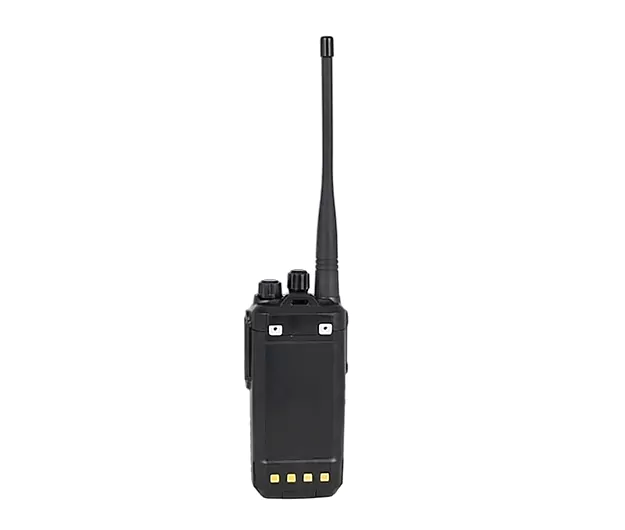

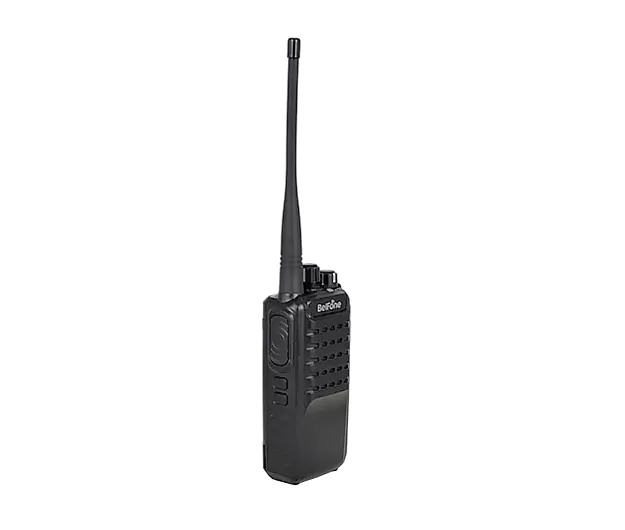

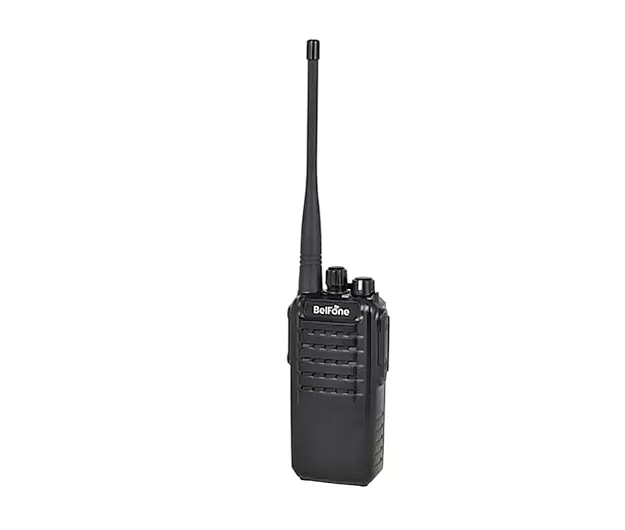

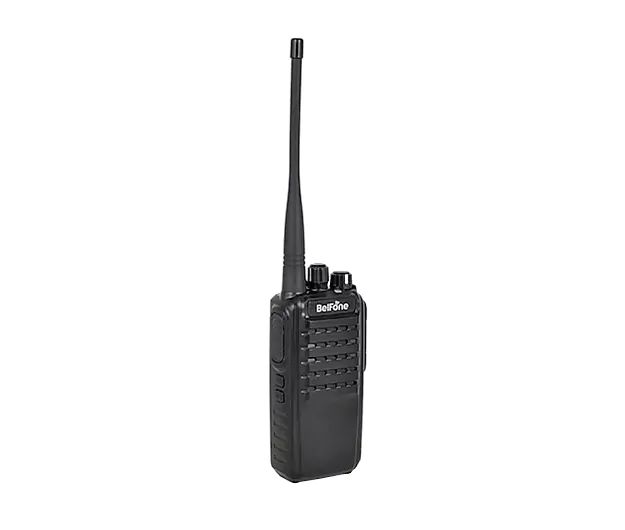

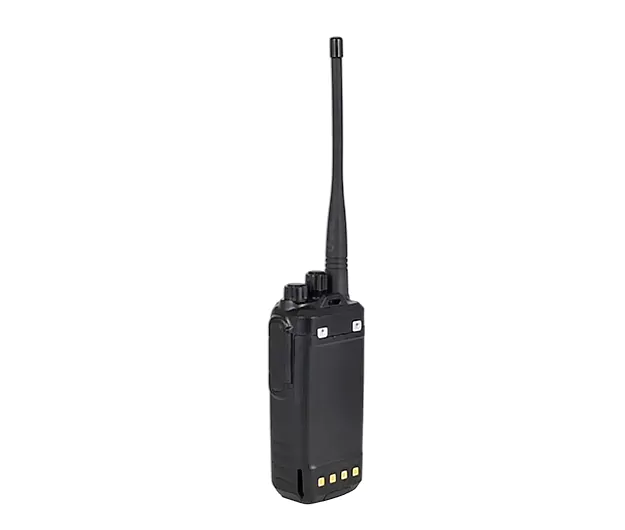

BF-TD821
Commercial Portable Radio
BF-TD821
Commercial Portable Radio
OEM/ODM
BF-TD821 is a high power DMR migration radio with a high power output of 7W. It enjoys a communication range of up to 15km long, and consistently delivers a clear and loud digital audio even in the fringe areas. Its rugged, compact and ergonomic design features with anti-slip function, making it an ideal choice for a great variety of users, like public securities, construction sites, shopping malls and so on.
Inquiry
Inquiry
Highlights
Private Call, Group Call And All Call
The versatile calling functions bring more efficiency to your teamwork.A Longer Battery Life
BF-TD821 can function for longer than any conventional analog radios.(digital 17 hours; analog 13 hours)Automatic Roaming
In an IP multi-site network, this feature enables BF-TD821 toautomatically roam among all sites and stay connected, delivering more flexibility and efficiency.
Excellent Audio Quality
Excellent digital audio quality comes from the AMBE + 2 vocoder and FEC technologyScan/ Monitor
At a convenient push of a button, you can monitor all the conversations on your channel, or you can scan conversations on different channels.Radio Priority-Based Interruption
A radio with higher priority can interrupt communications between radios with lower priorities, either to transmit or to clear a channel for more important communications. This brings better dispatching efficiency to the team.BF-TD821
-
DMO Pseudo Trunk
The user can choose slot 1 or slot 2 for communications. When one slot is occupied, the radio will automatically switch into the free slot. Frequency efficiency is greatly increased. -
Digital/Analog Dual Modes
Receive both analog and digital signals on a single channel and can automatically switch into the needed mode for efficient communications.
Specifications
General
| Frequency Range | VHF:136-174MHz; UHF:350-390 MHz,400-480 MHz,450-520 MHz |
| Channel Capacity | 160 |
| Zone | 32 |
| Channel Spacing | 12.5KHz |
| Working Voltage | DC 7.4V (±20%) |
| Battery Capacity | 2600mAh |
| Average Battery Life（5/5/90） | Digital 17 hours |
| Frequency Stability | ±1.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 59 (L) *33 (W) *115 (H)mm |
| Weight | 236g(including battery) |
Transmitter
| Power Output | High power: 5W; Middle power: 3W; Low power: 1W |
| 4FSK Modulation | 12.5kHz only data ：7K60FXD; 12.5kHz data and audio ：7K60FXE |
| FM Modulation | 12.5 kHz ：8K5ΦF3E； |
| Modulation Limitation | +/- 2.5kHz @ 12.5kHz; |
| FM Noise | -40dB |
| Spurious Emission | -36 dBm≤1GHz/-30 dBm≥1GHz |
| Adjacent Channel Power | ≤-60dB |
| Frequency Response | +1/-3 dB |
| Audio Distortion | 0.03 |
| Digital Vocoder | AMBE3000 |
Receiver
| Digital Sensitivity | 5% BER ：0.25 uV |
| Intermodulation | 60dB |
| Adjacent Channel Selection | 60 dB |
| Spurious Suppression | 70 dB |
| FM Noise | -40dB |
| Frequency Response | +1/-3 dB |
| Rated Audio Power | 1W |
| Rated Audio Distortion | 3% (Typical) |
| Conduction Radiation | -36dBm |
Environmental Specifications
| Operational Temperature | -20℃—+60℃ |
| Storage Temperature | -30℃—+85℃ |
| Dust & Water Proof | IP54 |
