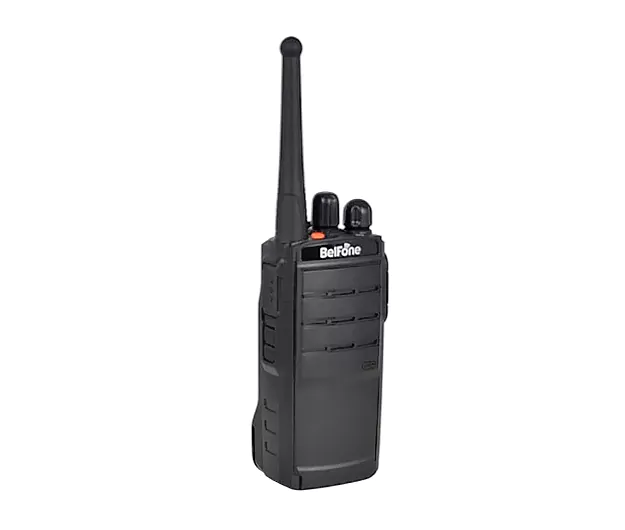

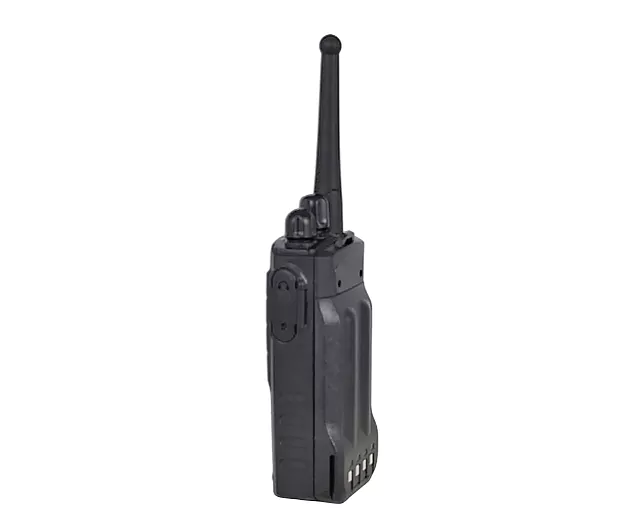

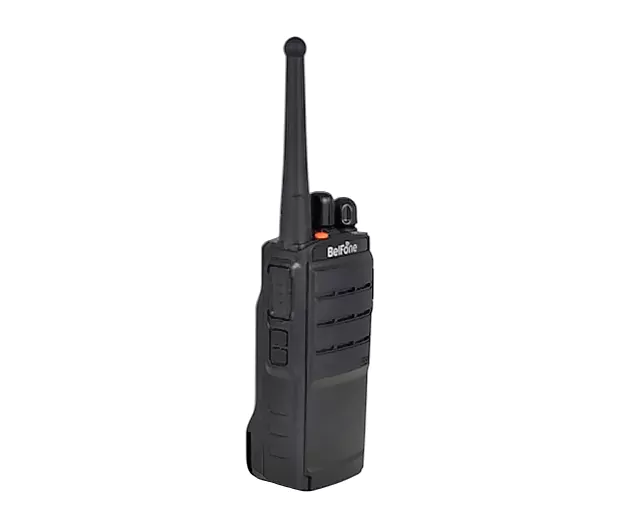

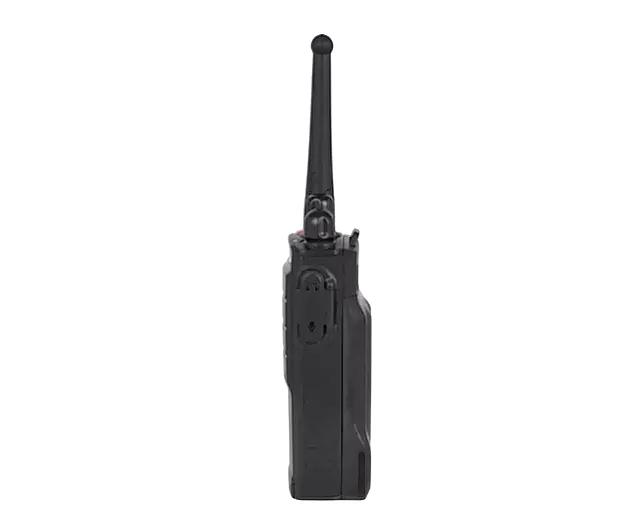

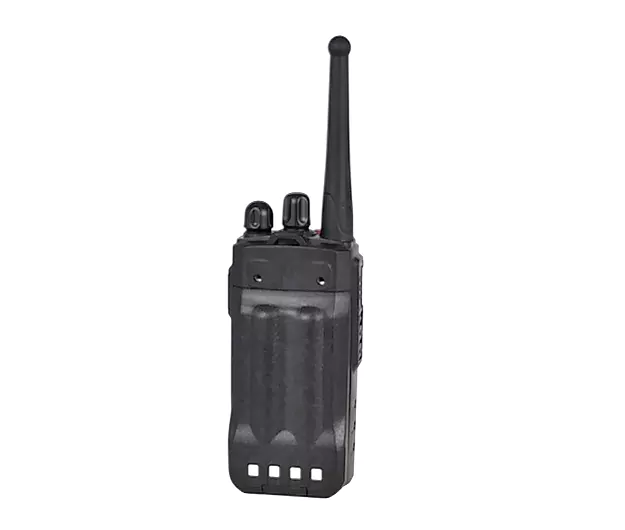

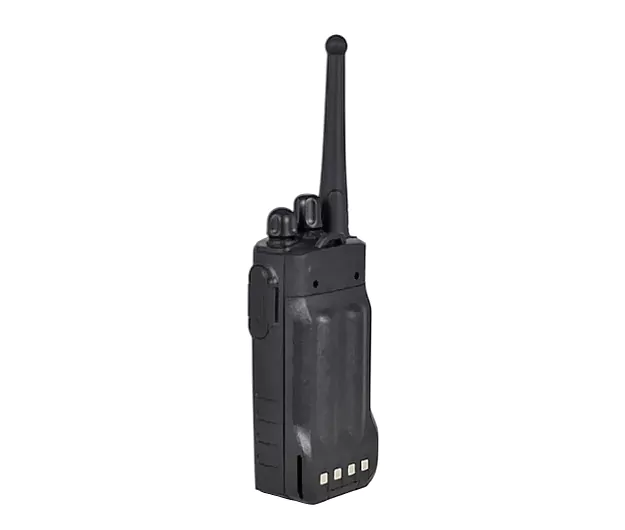

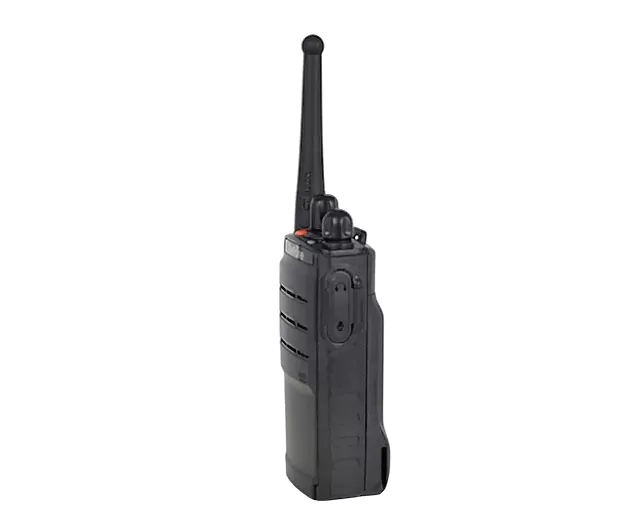

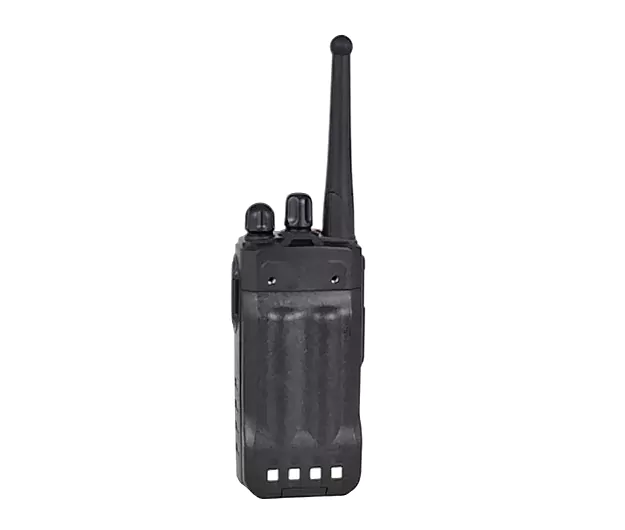

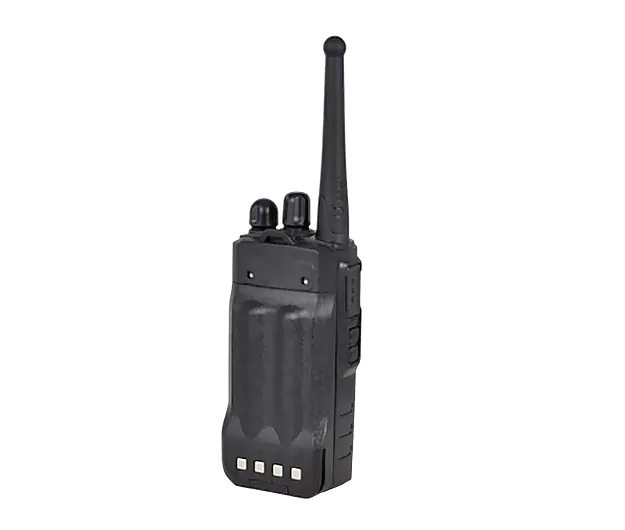

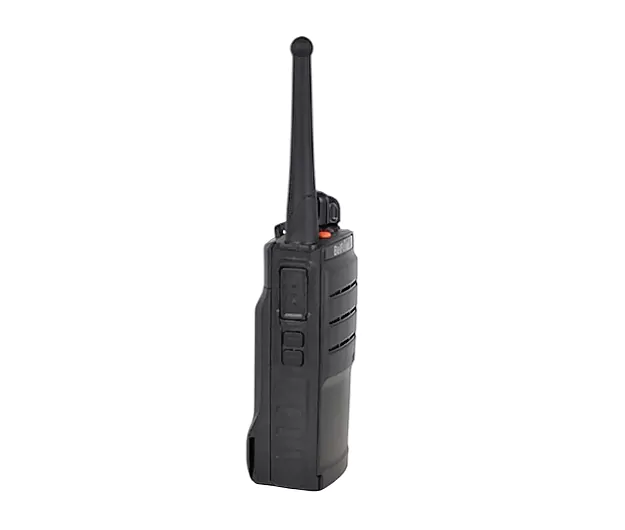

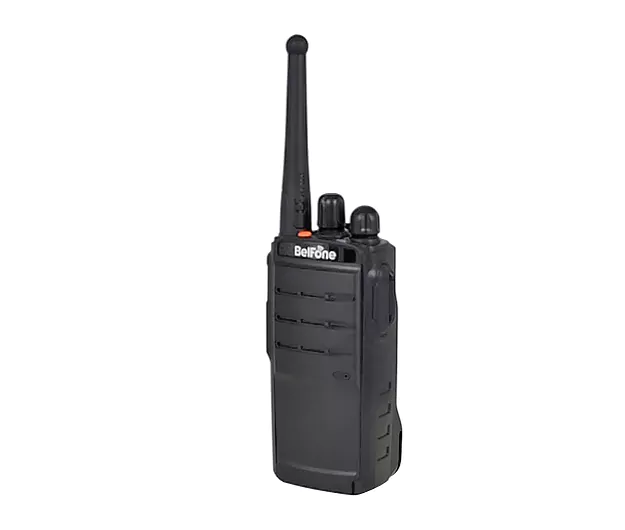

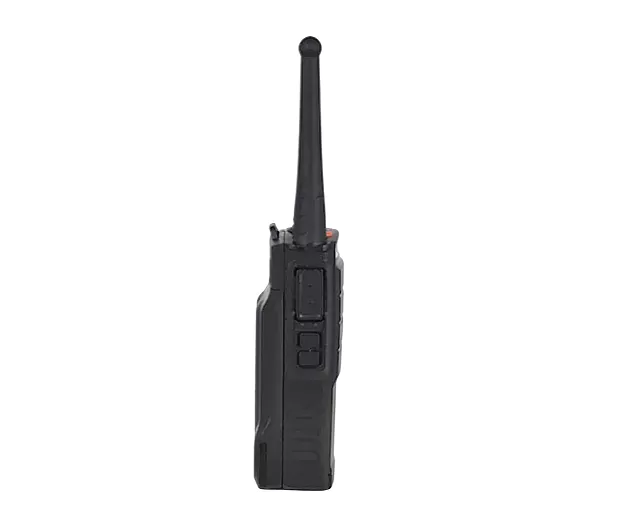

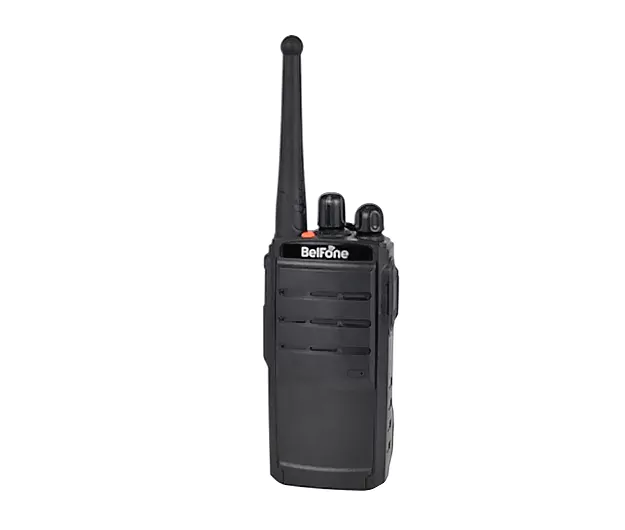

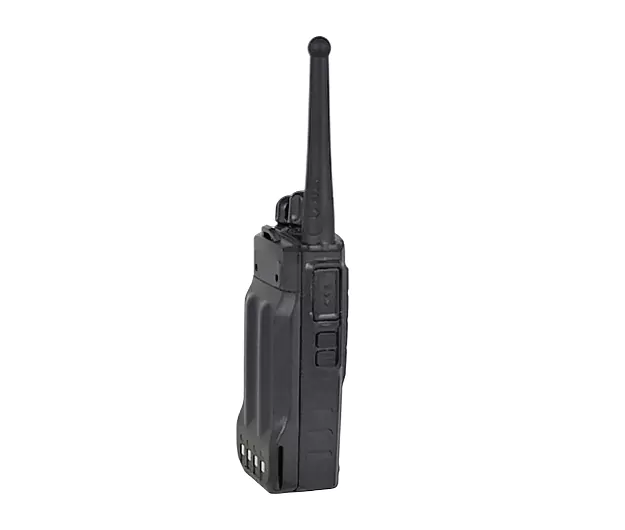

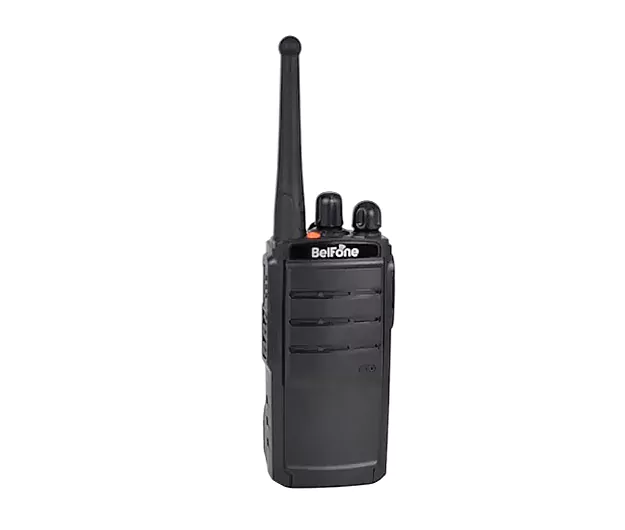

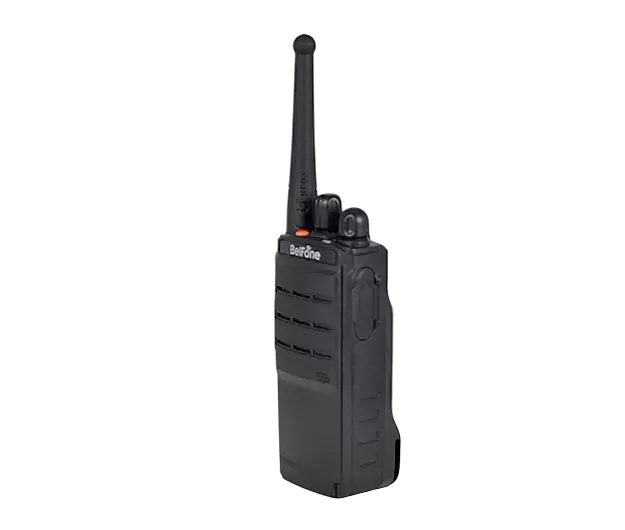

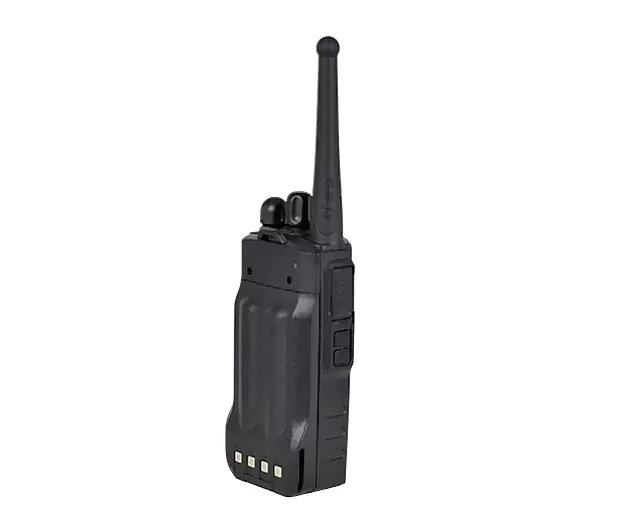

BF-TD520

DMR Portable Radio

OEM/ODM
BF-TD520 is a cost-efficient DMR portable radio designed for construction sites, hotels, restaurants, malls, etc. BF-TD520 has a comprehensive feature package that includes vast channel capacity, digital encryptions, emergency alerts, digital/analog dual mode, VOX, and low power alert, making it an ideal choice for a wide variety of commercial scenarios.
Inquiry
Inquiry
BF-TD520
DMR Portable Radio
Inquiry

Highlights

High Power

The 5W high transmitting power gives BF-TD520 a longer range and better penetration, able to handle the communication challenges in such environments as tall buildings, large warehouses, hotel complexes, etc. High power also means louder audio, and when the user does not need it he can easily switch the radio into low power mode via the power switch button, which is both flexible and power-efficient.

Emergency Alert

In case of emergency, the user can press the emergency button to ask for help. Moreover, BF-TD520 incorporates lone worker to safeguard the user when he is working by himself. When the user doesn’t operate the radio for a certain length of time, the radio will automatically send out an distress call to prevent the situation from escalating.


Voice Encryptions

BF-TD520 comes with voice encryption and scrambling to ensure the user’s information privacy. BF-TD520 communicates only with radios with the same encryption type, effectively cut off unwanted interference while prevent data leakage at the same time.

Multiple Channels

BF-TD520 supports 16 zones, each with 16 channels. The user can easily switch channels via the programmable side buttons according to his needs, which delivers further convenience and efficiency.

Superior Audio

BF-TD520 adopts narrowband codec and digital error correction technologies to deliver a better audio experience and better anti-interference. The user can enjoy loud and clear voice communications even in a noisy environment or infringe areas.

Silence Unknown Callers

BF-TD520 allows the user to filter contacts. It will block out unknown callers to prevent the user from unwanted distractions, which greatly improves the user’s communication efficiency. Moreover, the user can use the programmable button to switch between talkaround and repeater modes. The user can still enjoy PTT communications even if the repeater is down.

Specifications

General
Frequency Range VHF:136-174MHz/UHF: 350-400MHz UHF:400-480MHz/UHF2:450-520MHz
Channel Capacity 256
Zone 16
Channel Spacing 12.5KHz/25KHz
Working Voltage DC 7.4V (±20%)
Battery Capacity 2000mAh
Average Battery Life(5/5/90) Digital: 20 Hours; Analog: 15 Hours
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Dimension 60(L)*40 (W) *117 (H)mm
Weight 274g (Including Battery)
Transmitter
Power Output ≤5W
4FSK Modulation 12.5kHz Only data:7K60FXD 12.5kHz data and audio:7K60FXE
FM Modulation 12.5 kHz:8K50F3E; 25 kHz:16K0F3E;
Modulation Limitation +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Frequency Response +1/-3 dB
Audio Distortion 0.03
Digital Vocoder AMBE
Receiver
Digital Sensitivity 5% BER:0.25uV
Analog Sensitive 0.25uV (12dB SINAD)
Intermodulation 65dB
Adjacent Channel Selection 60dB
Spurious Suppression 70dB
FM Noise -40dB
Frequency Response +1/-3dB
Rated Audio Distortion 0.5W
Maximum Audio Power 1.2W
Rated Audio Distortion 3% (Typical)
Conduction Radiation -57dBm
Environmental Specifications
Operational Temperature -20℃—+60℃
Storage Temperature -30℃—+85℃
Dust & Water Proof IP54
