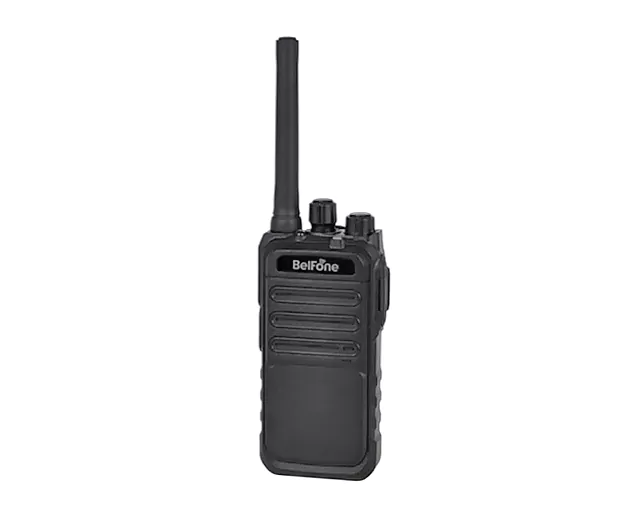

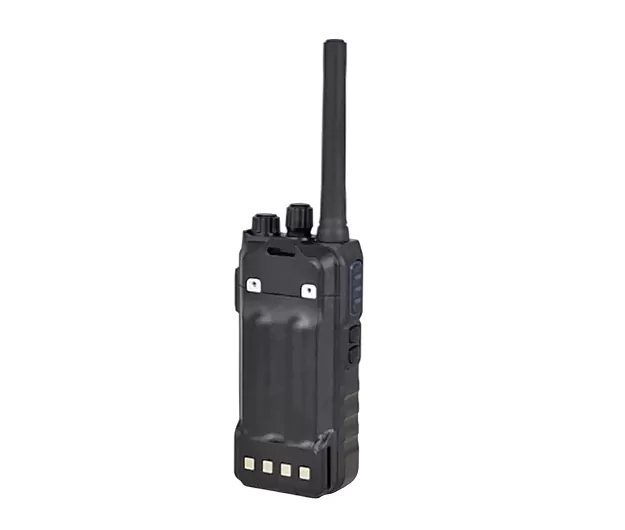

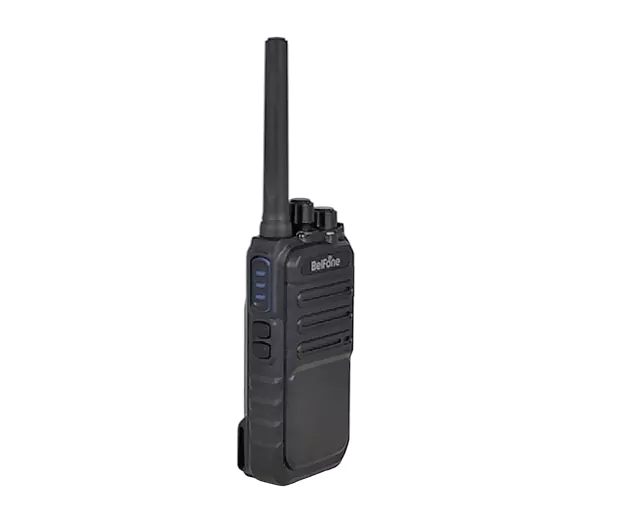

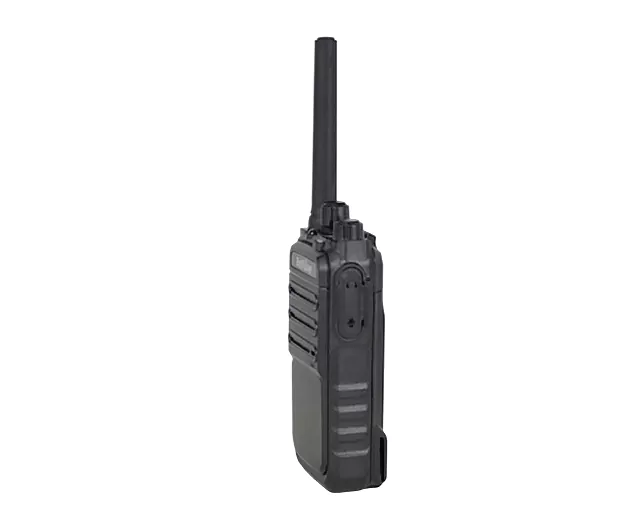

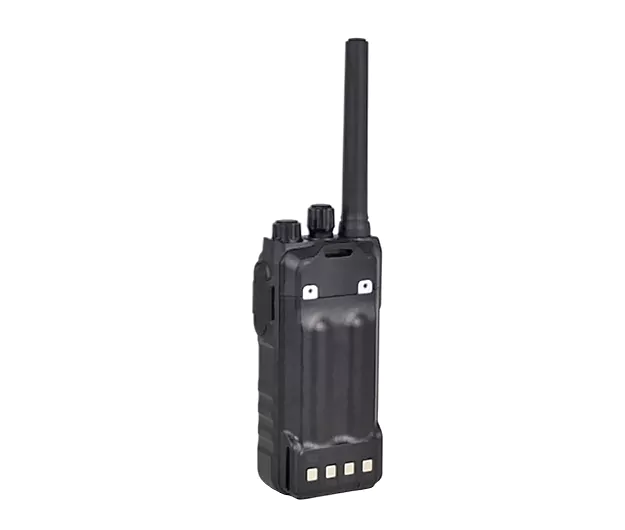

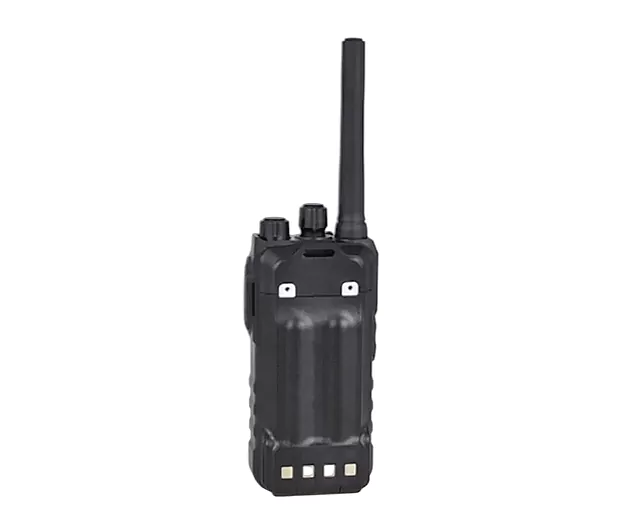

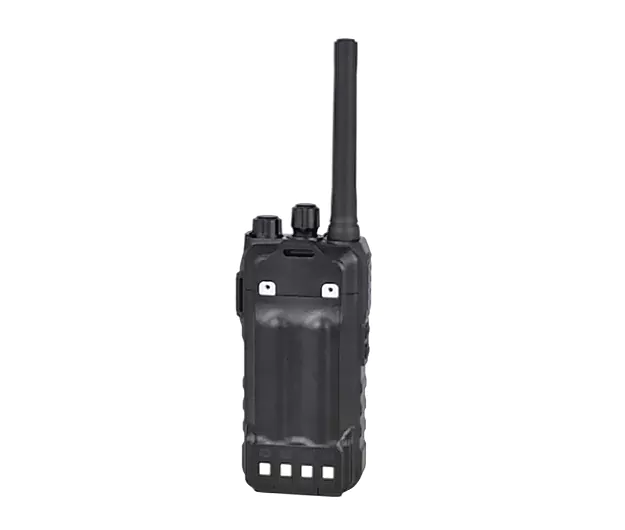

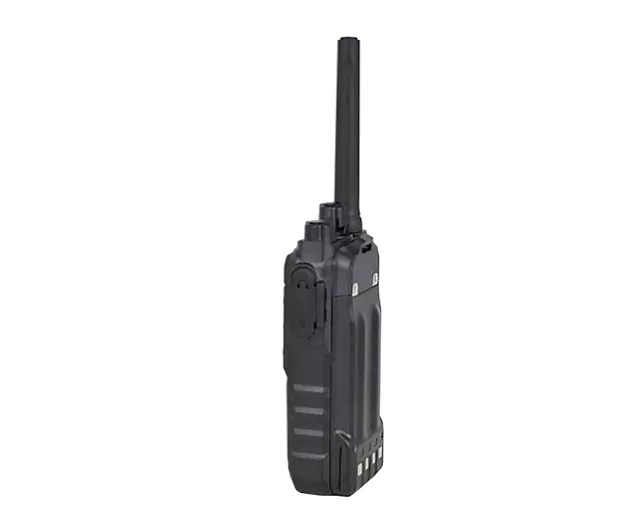

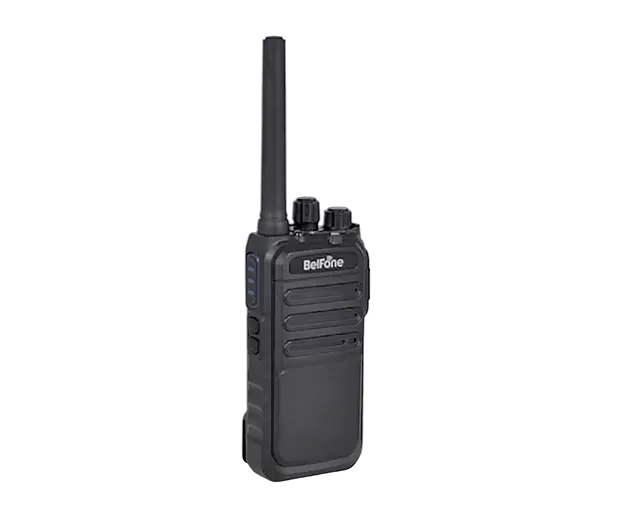

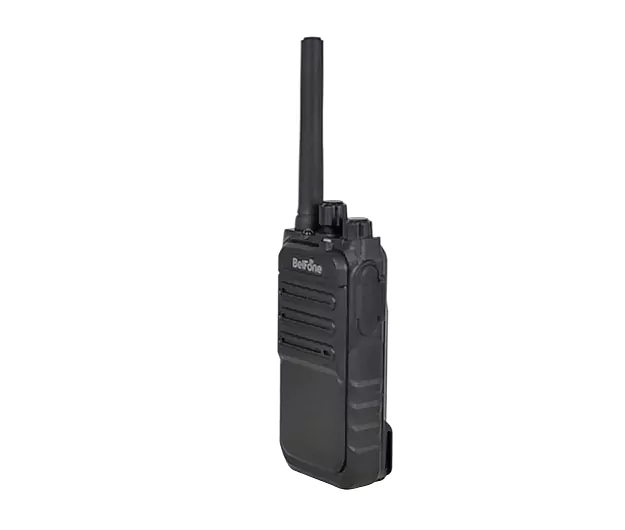

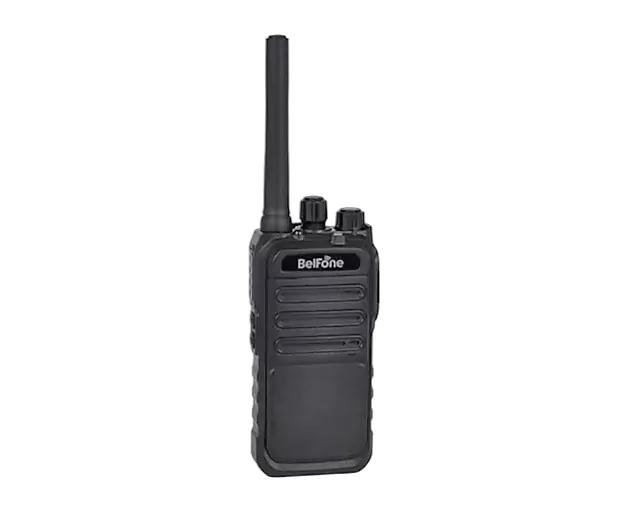

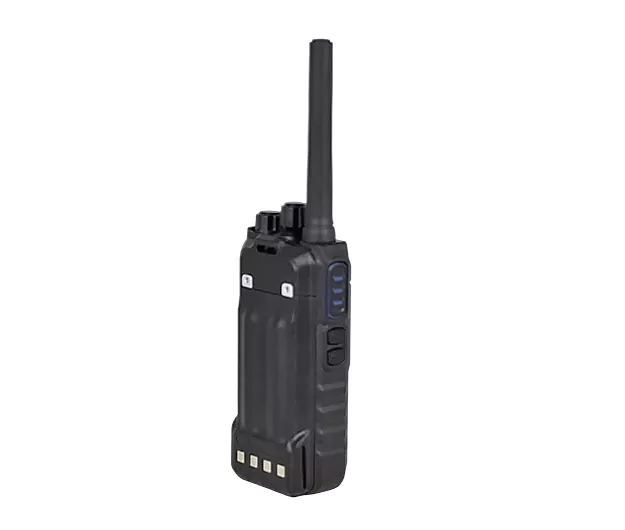

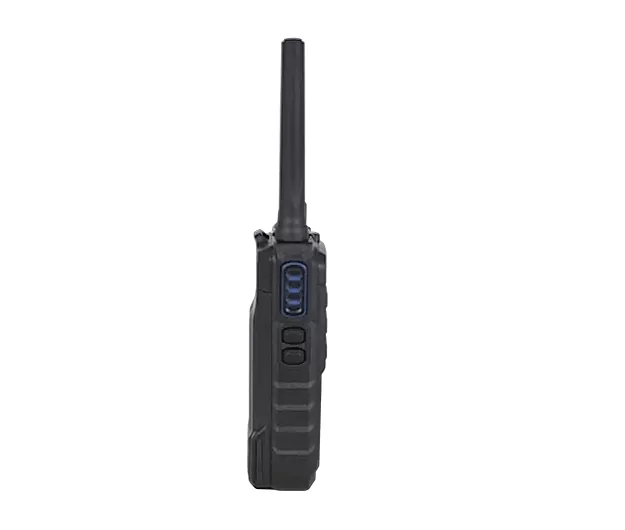

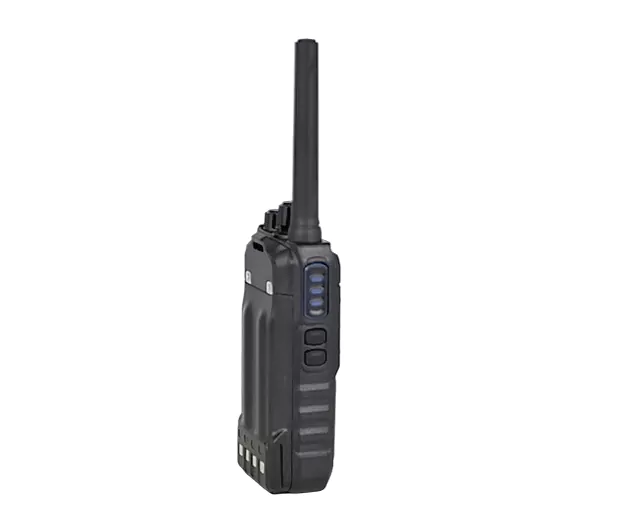

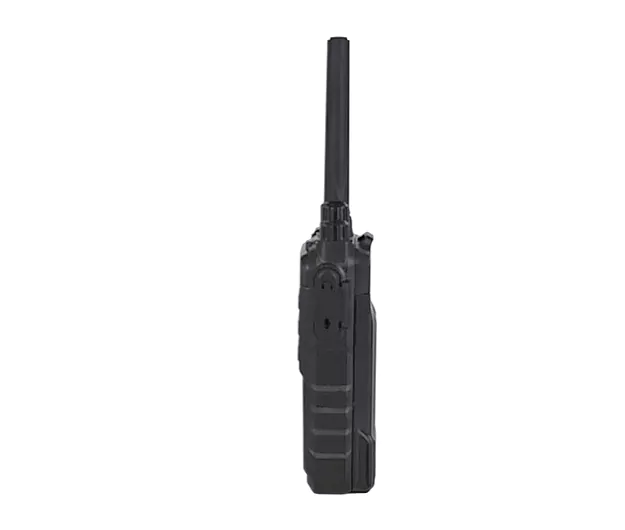

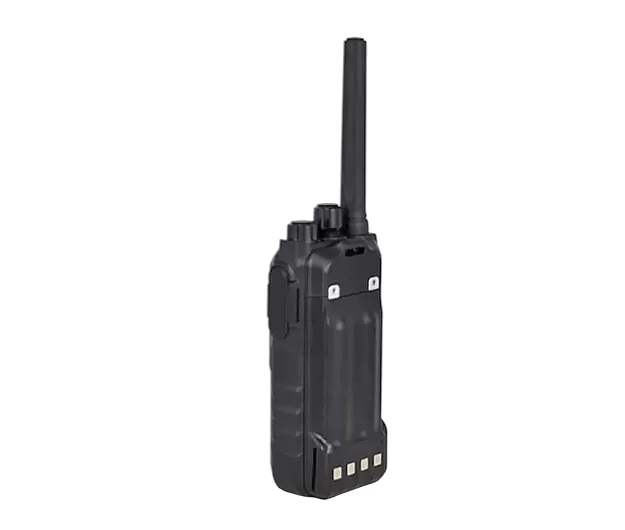

BF-TD522

DMR Portable Radio

DMR Handheld UHF OEM ODM
BF-TD522 is a DMR portable radio designed for industrial and commercial users. With standby time as long as 24 hours, BF-TD522 can easily handle a long work day. This versatile radio also integrates emergency alert, built-in flashlight, VOX, and digital/analog dual modes to deliver more safety and efficiency.
Inquiry
Inquiry
BF-TD522
DMR Portable Radio
Inquiry

Highlights

Long Standby

4000mAh battery capacity gives BF-TD522 super long standby time. In DMR mode, a single charge can allow the user to talk for as long as 24 hours. Besides, BF-TD522 supports independent battery charging, so when one battery dies the user can instantly replace it with another and continue to work, which is convenient as well as flexible.

Emergency Alert

BF-TD522 incorporates lone worker to safeguard your workers. When the user doesn’t operate the radio for a preset amount of time, the radio will automatically send off an alert to call for help. Additionally, in case of emergency the user can send for help via the emergency alert button, which can be programmed. BF-TD522 cares about your safety as much as your efficiency.

Easy Operation

BF-TD522 is designed to cater to the habits of commercial users, with the aim of delivering the best user experience. The programmable side buttons, the rich feature package and the ergonomic design, all strive to make operations easy and intuitive and to improve work efficiency.

Built-in Flashlight

Our cost-effective BF-TD522 comes with a built-in flashlight to enable the user to work in dark environments. BF-TD522 is radio and flashlight in one, making it an ideal tool for users like night patrol officers.

Smooth Transition

With digital/analog dual modes, BF-TD522 can switch between digital and analog networks, and is thus compatible with analog radios, which allows the user to retain the current analog infrastructures. Its digital mode supports rich voice services to make PTT communications more flexible and efficient.

Specifications

General
Frequency Range UHF:400-480MHz
Channel Capacity 256
Zone 16
Channel Spacing 12.5KHz/25KHz
Working Voltage DC 3.7V (±20%)
Battery Capacity 4000mAh
Average Battery Life(5/5/90) Digital: 24 Hours / Analog: 18 Hours
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Dimension 59(L)*36 (W) *115 (H)mm
Weight 252g (Including Battery)
Transmitter
Power Output High:5W / Middle:3W / Low:1W
4FSK Modulation 12.5kHz Only data:7K60FXD; 12.5kHz data and audio:7K60FXE
FM Modulation 12.5 kHz:8K50F3E;25 kHz:16KΦF3E;
Modulation Limitation +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Frequency Response +1/-3dB
Audio Distortion 0.03
Digital Vocoder AMBE
Receiver
Digital Sensitivity 5% BER:0.25uV
Analog Sensitive 0.25uV (12dB SINAD)
Intermodulation 60dB
Adjacent Channel Selection 60dB
Spurious Suppression 60dB
FM Noise -40dB
Frequency Response +1/-3dB
Rated Audio Power 500mW
Maximum Audio Power 1W
Rated Audio Distortion 3% (Typical)
Conduction Radiation -57dBm
Environmental Specifications
Operational Temperature -20℃—+60℃
Storage Temperature -30℃—+85℃
