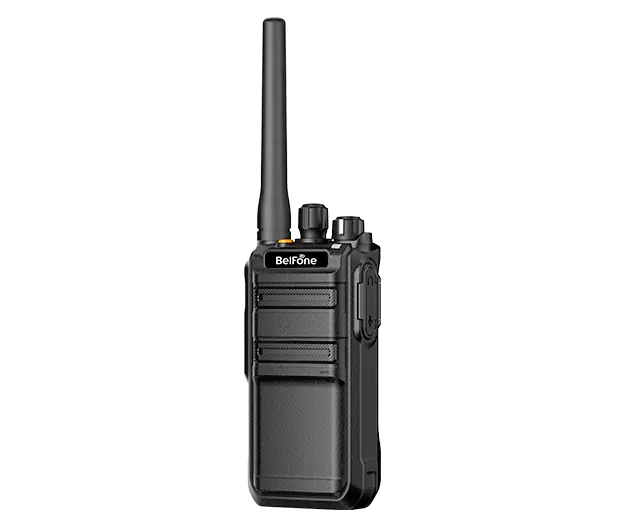

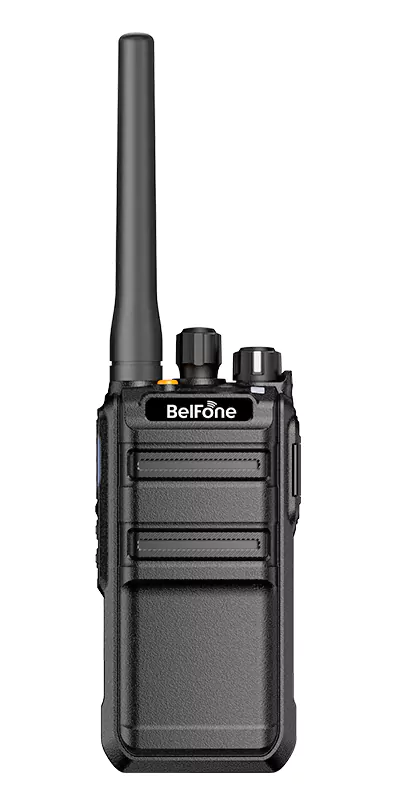

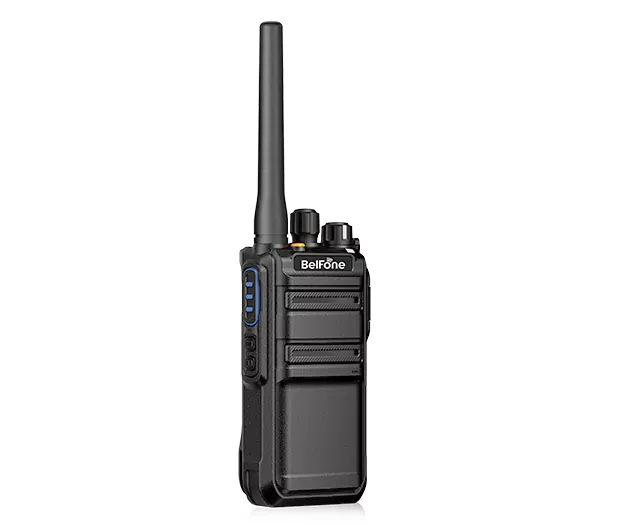

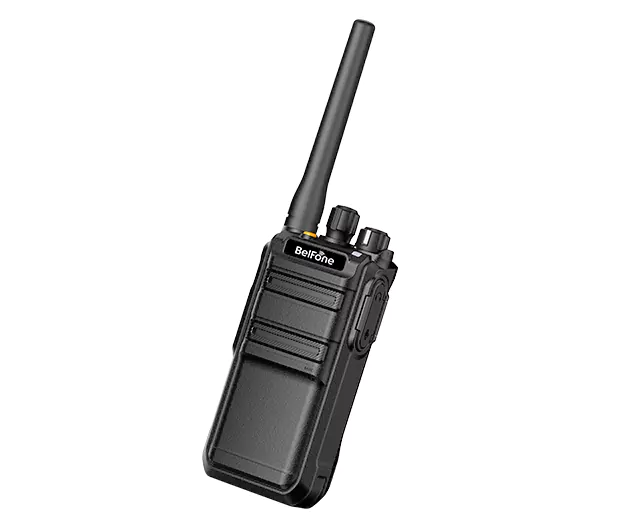

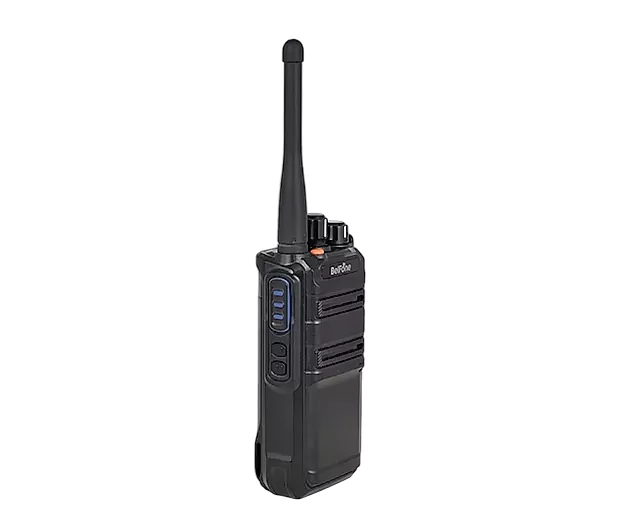

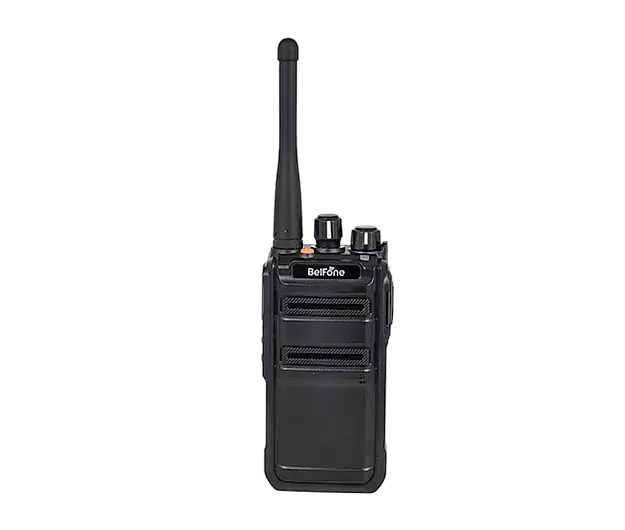

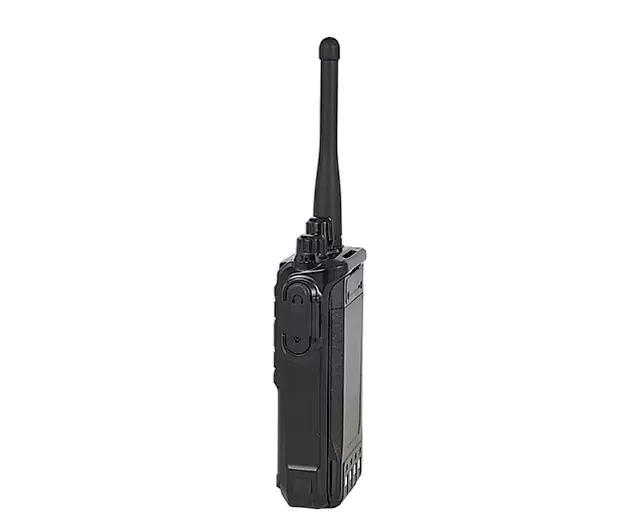

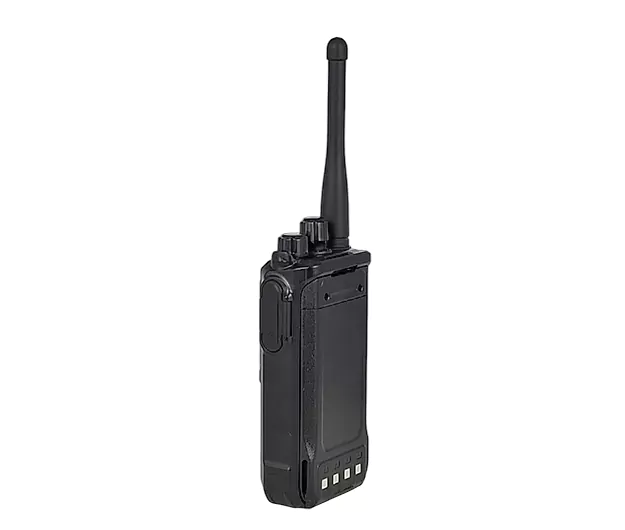

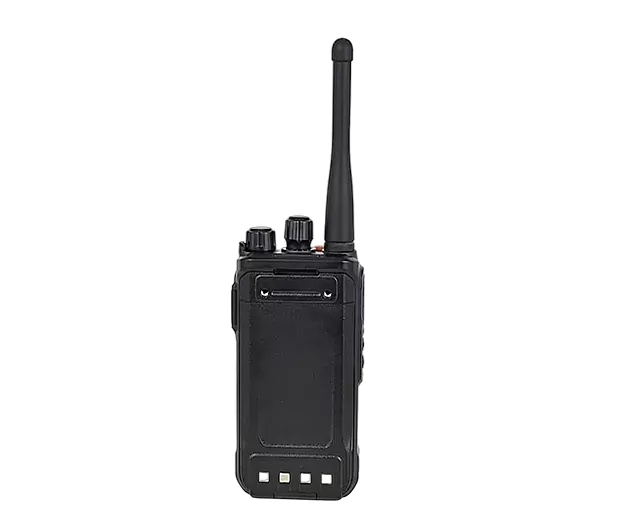

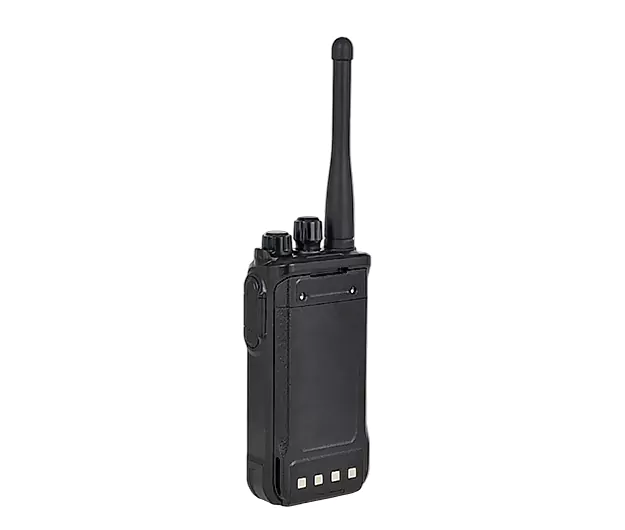

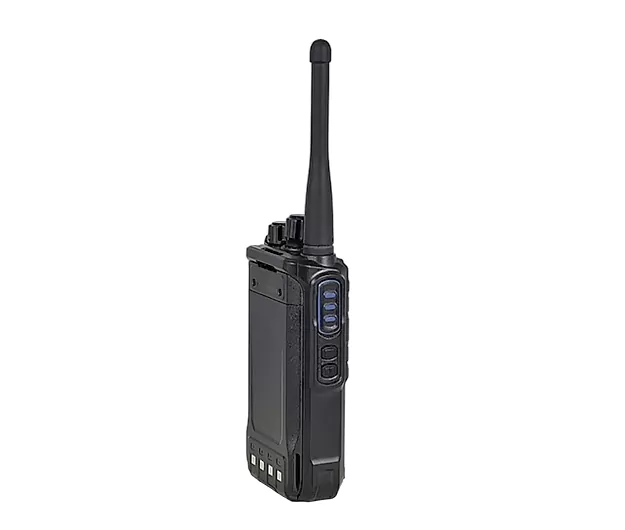

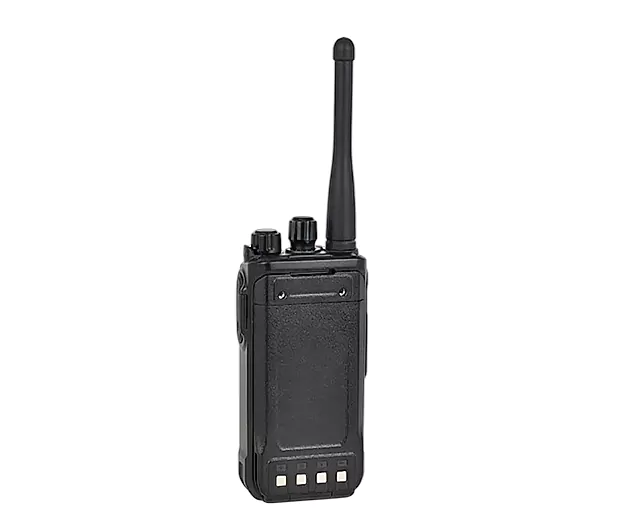

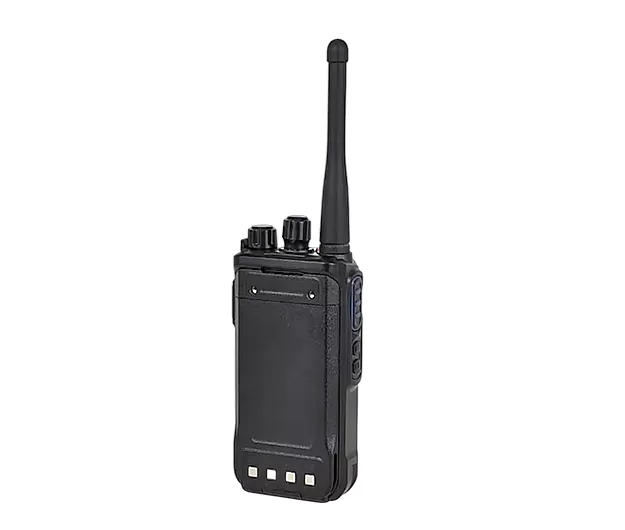

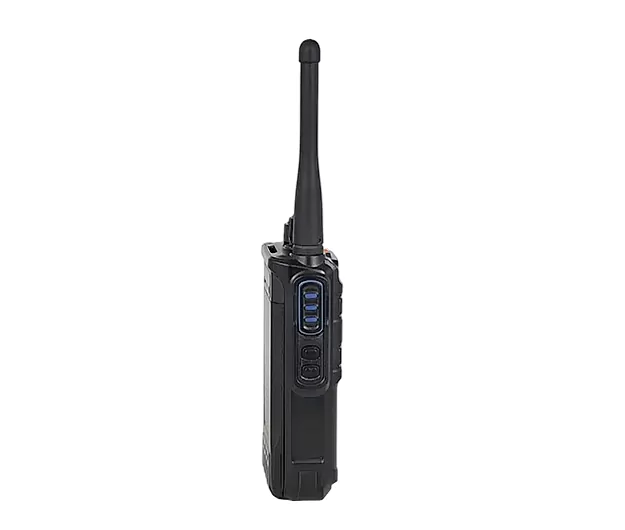

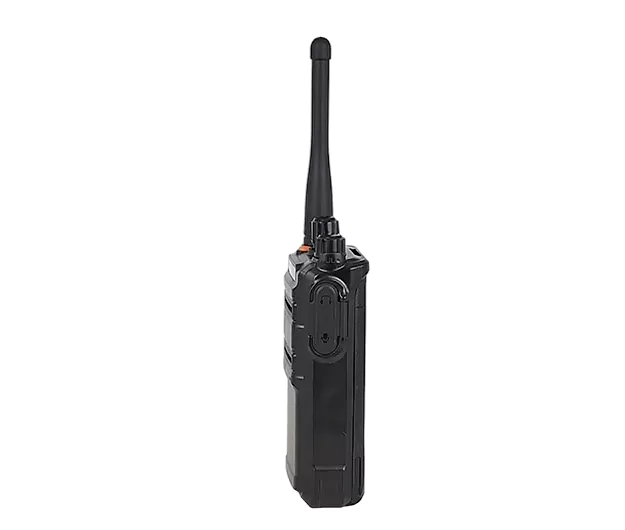

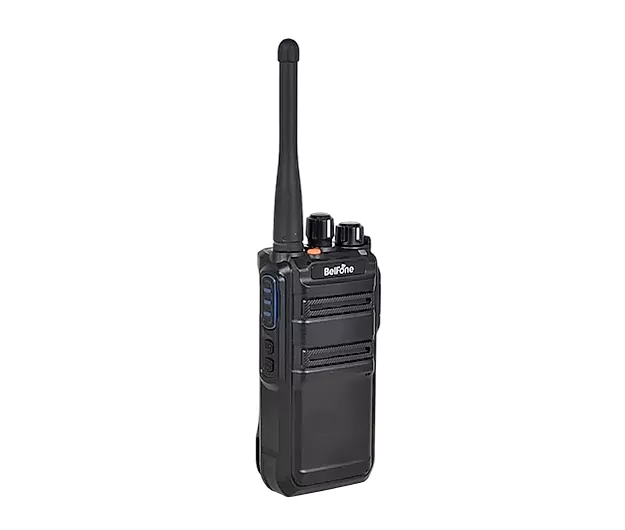

BF-TD526

DMR Portable Radio

OEM/ODM
BF-TD526 is a highly integrated DMR dual mode (DMR+Analog) radio that perfectly combines cost-saving and high-intensity communication. Its exquisite exterior and distinctive dual-color PTT fully highlight the aesthetic and texture pursued by industrial and commercial users. With strong anti-interference capability, high confidentiality, narrower channel bandwidth, large communication range, and excellent data transmission, it can easily adapt to different scenarios and ensures stable communicati
Inquiry
Inquiry
BF-TD526
DMR Portable Radio
Inquiry

Highlights

Long Talk Range

BF-TD526 has the advantages of longer talk range, stronger penetration and superior audio. The 5W high transmitting power and improved antenna gain make sure that the audio remains loud and clear even at long distances. With BF-TD526, your signals stay connected, and your communications stay undisturbed.

IP54 Rating Protect

ABS+PC materials make BF-TD526 sturdy and durable, while IP54 rating effectively protects it from water and dust. Accidental showers are one less thing to worry about for outdoor users. BF-TD526 is designed to hold up against challenging environments.

Long Standby

In standby mode, BF-TD526 will go into auto power save mode to prolong standby time. Low power alert will remind the user to recharge the battery with voice prompt, making sure your workers are always on line.

MIC Noise Reduction

BF-TD526 integrates advanced digital voice codec technology that optimizes audio power output, providing loud, clear, and penetrating sound. With built-in MIC noise reduction algorithm to filter environmental noise and minimize howling, improving voice clarity.

SOS/Lone Worker

BF-TD526 offers two alarm modes: one key alarm and lone worker. In case of emergencies, it can automatically send distress signals for help. Equipped a top-mounted emergency button that activates instantly upon touch, it is responsive and easy to trigger, helping to stay responsive in emergencies.

Digital/Analog Dual Mode

BF-TD526 is compatible with both digital and analog networks and can automatically switches between two modes, which delivers a smooth transition from analog to digital. The user can take his time upgrading his analog infrastructures. There is no hurry.

Voice Encryption

BF-TD526 incorporates advanced digital encryption technologies to protect your information privacy. The user can select static ordynamic encryptions through the programming software. Only radios with the same encryption type can talk with each other.

*Wireless Bluetooth (Optional)

The BF-TD526 incorporates optional Bluetooth functionality, automatically pairing and connecting upon startup. Enabling effortless programming, facilitating simpler and more efficient management.
  • 2

    3

2

3

Specifications

General
Frequency Range VHF: 136-174MHz; UHF: 350-400MHz/400-480MHz/ 450-520MHz
Channel Capacity 32
Zone 2
Channel Spacing 12.5KHz/25KHz
Working Voltage DC7.4V (±20%)
Battery Capacity 1800 mAh
Average Battery Life(5/5/90) Digital 18 Hours/Analog 13 Hours
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Dimension 59.7(L)*35(W)*114(H)mm
Weight 242g(Including Battery)
Bluetooth BT5.0
Transmitter
Power Output <5W
4FSK Modulation 12.5kHz Only data:7K60FXD; 12.5kHz data and audio:7K60FXE
FM Modulation 12.5 kHz:8K50F3E;25 kHz:16KΦF3E;
Modulation Limitation +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Frequency Response +1/-3 dB
Audio Distortion 0.03
Digital Vocoder AMBE
Receiver
Digital Sensitivity 5% BER:0.25 uV
Analog Sensitive 0.25 uV (12 dB SINAD)
Intermodulation 65dB
Adjacent Channel Selection 60 dB
Spurious Suppression 70 dB
FM Noise -40dB
Frequency Response +1/-3 dB
Rated Audio Power 0.5 W
Maximum Audio Power 2W
Rated Audio Distortion 0.03
Conduction Radiation -36dBm
Environmental Specifications
Operational Temperature -30℃—+60℃
Storage Temperature -40℃—+85℃
Dust & Water Proof IP54
