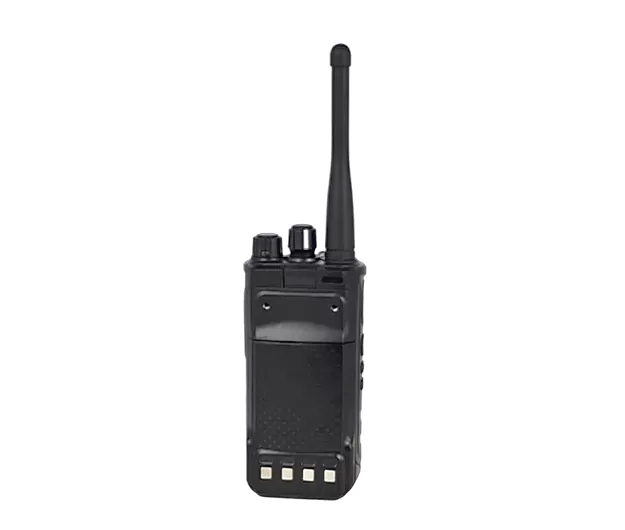

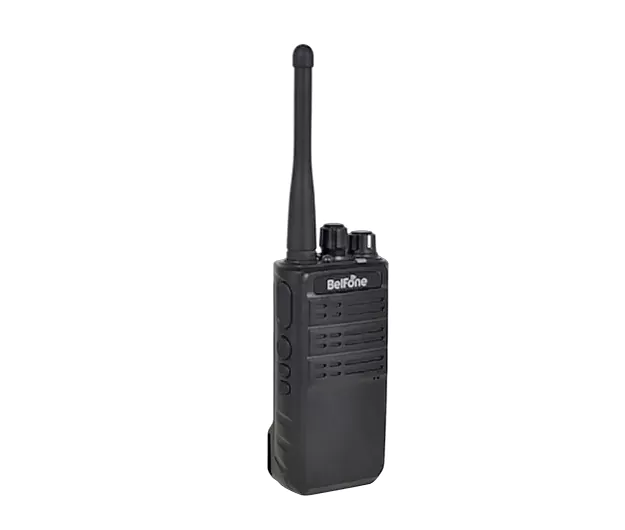

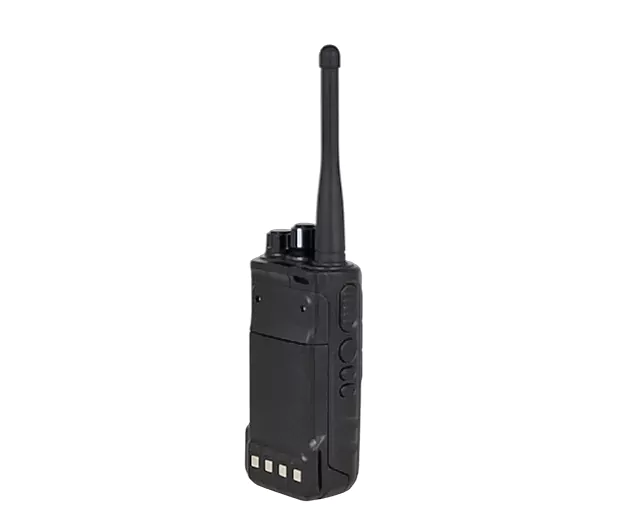

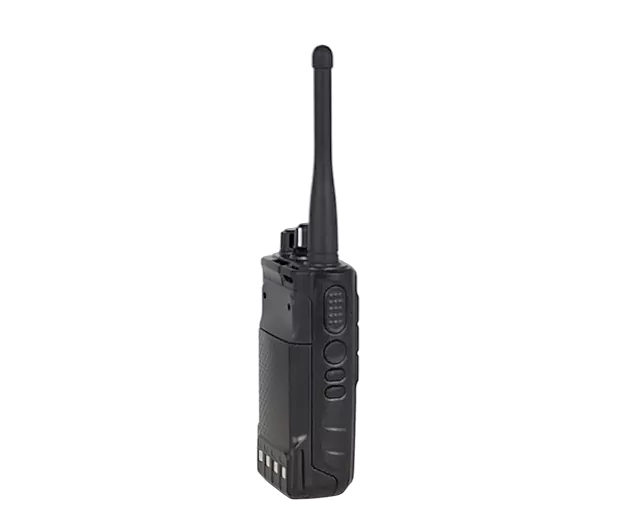

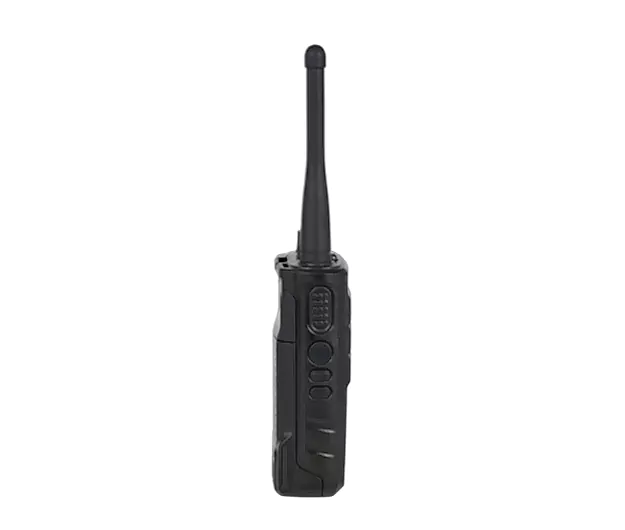

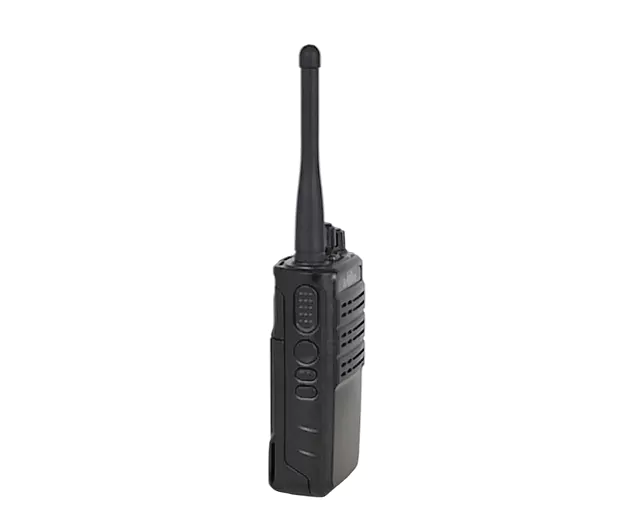

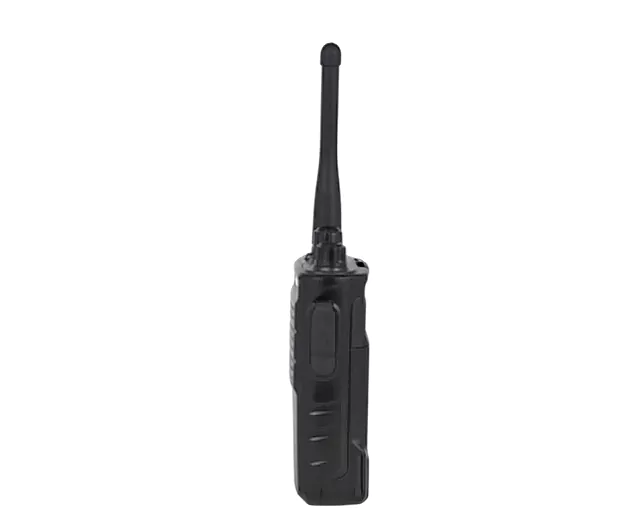

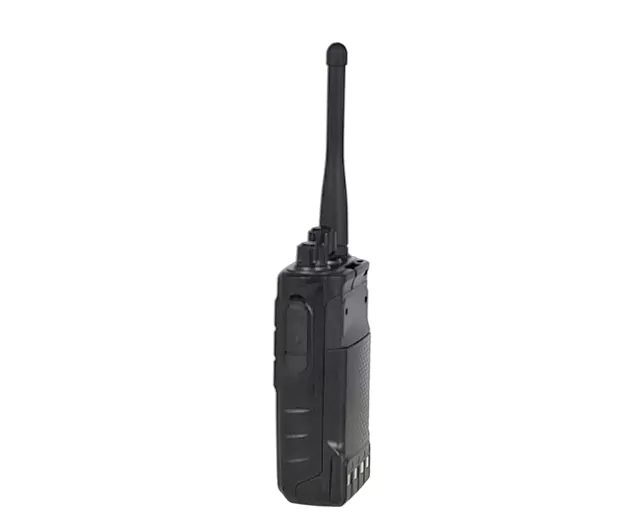

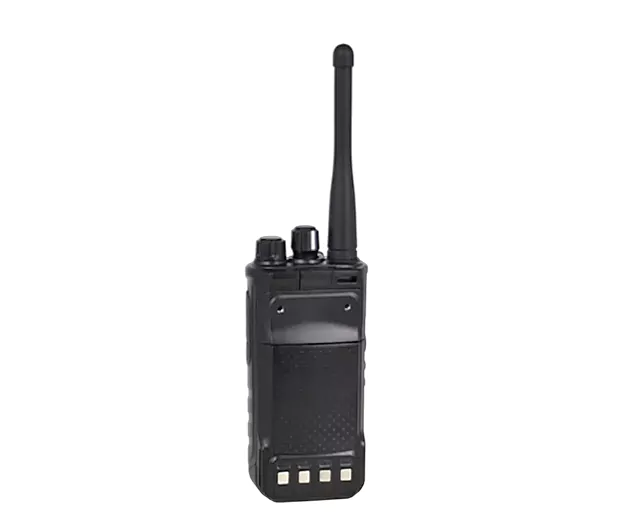

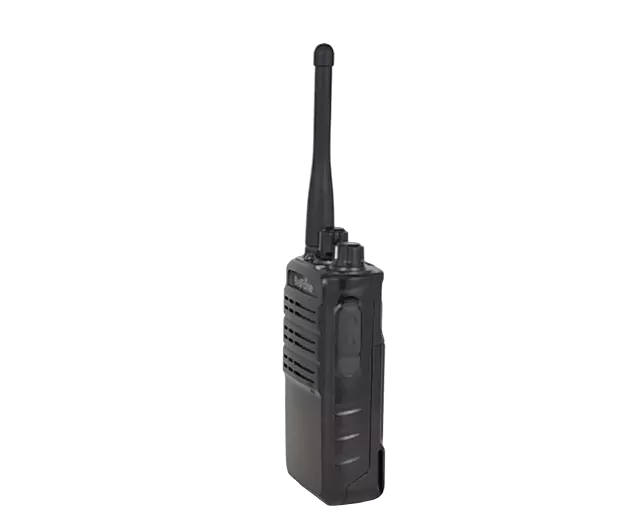

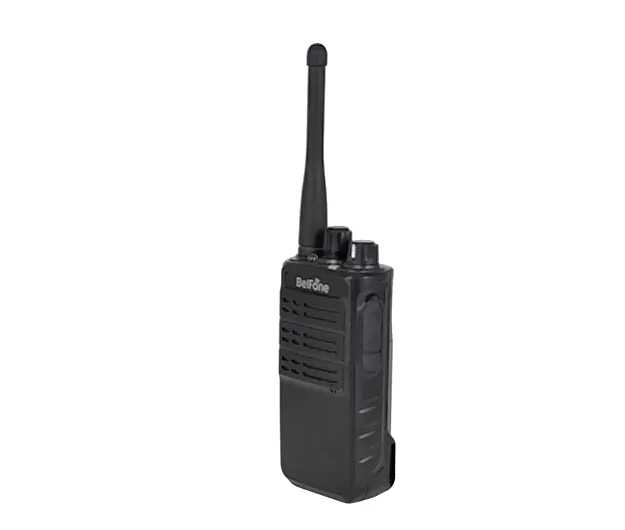

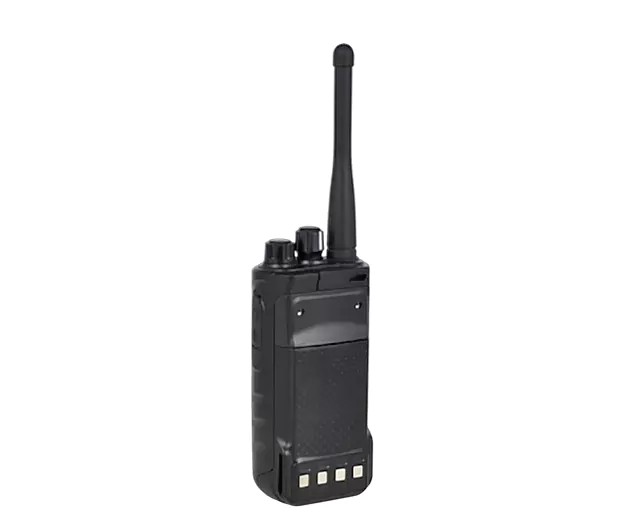

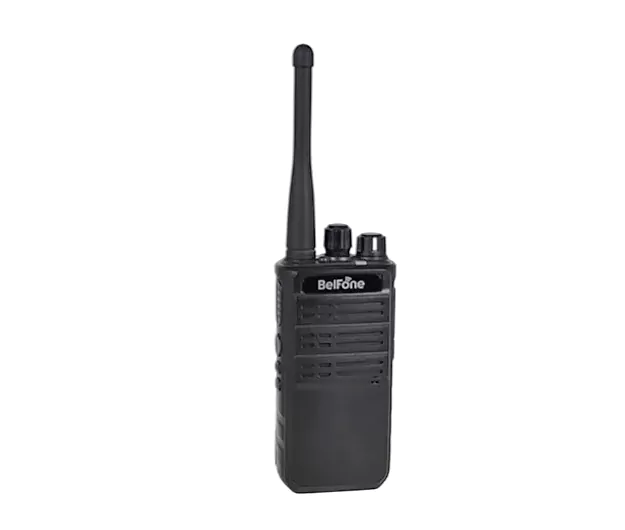

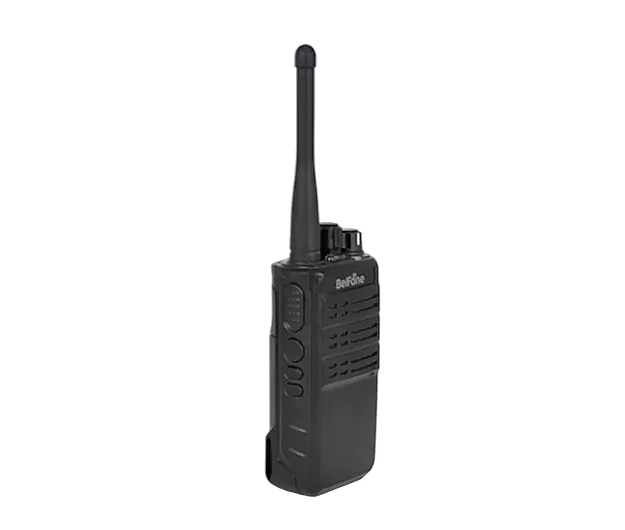

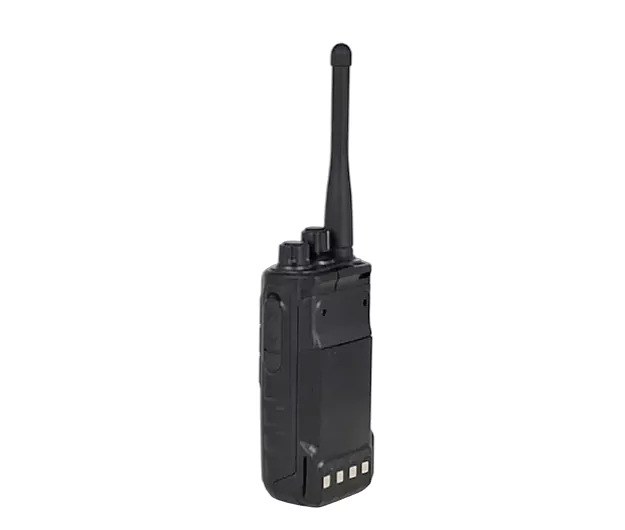

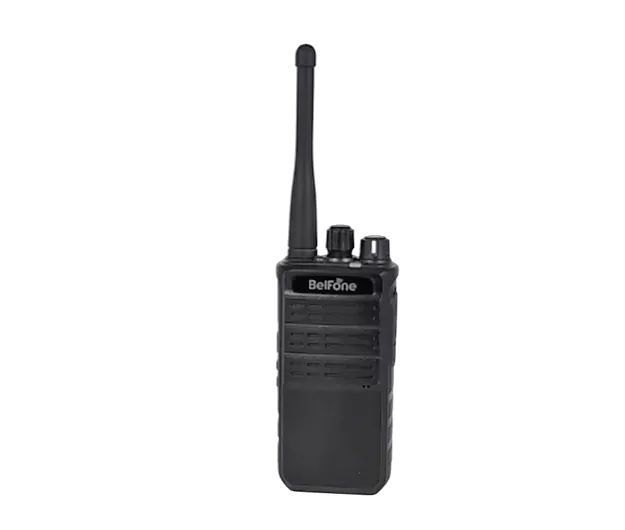

BF-300

Entry-level Analog Two-way Radio

OEM/ODM
BF-300 is an entry-level analog two-way radio that is cost-effective and feature-rich. Besides a conventional analog feature set, BF-300 comes with two PTT buttons, each with a preset channel. Push PTT button No.1 to initiate a talk on one channel and PTT button No. 2 to initiate another talk on another channel. And of course the user can receive signals from both channels. This is a walkie-talkie designed to deliver maximized convenience at the lowest price.
Inquiry
Inquiry
BF-300
Entry-level Analog Two-way Radio
Inquiry

Highlights

CTCSS/CDCSS
Long Battery Life
Voice Prompt
2 PTT Buttons
Automatic Power Saving
Busy Channel Lockout (BCL)

Specifications

General
Frequency Range UHF: 400-480MHz
Channel Capacity 16
Channel Spacing 25 KHz /12.5 KHz
Antenna Impedance 50Ω
Working Voltage DC 3 7V (±20%)
Average Battery Life(5/5/90) 22h
Battery Capacity 2000mAh
Frequency Stability ≤±2.5 ppm
Dimension 55(L)*35(W)*122(H)mm
Weight 185g (Including Battery)
Transmitter
Power Output ≤5W
FM Modulation 11KφF3E/16KφF3E
Maximum Frequency Deviation ≤±2.5KHz /±5.0KHz
Audio Distortion <5%
Adjacent Channel Power 60dB
Receiver
Analog Sensitive ≤-123dBm(12dB SINAD)
Adjacent Channel Selection ≥60dB (Wide)/ 55dB (Narrow)
Intermodulation ≥60dB (Wide)/ 55dB (Narrow)
Spurious Suppression ≥60dB (Wide)/ 55dB (Narrow)
Rated Audio Power Rated:0.5W; Max: 0.9W
Rated Audio Distortion ≤5%
Environmental Specifications
Operational Temperature -20℃~+60℃
Storage Temperature -30℃—+85℃
