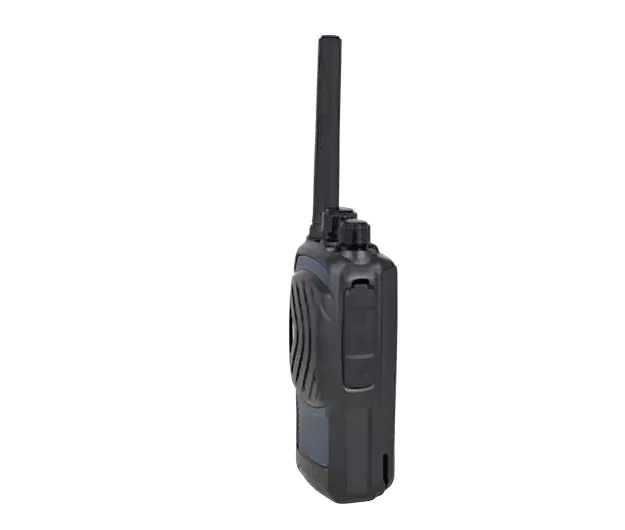

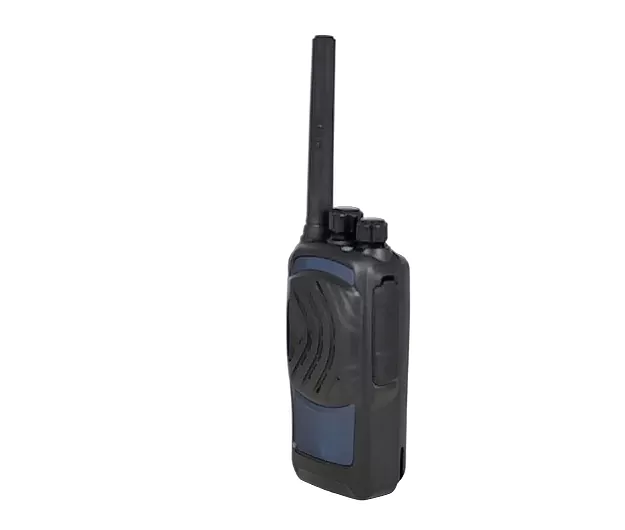

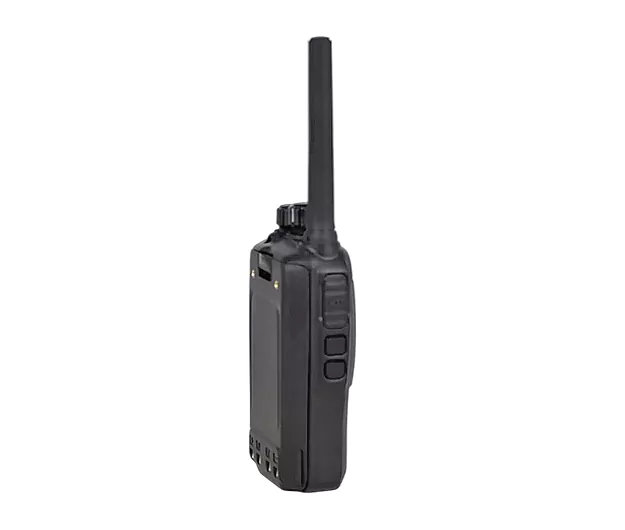

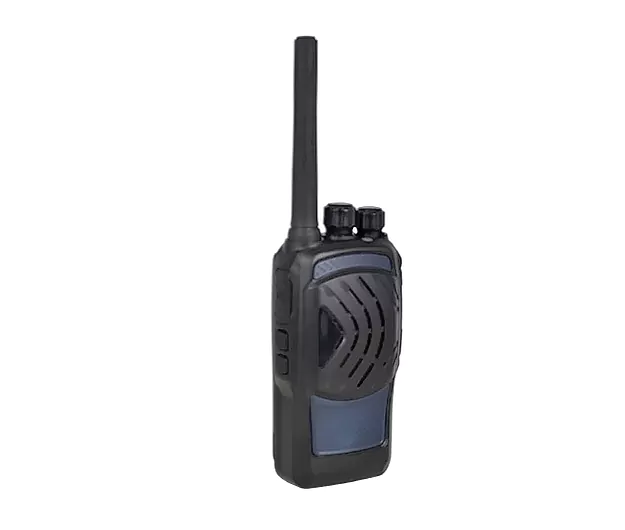

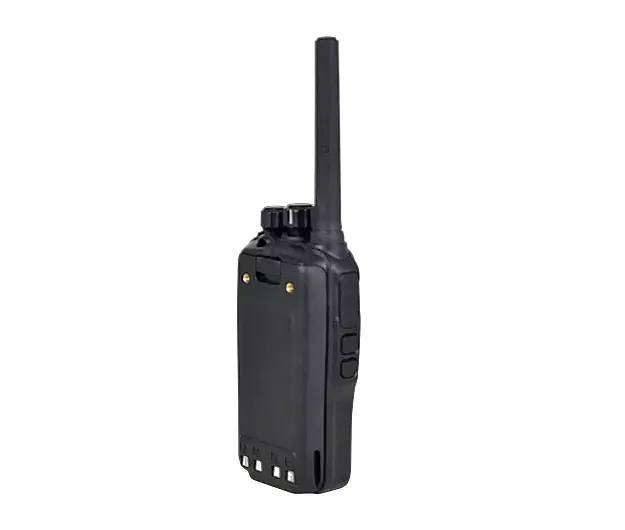

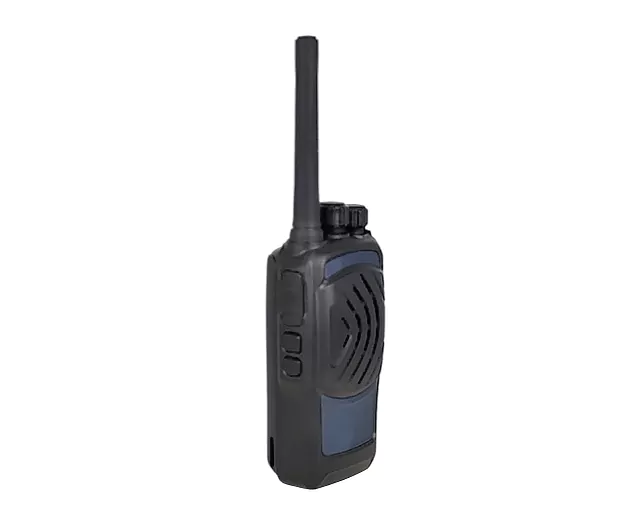

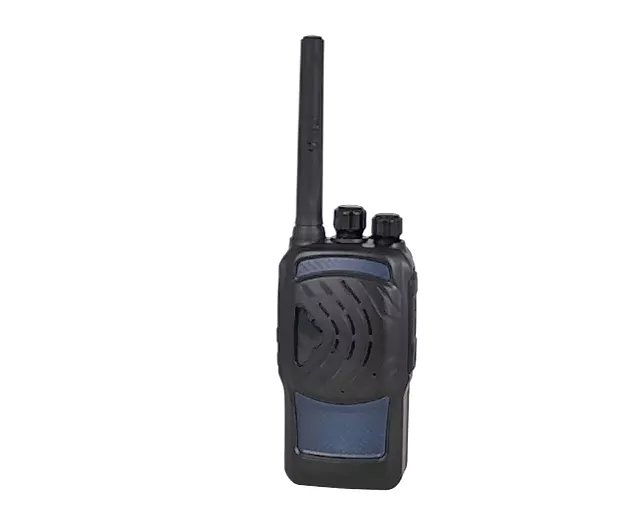

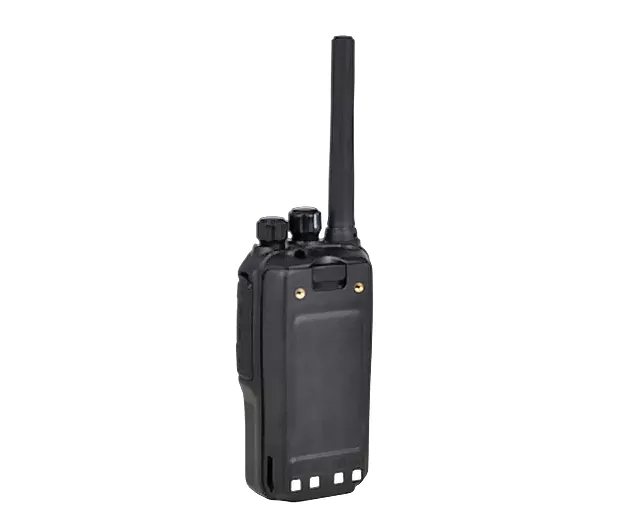

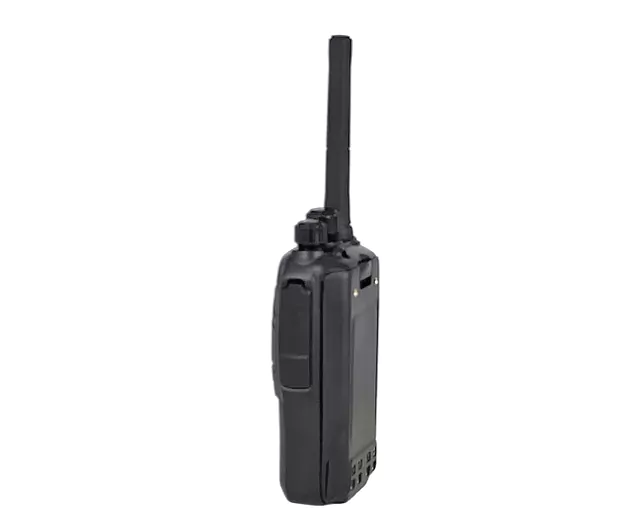

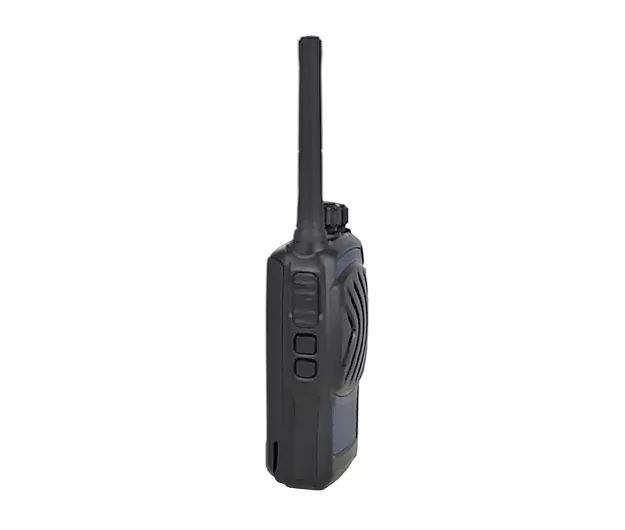

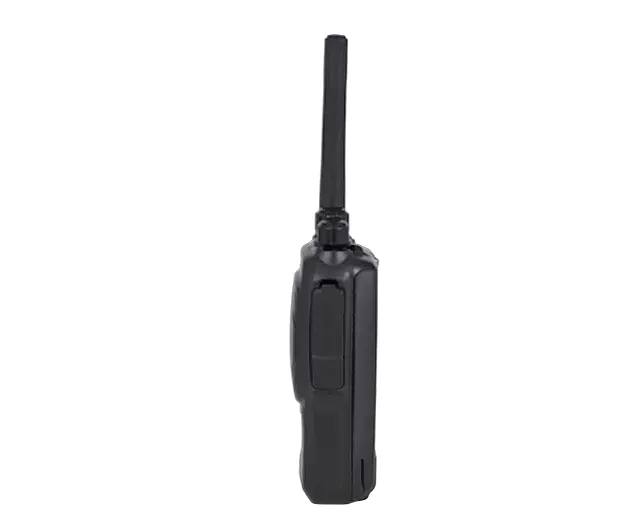

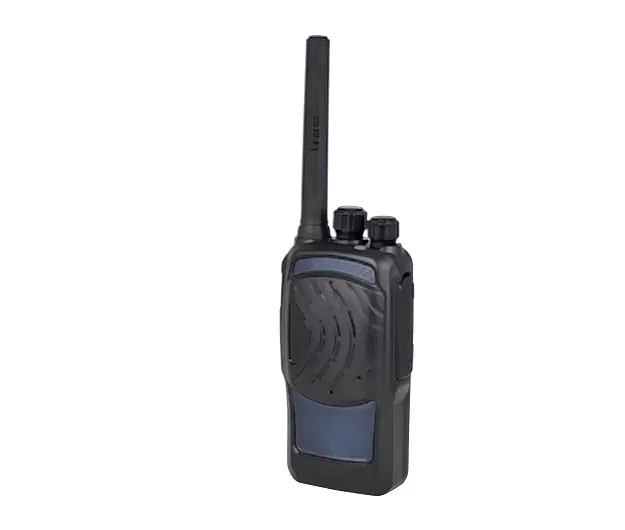

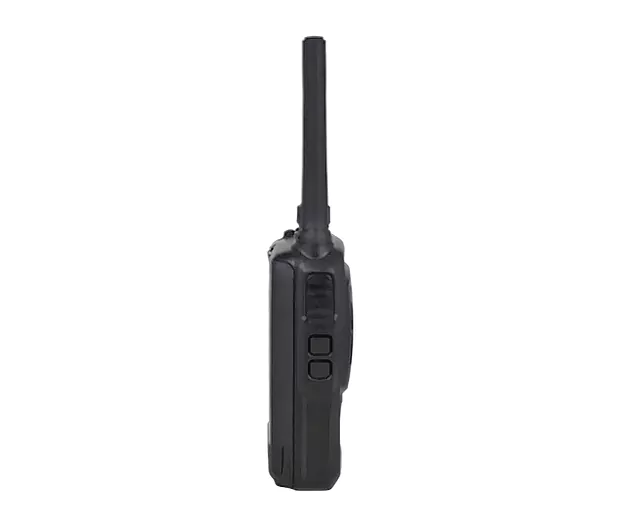

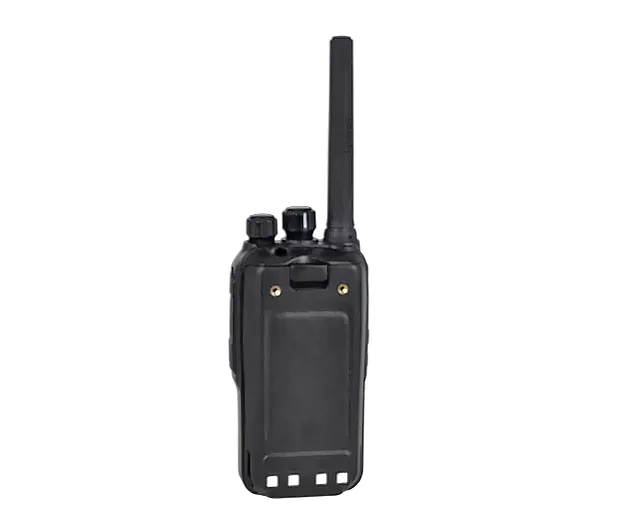

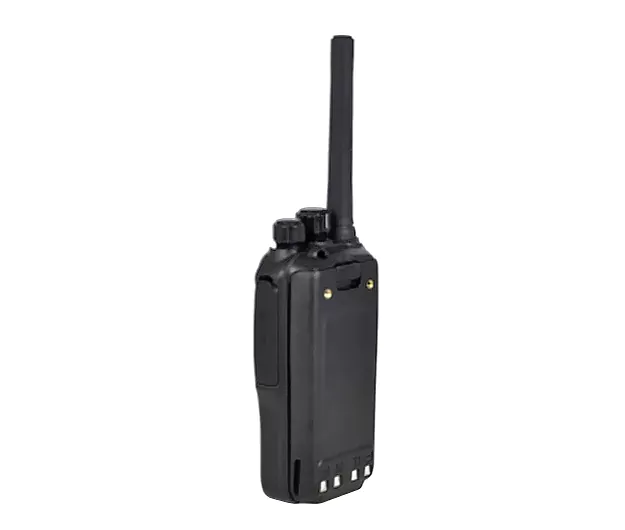

BF-5110
FM Two-way Radio
BF-5110
FM Two-way Radio
OEM/ODM
BF-5110 is a fashionable FM two-way radio designed for small business users. Packed with such conventional analog features as san, monitor, VOX, TOT, low battery alert, CTCSS/CDCSS, switchable power, etc., BF-5110 is more than able to meet your daily communication needs and help improve your efficiency as well as productivity.
Inquiry
Inquiry
Highlights
Monitor
This function enables the user to monitor all the communications on the same channel.
Scan
This function enables the user to listen for all the communications on all the channels. You can easily find out what's going on on different channels.
Auto Battery Save
When not transmitting, the radio will automatically switch into Battery Save mode to further extend standby time.
Low Battery Alert
When battery power is low, a warning will go off to remind the user to recharge in time.
CTCSS/CDCSS
This also helps to filter out unwanted signals and deliver more channel clarity and efficiency.
Squelch Levels (0-9)
This gives the user a better audio experience by eliminating unwanted interference.
This function enables the user to monitor all the communications on the same channel.
Scan
This function enables the user to listen for all the communications on all the channels. You can easily find out what's going on on different channels.
Auto Battery Save
When not transmitting, the radio will automatically switch into Battery Save mode to further extend standby time.
Low Battery Alert
When battery power is low, a warning will go off to remind the user to recharge in time.
CTCSS/CDCSS
This also helps to filter out unwanted signals and deliver more channel clarity and efficiency.
Squelch Levels (0-9)
This gives the user a better audio experience by eliminating unwanted interference.
Specifications
General
| Frequency Range | 400-470MHz 350-390MHz |
| Channel Capacity | 16 |
| Channel Spacing | 25KHz/12.5KHz |
| Antenna Impedance | 50Ω |
| Working Voltage | DC 7.4V(±20%) |
| Battery Capacity | 2200mAh |
| Dimension | 60(L)×36(W)×123(H)mm |
| Weight | 242g(including the battery pack) |
Transmitter
| Power Output | H: 5W L: 1W |
| FM Modulation | 16K￠F3E(width) 8K￠F3E(narrow) |
| Noise and Harmonic | ≤-36dB |
| FM Noise | ≤-40dB |
| Audio Distortion | ≤5% |
| Adjacent Channel Power | ≥65 dB(width)/60 dB(narrow) |
| Modulation Limitation | ≤5KHz(width)/2.5KHz(narrow) |
Receiver
| Analog Sensitive | Better than 0.2µV(width) Better than 0.25µV(narrow) |
| Adjacent Channel Selection | ≥60dB(width)/50dB(narrow) |
| Intermodulation | ≥60dB(width)/50dB(narrow) |
| Spurious Suppression | ≥60dB(width)/50dB(narrow) |
| Rated Audio Power | 500mW |
| Rated Audio Distortion | ≤5% |
Environmental Specifications
| Operational Temperature | -20℃to +60℃ |
