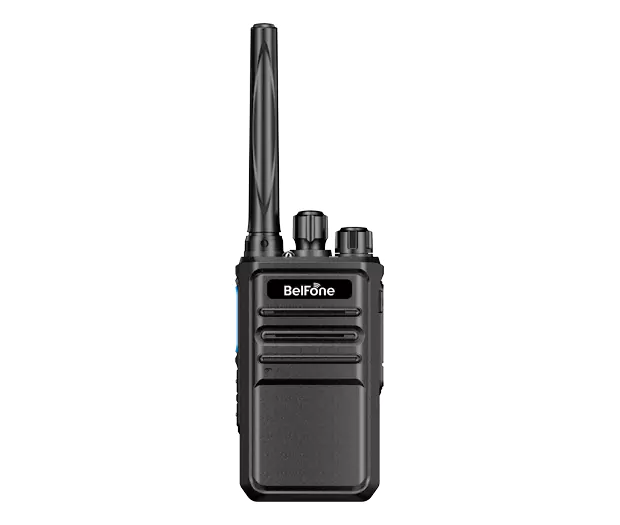

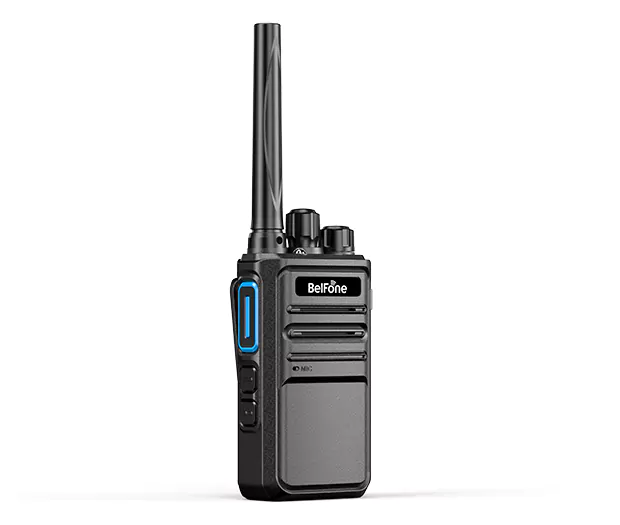

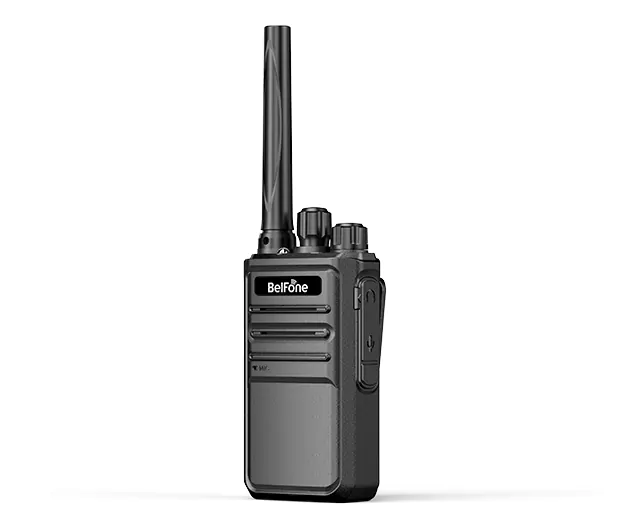

DP3018 Industrial Digital Two-Way Radio

DP3018 commercial digital radio features a modern industrial design with high visibility. It has achieved remarkable success in terms of aesthetics, ease of use and product performance. The advanced digital voice technology guarantees clearer and louder communication sound quality. It supports a hybrid digital/analog communication mode to realize the smooth transition from analog to digital mode. The rich functions of DP3018 provide the outstanding communication experience, making it easy to handle both daily use and task processing.
Inquiry
Inquiry
DP3018
Industrial Digital Two-Way Radio
Inquiry

Highlights

Lone Worker
One Key Alarm
Noise Reduction *
Same ID Interoperability
Digital/Analog Compatible
Automatic Two-time Slots
AES256/ARC4 Encryptions

Specifications

General
Frequency Range UHF: 400-480MHz
Channel Capacity 32
Zone 2
Channel Spacing 12.5KHz
Working Voltage DC 3.7V (±20%)
Battery Capacity 1800mAh
Average Battery Life(5/5/90) Digital: 18 hours Analog:15 hours
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Dimension 53(L)*30(W)*95(H)mm
Weight 161g(Including battery)
Transmitter
Power Output ≤3W
4FSK Modulation 12.5kHz (only data):7K60FXD 12.5kHz (data and voice):7K60FXE
FM Modulation 12.5 kHz:8K50F3E; 25 kHz:16KΦF3E;
Modulation Limitation ±2.5kHz @ 12.5kHz; ±5kHz @ 25kHz
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Frequency Response +1/-3dB
Audio Distortion 0.03
Receiver
Digital Sensitivity 0.25 uV(5% BER)
Analog Sensitive 0.25 uV (12 dB SINAD)
Intermodulation 60dB
Adjacent Channel Selection 60dB
Spurious Suppression 60dB
FM Noise -40dB
Frequency Response +1/-3dB
Rated Audio Power 0.25W
Maximum Audio Power 0.8W
Rated Audio Distortion 0.03
Conduction Radiation -57dBm
Environmental Specifications
Operational Temperature -20℃-+60℃
Storage Temperature -30℃-+85℃
