BF-MR920B
MESH High Power Base Station
BF-MR920B MESH High Power Base Station
MESH base stations are mainly deployed at fixed points. The equipment has high transmission power to provide large coverage. It is especially suitable for scenarios such as long-distance coverage communication, information convergence and return, regional coverage support, commanding coverage, and repeater transmission nodes.
Inquiry
Inquiry
Highlights
- Long-range and wide area coverage as high ground node.
- Converged network and interconnection, full IP network design and support different data transmission, interconnect with different networks.
- Flexible networking, no-center distributive star/tree/chain/ comprehensive network
- Simply constructed, economic solution, get rid of fiber, cables, digging trenches, cutting walls, threading pipes.
- Adaptive bandwidth based on resolution, built-in audio and video recorder.
- WIFI function, interoperate with other devices with WIFI in real time.
- Network interface, data transparent transmission mode.
- Satellite positioning, support GPS/Beidou/GLONASS/Galileo position system.
- External Mic communication, support 4 nodes voice broadcast simultaneously.
- Picture transmission: built-in coding module, support HDMI/CVB, image bandwidth, resolution and frame rate are adaptive as to the channel bandwidth.
- RS485 is optional, support remote control of pan/tilt rotation, focal length and other functions.

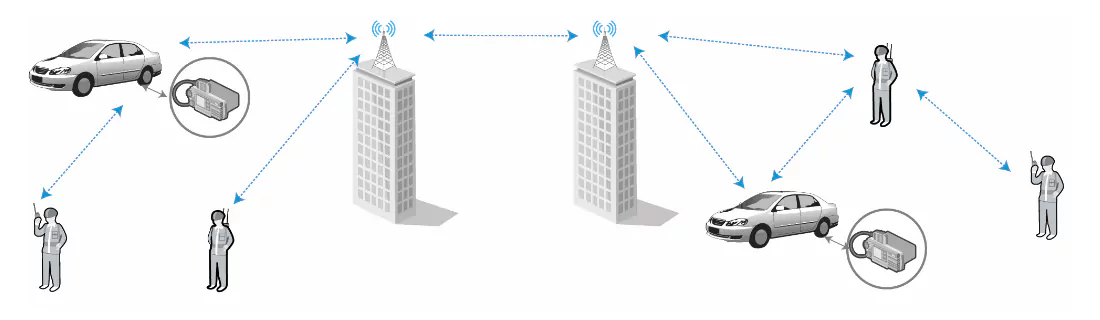

Networking
Specifications
General
| Frequency | 320～450MHz, 450～650MHz, 1.0～1.5GHz, 1MHz, adjustable and customized |
| Carrier Bandwidth | 2.5/5.0/10.0MHz, flexible and configurable; 20.0MHz(optional) |
| Transmission System | COFDM |
| Duplex Mode | TDD |
| Modulation | QPSK/16QAM/64QAM/256QAM (adaptive) |
| Transmission Capacity (TC) | Standard rate 28Mbps or 56Mbps (optional) |
| Network Capacity | Same frequency networking can support 32 nodes |
| Transmit Power | 10W or 20W per channel, dual channel |
| Receiver Sensitivity | ≤-100dBm |
| Video Encoding | External audio and video encoder |
| Picture Resolution | CIF/HD1/D1/720P/1080P |
| Encryption | DES/AES128/AES256 (Optional) |
| Input | External power supply, DC10-48V |
| Power Consumption | ≤140W (10W transmit power) ≤180W (20W transmit power) |
| Size | 356mm* 217mm * 88mm |
| Weight | 7kg |
| Water & Dust Proof | IP54 |
| Operating Temperature | -40℃～+65℃ |
Interface
| Antenna Interface | N type×2 |
| Controller Interface | Waterproof aviation plug (Ethernet) |
| Video Interface | HDMI, CVBS waterproof aviation plug |
| GPS Interface | Waterproof aviation plug |
| MIC Interface | Waterproof aviation plug |
| WIFI Antenna Interface | SMA(2.4GHz) |
