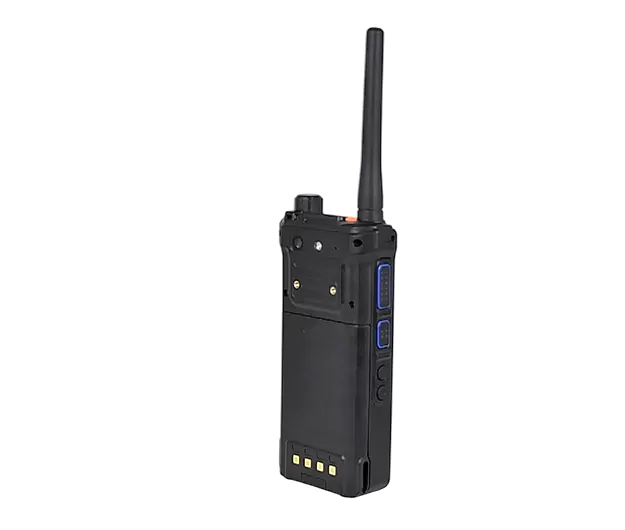

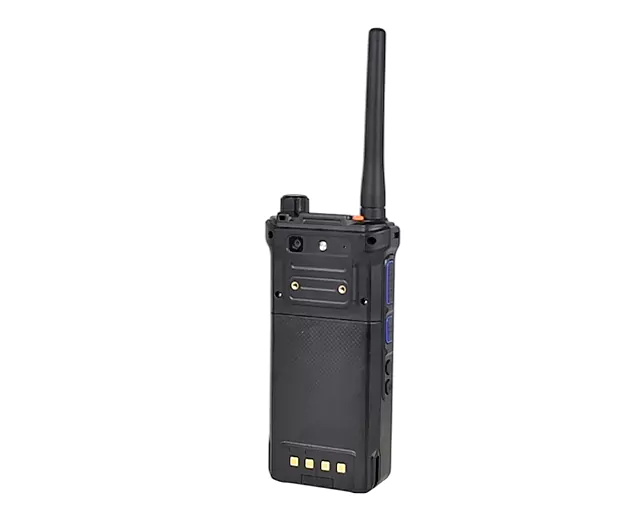

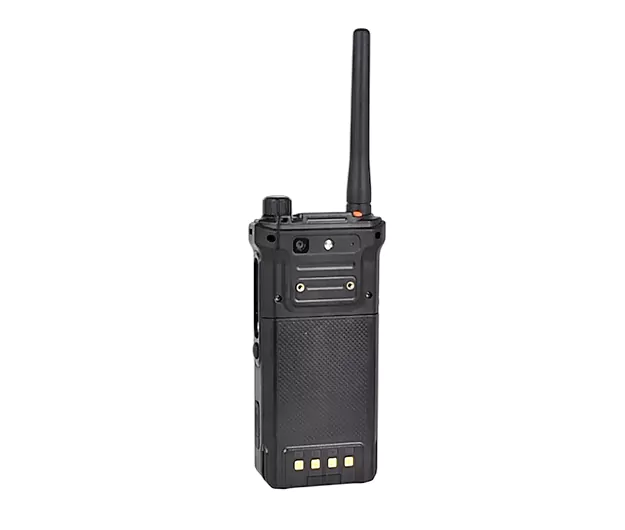

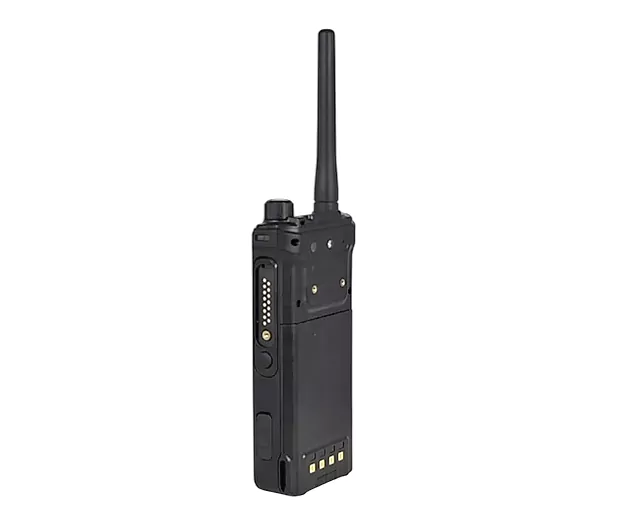

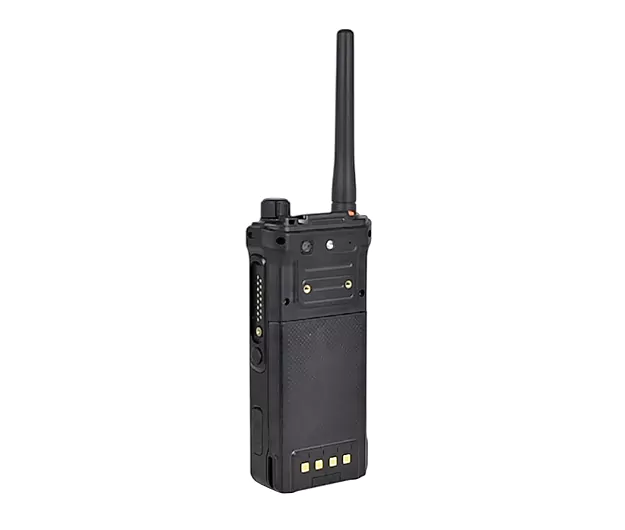

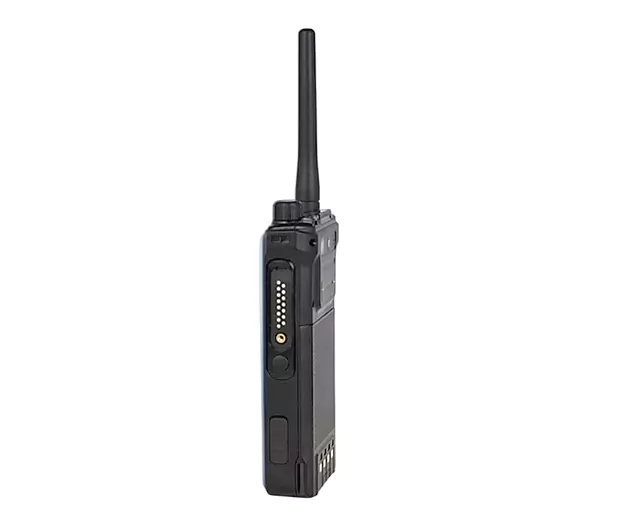

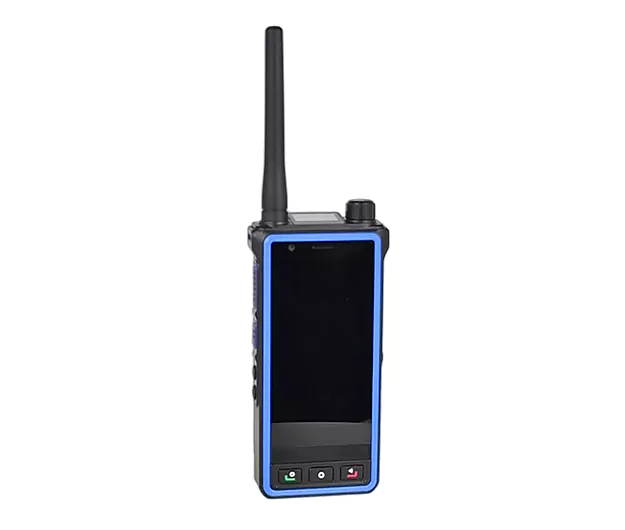

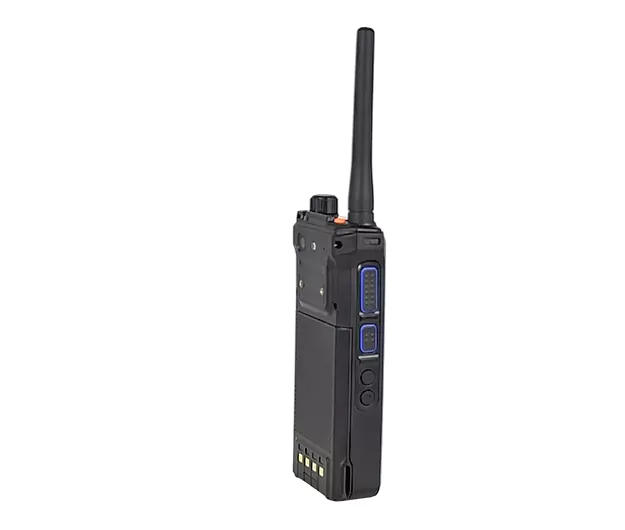

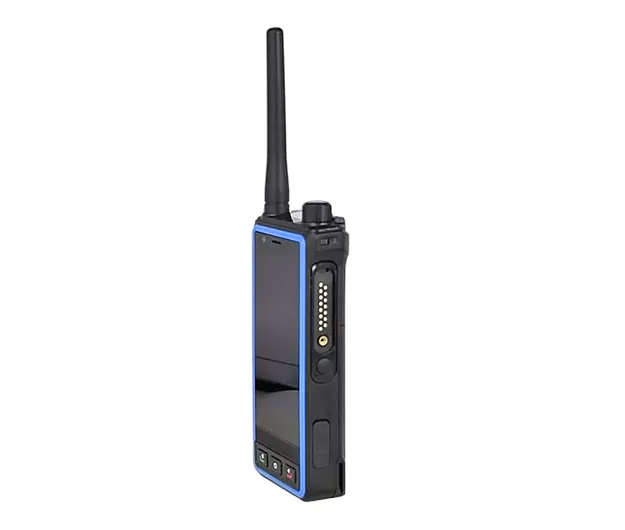

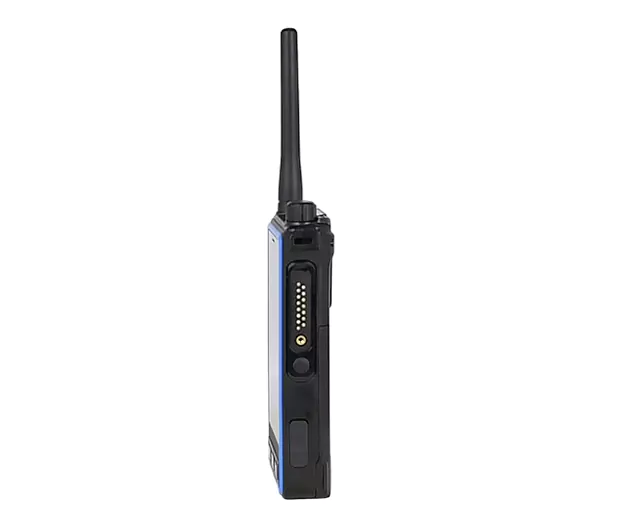

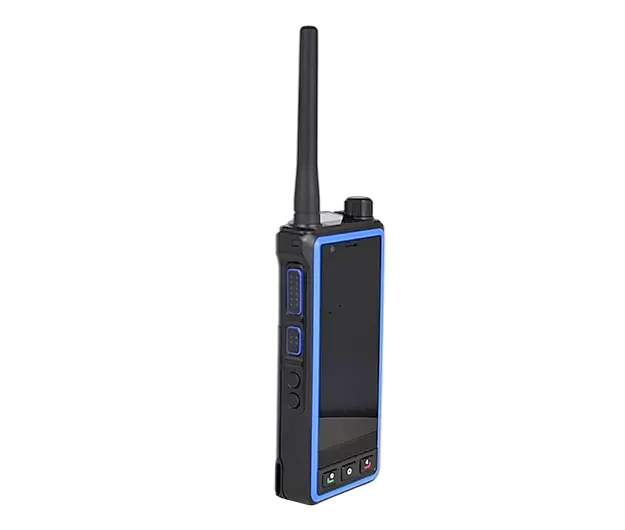

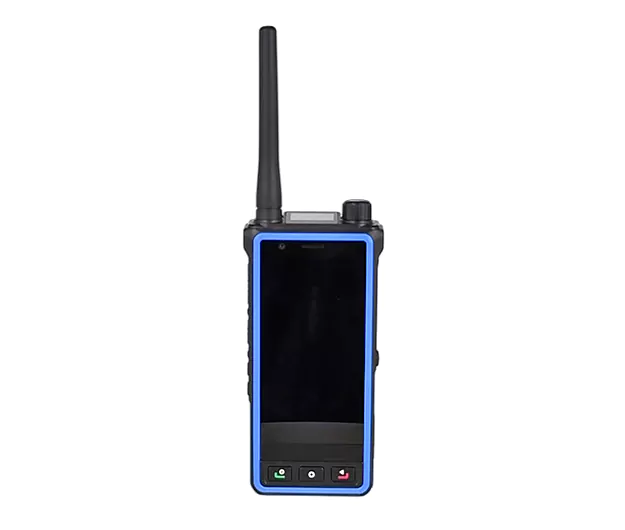

BF-SCP860 Multimode Radio

OEM/ODM
The BF-SCP860 is an all-in-one multimode radio that embraces broadband & narrowband communication and smartphone functionality. Allowing conventional communication, DMR Trunking, and PoC, this radio provides a reliable communication guarantee for critical voice communication. With audio, video, multi-media dispatch, and other rich applications, it helps to improve response efficiency and enhance visual management capabilities.
Inquiry
Inquiry
BF-SCP860
Multimode Radio
Inquiry

Highlights

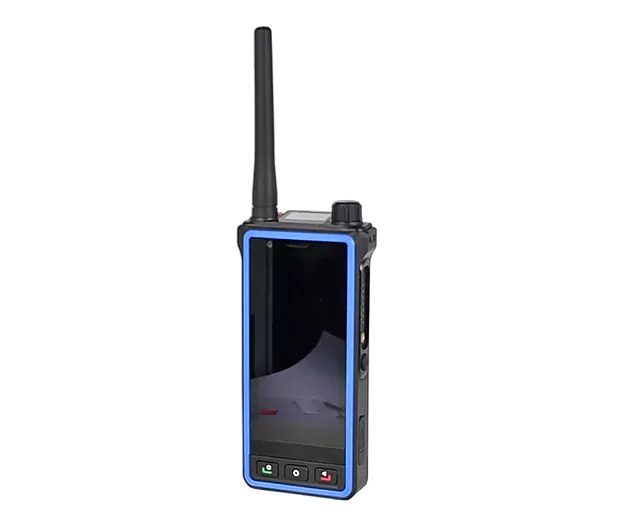

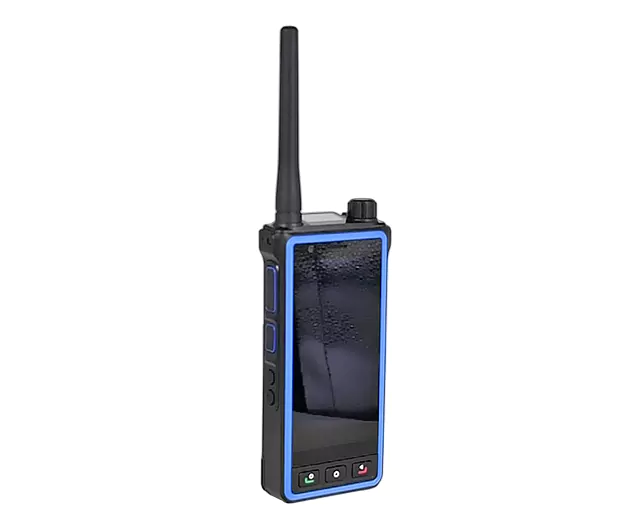

Double Screen Display

BF-SCP860 incorporates a unique dual-screen interactive design. With a 4.0-inch 1080P screen, it brings a more intuitive visual effect and remains clear visibility even when operating in strong light. Its glove operation and wet-hand operation, made it more convenient for outdoor operations.

Integrated Broadband & Narrowband Communication

The BF-SCP860 featured an automatic public-private network switching. In private network mode, it can interconnect with DMR, Analog, and other narrowband terminals. In public network mode, it works with the BelFone ProChat IoT system and enables unlimited audio and video communication, which can extend narrowband coverage, and guarantee rapid network establishment.

Trunking Communication

BF-SCP860 multi-mode radio featured enhanced Trunking performance and wide system/terminal compatibility, providing reliable critical services for transportation, communication, power cut-off and other disconnecting areas.

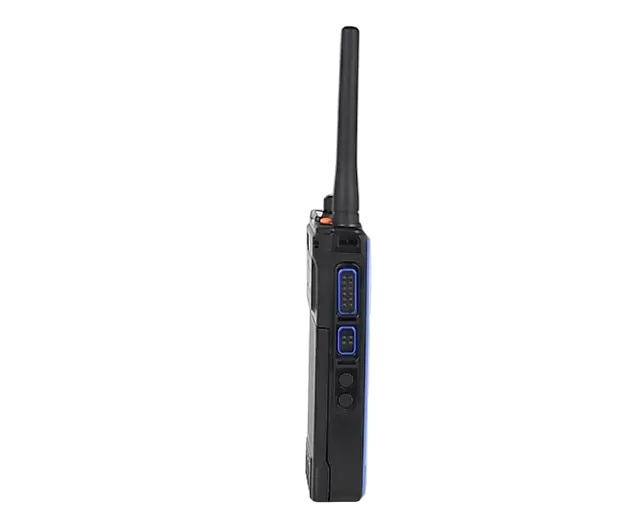

Dual-Transmission

The BF-SCP860 adopts a dual PTT design, allowing users to customize public-private network priority, bring seamless broadband and narrowband communication. With a 5W transmission power and advance audio processing technology, it further extends private network coverage and enhances audio quality.

Comprehensive Positioning

BF-SCP860 supports GPS/GLONASS/Galileo, cellular-based positioning, and WIFI assisted positioning, catering positioning demands in outdoor, indoor, underground, and tunnel environments.
Note: Factory default GPS.

Front and Rear Dual Camera

Equipped with 13MP and 8MP dual HD cameras, the BF-SCP860 delivers 1080P clear images, capturing every critical moment. Its VoLTE feature provides high-definition audio/video call services for better audio and video integration.

Rugged and Durable

Designed with durable industrial-grade plastic material and certificate IP68 protection, the BF-SCP860 is a rugged radio with all-round protection that can withstand a 1.5m drop without damage and endures operating environments ranging from -30ºC-60ºC. It provides stable and seamless communications even in complex environments such as rain, snow, heat, and humidity.

Rich Applications

The BF-SCP860 comes with the Android 11 operating system, providing increased security, stability, and compatibility. It can flexibly adapt to third-party applications, effectively expand data, video, and IoT smart applications, catering to various communications demands and enhancing business processing capabilities.

Specifications

Private Network
Frequency Range VHF:136-174MHZ; UHF:400-470MHZ/UHF:350-400MHZ
Channel Spacing 12.5KHz/25KHZ
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Output Power H:<5W L:1 W
4FSK Modulation Only data:7K60FXD,Voice and data: 7K60FXE
FM Modulation 12.5 KHZ:8K50F3E;25 KHz:16KФF3E;
Modulation Limitation +/-2.5kHz @ 12.5kHz;+/- 5kHz @ 25kHz
FM Emission Noise -40dB
Spurious Emission -36dBm<1GHz/-30dBm≥1GHZ
Adjacent Channel Power <-60dB
Frequency Response +1/-3 dB
Emission Audio distortion 0.03
Digital vocoder AMBE+2™/SELP
Digital Sensitivity 5% BER: 0.25 uV
Analog Sensitivity 0.28 uV(12 dB SINAD)
Intermodulation 65dB
Adjacent Channel Selection 60dB
Spurious Suppression 70dB
FM Noise 40dB
Receiving Response +1/-3dB
Receiving Audio Distortion 0.03
Conducted Radiation -57dBm
General
Public Network Frequency Band 3G:WCDMAB1//5/8;+CDMA20001X/EVDOBCO; 4G:FDD-LTEB1/3/5/8; TDD-LTE B38/39/40/41
Display 4.0”,1080*540dpi, supports glove operation
Camera Front:8MP/Rear:13MP
Storage 4GB+64GB
TF Card Supports up to 256G expansion
Network Mode China Mobile/Unicom/Telecom
Bluetooth BT4.2, supports BLE
Charging Mode Type-C Desktop charge
Positioning BDS, GPS, GLONASS, Galileo
WLAN 802.1l b/g/n/ac/2.4GHZ,5GHZ5G
Sensor Earth inductor/compass, gyroscope, proximity sensor, opto-sensor
Working Voltage 7.6V
Battery Capacity Standard: 2400mAh(Thin Battery); Optional: 3500(Thick Battery)
Operating System Android11
Language Chinese/English
Dimensions 155.6(H)x69.8(W)x26.5(D)mm(Antenna not included)
Environmental
Working Temperature -20℃—+60℃
Storage Temperature -30℃—+70℃
Shock & Vibration MIL-STD-810C/D/E/F
Protection Grade IP68
