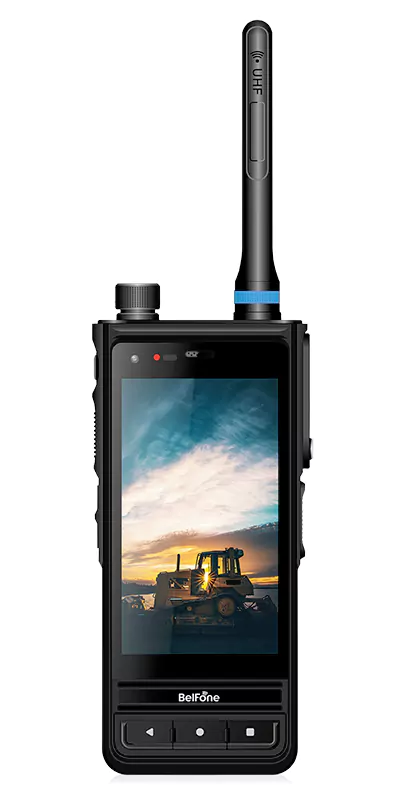

BF-SCP950
Smart Multi-mode Portable Radio
BF-SCP950 Smart Multi-mode Portable Radio
OEM/ODM
In mission-critical communication, situations are more changeable, requirements are diverse, information transmission is mixed and effective collaboration is required. Integrated with LTE and DMR, narrow and broad band, this new smart radio designed for public safety communications with competitive Edge and abundant human-centered features. As a two-way
radio, it offers instant and reliable push-to-talk calls for critical voice communications. As a ruggedized smart portable terminal, it brings
Inquiry
Inquiry
Highlights
Intelligent Multi-application Integration Platform
Support abundant third-party customized applications like Body Worn Camera, Navigation, Workorder etc., and various sensors can be integrated to realize more functions and enrich services.Abundant Advanced Features
- Dual SIM Dual Standby (DSDS)
- WIFI
- NFC
- RFID
- OTG
- Waterproof fingerprint
- Bluetooth
- GPS
BelFone DMR + LTE Hybrid Radio Solution
Topology of Hybrid DMR + PoC Network
Specifications
General
| Network Mode | GSM/WCDMA/CDMA/TD-SCDMA/TDD/FDD-LTE |
| Band | GSM: 850/900/1800/1900; 3G: WCDMA 850/900/1900/2100 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20 LTE-TDD: B38/B39/B40/B41 TD_SCDMA: A/F(B34/B39) EVDO: BC0 |
| Network type | Support Micro SIM, Micro SIM, T-Flash card |
| Weight | 280g |
| Size | 148.8*63.8*28(mm) |
| Battery | 7.6V 2850mAh |
| Charger | USB Type-C for data copy instead of power charge |
| Microphone | Support dual noise reduction Mic |
| Configuration | Bar phone |
Hardware
| CPU | MTK6765 Octa-core 2.3GHz 64bit |
| CPU Process | 16nm process |
| RAM+ROM (1) | 4GB+64GB (standard) |
| RAM+ROM (2) | 6GB+128GB(Optional) |
| TF Card | Max 512G |
| OS | Android 10 |
Display
| Display Size | 4.0-inch IPS |
| Resolution | 640*1136 |
| TP | PS/G+FF/Multi-touch, usable with gloves and wet hands |
Camera
| Rear Camera | 21MP, support autofocus |
| Front Camera | 8MP |
| Flash | 1 flashlight |
Environmental Performance
| Vibration, Drop & Shock | MIL-STD-810G |
| Dust and Water Proof | SGS IP68 |
| Working Temp. | -20℃~+60℃ / -40℃~+60℃ |
Connectivity
| WWAN | 2G：GSM 850/900/1800/1900; CDMA 3G: WCDMA 850/900/1900/2100; A/F(B34/B39) 4G: LTE-FDD: B1/B3/B5/B7/B8/B17/B20/B28(Option) LTE-TDD: B38/B39/B40/B41 Dual Micro SIM standby |
| BT | BT4.1 |
| WIFI | IFI 802.11 a/b/g/n |
| NFC | Frequency: 13.56MH, support ISO15693, ISO1443A/B |
| MIC | Dual Microphones to reduce noise |
| FM | support |
| GPS | GPS/BEIDOU/GLONASS/GALILEO |
| DMR | / |
| POC Key | Support |
| Physical Key | PTT key, POC key, Programmable key |
DMR Part
| Frequency Range | VHF: 136-174MHz（Optional） UHF: 350-390MHz/ 400-480MHz/ 450-520MHz |
| Channels | 100 |
| Channel Spacing | 12.5KHz/ 25KHz |
| Frequency Stability | ±1.5ppm |
| Antenna Impedance | 50Ω |
Transmitter (DMR Part)
| Output Power | High power: 4.0 ±0.2W Low power: 1.0 ±0.2W |
| 4FSK Modulation | 12.5KHz data only: 7K60FXD 12.5KHz data and voice: 7K60FXE |
| Modulation Limitation | ±2.5KHz |
| Spurious Emission | -36 dBm ≤1GHz/ -30 dBm ≥1GHz |
| Adjacent Channel Power | ≤-60dB |
| Frequency Response | +1/-3dB |
| Audio Distortion | 0.03 |
Receiver (DMR Part)
| Digital Sensitivity | 5% BER: 0.25μV |
| Analog Sensitivity | 0.22uV (12 dB SINAD) |
| Intermodulation | 60dB |
| Adjacent Channel Selectivity | 50dB |
| Spurious Suppression | ETSI/TIA603: 55dB |
| FM Noise | 40dB |
| Frequency Response | +1/-3 dB |
| Audio Power | 1.5W |
| Audio Distortion | ≤5% |
| Conduction Radiation | 3%(typical) |
Sensor
| Fingerprint | Support (optional) |
| G-Sensor | Support |
| Geomagnetic Sensor | Support |
| Proximity Sensor | Support |
| Ambient Light Sensor | Support |
| Gyroscope Sensor | Support |
| Barometric Pressure Sensor | Support (optional) |
| Man-down | Support(optional) |
Customization
| 20-Pin expand | Headset Infrared camera Speaker Microphone Noise Cancellation headset RJ45 Port OTG port RS-232/RS-485 |
| LTE Private Network | 1.4G, 1.8G, 450M(B31), 600M, 700M, 230M(optional) |
| 1D/2D Scanner | Support(optional) |
| Radium Lighting | Support(optional) |
| RFID module | Support(optional) |
| Infrared Remote Control | Support(optional) |
BF-SCP950
-
Multi-mode Hybrid, Flexible Communication
Multi-connection in versatile network, different communication standards supported, broadband and narrowband converged. A multi-mode radio works in DMR convention mode, DMR trunking mode, analogue conventional mode, MPT 1327 trunking mode, PoC (public 3G/4G) and MC-LTE (private LTE) mode, bringing all the advantages of both narrow and broad band technologies together, which could always be stayed in connect, to communicate whenever and wherever.
-
Rugged ScreenVisible in different lighting situations. Super-tough, coming with IP68 rated water-resistance, a durable build with shatter-resistant display.
-
Dual CamerasFront camera 8MP and rear camera 21MP, supports 4K HD video.
-
Military StandardIP68 1.5M drop test
-
Smart BatteriesLet you work at ease, gives you more energy, better control and longer operation life.
-
Dual PTTOne for DMR while another for PoC at each side, quick operation.
-
Perfect Audio Quality2 microphones noise reduction and big speaker, pick up sound evenly from all directions, be heard wherever you go.
