BF-SCP960
Smart Multi-mode Portable Radio
BF-SCP960 Smart Multi-mode Portable Radio
In mission-critical communication, situations are more changeable, requirements are diverse, information transmission is mixed and effective collaboration is required. Integrated with LTE and DMR, narrow and broad band, this new smart radio designed for public safety communications with competitive Edge and abundant human-centered features. As a two-way radio, it offers instant and reliable push-to-talk calls for critical voice communications. As a ruggedized smart portable terminal, it brings all the benefits of broadband data to professional users, and offers unified communication experience, rich applications and enhanced data security.
Inquiry
Inquiry
Highlights
Intelligent Multi-application Integration Platform
Support abundant third-party customized applications like Body Worn Camera, Navigation, Workorder etc., and various sensors can be integrated to realize more functions and enrich services.Abundant Advanced Features
Dual SIM Dual Standby (DSDS)WIFI
NFC
RFID
OTG
Waterproof fingerprint
Bluetooth
GPS
Rugged Screen
Visible in different lighting situations.Super-tough, coming with IP68 rated water-resistance, a durable build with shatter-resistant display.
Dual Cameras
Front camera 8MP and rear camera 21MP, supports 4K HD video.Dual PTT
One for DMR while another for PoC at each side, quick operation.Perfect Audio Quality
2 microphones noise reduction and big speaker, pick up sound evenly from all directions, be heard wherever you go.High Standard
IP68MIL-STD-810G
Smart Batteries
Let you work at ease, gives you more energy, better control and longer operation life.Specifications
General
| WWAN | 2G:GSM 8501900/180011900;CDMA 3G:WCDMA 85019001190012100; 4G:LTE-FDD:B1/83/B5/B71B81B17/B201B28(0plion) LTE-TDD: B38/B39/B40/B41 AIF(B34/839) Dual Micro SIM standby |
| Bluetooth | Bluetooth 4.0 |
| WIFI | WIFI802.11 a/b/g/n,2.4G/5.8 |
| NFC | 13.56MHZ |
| microphone | Double Mics to reduce noise |
| Radio | Support |
| GPS | GPS/BEIDOUIGLONASS |
| Digital And Analog Walkie-Talkie | DMR digital and analog，support voice and data function and the ways of encryption,high power 2W，low power 1W VHF:136-174MHz(optional) UHF:400-470MHZ/UHF:350-400MHZ(optional) UV Dual band UHF: 4W, VHF:5W(customizable) |
| Public networkintercom | POC Public network intercom with PoC key |
| Keys | PTT Intercom key、POC intercom key、 custom key |
Physical parameters
| Standards | MIL-STD-810G |
| IP68 protection | waterproof,shockproof,dust-proof |
| Appearance | bar |
| Color | Orange black ,blue black |
| Weight | 408g |
| Size | 182X85.8X21.2(mm) |
Performance Parameters
| CPU | MTK6763 Octa Core 2.3GHz |
| CPU | 16nm |
| RAM+ROM (1) | 4GB+64GB |
| RAM+ROM (2) | 6GB+128GB |
| TF card | Up to 512GB |
| Operate System | Android 8.1 |
Screen Parameters
| Screen Size | FHD+ 5.65 |
| Resolution | 1080*2160 |
| Touch Screen | 5 points touch,support gloves |
| Screen material | IPS high-definition hard screen |
Camera
| Back | 21MP |
| Front | 13MP |
| Flashlight | 1 |
Sensor
| Fingerprint identification | Support |
| Light sensor | Support |
| Proximity sensor | Support |
| Gyroscope | Support |
| Electronic compass | Support |
| Magnetic field | Support |
| Gravity sensor | Support |
Battery
| USB | USB 2.0,Type-C |
| Water proof | Support |
| Desk Charge | Support(optional) |
| Battery | 8000mAh |
| Work Temperature | 35°C~+70°C |
Additional functions
| 16Pin external device | Intercom earphone Infrared Camera Intercom device in hand or car Reduce noise earphone RJ45 slot OTG data transmit |
| The extend slots in the back of phone | 3V+5V+GND+RXD+TXD+2*GPIO |
Customization(optional)
| LTE private network module | 1.4G, 1.8G, 400M, 600M, 700M, 230M |
| 1D/2D scanner module | Honeywell N6603 |
| RFID 915 module | 902MHz-928MHz, 865MHz-868MHz(optional) |
| ID recognition module | Read ID data |
| Camera module | support |
BF-SCP960
-

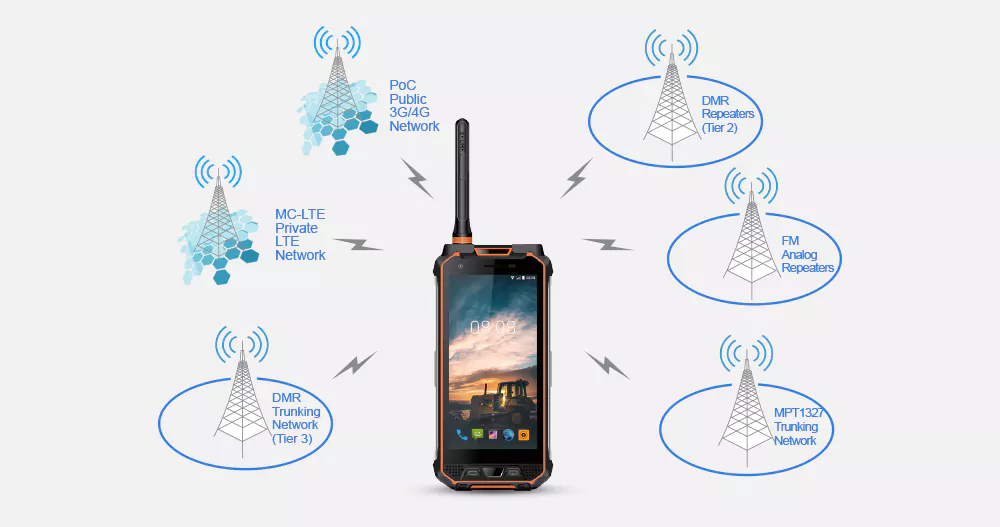

Multi-mode Hybrid, Flexible Communication
Multi-connection in versatile network, different communication standards supported, broadband and narrowband converged. A multimode radio works in DMR convention mode, DMR trunking mode, analog conventional mode, MPT 1327 trunking mode, PoC (public 3G/4G) and MC-LTE (private LTE) mode, bringing all the advantages of both narrow and broad band technologies together, which could always be stayed in connect, to communicate whenever and wherever.
