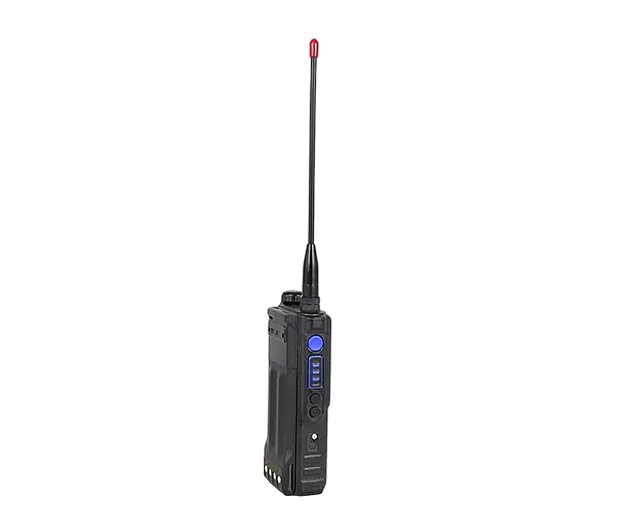

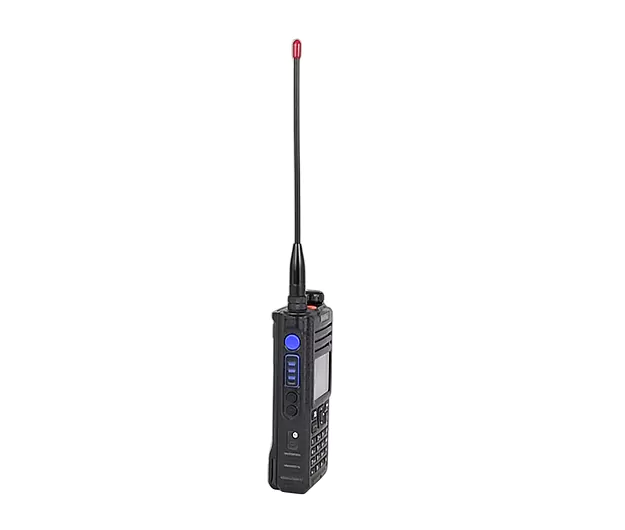

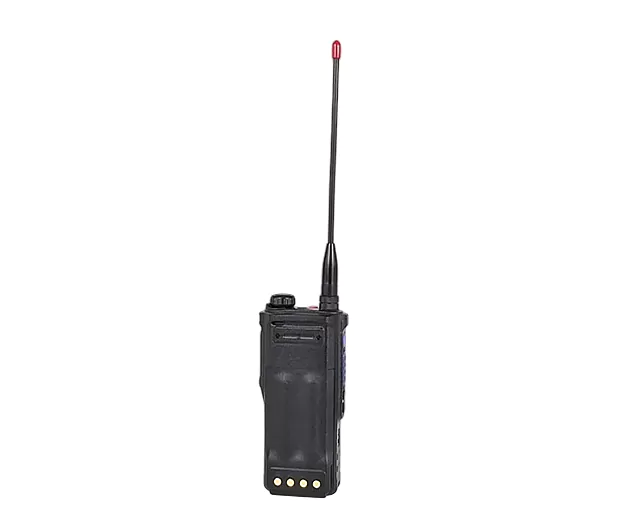

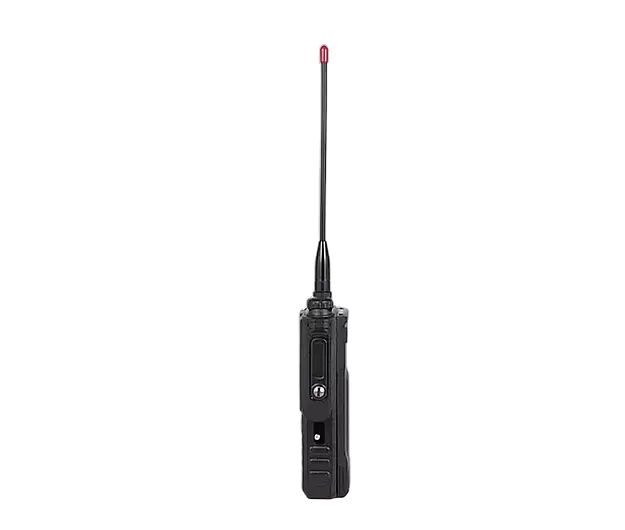

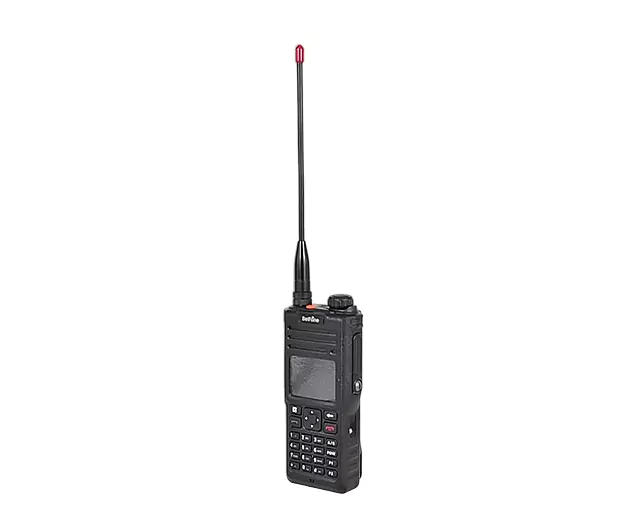

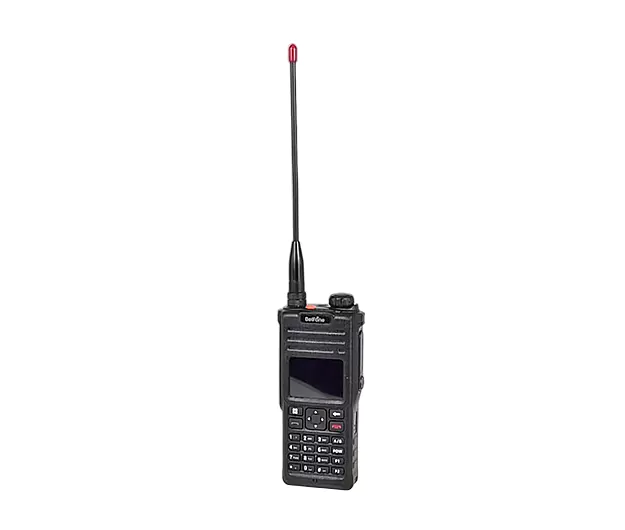

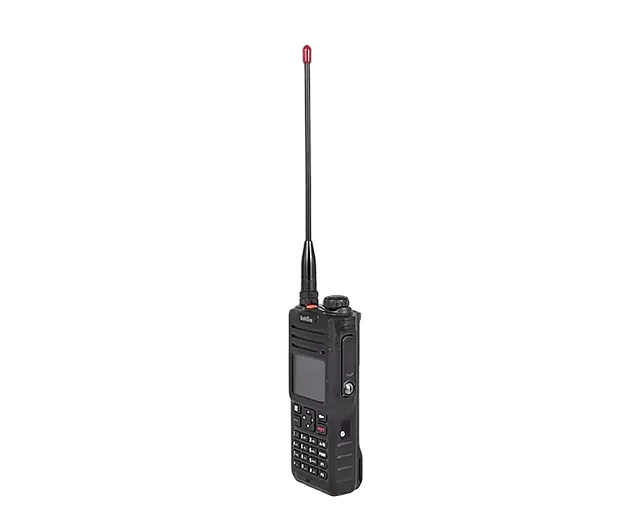

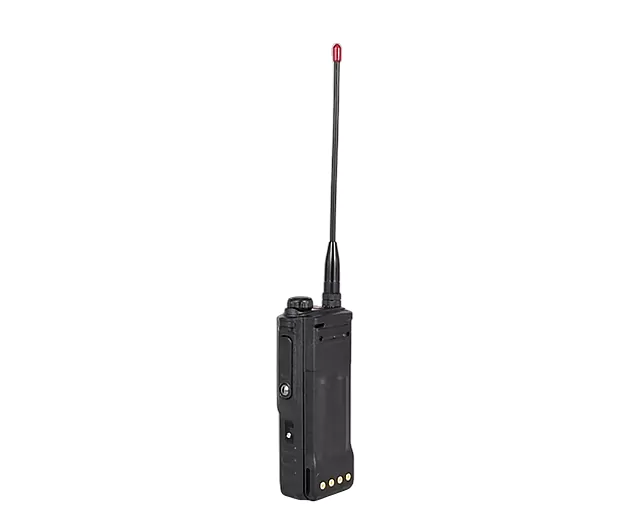

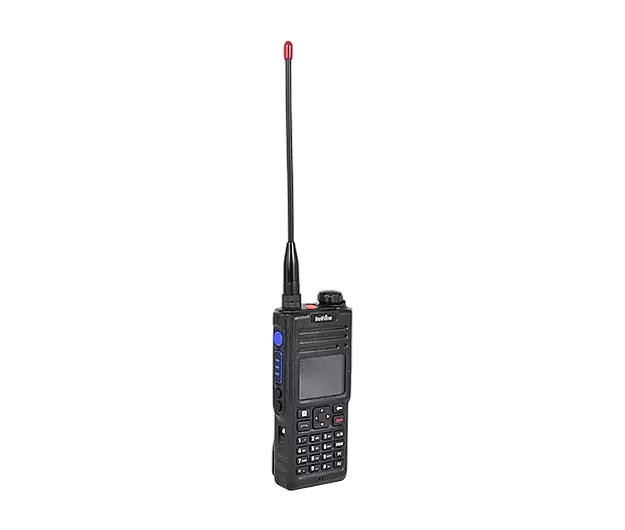

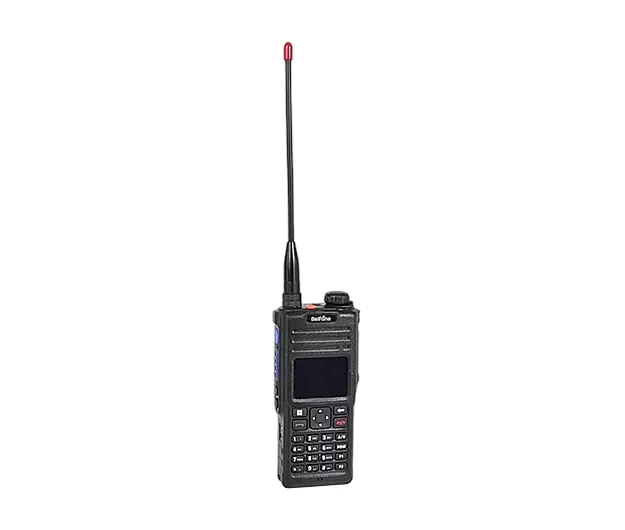

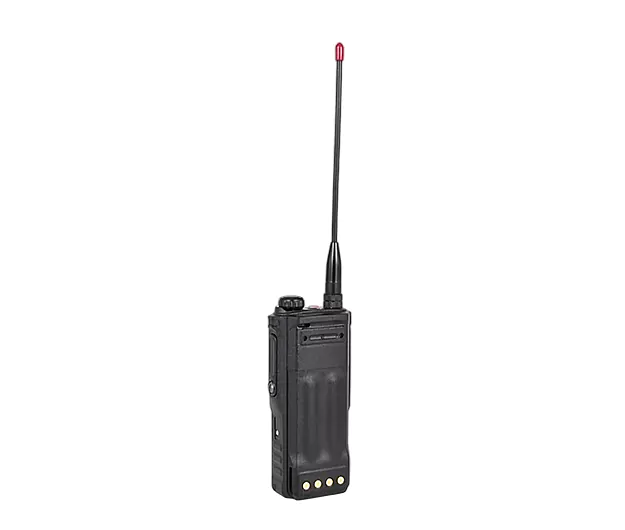

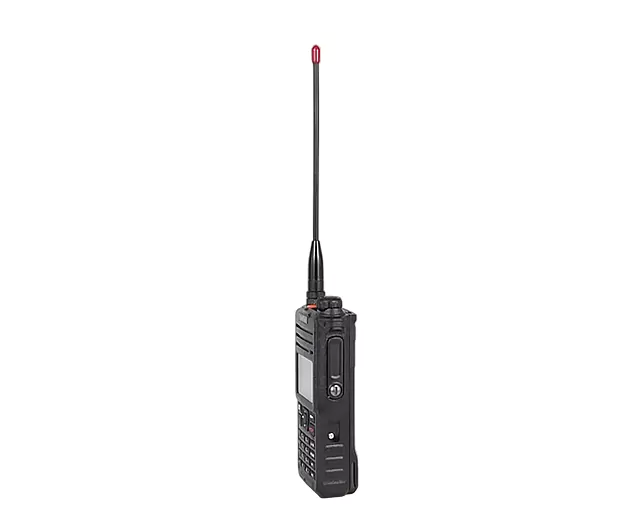

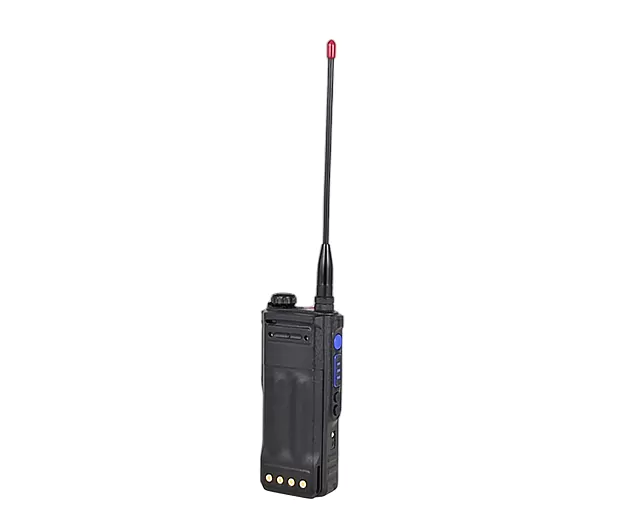

BF-TD920

U/V Dual Band DMR Radio

DMR Dual Band OEM/ODM
The BF-TD920 U/V dual-band digital two-way radio is designed based on the DMR standard, with improved audio clarity, smooth communication, and user-friendly interface. It delivers enhanced safety, privacy, stability, and data transmission capacity to ensure timely information sharing and efficient response, as well as facilitates effective and organized command and dispatch in challenging scenarios.
Inquiry
Inquiry
BF-TD920
U/V Dual Band DMR Radio
Inquiry

Highlights

UV Dual Band

BF-TD920 DMR radio supports U/V dual band and dual standby for enhanced flexibility. The UHF band is ideal for high-density urban areas due to its strong penetration capability, while the VHF band is well-suited for diffusing terrains like plains and wilderness areas. Enables users to switch freely between urban building and complex outdoor areas based on their specific requirements, which can meet various communication needs in different emergency scenarios.

Intelligent Noise Cancellation

BF-TD920 is equipped a built-in noise reduction module, with adaptive microphone noise reduction technology to filter background noise and suppress feedback. This allows users to deliver clear audio even in noisy environments or adverse outdoor weather conditions.

Full Duplex Communication

BF-TD920 U/V dual-band radio incorporates a whole new full-duplex communication to enhance communication reliability and ensure timely response and efficient command and dispatch.

3-Level Regions

BF-TD920 supports 3-level regions setting and 3773 conventional storage channels, allowing manual zone switch and enables swiftly cross-region reinforcement preparation, which enhanced management convenience, and guaranteed reliable communication for promptly respond and cross-region communication.

Enhanced RF Capacity

With the conventional superheterodyne circuitry design, BF-TD920 brings superior transmission and reception, guaranteeing stable reception across expansive areas. It provides close-range, offline communication and reliable supports for communications in network disruption, limited coverage, and unforeseen natural disaster.

Military Standard

BF-TD920 UV has been undergone military standards and IP68 protection. The multiple reinforcement tests on the screen provide it with excellent resistance to impact, vibration, and solar radiation, enabling it to adapt to various harsh environments.

Multiple Security Alarms

The BF-TD920 DMR radio supports GPS, man down, lone worker, emergency alarm and one key emergency alarm solution to further secure personal safety.

Multiple Encryption

To further secure communication confidentiality, BF-TD920 supports multiple digital encryptions including XOR encryption, AES256, and ARC4 encryption.

Rich Functions

The BF-TD920U/V dual-band radio fully considers user experience with series of user-friendly design. Its 2.0-inch semi-transparent screen delivers excellent visual clarity and the full keyboard layout further simplifies operations. Equipped with LED flashlight, stealth mode, TTS, large capacity battery, and optional Bluetooth, and recording to enhance communication experience. Additionally, it seamlessly supports conventional mode, Ad hoc, BelFone dispatch system, etc., which significantly enhanced management convenience and efficiency.

Specifications

General
Frequency Range 136-174 MHz; 400-480 MHz
Channel Capacity 3773
Zone 3000
Channel Spacing 12.5KHz/25KHz
Working Voltage DC 7.4V (±20%)
Battery Capacity 2500 mAh
Average Battery Life(5/5/90) 16 Hours(Analog); 21 Hours(Digital)
Frequency Stability ±1ppm
Antenna Impedance 50Ω
Dimension 66(L)*35(W)*145(H)mm
Weight 540g (Including Battery)
Recording Time 400 Hours
Bluetooth BT5.0
Transmitter
Power Output Low Power:1W; High Power:4W
4FSK Modulation 12.5kHz only data:7K60FXD
FM Modulation 12.5 kHz:8K50F3E; 12.5kHz data and voice:7K60FXE
Modulation Limitation ±2.5kHz @ 12.5kHz;
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≥60dB
Frequency Response +1/-3 dB
Audio Distortion 0.03
Digital Vocoder AMBE
Receiver
Digital Sensitivity 5% BER:0.22uV
Analog Sensitive 0.22uV (12 dB SINAD)
Intermodulation ≥60dB
Adjacent Channel Selection ≥60dB
Spurious Suppression ≥65 dB
FM Noise -40dB
Frequency Response +1/-3 dB
Rated Audio Power 500mW
Maximum Audio Power 1.1W
Rated Audio Distortion 3% (typical)
Conduction Radiation -57dBm
GPS Precision Horizontal Accuracy ≤-10m(with good signal)
TTFF(first location)Cold Boot < 1 minute
TTFF(first location)Hot Boot < 10 second
Environmental Specifications
Operational Temperature -20℃—+60℃
Storage Temperature -30℃—+85℃
Dust & Water Proof IP68
