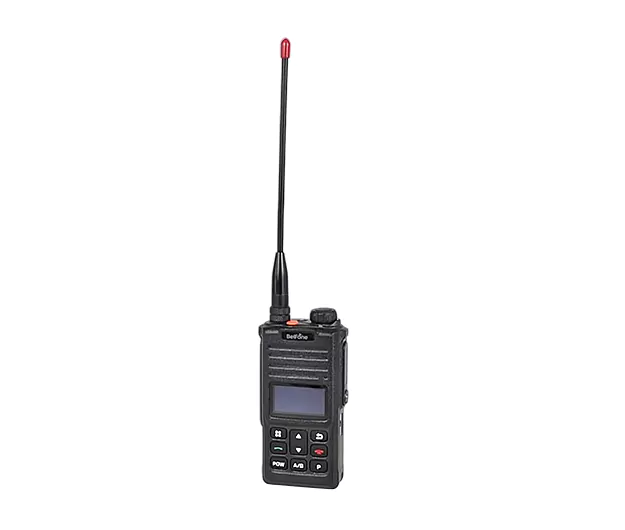

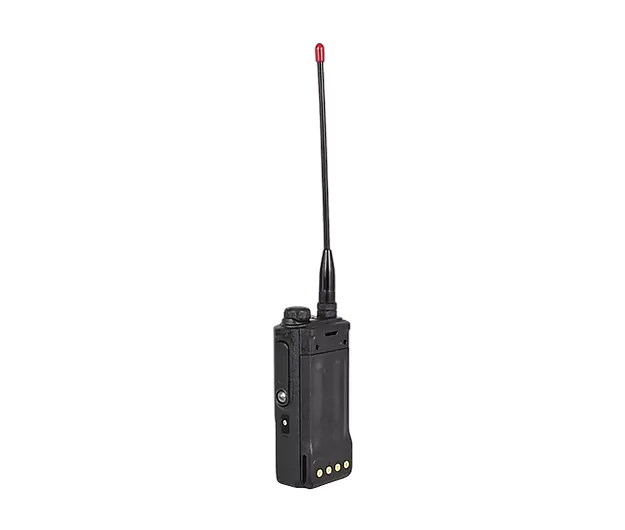

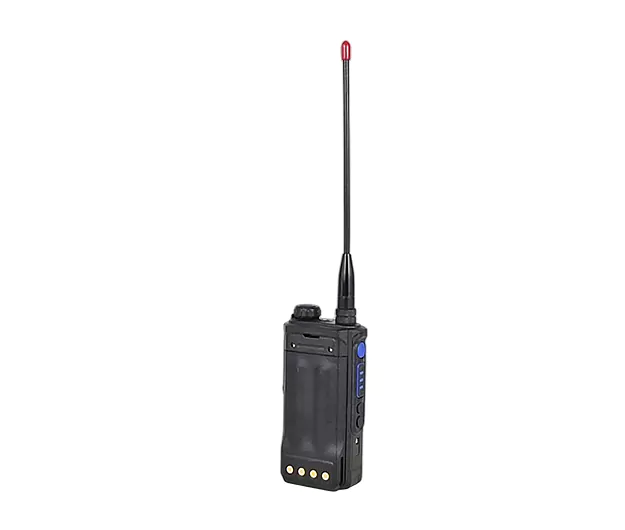

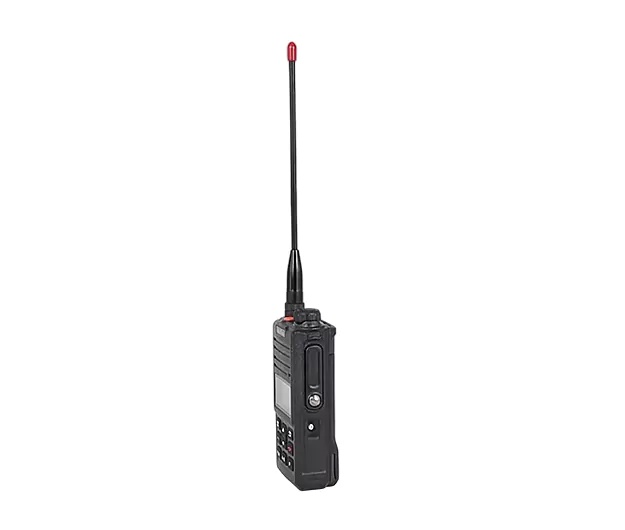

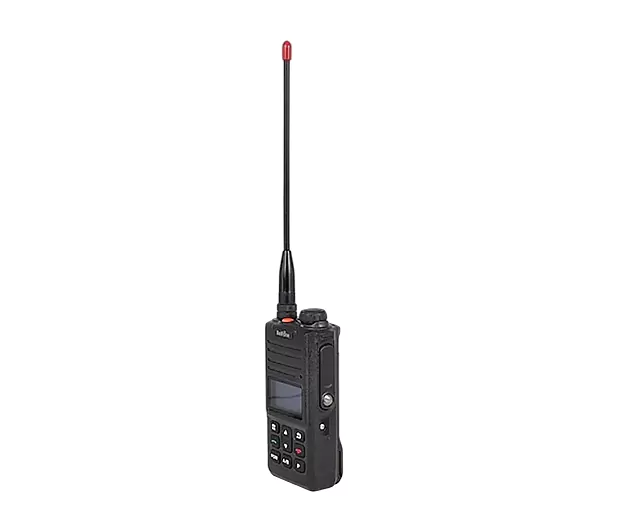

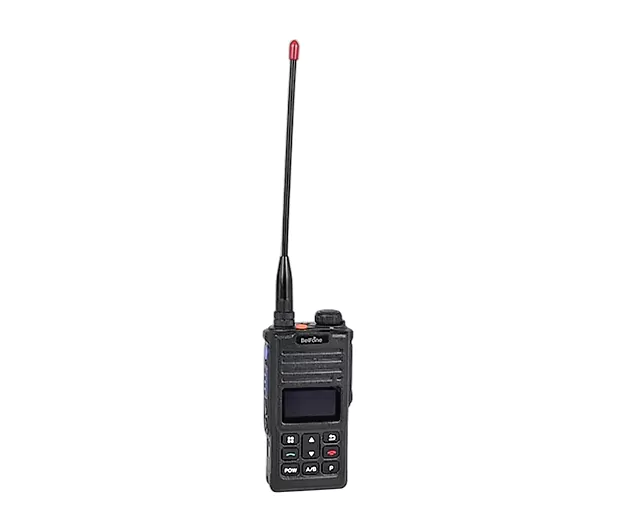

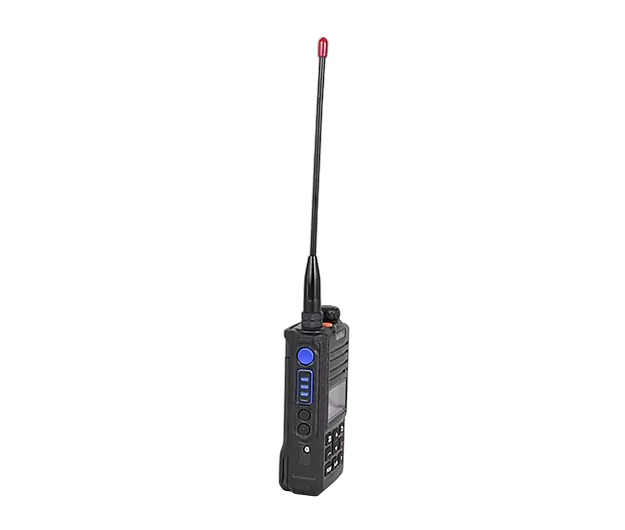

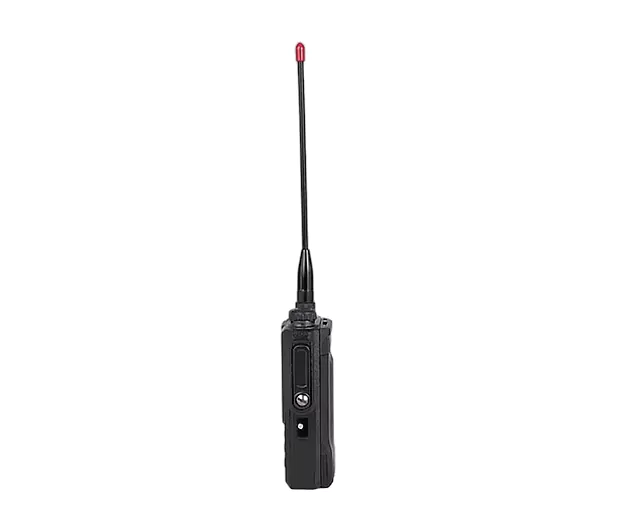

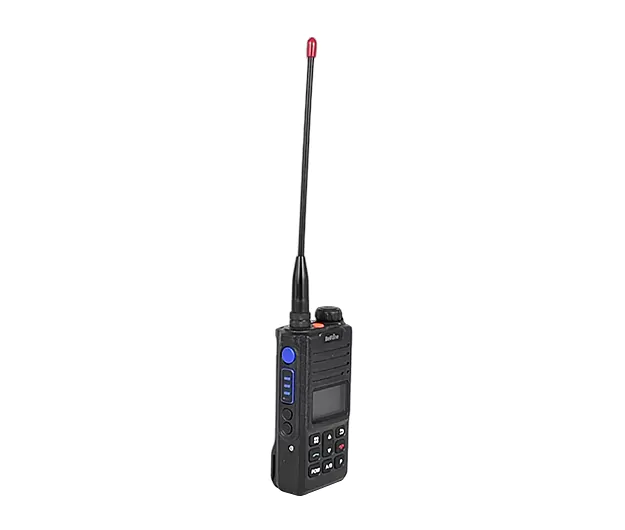

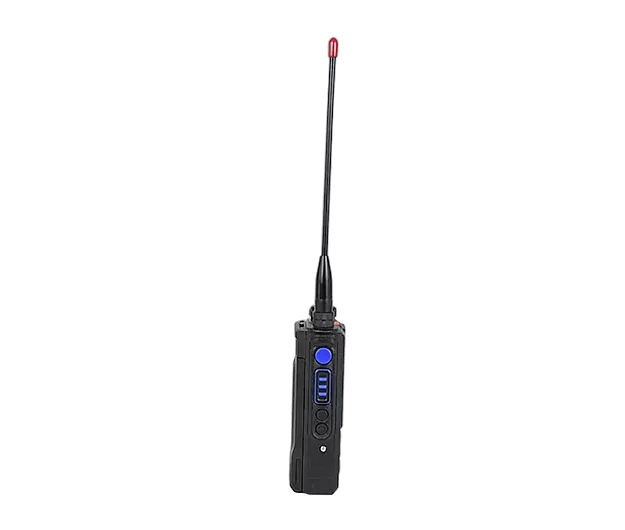

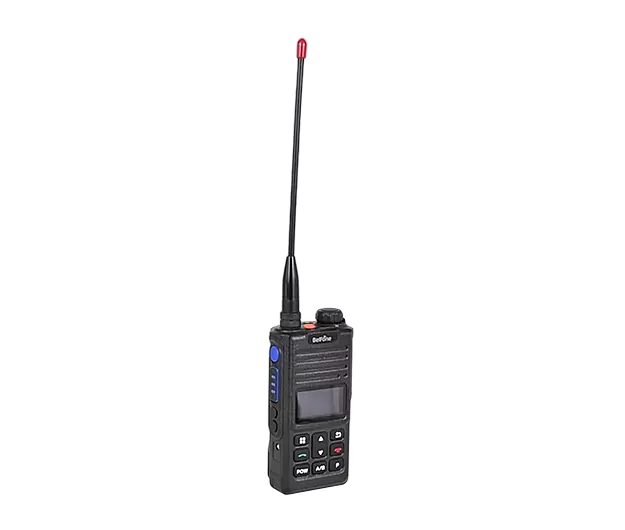

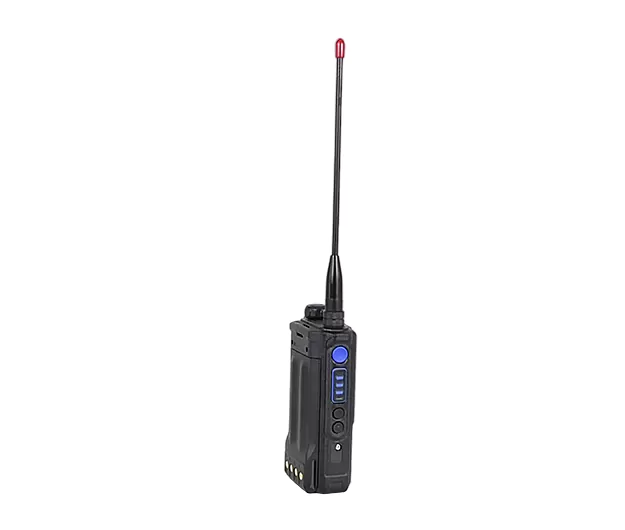

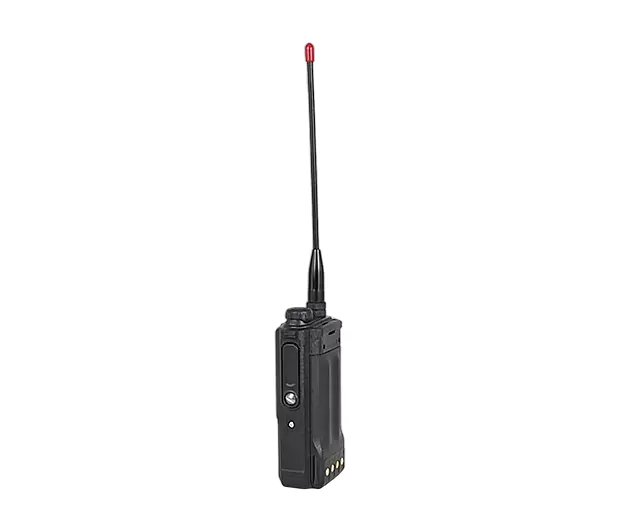

BF-TD910UV UV Dual Band Portable Radio for Emergency Communications

DMR Dual Band OEM/ODM

BF-TD910UV is a tough dual-band two-way radio capable of operating on both VHF and UHF band and in both analog and digital mode; so different users can simultaneously monitor and communicate with other agencies for better collaboration. Its comprehensive feature kit includes versatile calls, emergency call, lone worker, scan/monitor, roaming, transmission authentication, etc. It works in a great diversity of communication scenarios, such as indoor operations, outdoor operations, teamwork and eme

Inquiry

BF-TD910UV

UV Dual Band Portable Radio for Emergency Communications

Highlights
Videos
Specifications
Accessories
Related Products
Applications
Download

Highlights

Dual Band Interoperability

The device is valuable as it performs across multiple digital and analog networks and operates in either VHF or UHF for instant interoperability. Now you can efficiently manage mission critical voice and data in any condition and significantly improve your safety and response time.

Reliable in The Toughest Conditions

This tough IP68 radio is designed to brave the challenges of harsh environments, almost immune to water and dust intrusion. It keeps your workers connected safely and productively, wherever the job takes the m.

Advanced Information Security

ARC4,AES256 and TF card encryption technologies and authentication to protect mission critical radio system from unauthorized access or malicious disruption.

Users can destroy voice records and important data through the terminal to prevent information leakage.

Readable in Different Environment

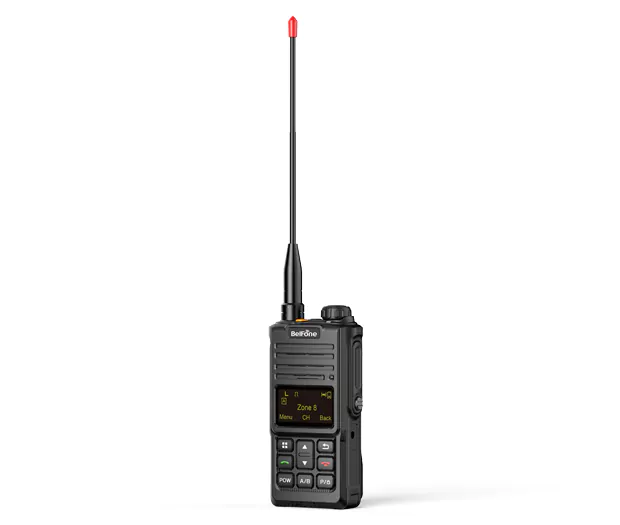

1.6” OLED display, full keypad, ease of operation, convenient to handle.

Work Safety Design

Emergency alarm
Lone-Worker
Cover mode

Specifications

General

Frequency Range	VHF+UHF1:136-174MHz+400-480MHz/VHF+UHF3:136-174MHz+350-400MHz
Channel Capacity	3773
Zone	3000
Channel Spacing	12.5KHz/25KHz
Working Voltage	DC 7.4V (±20%)
Battery Capacity	2500 mAh
Average Battery Life（5/5/90）	Digital 32 Hours, Analog 26 Hours
Frequency Stability	±1.5ppm
Antenna Impedance	50Ω
Dimension	55(L)* 35(W)* 115(H)mm
Weight	295g(including battery)

Transmitter

Power Output	≤5W
4FSK Modulation	12.5kHz Only data:7K60FXD 12.5kHz data and audio:7K60FXE
FM Modulation	12.5 kHz:8K50F3E;25 kHz:16K0F3E;
Modulation Limitation	+/- 2.5kHz @ 12.5kHz;+/- 5kHz @ 25kHz
FM Noise	-40dB
Spurious Emission	-36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power	≤-60dB
Frequency Response	+1/-3dB
Audio Distortion	0.03
Digital Vocoder	AMBE

Receiver

Digital Sensitivity	5% BER:0.25 uV
Analog Sensitive	0.25 uV (12 dB SINAD)
Intermodulation	70dB
Adjacent Channel Selection	60dB
Spurious Suppression	70dB
FM Noise	-40dB
Frequency Response	+1/-3dB
Rated Audio Power	Rated: 0.5W Max:1.2W
Rated Audio Distortion	3%( Typical)
Conduction Radiation	-57dBm
GPS Precision	≤-10m(with well signal)
TTFF（first location）Cold Boot	<1minute(with wellsinal)
TTFF（first location）Hot Boot	<10second(with well signal)
