BF-TM950
VHF/UHF DMR Base Radio

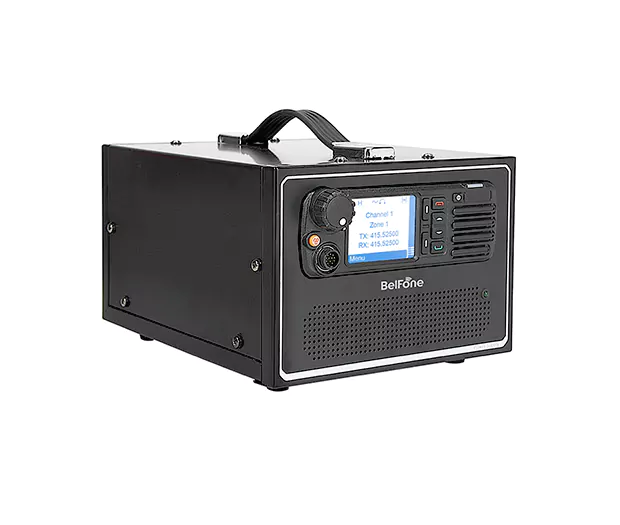

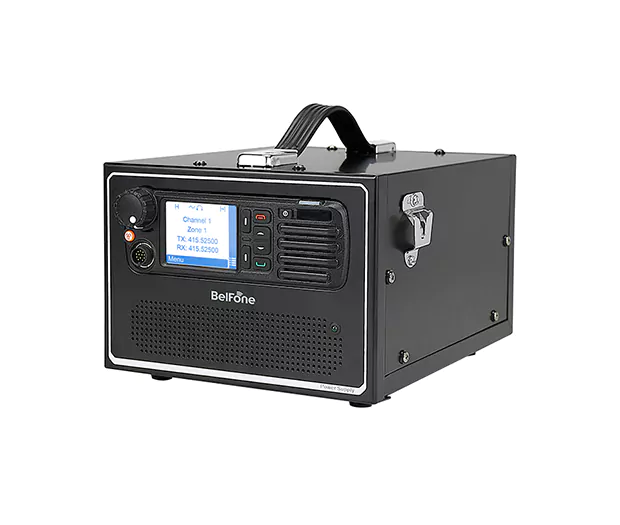

BF-TM950 VHF/UHF DMR Base Radio
With strong anti-interference, this portable base radio works in different modes, including DMR Tier ll trunking, MPT1327, DMR Tier ll and analog conventional, ensuring its interoperability with the legacy analog networks. Operated on a desktop, its flexible design enables great performance through its simple operation via the handheld microphone, making it an ideal solution for public security, rescue, utilities, etc.
Inquiry
Inquiry
Highlights
Multiple Power Supply Modes, Flexible Deployment

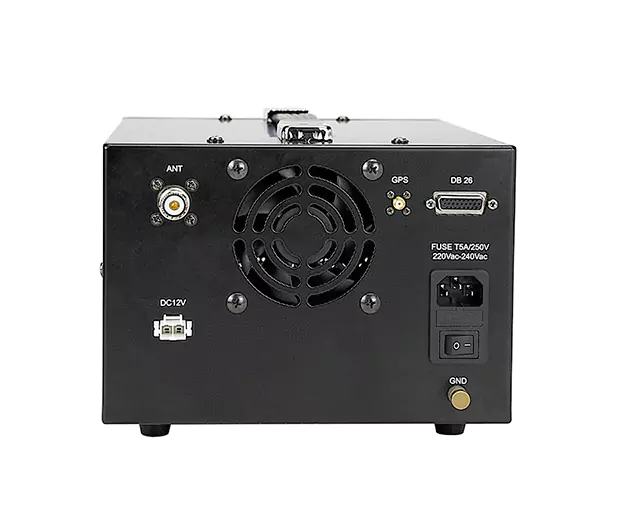

This base radio has a portable handheld chassis for flexible deployment. Support external AC/DC power input, while DC current can be output to charge the battery. Support 220V/110V AC input mode switching, applicable to different overseas countries and regions.Enhanced Communication Efficiency
·Incorporating groundbreaking full-duplex call technology to allow simultaneous two-way voice calls.·DMR trunking mode enables access to a pool of radio channels, which are dynamically allocated to users when required.
Professional Industrial Design
Control panel with a 2.8-inch display. Remote mount head supported.Enhanced User Safety
Lone worker, emergency calls, covert mode, GPS and location services, and active and positive alarm mode ensure personnel safety.Four Modes
It works in DMR Tier III, MPT 1327, DMR Tier ll & Analog Conventional mode, seamlessly switching between networks with uninterrupted communication experience.
Safety Services
·Emergency call
·Lone-Worker
·Covert mode
·Analog alarm
Data Services
·Status/SDS messaging (in TMO & DMO)
·Group Message
·ARC4 & AES256 Encryptions
·TF card encryption
Voice Services
·Full duplex call
·DMR Virtual Trunking
General Performance
·Frequency bands: VHF: 136-174 MHz; UHF: 350-400/400-470/450-520 MHz
·1024 channels / 64 zones
·Display: 2.8-inch IPS
·IP54 protection
·50W output power, 3W speaker
Applications
·Automatic roaming
·GPS/Satellite
·Support Bluetooth 4.0
·Intimate functions like stopwatch, alarm clock, calendar, etc.
·Keyboard lock
Specifications
General
| Frequency Range | UHF:350-400 MHz UHF:400-470 MHz |
| Channel Capacity | 1024 |
| Zones | 64 |
| Channel Spacing | 12.5KHz/25KHz |
| Operating Voltage | DC 13.8 V (±20%) |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions (L×W×H) | 180( L )*199(W)*63 (H)mm |
| Weight | 1.5kg |
Transmitter
| RF Output Power | ≤50W |
| 4FSK Modulation | 12.5kHz Only Data:7K60FXD 12.5kHz Data and Audio:7K60FXE |
| FM Modulation | 12.5 kHz:8K50F3E; 25 kHz:16KΦF3E; |
| Modulation Limiting | +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz |
| FM Noise | -40dB |
| Conducted Emission | -36 dBm≤1GHz/-30 dBm≥1GHz |
| Adjacent Channel Power | ≤-60dB |
| Audio Response | +1/-3 dB |
| Audio Distortion | 0.03 |
| Digital Voice coder Type | AMBE/NVOC |
Receiver
| Digital Sensitivity | 5% BER:0.22uV |
| Analog Sensitivity | 0.22uV (12 dB SINAD) |
| Intermodulation | 65dB |
| Adjacent Channel Selectivity | 60 dB |
| Spurious Response Rejection | 70 dB |
| FM Noise | -40dB |
| Audio Response | +1/-3 dB |
| Rated Audio Output Power | 3W |
| Rated Audio Distortion | 3% (Typical) |
| Conducted Spurious Emission | -57dBm |
| GPS Accuracy | Horizontal Accuracy≤10m(with good signal) |
| TTFF(Time To First Fix)Cold Start | <30second(with good signal) |
| TTFF(Time To First Fix)Hot Start | <10second(with good signal) |
Environmental Specifications
| Working Temperature | -30℃—+60℃ |
| Storage Temperature | -40℃—+85℃ |
| Humidity | MIL-STD-810C/D/E/F |
| Vibration & Shock | MIL-STD-810C/D/E/F |
| Waterproof&Dustproof | IP54 |
Power Supply Case Specification
| Operating Environment | -10℃—50℃ |
| Input Voltage | AC 220V±10%/ AC110V±10% |
| Output Voltage | 13.8V±0.2V |
| Maximum Current | 16A—17A |
| Output Overvoltage Protection | 16.5V±1.5V |
| Return Current | 2A—3A |
| Source Effect | ≤5×10-4 |
| Load Effect | ≤5×10-4 |
| Periodic and Random Offset | ≤15mVP-P |
| Rechargeable Battery Voltage | 13.8V |
| Charging Current | 1A±0.2A |
| Dimensions | 220(H)*151(W)*272(L)mm |
