BF-5111UV
Dual Band PMR Radio
BF-5111UV
Dual Band PMR Radio
Dual Band OEM/ODM

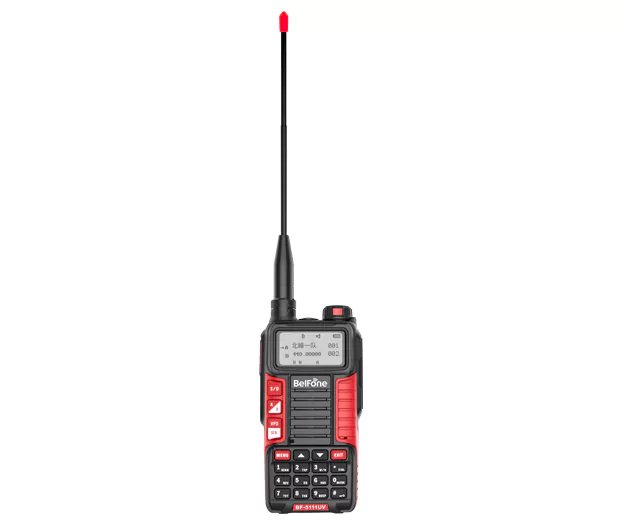

Certified IP54 BF-5111UV is a multi-functional PMR radio capable of providing quality voice communication in a fashionable outfit. Besides conventional features such as Reverse Frequency, Switchable Power, Local Alarm,BF-5111UV is capable of cross band operation. This is an ideal radio for outdoor users.
Inquiry
Inquiry
Highlights
Channel Scan
Squelch Levels (0-9)
H/L Power Switchable
Built-in Flashlight
CTCSS/CDCSS/STE
Wide/Narrow Bands Switchable
Squelch Levels (0-9)
H/L Power Switchable
Built-in Flashlight
CTCSS/CDCSS/STE
Wide/Narrow Bands Switchable
Specifications
General
| Frequency Range | VHF: 87-108MHz(receive only)/136-174MHz; UHF: 350-390MHz(receive only)/400-470MHz |
| Channel Capacity | 199 |
| Channel Spacing | 25KHz/12.5KHz |
| Antenna Impedance | 50Ω |
| Working Voltage | DC7.5V (±20%) |
| Battery Capacity | 1800mAh |
| Frequency Stability | ≤±2.5 ppm |
| Dimension | 61(L)×36(W)×117(H)mm |
| Weight | 217g (including battery pack) |
Transmitter
| Power Output | H: 5W L: 1W M:3W |
| FM Modulation | 16K￠F3E(width) 8K￠F3E(narrow) |
| Noise and Harmonic | ≤-36dB |
| FM Noise | ≤-40dB |
| Audio Distortion | ≤5% |
| Adjacent Channel Power | ≤60dB(width)/55dB(narrow) |
| Modulation Limitation | ≤5KHz(width)/2.5KHz(narrow) |
Receiver
| Analog Sensitive | Better than 0.2µV(width) Better than 0.25µV(narrow) |
| Adjacent Channel Selection | ≥60dB(width)/50dB(narrow) |
| Intermodulation | ≥60dB(width)/50dB(narrow) |
| Spurious Suppression | ≥85dB(width)/ 80dB (narrow) |
| SNR | ≥45dB(width)/ 40dB (narrow) |
| Rated Audio Power | 500mW |
| Rated Audio Distortion | ≤5% |
Environmental Specifications
| Dust & Water Proof | IP 54 |
| Operational Temperature | -20℃～+60 |
