BF-AP3016
Analog Two-Way Radio

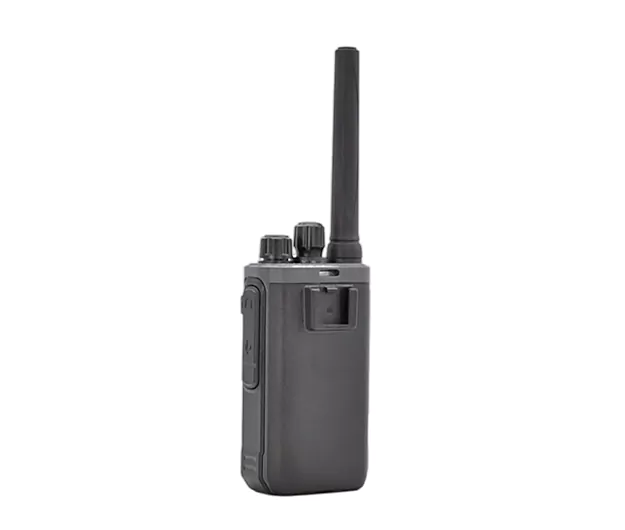

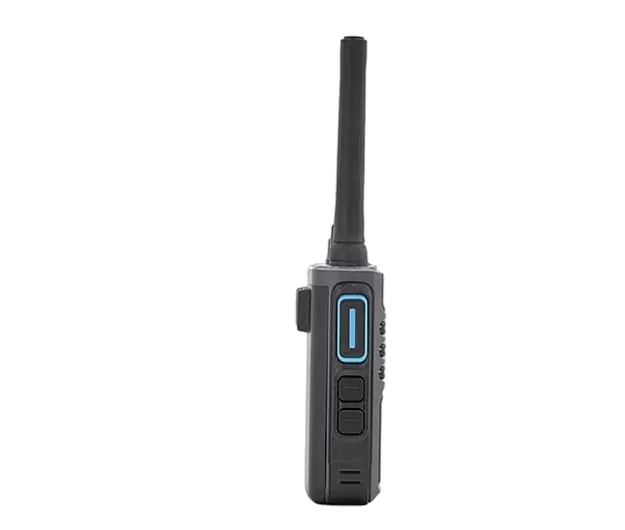

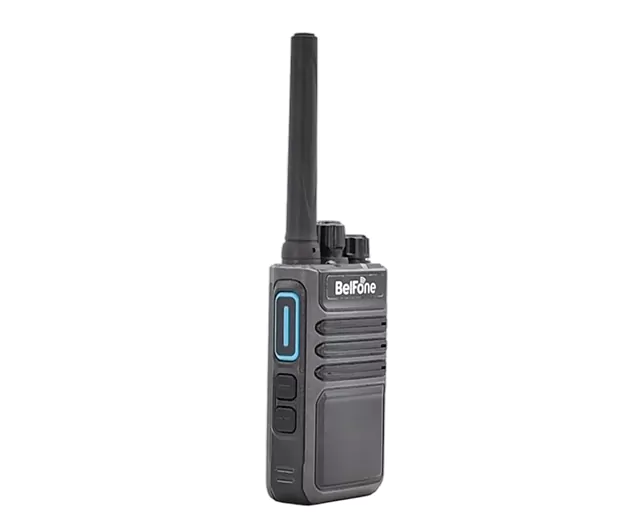

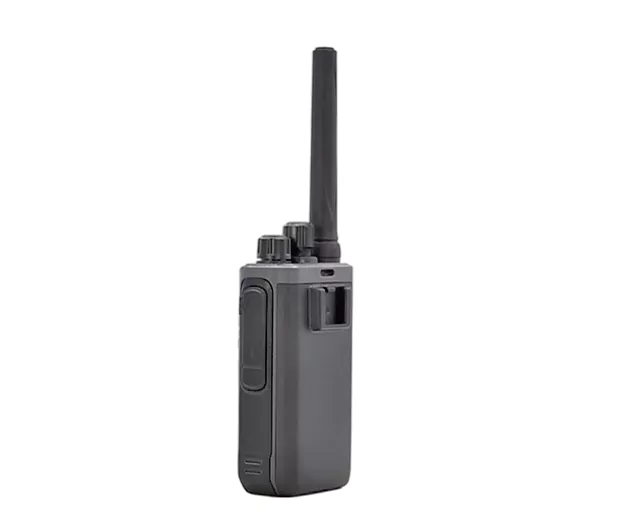

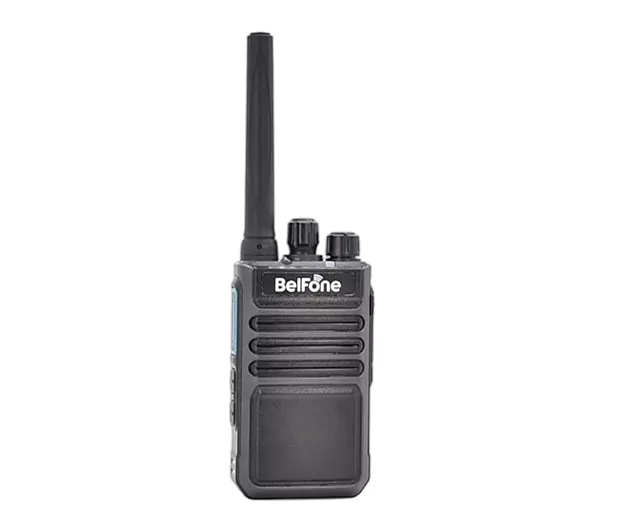

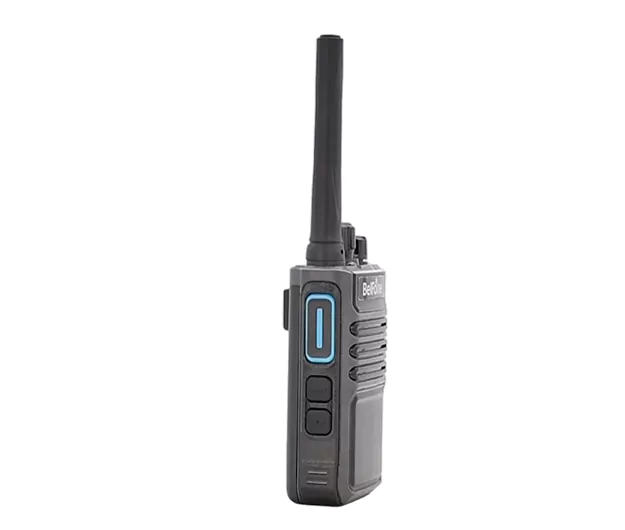

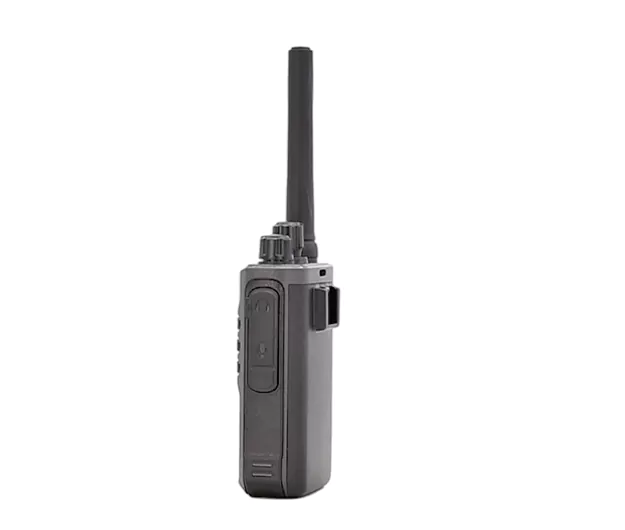

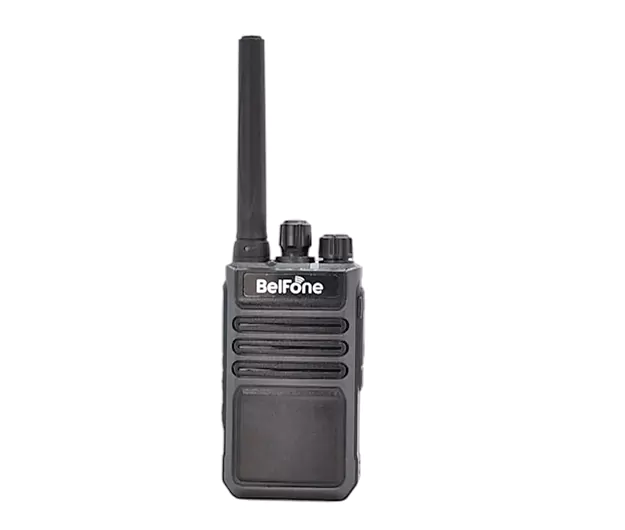

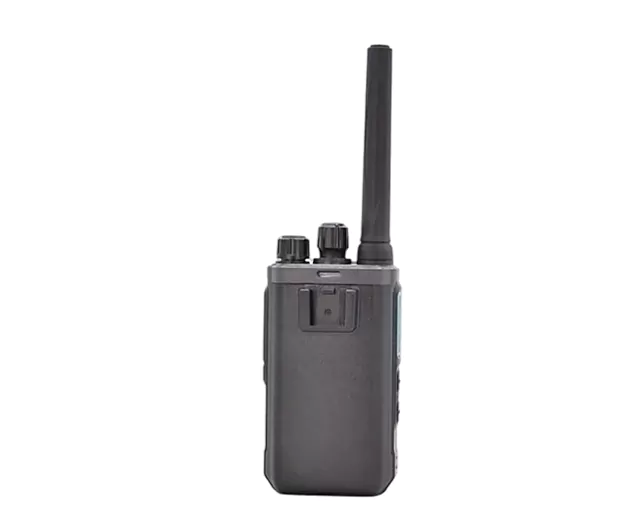

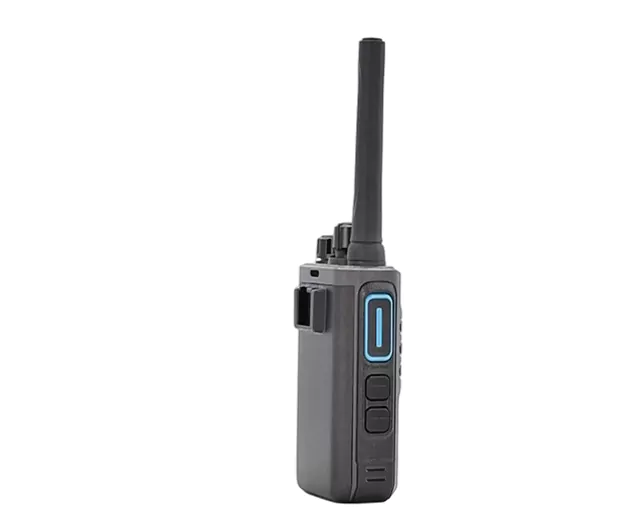

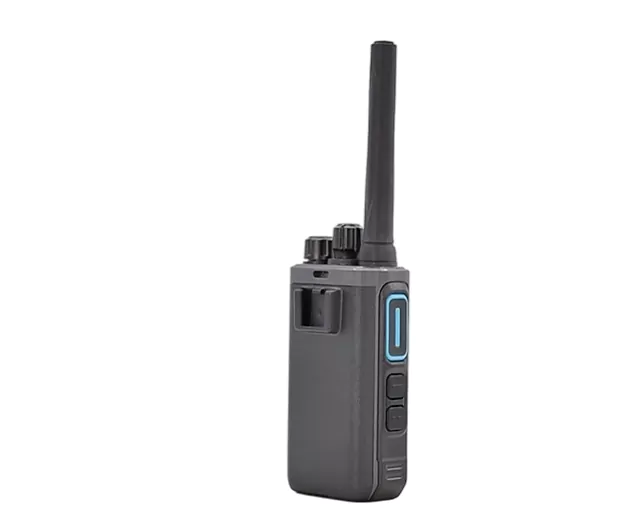

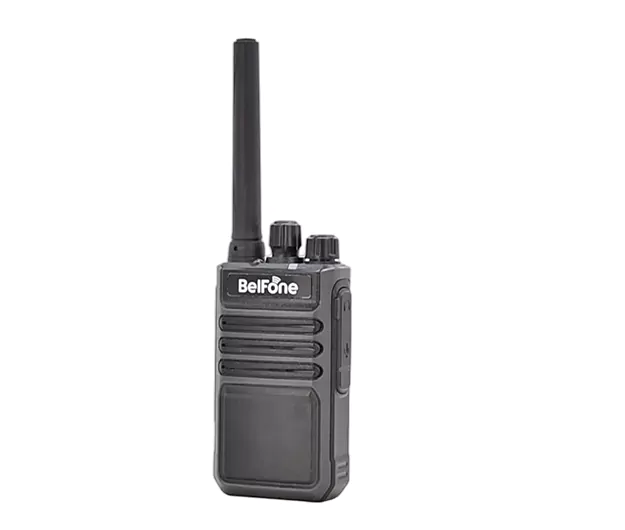

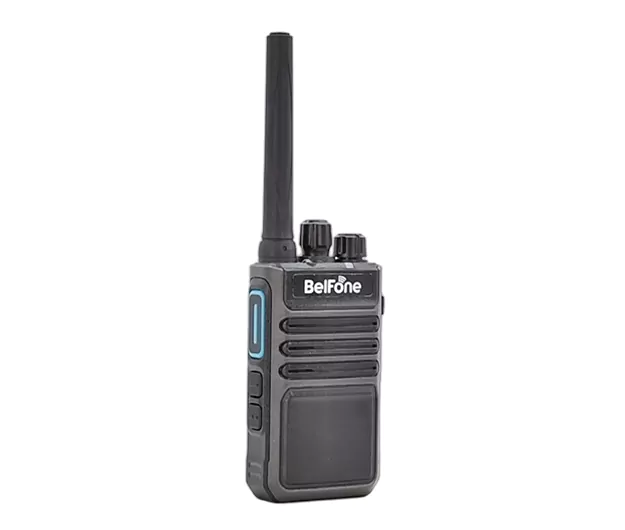

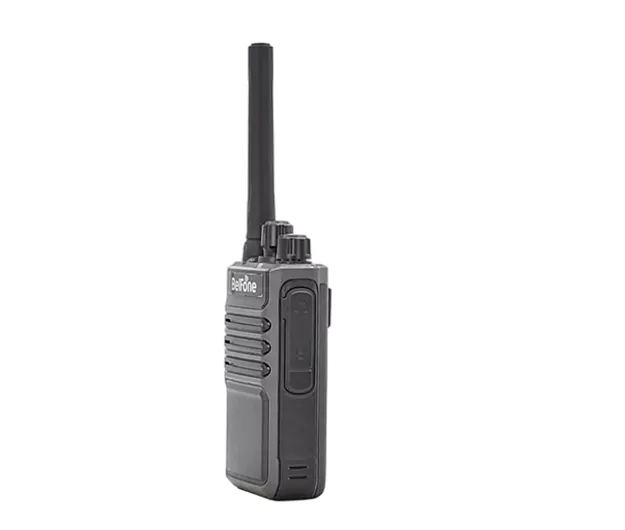

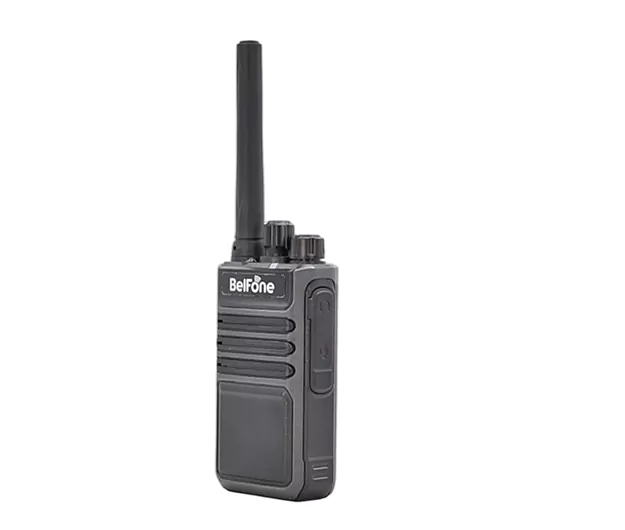

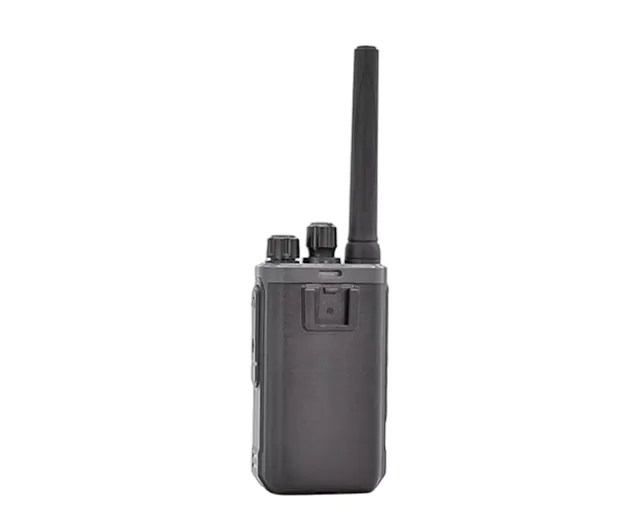

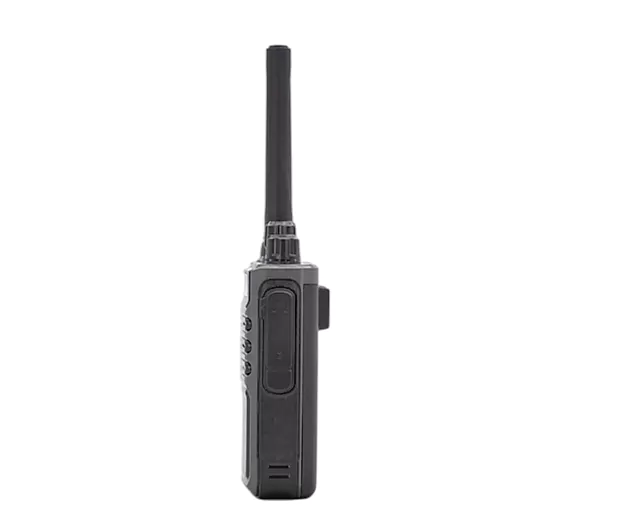

BF-AP3016 Analog Two-Way Radio
BF-AP3016, the new generation analog two-way radio, can adapt multi-scenes for its many outstanding advantages in many aspects like modern design, strong signal penetration, long battery life, excellent sound quality, drop resistance and compression ability, etc., guaranteeing the continuity and reliability effectively.
Inquiry
Inquiry
Highlights
VOX
Channel Matching
Squelch Level
Type-C Charging Mode
Busy Channel Locking
CTCSS/CDCSS
Special Signal Mode
Noise Reduction (Optional)
Channel Matching
Squelch Level
Type-C Charging Mode
Busy Channel Locking
CTCSS/CDCSS
Special Signal Mode
Noise Reduction (Optional)
Specifications
General
| Frequency Range | UHF: 400-480MHz |
| Channel Capacity | 16 |
| Channel Spacing | 25 KHz /12.5 KHz |
| Frequency Stability | ≤±2.5 ppm |
| Antenna Impedance | 50Ω |
| Working Voltage | DC3.7V (±20%) |
| Battery Capacity | 1800mAh |
| Dimension | 54*30*93mm |
| Weight | 159g |
Transmitter
| Power Output | ≤3W |
| 4FSK Modulation | 11KφF3E/16KφF3E |
| FM Modulation | ≤±2.5KHz /±5.0KHz |
| Adjacent Channel Power | 60dB |
| Audio Distortion | ＜5% |
Receiver
| Analog Sensitive | ≤-122dBm(12dB SINAD) |
| Intermodulation | ≥60dB(Wide)/ 55dB (Narrow) |
| Adjacent Channel Selection | ≥60dB(Wide)/ 55dB(Narrow) |
| Spurious Suppression | ≥60dB(Wide)/ 55dB(Narrow) |
| Rated Audio Power | 0.5W |
| Rated Audio Distortion | ≤5% |
Environmental Specifications
| Operational Temperature | -20℃～+60℃ |
| Storage Temperature | -30℃～+70℃ |
