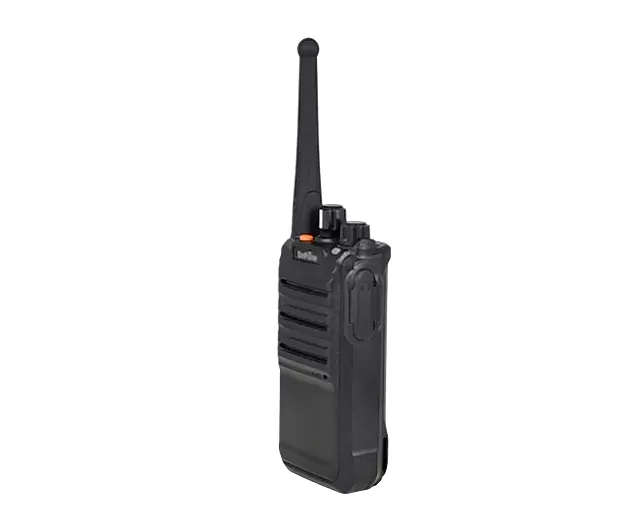

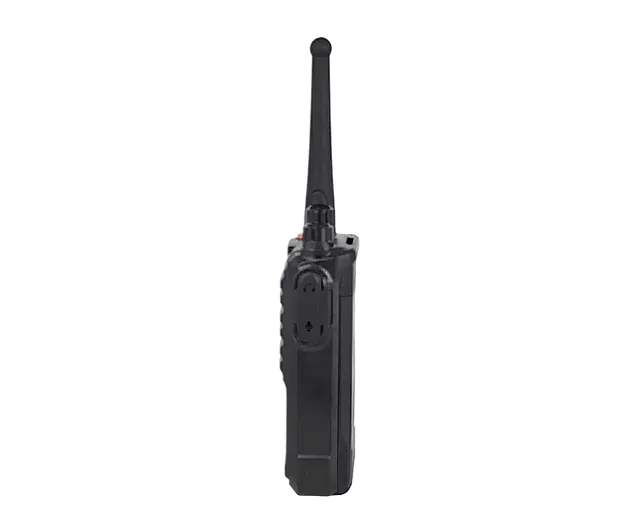

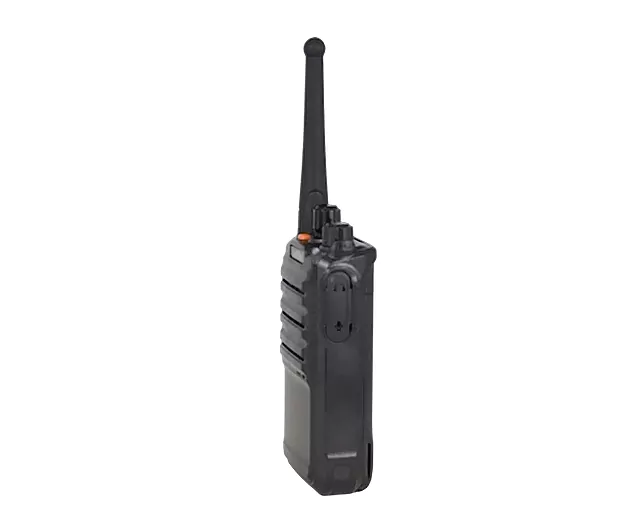

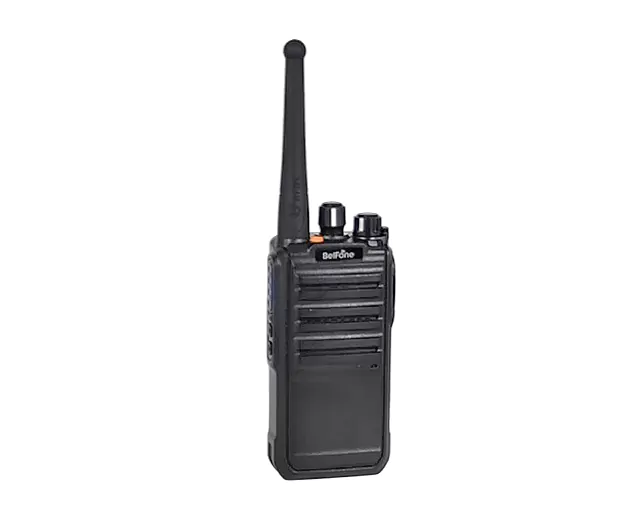

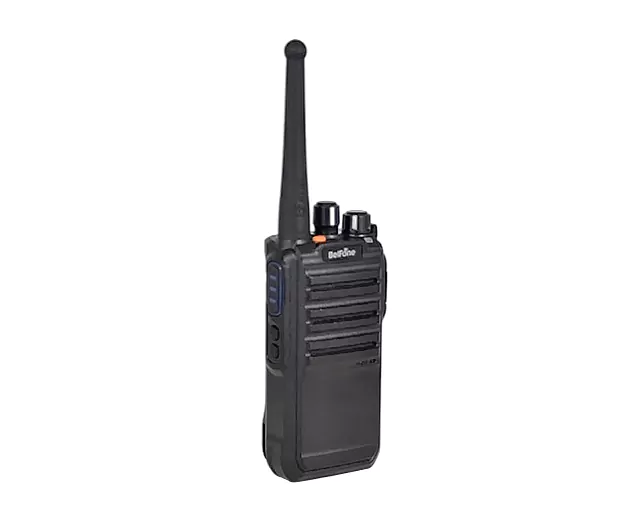

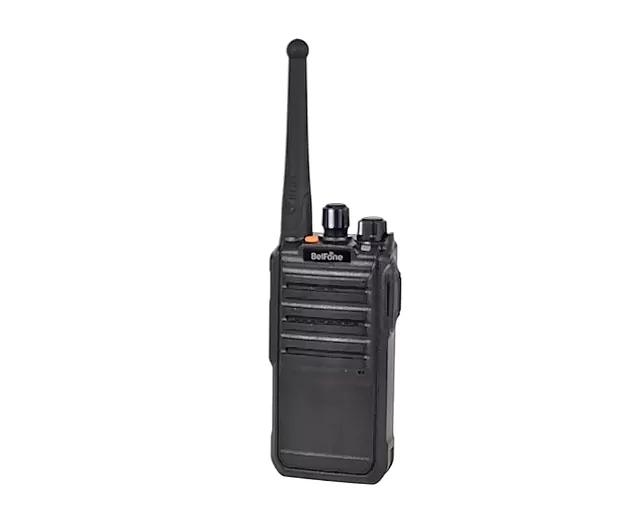

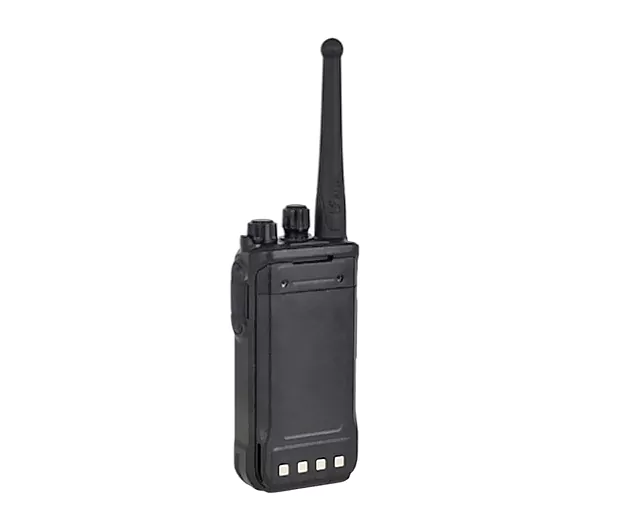

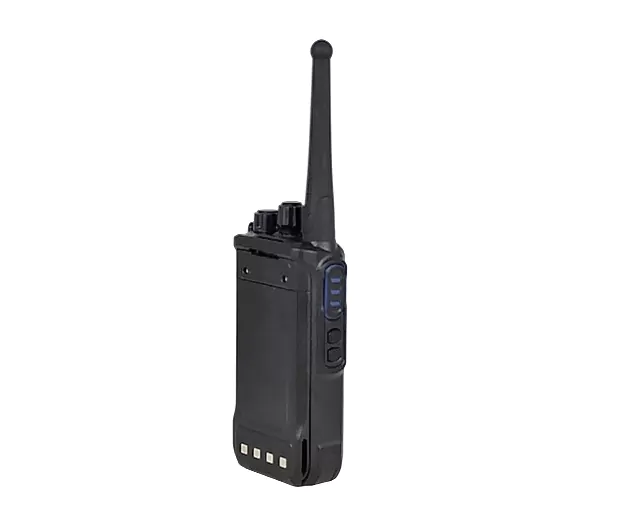

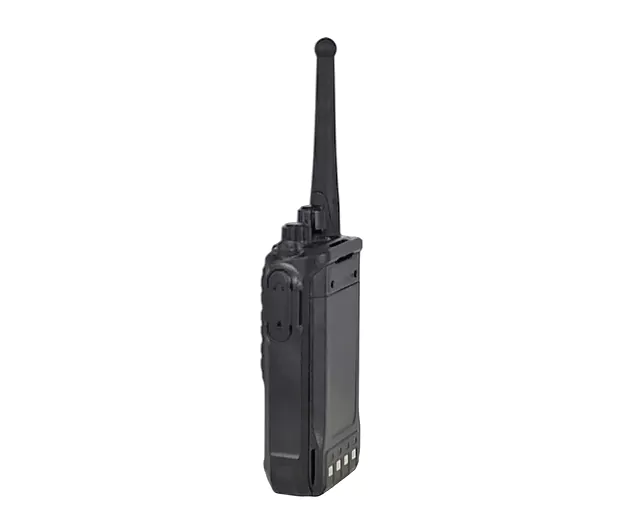

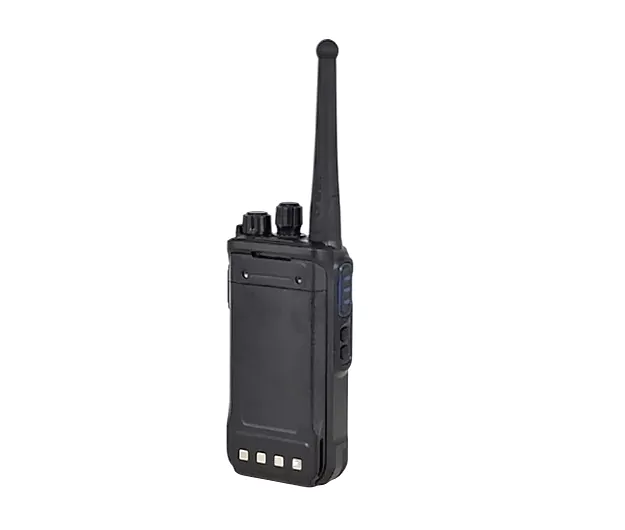

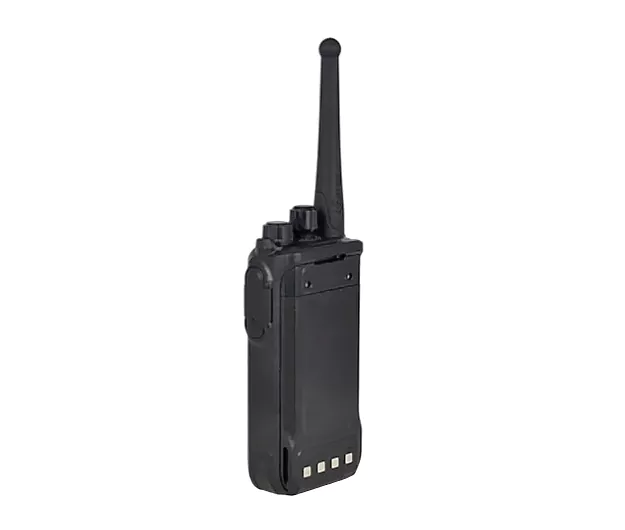

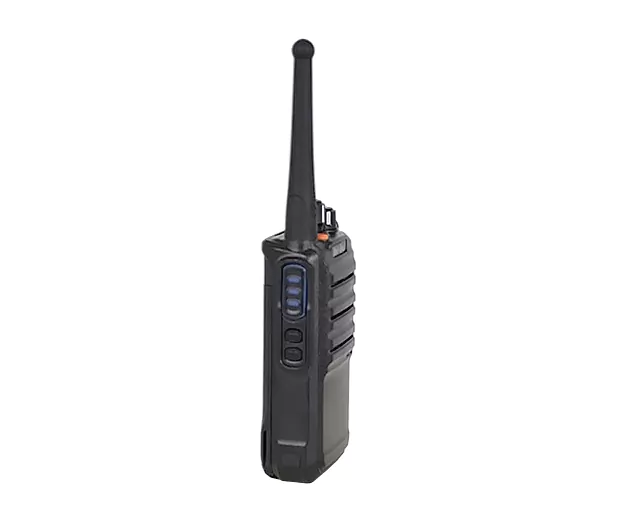

BF-TD516

DMR Portable Radio

OEM/ODM
BF-TD516 is an entry level DMR radio designed for traditional analog radio users who want to experience digital communications with the budget for analog radios. With crystal-clear audio, longer battery life, higher spectrum efficiency delivered by 12.5KHZ channel spacing, it gives you a whole package of basic digital features and smooth transition from analog to digital. BF-TD516 is an ideal replacement for analog radios adopted by small businesses like hotels, restaurants and supermarkets.
Inquiry
Inquiry
BF-TD516
DMR Portable Radio
Inquiry

Highlights

IP54 Rating

ABS+PC materials make BF-TD516 sturdy and durable, while an IP54 rating effectively protects it from water and dust. Accidental showers are one less thing to worry about for outdoor users. BF-TD516 is designed to hold up against challenging environments.

Emergency Alert

BF-TD516 incorporates a conspicuous emergency button on top that comes with voice prompt, which is a great convenience in case of emergency. Besides, the radio’s lone worker feature further ensures the user’s safety. This is a radio designed with the user’s safety in mind.

Digital/analog Dual Mode

BF-TD516 is compatible with both digital and analog networks and can automatically switch between two modes, which delivers a smooth transition from analog to digital. The user can take his time upgrading his analog infrastructures. There is no hurry.

Voice Encryption

BF-TD516 incorporates advanced digital encryption technologies to protect your information privacy. The user can select static or dynamic encryptions through the programming software. Only radios with the same encryption type can talk with each other.

Long Talk Range

BF-TD516 has the advantages of longer talk range, stronger penetration and superior audio. The 5W high transmitting power and improved antenna gain make sure that the audio remains loud and clear even at long distances. With BF-TD516, your signals stay connected, and your communications stay undisturbed.

Interference-free

BF-TD516 supports such features as TOT, talk around and Silence Unknown Callers, so that users don’t have to worry about unnecessary channel occupancy or unwanted interference. BF-TD516 will allow no distractions to compromise your communication efficiency.

Long Standby

In standby mode, BF-TD516 will go into auto power save mode to prolong standby time. Low power alert will remind the user to recharge the battery with voice prompt, making sure your workers are always online.

Specifications

General
Frequency Range VHF:136-174 MHz UHF:350-400 MHz UHF:400-480 MHz UHF:450-520 MHz
Channel Capacity 32
Zone 2
Channel Spacing 12.5KHz/25KHz
Working Voltage DC7.4V (±20%)
Battery Capacity 1800 mAh
Average Battery Life(5/5/90) Digital 18 Hours;Analog 13 Hours
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Dimension 60(L)*35 (W) *114 (H)mm
Weight 264g(Including Battery)
Transmitter
Power Output ≤5W
4FSK Modulation 12.5kHz Only data:7K60FXD 12.5kHz data and audio:7K60FXE
FM Modulation 12.5 kHz:8K50F3E; 25 kHz:16K0F3E;
Modulation Limitation +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Frequency Response +1/-3 dB
Audio Distortion 0.03
Digital Vocoder AMBE
Receiver
Digital Sensitivity 5% BER:0.25uV
Analog Sensitive 0.25 uV (12dB SINAD)
Intermodulation 65dB
Adjacent Channel Selection 60dB
Spurious Suppression 70dB
FM Noise -40dB
Frequency Response +1/-3dB
Rated Audio Power 0.5W
Maximum Audio Power 1.2W
Rated Audio Distortion 3% (Typical)
Conduction Radiation -57dBm
Environmental Specifications
Operational Temperature -20℃—+60℃
Storage Temperature -30℃—+85℃
Dust & Water Proof IP67
