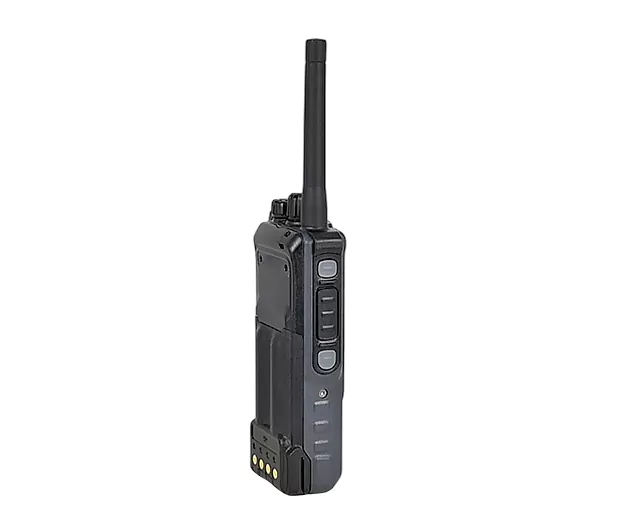

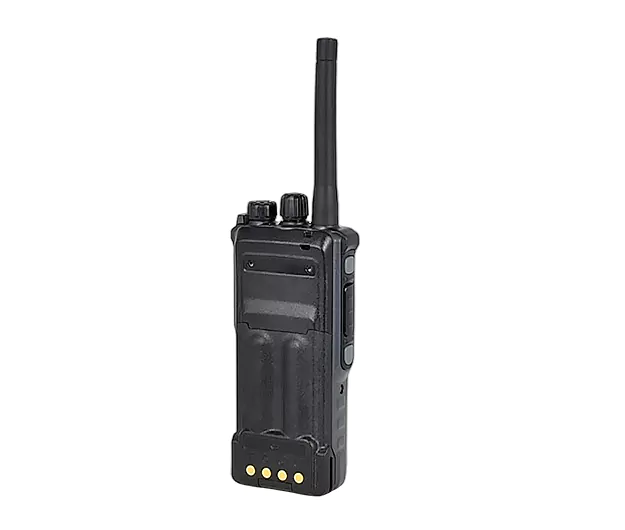

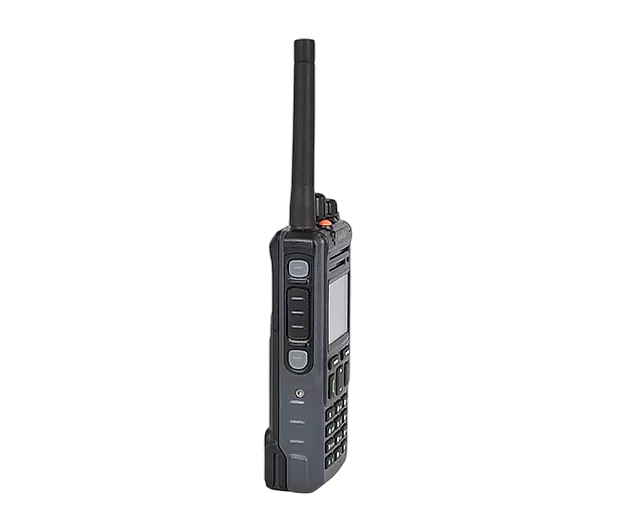

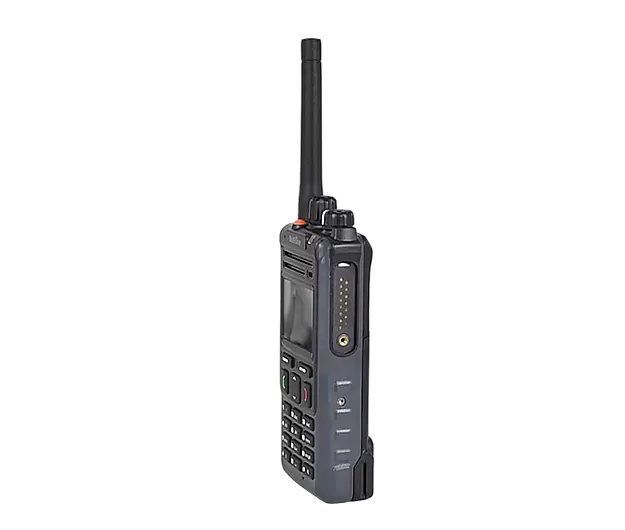

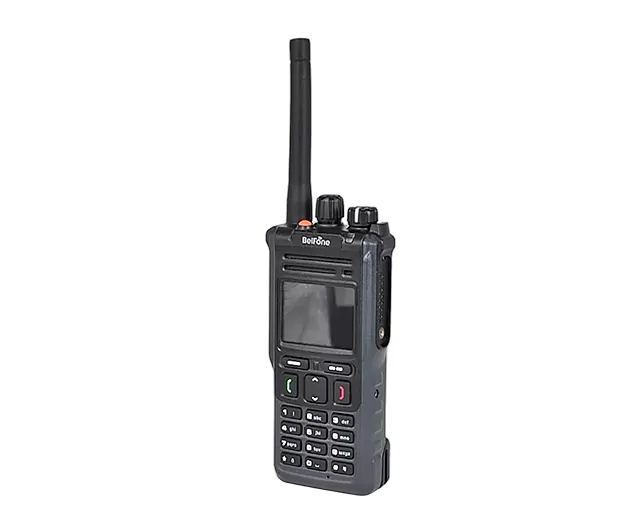

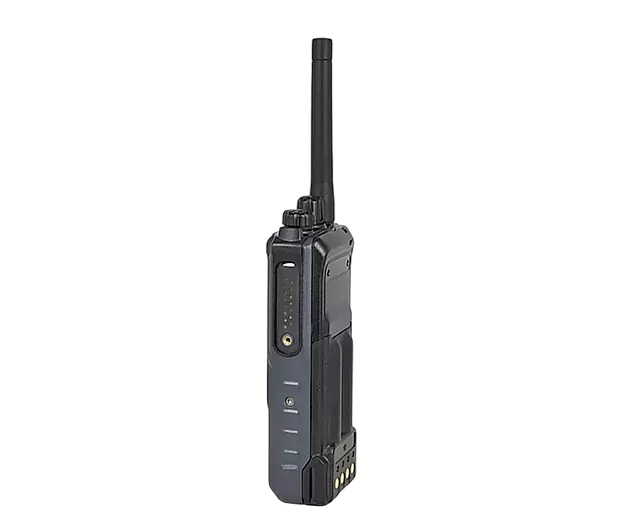

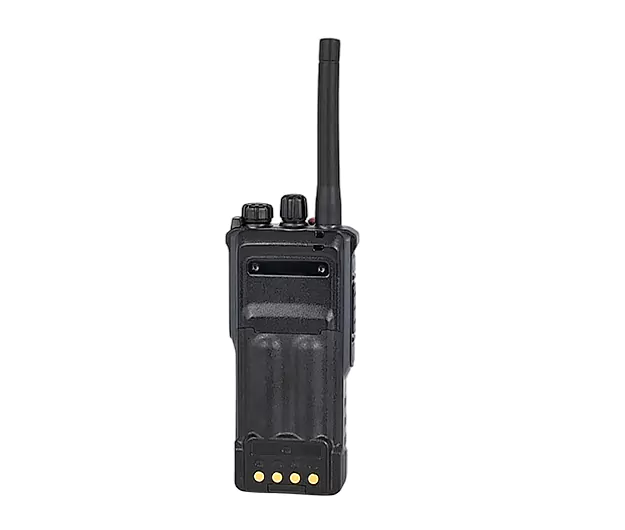

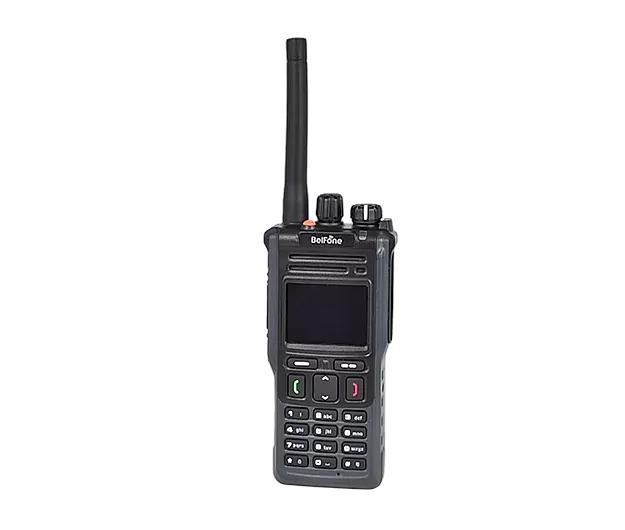

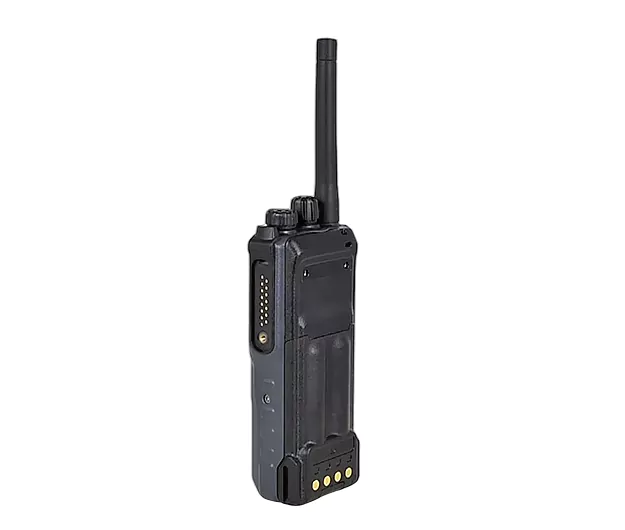

BF-TD950

Tier III Trunking Portable

DMR Tier III Trunking OEM/ODM

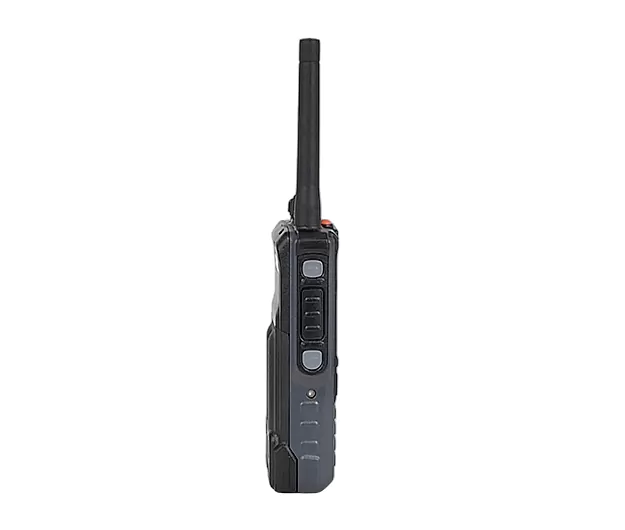

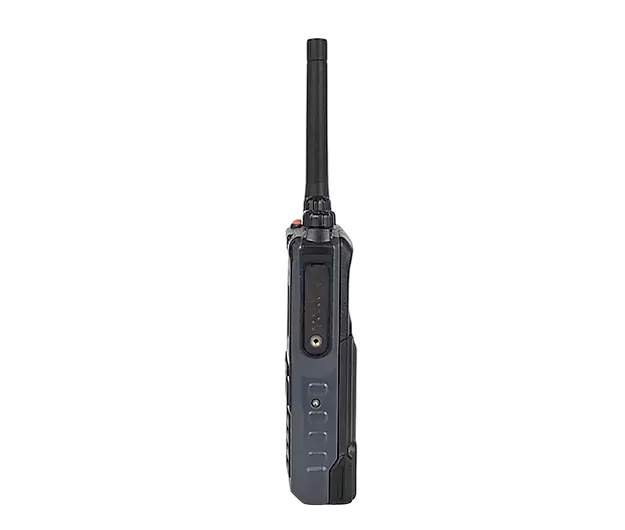

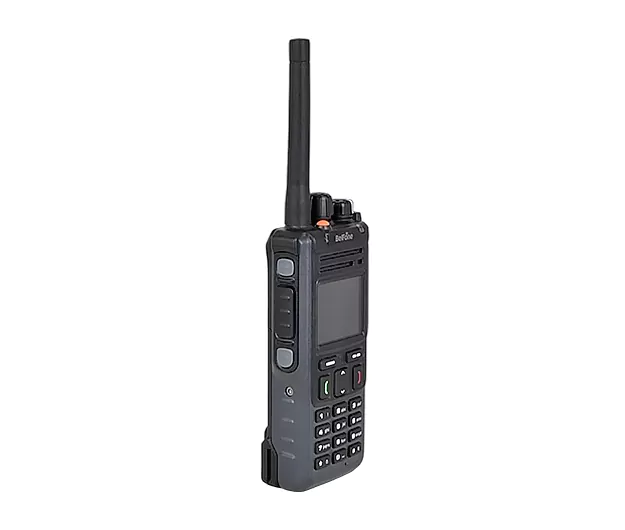

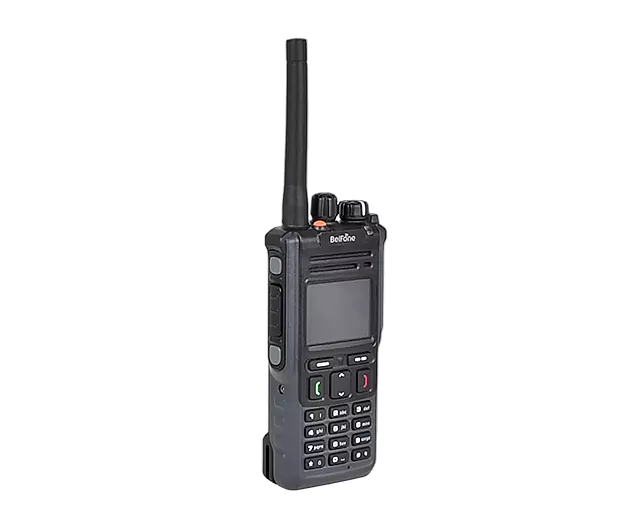

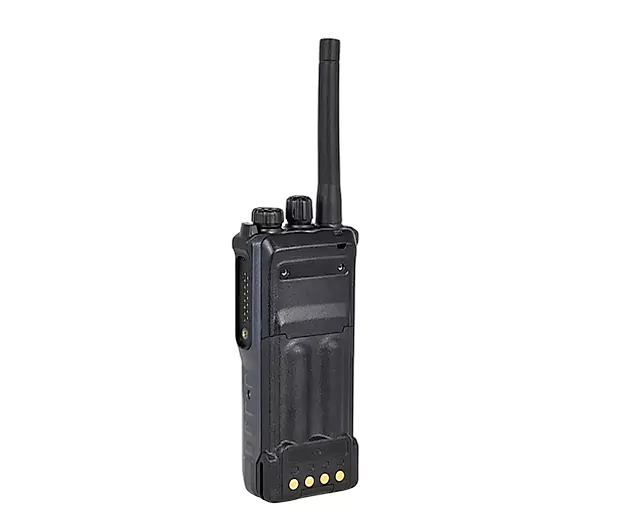

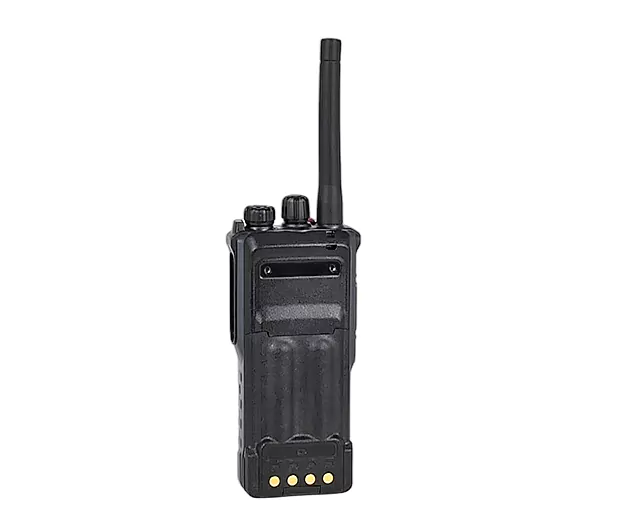

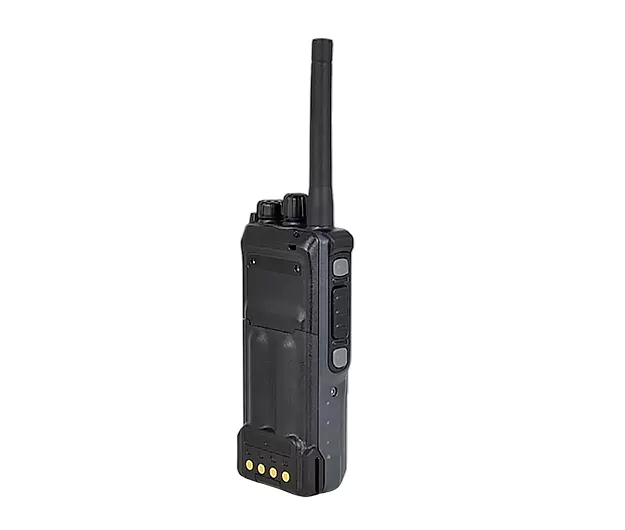

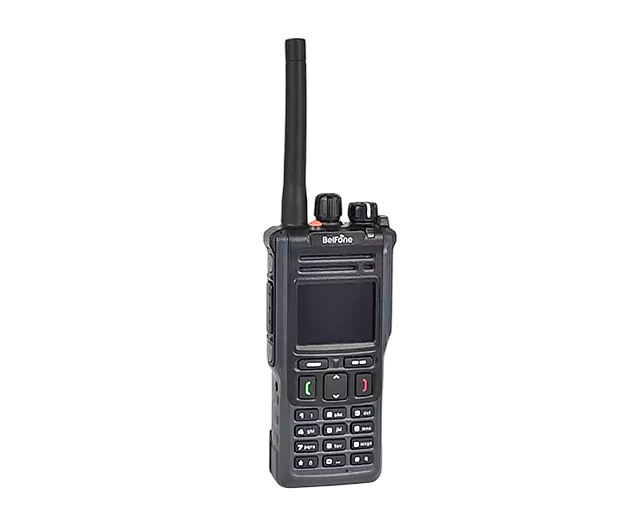

BF-TD950 is a full duplex DMR trunking portable radio with GPS, IP68 protection and MIL-STD-810 C/D/E/F/G Standard, which delivers outstanding performance even in harsh environments. The slim and robust body comes with a 2.0 inch HD color screen, enabling the user to read with ease regardless of the various light environments. Besides the conventional digital functions, BF-TD950 enjoys the advantages of a long battery standby time and full duplex calls. This is a professional radio to enrich you
Inquiry
Inquiry
BF-TD950
Tier III Trunking Portable
Inquiry

Highlights

Full Duplex Calls

BF-TD950 incorporates the ground-breaking full duplex calling technology to allow both parties to talk at the same time, which greatly facilitates the exchange of crucial information and increases communication efficiency.

GPS Positioning

With better accuracy and precision, the built-in GPS enables the commander to locate and track his team member. This contributes a lot to personnel management and dispatching.

IP68 Protection

Our tough IP68 radio BF-TD950 is designed to brave the challenges of harsh environments. So, environmental factors are one less thing to worry about.

A Long Battery Life

With a battery capacity of 3400mAh, BF-TD950 can easily power you through your longest working day. BF-TD950 can work straight for 17 hours in trunking mode.

Superior Audio Quality

BF-TD950 incorporates advanced audio processing technology to effectively suppress background noise and enhance audio quality, delivering a most loud and clear audio.

Personnel Safety

Our intrinsically safe BF-TD950 comes with features like Man Down, Lone Worker and Emergency Alarm, to keep your staff safe and sound. Safety comes first!

Automatic Roaming

BF-TD950 automatically roams among all sites in the network and always stays connected. This delivers more efficiency and flexibility to your radio communications.

Radio Priority-Based Interruption

A radio with higher priority can interrupt communications between radios with lower priorities, either to transmit or just to clear a channel. This greatly facilitates commanding and dispatching.

DMR Tier III Trunking Mode

BF-TD950 is compatible with BelFone BTX/ETX Trunking System. When working in DMR Tier 3 Trunking mode, BF-TD950 can access a pool of radio channels which are dynamically allocated to users when required. This is more frequency efficient.

User Authentication

The inbuilt ESN authentication and standard authentication can effectively prevent illegal users from accessing BF-TD950. Both your missions and your information stay uninterrupted from the outside.
  • Emergency Button

    Emergency Button
  • Quality Covert Speaker

  • Ergonomic Keypad Design

  • Longer Battery Life

  • LED Indicator

  • HD Display/Friendly UI

  • Inbuilt Bluetooth

  • IP68 Protection

Emergency Button

Emergency Button

Quality Covert Speaker

Ergonomic Keypad Design

Longer Battery Life

LED Indicator

HD Display/Friendly UI

Inbuilt Bluetooth

IP68 Protection

Specifications

General
Frequency Range UHF:350-400 MHz UHF:400-470 MHz UHF:450-520 MHz
Channel Capacity 1024
Zone 64
Channel Spacing 12.5KHz/25KHz
Working Voltage DC 7.4V(±20%)
Battery Capacity 3350mAh
Average Battery Life(5/5/90) Digital 24Hours Analog 20Hours
Frequency Stability ±0.5ppm
Antenna Impedance 50Ω
Dimension 65(L)*32(W)*150 (H)mm
Weight 330g(include battery)
Transmitter
Power Output ≤5W
4FSK Modulation 12.5kHz Only Data:7K60FXD 12.5kHz Data and Audio:7K60FXE
FM Modulation 12.5 kHz:8K50F3E; 25kHz:16K0F3E;
Modulation Limitation +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Frequency Response +1/-3 dB
Audio Distortion 0.03
Digital Vocoder AMBE/NVOC
Receiver
Digital Sensitivity 5% BER:0.22uV
Analog Sensitive 0.22uV (12 dB SINAD)
Intermodulation 70dB
Adjacent Channel Selection 60 dB
Spurious Suppression 70 dB
FM Noise -40dB
Frequency Response +1/-3 dB
Rated Audio Power Rated:1.0W(8Ω load) Max: 2.0W(8Ω load)
Rated Audio Distortion 3% (Typical)
Conduction Radiation -57dBm
GPS Precision Horizontal Accuracy≤10m(with well signal)
TTFF(first location)Cold Boot <30second(with well signal)
TTFF(first location)Hot Boot <10second(with well signal)
Environmental Specifications
Operational Temperature -30℃—+60℃
Storage Temperature -40℃—+85℃
Moisture Proof MIL-STD-810G
Shock & Vibration MIL-STD-810G
Dust & Water Proof IP68
