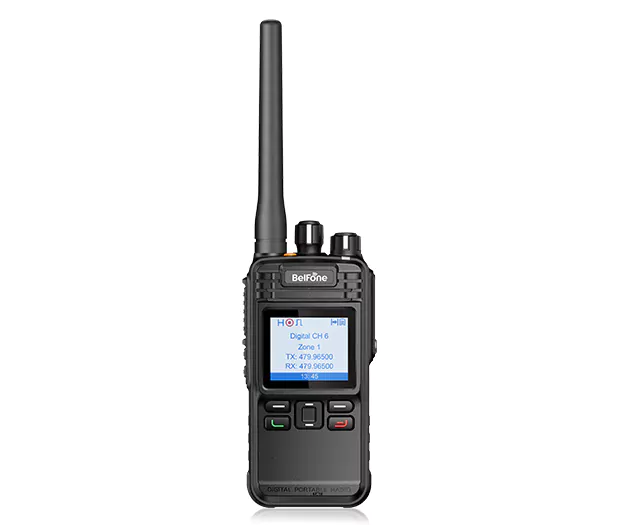

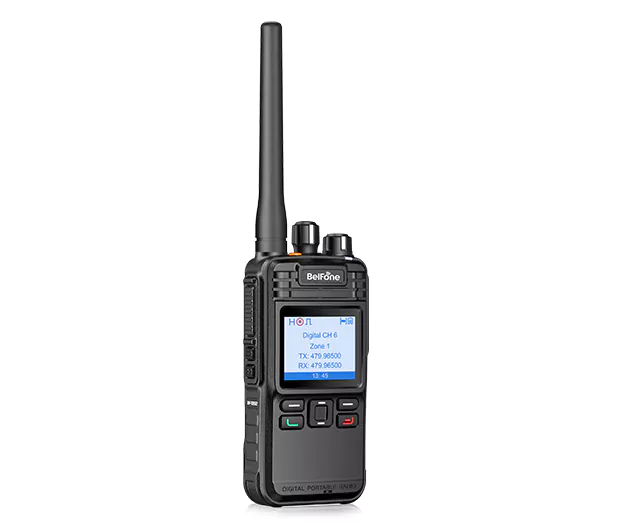

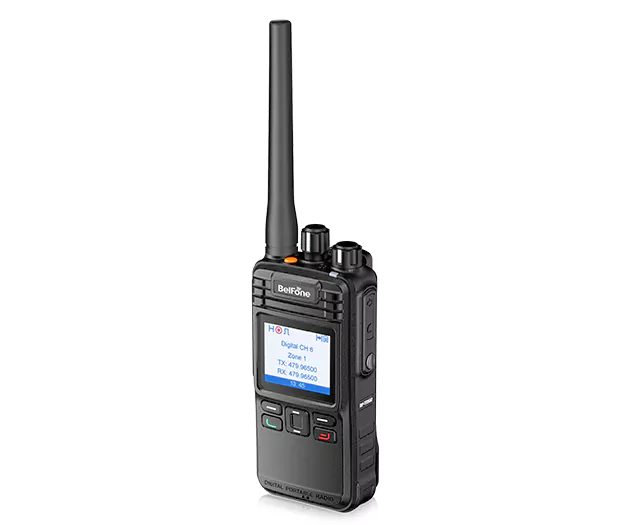

BF-TD512

Enhanced Conventional Portable Radio

OEM/ODM
BF-TD512, an lP67 rated DMR radio, is featured with full color screen and half keypad which specially required by some customers. It brings advantages of audio quality, outstanding coverage, and long-lasting battery life. The virtual trunking technology greatly increases spectrum efficiency without any extra costs, lt works with BelFone DMR conventional IP Connect system- SDC to realize more powerful features, delivering revolutionary capabilities to keep the team safer and more efficient.
Inquiry
Inquiry
BF-TD512
Enhanced Conventional Portable Radio
Inquiry

Highlights

Personnel Safety

Mandown: if some worker slips or falls, the mandown function will automatically activate and transmit a signal to other radios for help. Built-in Lone Worker, and Emergency alarms are also available in case of any accident.

Automatic Roaming (Programmable)

In an IP multi-site network, this feature enables these radios to automatically roam among all sites and stay connected, delivering more flexibility and efficiency.

Voice Recording (optional)

(32G memory-can record over 400 hours'communications)
Support voice recording, and you can play the recording on your radio. This is a radio with a good and long memory.

Radio Priority-Based Interruption

This function enables a radio with higher level to interrupt communications between radios with lower levels, giving higher priority to radios with higher levels. This means better dispatching efficiency.

IP67 Protection

Tightly sealed against dust, spills, sprays and unexpected showers, ensuring outstanding performance in tough environments.

BF-TD512

  • DMO True 2-Slots

    In direct mode, these radios support two voice calls simultaneously due to DMR two timeslots, which means two communication paths at 1 frequency with no extra costs or frequency license.
  • Digital/Analog Dual Modes

    Receive both analog and digital signals on a single channel and can automatically switch into the needed mode for efficient communications.
  • Advanced Encryption with RC4 Technology

    The RC4 encryption technology keeps your communications safe and private, optimizing your information safety.
  • Smart Virtual Trunking

    The DMO Smart Virtual Trunking(SVT) can enlarge the link capacity for higher efficiency.

Specifications

General
Frequency Range VHF:136-174 MHz / UHF:350-400 MHz / UHF:400-480 MHz / UHF:450-520 MHz
Channel Capacity 512
Zone 32
Channel Spacing 12.5KHz/25KHz
Working Voltage DC 7.4V (±20%)
Battery Capacity 2000 mAh
Average Battery Life(5/5/90) Digital 22Hours / Analog 16 Hours
Recording Time 400 Hours
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Dimension 57(L)* 32(W)* 119 (H)mm
Weight 239g(Including Battery)
Transmitter
Power Output ≤5W
4FSK Modulation 12.5kHz Only data:7K60FXD 12.5kHz data and audio:7K60FXE
FM Modulation 12.5 kHz:8K50F3E; 25 kHz:16K0F3E;
Modulation Limitation +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Frequency Response +1/-3 dB
Audio Distortion 0.03
Digital Vocoder AMBE
Receiver
Digital Sensitivity 5% BER:0.25 uV
Analog Sensitive 0.25 uV (12 dB SINAD)
Intermodulation 60dB
Adjacent Channel Selection 60dB
Spurious Suppression 60dB
FM Noise -40dB
Frequency Response +1/-3dB
Rated Audio Power 0.5W
Maximum Audio Power 1.3W
Rated Audio Distortion 3% (Typical)
Conduction Radiation -57dBm
GPS Precision Horizontal Accuracy≤-10m(with well signal)
TTFF(first location)Cold Boot < 1 Minute (with well signal)
TTFF(first location)Hot Boot < 10 Second (with well signal)
Environmental Specifications
Operational Temperature -20℃—+60℃
Storage Temperature -30℃—+85℃
Moisture Proof MIL-STD-810G Standard
Shock & Vibration MIL-STD-810G Standard
Dust & Water Proof IP68
