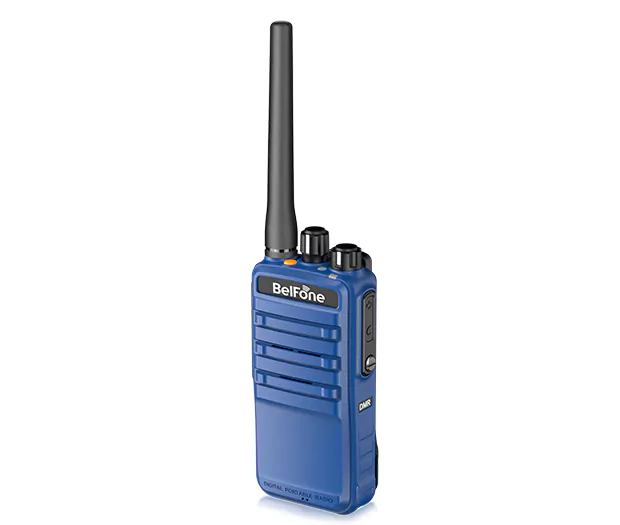

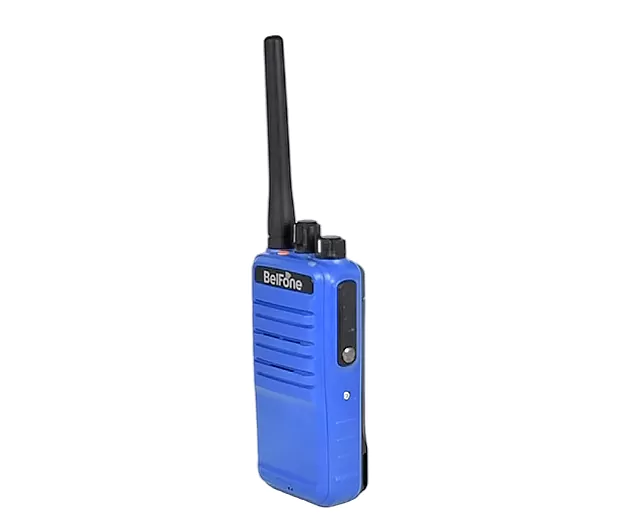

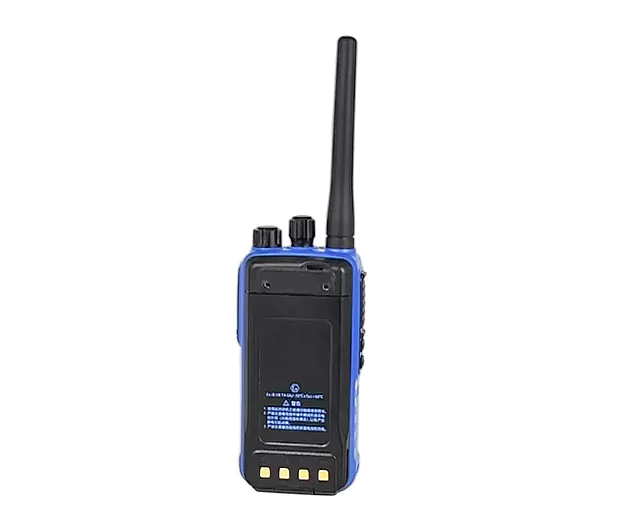

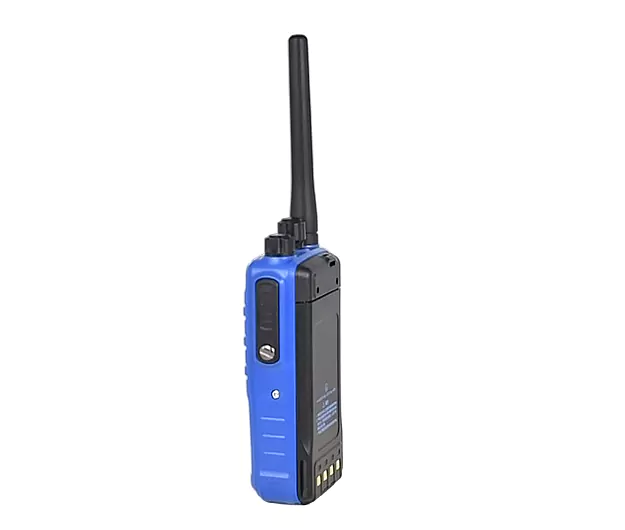

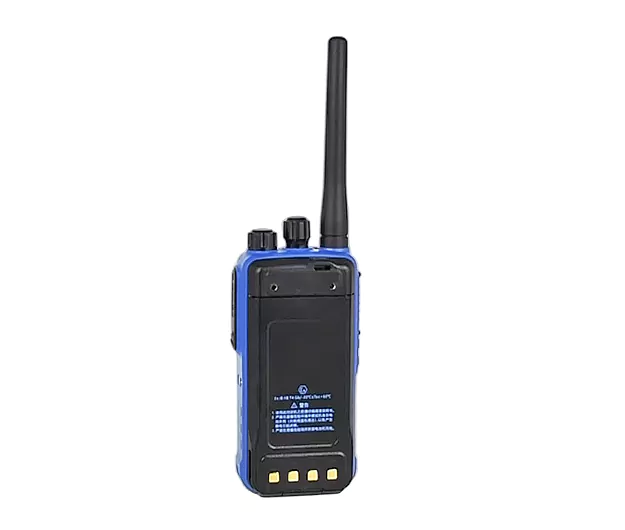

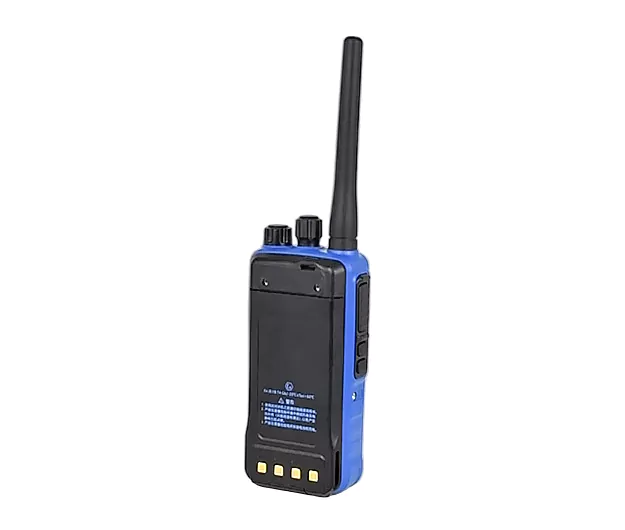

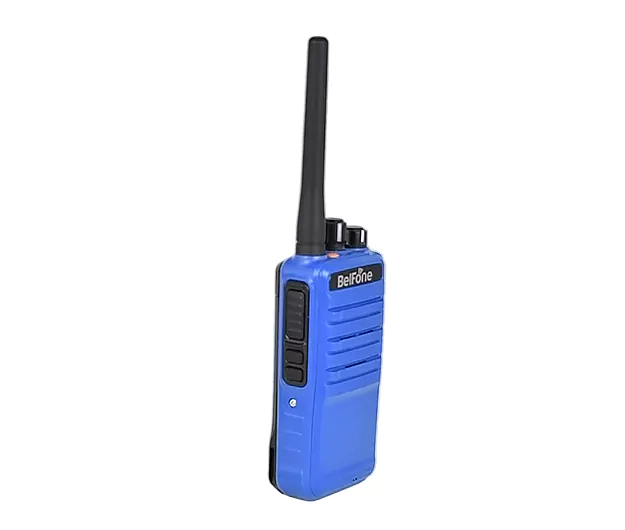

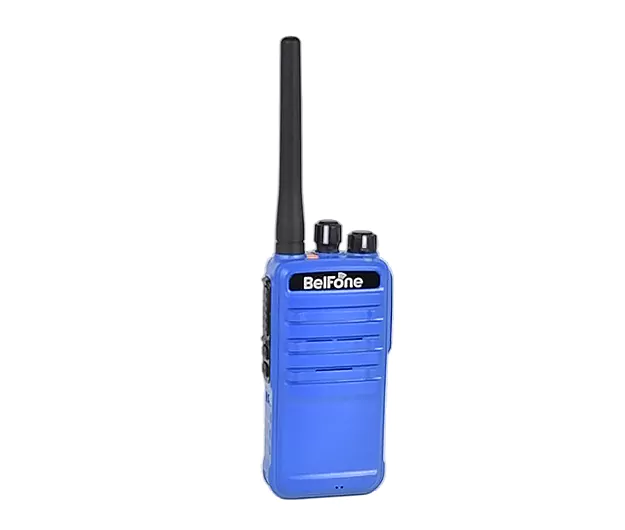

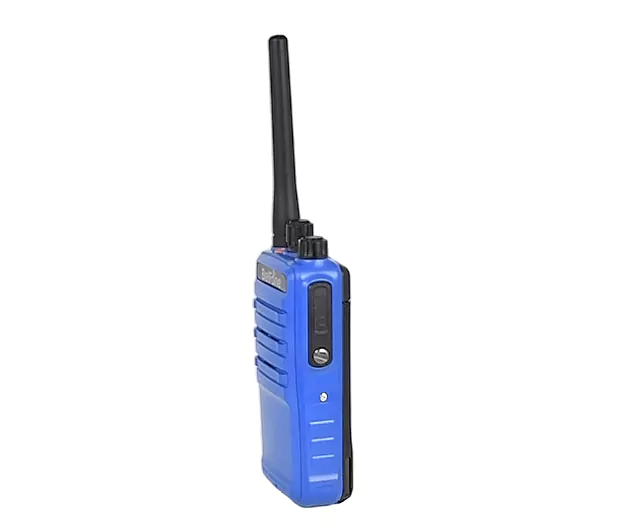

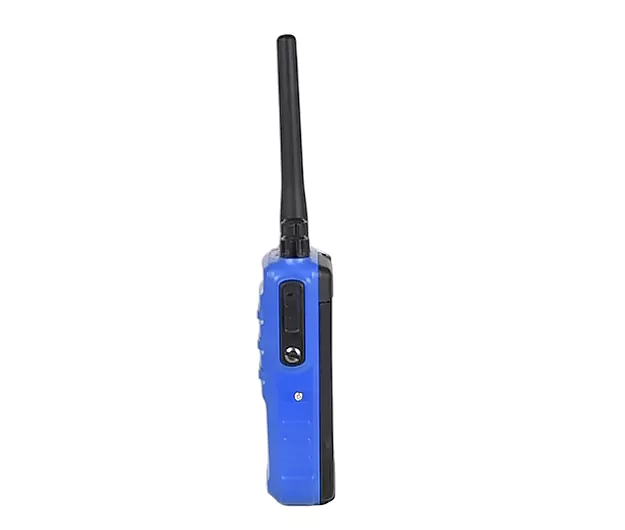

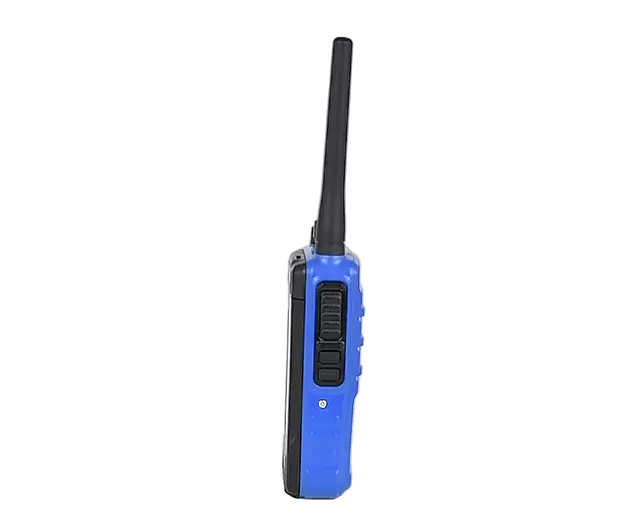

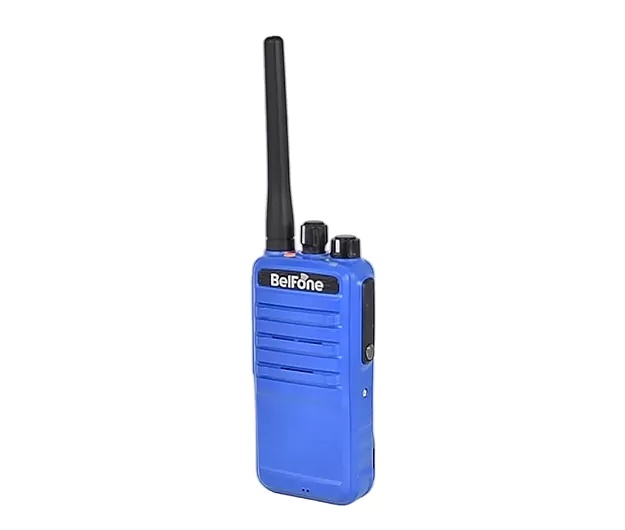

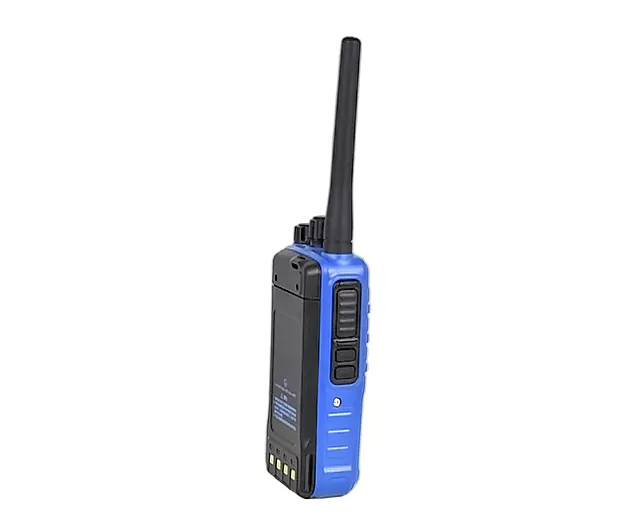

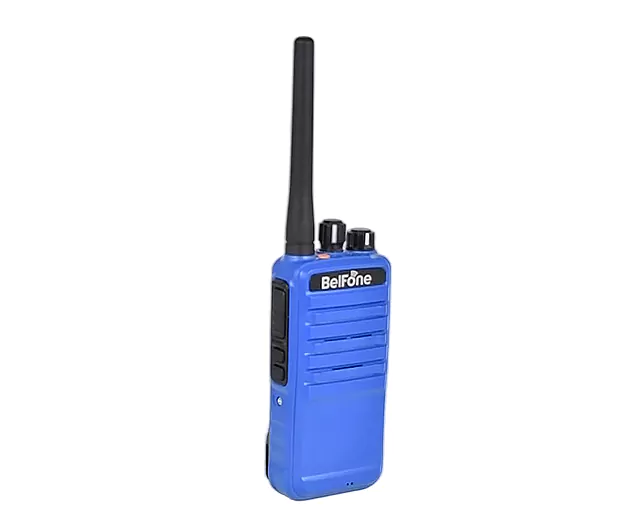

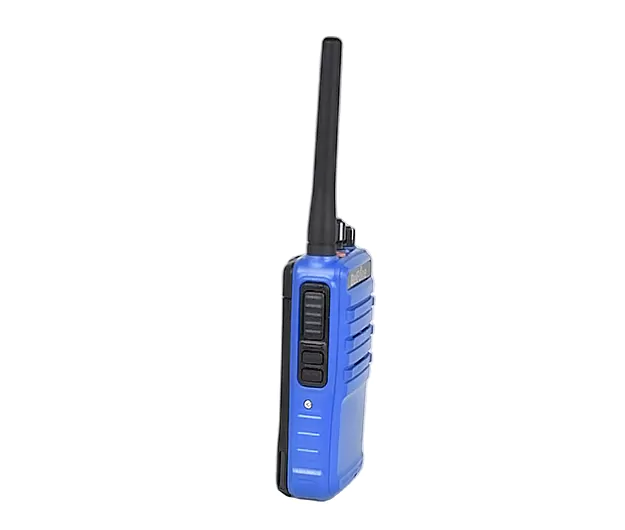

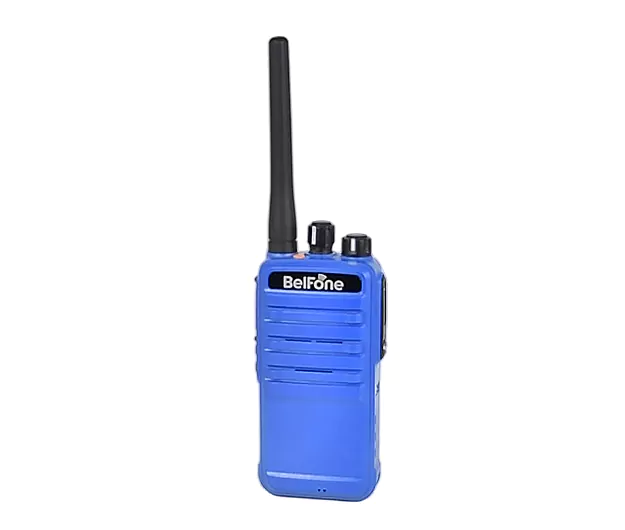

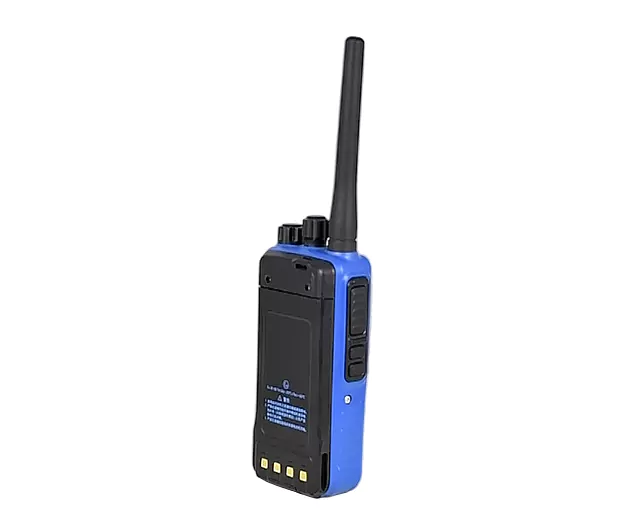

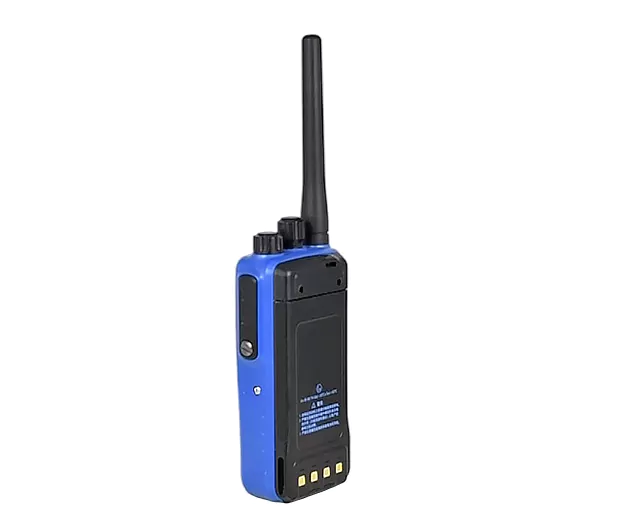

BF-TD510EX

Explosion-Proof Walkie Talkie

OEM/ODM
Designed for usage in hazardous environment with combustible gas or dust, TD510EX intrinsically safe provides the best of the class two-way radio functionalities, such as integrated GPS module, recording, Man Down, emergency button and enhanced audio quality. It is a productivity tool and also a workplace safety insurance measure.
Inquiry
Inquiry
BF-TD510EX
Explosion-Proof Walkie Talkie
Inquiry

Highlights

IIB T4 GB

BF-TD510Ex are two intrinsically safe DMR two-way radios with an explosion-proof circuit design as well as a shatter-resistant structure. Their optimal stability and safety easily meet the challenges of explosive work environments.

Voice Recording

With a 32G memory, BF-TD510Ex can support over 400 hours' communications. These radios allow you to record and share your voice easily, replaying your communications during the operation. These are two explosion-proof radios with a good and long memory.

Advanced Encryption with ARC4 & AES256

The ARC4 Technology together with AES256 keeps your communications safe and private, optimizing your information safety.

GPS Positioning

With built-in GPS, the user can track the whereabouts of a radio whenever he wants. You can know where all your workers are in real-time.

DMO True 2-slots

In direct mode these radios support two voice calls simultaneously due to DMR two timeslots, which means two communication paths at one frequency with no extra costs.

Personnel Safety

If a worker slips or falls, the radio will immediately activate the integrated Mandown function and transmit a signal to other radios for help. The Lone Worker feature and Emergency Alarm are also available in case of any accident.

Digital/Analog Dual Modes

This enables BF-TD510Ex to receive both digital and analog signals on the same channel and can automatically switch into a matching mode for efficient communications.

IP68 Protection

BF-TD510Ex is tightly sealed against dust, spills, sprays and unexpected showers, ensuring outstanding performance in challenging environments.

Specifications

General
Frequency Range VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channel Capacity 160
Zone 32
Channel Spacing 12.5KHz/ 25KHz
Working Voltage DC7.4V (±20%)
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Battery Capacity 1500mAh
Average Battery Life(5/5/90) Digital 16 hours; Analog 12 hours
Dimension 60.8(L)* 35.7(W)* 118.5(H) mm
Weight 250g (including battery pack)
Transmitter
Power Output High power: 3.5W; Low power: 1W
4FSK Modulation 12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
FM Modulation 12.5KHz: 8K50F3E/ 25KHz: 16KφF3E
Modulation Limitation +/- 2.5KHz
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Frequency Response +1/-3dB
Digital Vocoder AMBE++
Audio Distortion ≤3%
Receiver
Digital Sensitivity 5% BER: 0.25 uV
Analog Sensitive 0.25 uV (12 dB SINAD)
Intermodulation 60dB
Adjacent Channel Selection 60dB
Spurious Suppression 60dB
FM Noise -40dB
Frequency Response +1/-3 dB
Rated Audio Power 1.5W
Rated Audio Distortion 3% (typical)
Conduction Radiation -57dBm
GPS Precision Horizontal Accuracy ≤10m (with good signal)
TTFF(first location)Cold Boot <1 minute(with good signal)
TTFF(first location)Hot Boot <10 seconds (with good signal)
Environmental Specifications
Operational Temperature -30℃~+60℃
Storage Temperature -40℃~+85℃
Dust & Water Proof IP68
Shock & Vibration MIL-STD-810C/D/E/F
Gas Protection Ex ib IIB T4 GB
