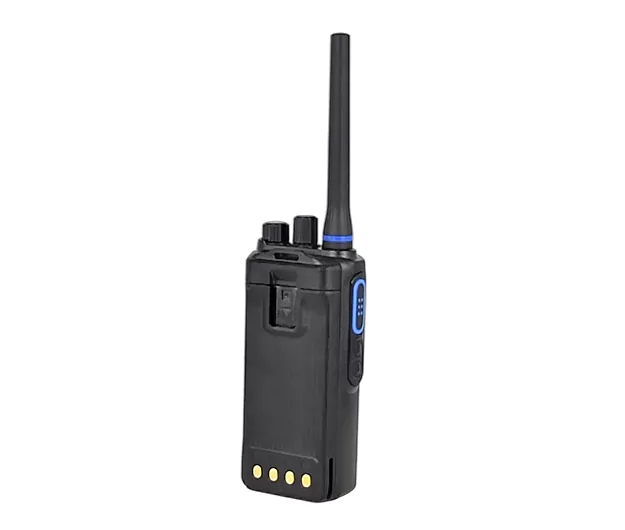

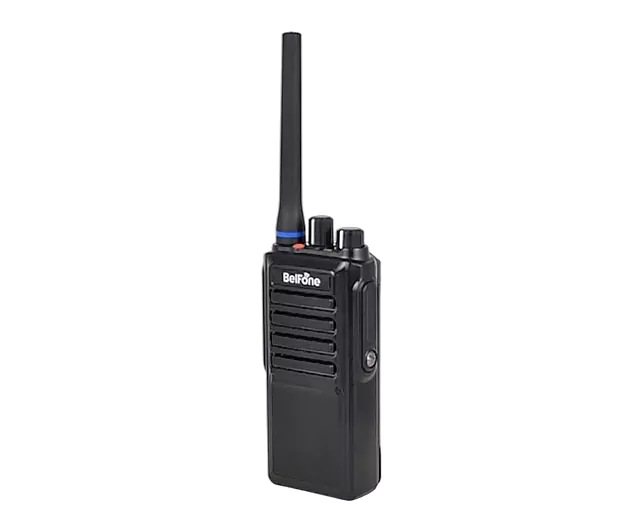

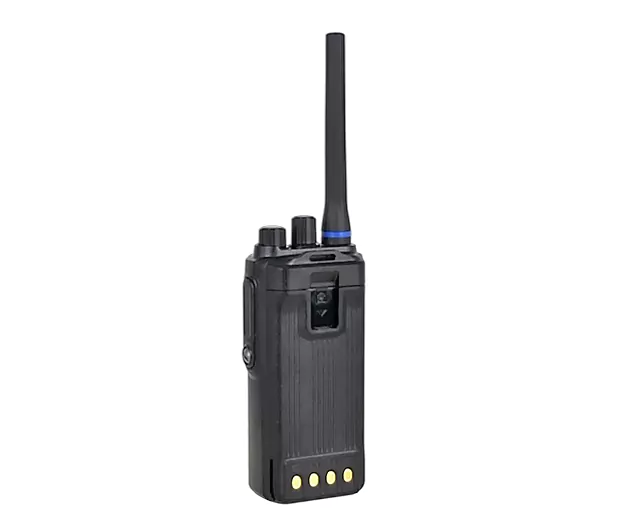

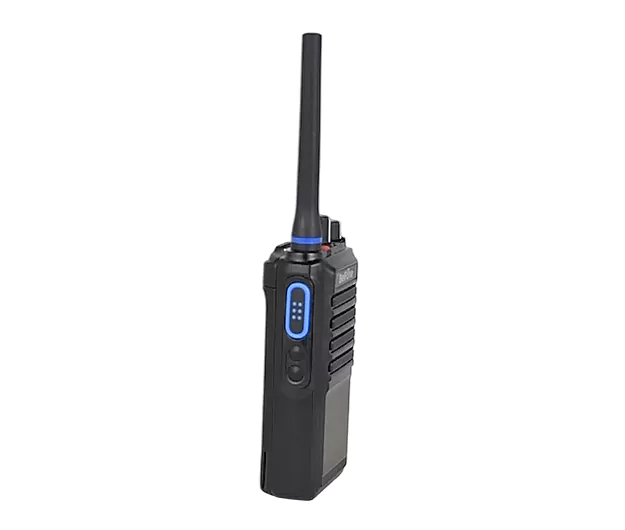

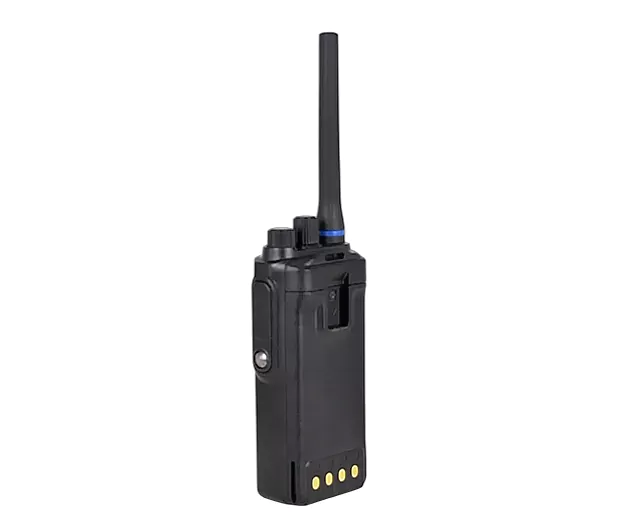

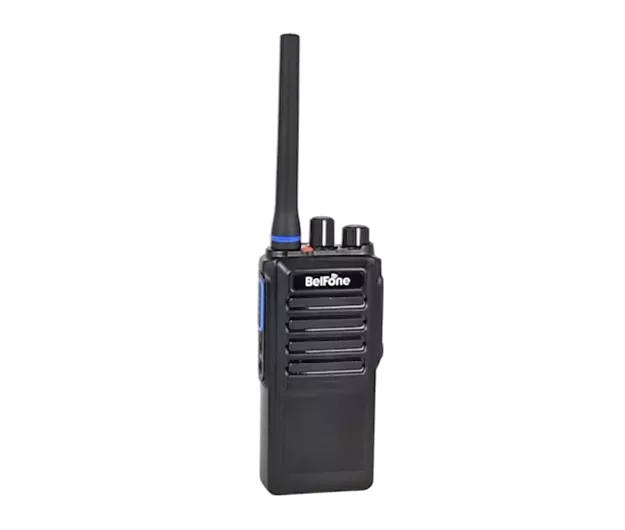

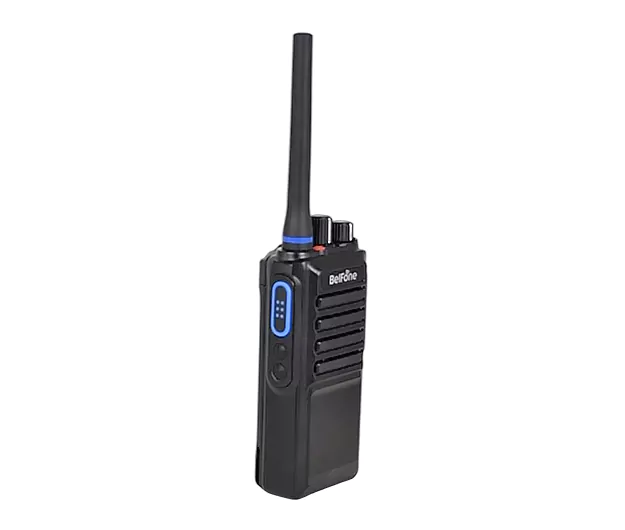

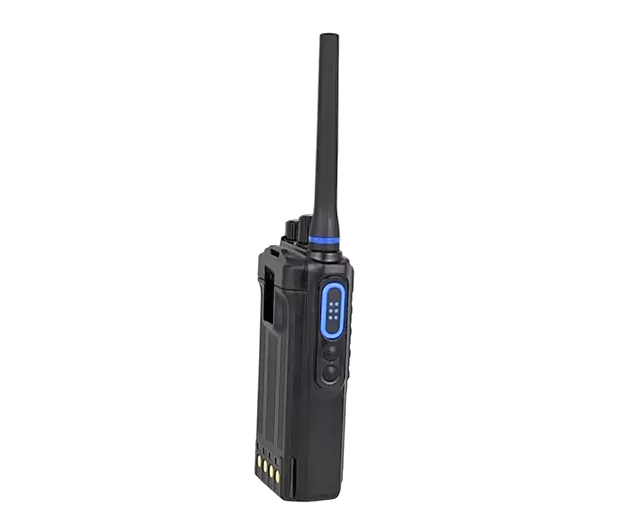

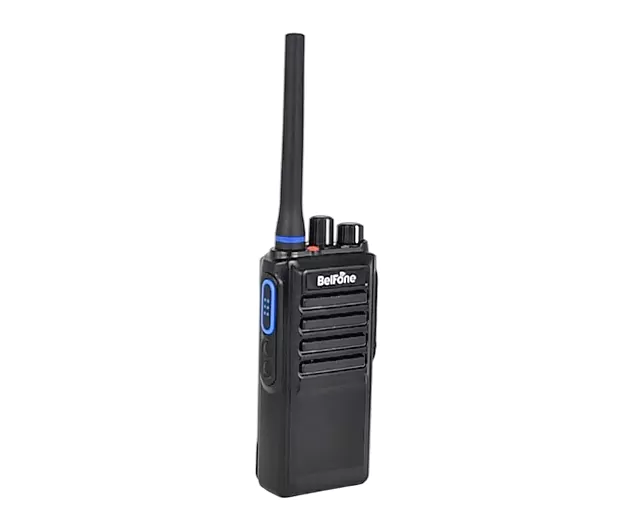

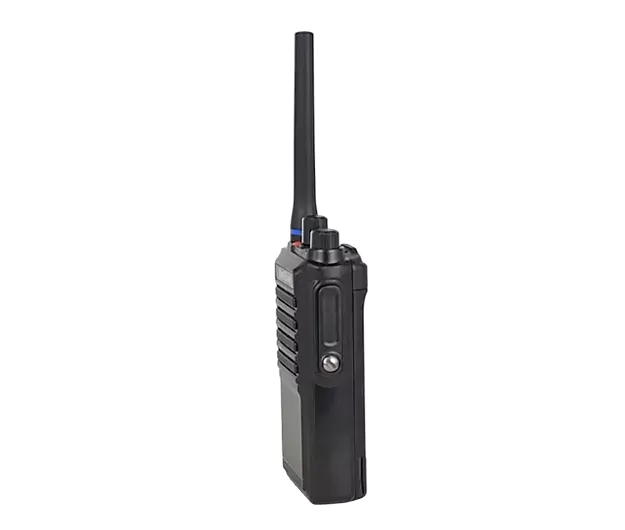

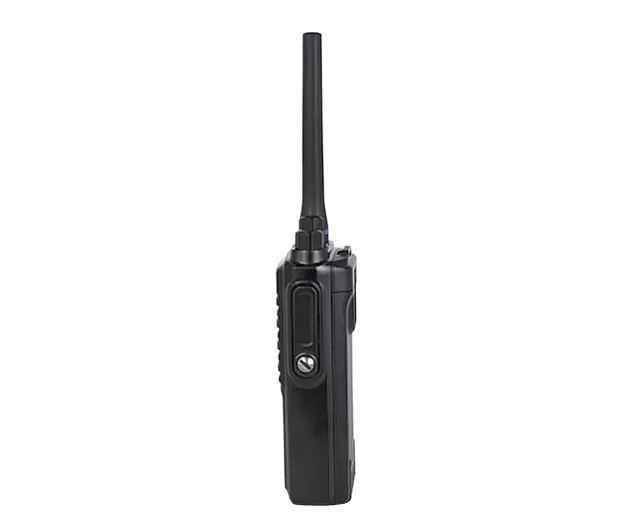

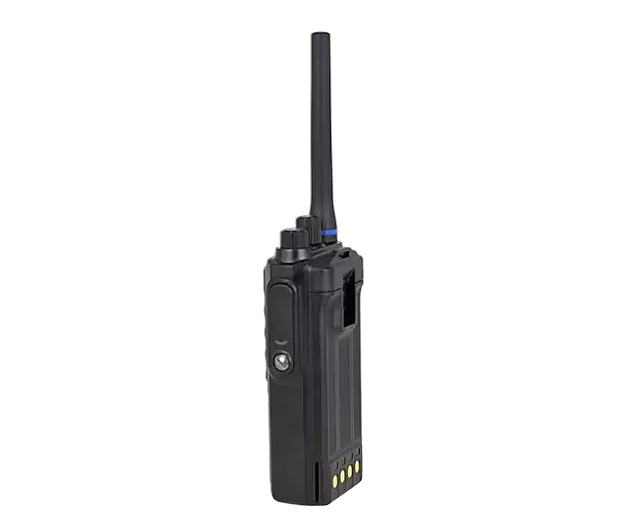

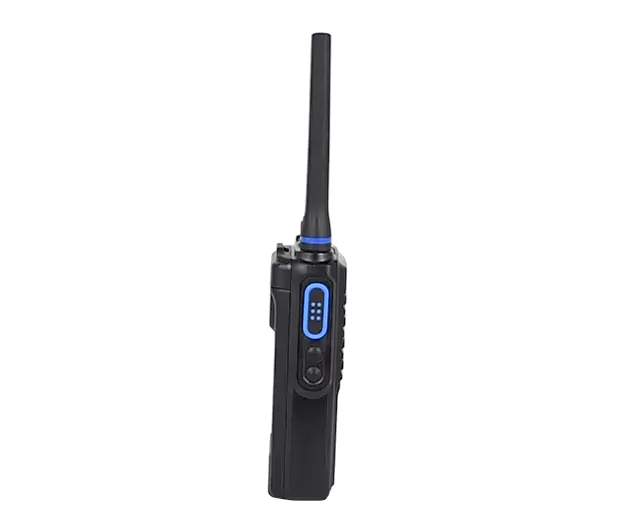

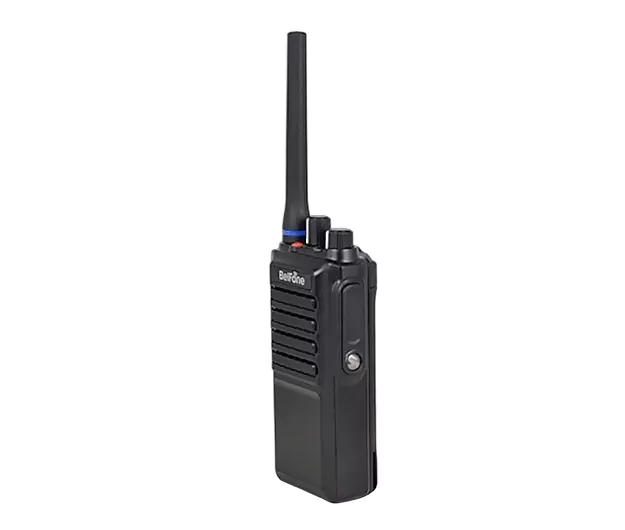

BP610

Professional DMR radio

OEM/ODM
Belfone's new generation of professional DMR radio BP610. With its advanced AI noise reduction, sensitive receiving and transmitting, accurate positioning, and effective response speed, greatly improves users' communication experience in noisy environments, to provide users with a more sensitive, clearer, and more reliable communication guarantee.
Inquiry
Inquiry
BP610
Professional DMR radio
Inquiry

Highlights

AI Noise Reduction

BP610 equipped with a high-performance speaker and AI Reduction, can effectively filter background noise and eliminate whistling. It can also accurately extract the human voice to ensure that the radio sound can still be accurately captured in all kinds of noisy areas achieving a clear and loud call.

Multiple Encryptions

BP610 adopts multiple encryptions to guarantee all-round secure communication, supporting ordinary encryption (dynamic encryption, static encryption), and AES256, ARC4, effectively improves the privacy of communication and the security of information.

IP68 Protection

BP610 has IP68 certification. It is made of PC protective material, which can still maintain intact in rain, soaking, dust, etc. The screen has been reinforced with excellent impact resistance, can withstand 1.5 meters fall at multiple angles, easy to work in any harsh environment.

Rich Applications

BP610 supports an optional Bluetooth 5.0 modular that allows to access wireless audio device, wireless PTT device, offering extensible accessory options. Besides that, it also allows an optional 250 hours recording to sustain long time communication.

Satellite Positioning

BP610 supports displaying the location and distance of the target during the call. It can equipped with satellite positioning for real-time tracking and managing static and moving status, effectively coordinating and managing personnel, and improving command and dispatching efficiency.
*Customizable:GPS、GALILEO 、GLONASS

Multiple Alarms

BP610 supports multiple alarm modes including one-key alarm, lone worker, and man down. Once an emergency occurs, it can automatically notify the commanding officer or the dispatching command platform to ensure the safety of personnel in different scenarios and effectively eliminate potential safety hazards.

Strong Communication Performance

The TDMA two-time-slot function of terminals allows users to achieve better voice capacity and audio performance in a wider range of signal environments. It also enhances the system management of digital communication. It can be coordinated with the Belfone SDC and SVT systems for command and dispatch, intelligent management, and channel allocation services.

RF Optimization

The motherboard of BP610 adopts an integrated metal shield to effectively isolate the interference and improve voice communication quality. Thanks to its new circuit optimization scheme, it provides a wider and more sensitive transmitting and receiving signal, ensures the transmitting and receiving of key voice in signal fringe areas, and realizes stable communication in complex environments such as high floors, large areas, and long distances.

Specifications

General
Frequency Range VHF:136-174 MHz; UHF3:350-400 MHz; UHF:400-480 MHz
Channel Capacity 1024
Zone 64
Channel Spacing 12.5KHz/25KHz
Working Voltage DC 7.4V (±20%)
Battery Capacity 2000 mAh
Average Battery Life(5/5/90) Digital 24 hours
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Dimension 57(L)*33 (W) *126 (H)mm
Weight about 300g (Including Battery)
Recording Time 250 hours
Bluetooth BT 5.0
Transmitter
Power Output ≤5W
4FSK Modulation 12.5kHz(date only):7K60FXD; 12.5kHz(data and voice):7K60FXD
FM Modulation 12.5 kHz:8K50F3E; 25 kHz:16KФF3E;
Modulation Limitation +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Frequency Response +1/-3 dB
Audio Distortion 0.03
Digital Vocoder AMBE++
Receiver
Digital Sensitivity 0.25 uV(5% BER)
Intermodulation 60dB
Adjacent Channel Selection 60dB
Spurious Suppression 60dB
FM Noise -40dB
Frequency Response +1/-3 dB
Rated Audio Power 1.0W
Maximum Audio Power 1.5W
Rated Audio Distortion 0.03
Conduction Radiation -57dBm
GPS Precision <2.5m(CEP50, with good signal)
TTFF(first location)Cold Boot < 30 Seconds(with good signal)
TTFF(first location)Hot Boot <1Second(with good signal)
Environmental Specifications
Operational Temperature -20℃—+60℃
Storage Temperature -30℃—+85℃
Dust & Water Proof IP68
