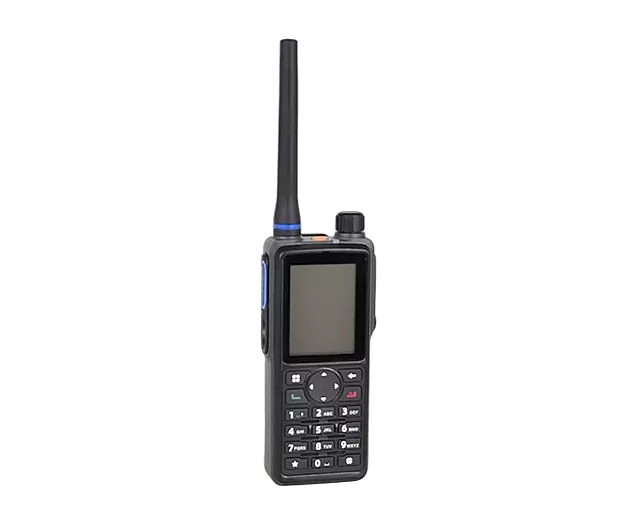

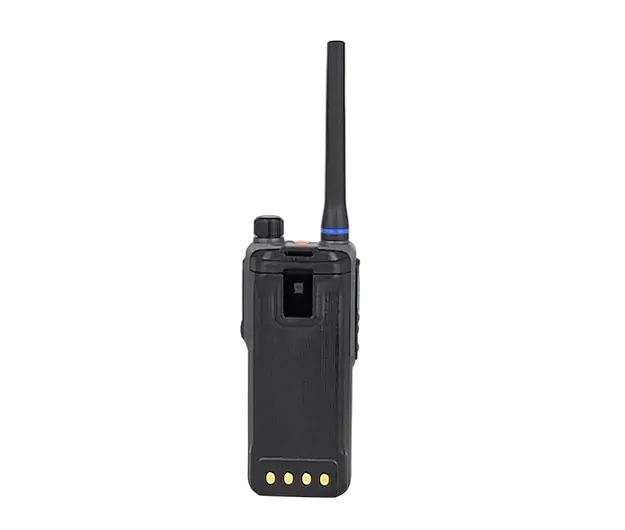

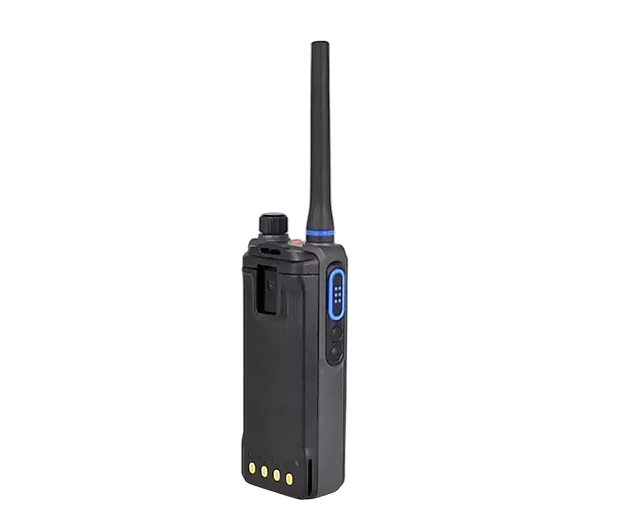

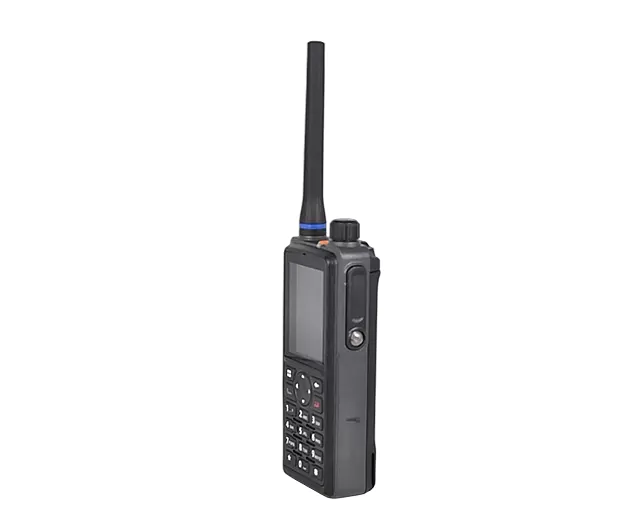

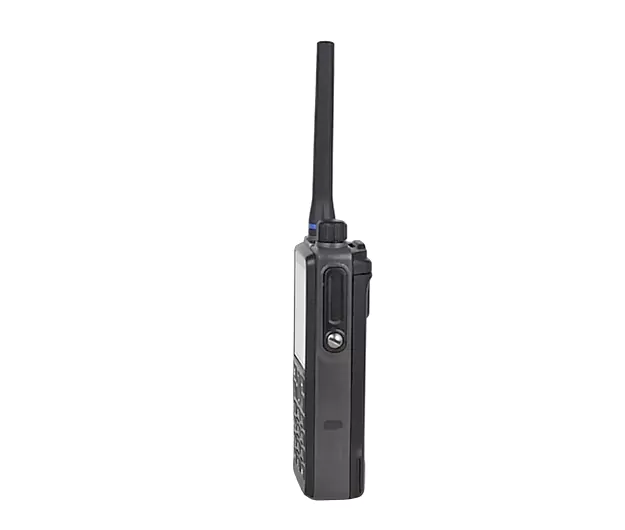

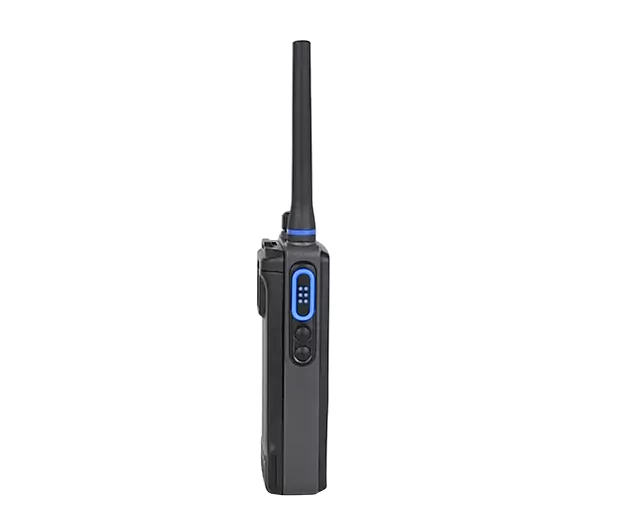

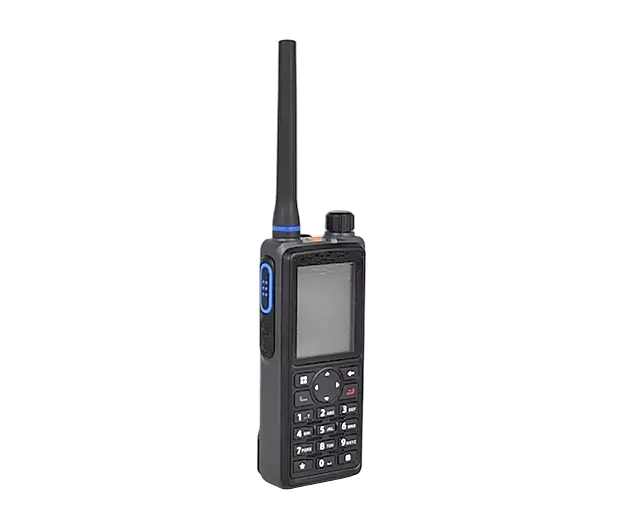

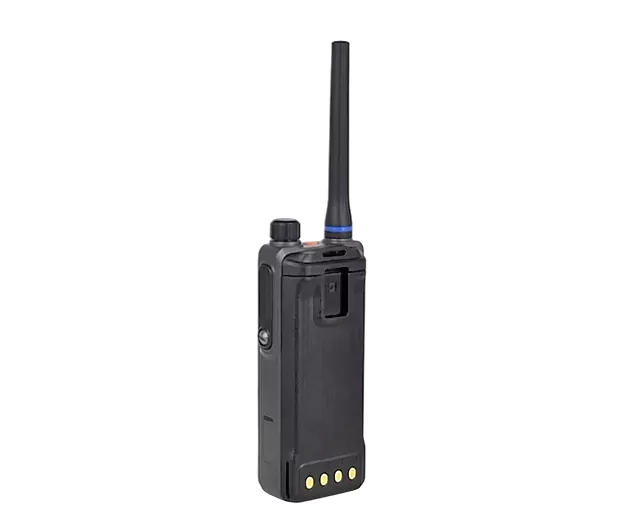

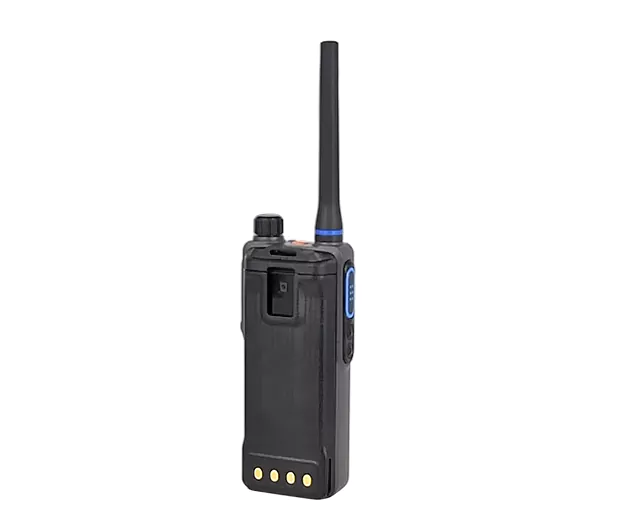

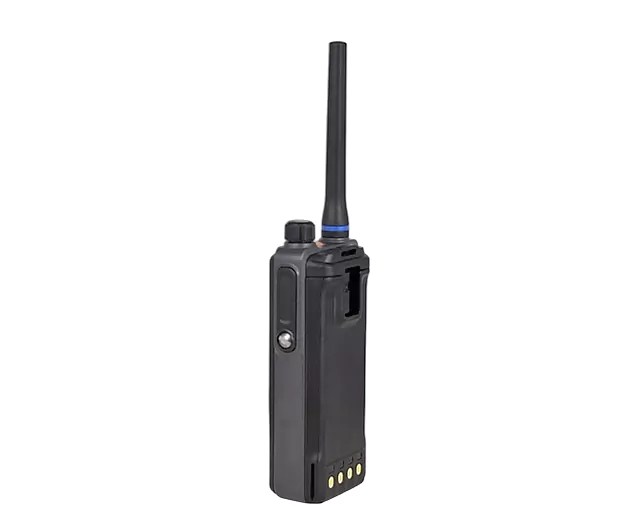

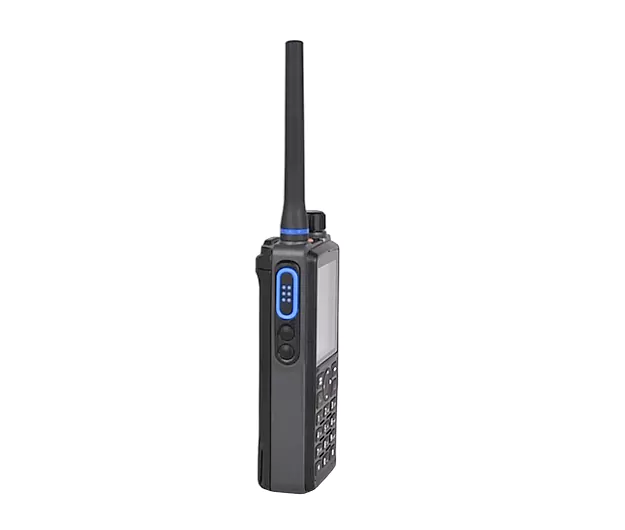

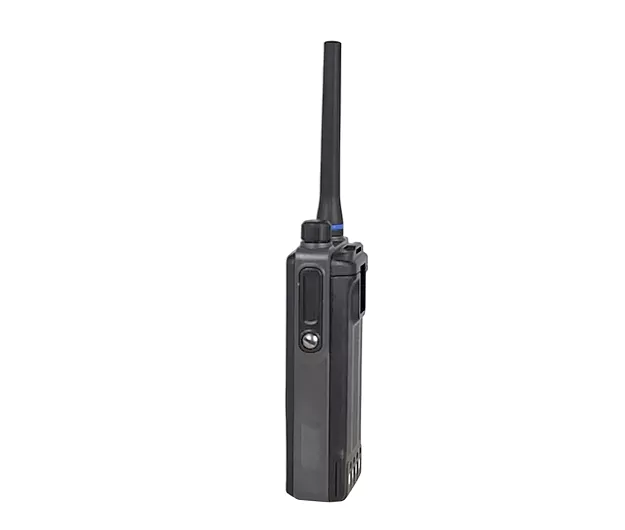

BP860
Professional DMR Radio


BP860 is a rugged design radio that has passed MIL-STD-810G certificate. It is made of a non-slip texture case which brings comfortable grip and excellent abrasion resistance. With IP68 certification, this BP860 is a ruggedized radio that can maintain clear audio and stable communication even after 2 meters x 2 hours beneath water.

| Frequency Range | VHF:136-174MHz; UHF:400-480MHz; UHF2:450-520MHz; UHF3:350-400MHz |
| Channel Capacity | 1024 |
| Zone | 128 |
| Channel Spacing | 25 KHz/12.5KHz |
| Working Voltage | DC 7.4V (±20%) |
| Battery Capacity | Standard 2400 mAh; Optional 3350 mAh |
| Average Battery Life(5/5/90) | 2400mAh:(without GPS)Digital 21 hours;Analog 16 hours; 3350mAh:(without GPS)Digital 30 hours;Analog 23 hours |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 62(L)* 36(W)* 134(H)mm |
| Display | LCD Screen,320*240px,262000 color,2.4 inches,10line |
| GPS | GPS |
| Recording Time | ≤24 Hour |
| Bluetooth | BT5.0 |
| Weight | 318.5g(battery include) |
| Power Output | <5W |
| 4FSK Modulation | 12.5kHz(data only):7K60FXD; 12.5kHz(data and voice):7K60FXE |
| FM Modulation | 12.5 kHz:8K50F3E; 25 kHz:16K0F3E; |
| Modulation Limitation | ±2.5kHz@12.5kHz; ±5.0kHz@25kHz |
| FM Noise | 40dB@12.5kHz/45dB@25kHz |
| Spurious Emission | -36dBm<1GHz/-30dBm>1GHz |
| Adjacent Channel Power | ≤-60dB |
| Frequency Response | +1/-3 dB |
| Audio Distortion | ≤3% |
| Digital Vocoder | AMBE or NVOC |
| Digital Sensitivity | 0.22μV /BER5% |
| Analog Sensitive | 0.22uV (12dB SINAD) |
| Intermodulation | 65dB@12.5/25kHz |
| Adjacent Channel Selection | 60dB@12.5kHz/70dB@25kHz |
| Spurious Suppression | 70dB@12.5/25kHz |
| FM Noise | 40dB @ 12.5kHz;45dB @ 25kHz |
| Frequency Response | +1/-3 dB |
| Rated Audio Power | 1W |
| Maximum Audio Power | 2.5W |
| Rated Audio Distortion | ≤3% |
| Conduction Radiation | -57dBm |
| GPS Precision | Horizontal Accuracy≤2.5m(with good signal) |
| TTFF(first location)Cold Boot | <30s(with good signal) |
| TTFF(first location)Hot Boot | <1s(with good signal) |
| Operational Temperature | -30℃~+70℃ |
| Storage Temperature | -40℃—+85℃ |
| ESD(Electrostatic Protection) | IEC61000-4-2(Level 4); ±8kV(contact discharge); ±15kV(air discharge) |
| Dust & Water Proof | IP68 |
