BelFone ETX System | Advanced DMR Trunking for Professional Communication

Highlights

The system unites excellent performance, and is compatible with diversified digital/analog systems of different communication modes to help users upgrade and expand with ease. Characterized by integrated access, interconnectivity, and multilevel networking, this system brings full interconnectivity across modes/systems/departments/carriers for improved management efficiency and enriched management measures.

To tackle communication problems and satisfy the demands of different operating environments, BelFone has generated five DMR Trunking solutions, including:

Simulcast Solution
Multi-Site Trunking Solution
Single-Site Trunking Solution
Converged Communication Solution
VHF/UHF Solution
Large Trunking Solution

SYSTEM ADVANTAGE

Better Network Extensibility

BelFone EXT DMR Trunking system adopts a text-based SIP protocol that could guarantee separation of call control and bearer function and perform soft switch. Therefore, enable DMR MSC to interconnect with other communication networks and provide convenience for add-value service development.

Rich Dispatching Functions

The system can effectively combine short messages, status messages, packed data and other data services with voice dispatching to provide rich dispatching functions.

Longer Battery Life

The system incorporates TDMA technology to flexibly mobilize two channels interchangeably and lower battery consumption. Extending battery life by up to 40％ compared with analog technology.

Higher Spectrum Efficiency

With TDMA two time-slot technology to divide 12.5kHz wideband carrier into two time-slots which enables a single carrier to support 2 lines call(≈two 6.25kHz channels)and then double the communication efficiency.

Mult-Layer Encryptions

With built-in multi-layer encryption technologies such as ARC4, AES256 and end-to-end encryption, software-based encryption and hardware-based encryption, ETX system can effectively ward off unwanted signals, and thus greatly increase system security and effciency.

Flexible Deployment

Rack Mounted Structure
Distributed Carrier Deployment
BBU, RRU Separated Deployment
Vehicular-Mounted Trunking Solution

High Reliability

To avoid damage caused by device loss, file corrupt, data loss, and other accidents, the system adopts a more flexible backup policy to improve database security and bring quicker, safer, and more comprehensive redundant backup.

MSC Backup
BSCU Backup
Control Channel Backup
Base Station Backup
PMU Backup
Single Site Fallback

Rich Application Services

Aside from quality voice, data, and dispatching services, the system supports rich supplementary services to satisfy different user demands. Also, the system can interconnect different systems by using the SIP protocol.

Voice Services

Full Duplex Individual Call
Emergency Call
Broadcast Call
Individual Call
Group Call
All Call

Data Services

Short Message
Long Message
Status Message
Emergency Alarm
Encrypted Communication

Dispatching Services

Ambience Listening
Override/Interrupt
GPS Subscription
Dynamic Group
Stun/Revive/Kill
Group Patch
GPS Polling
Monitoring

Other Services

Remote Base Station Upgrading
Sever-wide Recording
PABX Voice Gateway
Call Forwarding
Local Recording
Include Call
PSTN

Networking Topology

SYSTEM COMPOSITION

BF-TR950 Trunking Station

BF-TR950 is a carrier level DMR Trunking base station designed with unit module, featured enhanced extensibility and rich functions. It supports failure fallback mode, inter-site call handling, whole site backup, and allows backup station to automatically take over to deliver enhanced reliability. BF-TR950 incorporates a perfect backup mechanism for key components of base station-controller, carrier, power supply, etc. Besides, it can also allow an online main module change to sustain long time operation and safeguarding smooth communication.

Carriers Failure Isolation
Blade Mounted Structure
Key Components Backup
Maximum 8 Carrier Per Site
Base Station Failure Fallback
Intelligent Fan Speed and Temperature Control

BF-TR951 Trunking Base Station

BF-TR951 is designed with independent carrier and power supply to enhance reliability. With comprehensive functions to support failure fallback and inter-site call handling. Compliance with military level, BF-TR951 incorporates high performance channel unit and power module to provide reliable, stable services.

Military Level Structure
Distributed Carrier Solution
Base Station Failure Fallback
Special Power Supply for Carrier
Carrier With Superior Heat Dissipation

BF-TR955 Mobile Base Station

BF-TR955 is an integrated mobile base station that designed compact structure, featured flexible deployment and wide applications. It is the best choice for emergency rescues, patrolling, and other emergency scenarios to establish Trunking communication network and achieve unified dispatching.

High Reliability
IP65 Protection
Highly Integrated
2.8-Inch Display
Flexible Deployment
DPD Technology
Wide Coverage
5-Carriers & 8-Carriers

BF-TR952 Distributed Trunking Base Station

BF-TR 952 is a cost-effective Trunking base station for fast network establishment. Functioned as network access device, BF-TR952 is used to manage wireless access including air interface management, access control, mobility control, user resources assignment, etc.

BF-TR952 consists of BBU952 and RRU952. Its flexible distributed design satisfies different networking requirements and brings better covering performance.

BF-RRU952 Remote Radio Unit

BF-RRU952 is the RF section of the distributed base station designed to meet user expectations in service, capacity, transmission, power supply, installation, and maintenance. Adopts an integrated structure to support pole mounting, wall mounting, and vertical mounting for improved covering capacity and saving feeders.

IP67 Protection
Aviation Plug
Wide Applicability
Maximum 4*20W Output Power
Specialized Power Supply for Carrier

BF-BBU952 Base Station Controller

BF-BBU952 featured operation and maintaining functions and supports hot standby main units, hot plugs, as well as one site operation to provide signal procession service.

Centralized Management
Monitoring Device Signals
Centralized Network Maintenance
Interconnecting Transmission Networks

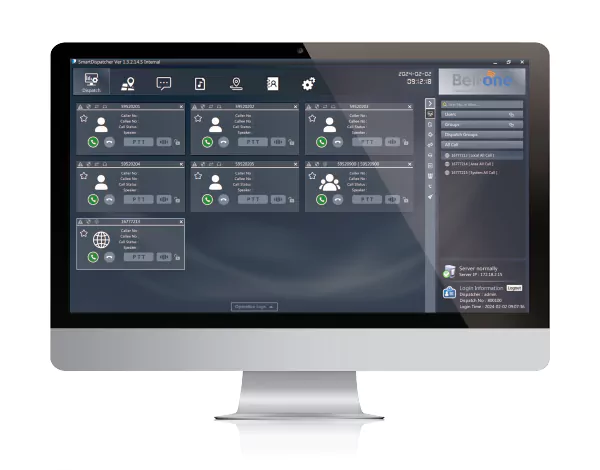

BF-9500 Dispatching Management Platform

BF-9500 is a service-management-based command and dispatching system that integrates different communication modes. Based on subsystems of digital map, digital dispatching system, networking management system, and voice recording, it brings united command and management, helps to realize information sharing and improves response efficiency.

GIS (Geographic Information System)

Geo Fence
Location Map
Real-time Positioning
Statistics and Analyze
Query Historical Track
Regional/Route Planning & Control

Digital Dispatching System

Remote Stun/Revive/Kill
Individual Call/Group Call/All Call
Broadcast Call/Emergency Call
Long/Short Message, Status Message
Emergency Alarm, Dynamic Group, Group Patch
Override/Interrupt, Monitoring, Ambience Listening

NMS (Network Management System)

Element Management
User/Configuring Management
Failure Manage and Maintenance
Safety/Performance Management
Remote Upgrading & Smooth Expansion
Standard SNMP(Simple Network Management Protocol)

VRS (Voice Recording System)

Recording Statistics
Recording Playback
Multi-lines Recording
Real-time Local Recording
Configuring User Information
Server-Wide Audio Recording

MSC (Mobile Switching Center)

Consists of a switching control server, MSC dispatching server, network management server, recording server, and other interconnecting gateway equipment to interconnect system elements. Therefore, it conducts call control and voice exchange across base stations and systems and serves user mobility management, authentication, dispatching, network management, as well as system interconnection functions.

Single MSC
MSC Master/ Slave Networking
MSC Distributed Networking
Multi-MSC Interconnection.

NETWORKING MODE

Interconnecting Backbone Networks

Have district and county level Trunking system access to the prefecture-level network center to interconnect prefecture-level systems. And tandem prefecture-level network center to the Provincial network center to form a four level DMR network of districts, cities, provinces and ministries. Facilitates information sharing and timely information deliver to improve working efficiency.

One-Site Networking Solution

Users have the flexibility to networking on their covering range and service demands, and realize one-site networking.

One-MSC Solution

The system can be networked through the MSC and connect base station systems to the MSC via E1/IP link (can be fiber, microwave, 4G, satellite broadband, etc.) and realize one-site multi-base-station networking. Notice: the maximum networked base stations are 500.

Multi-MSC Solution

The digital Trunking system can be configurable with first-level, second-level, and third-level MSC, through the E1/IP link to realize Multi-Base-Station networking.
