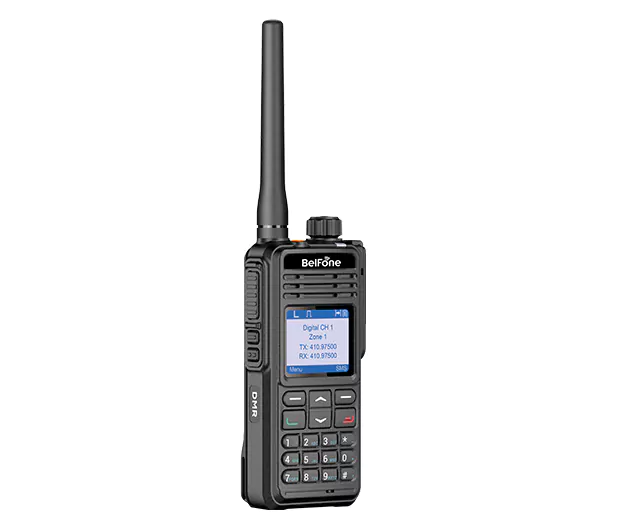

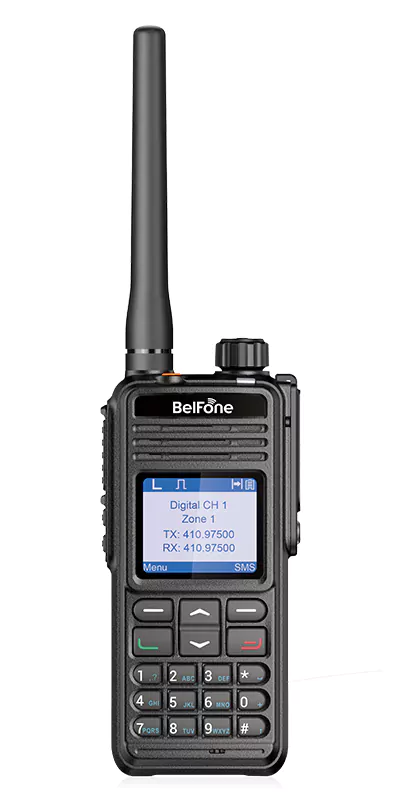

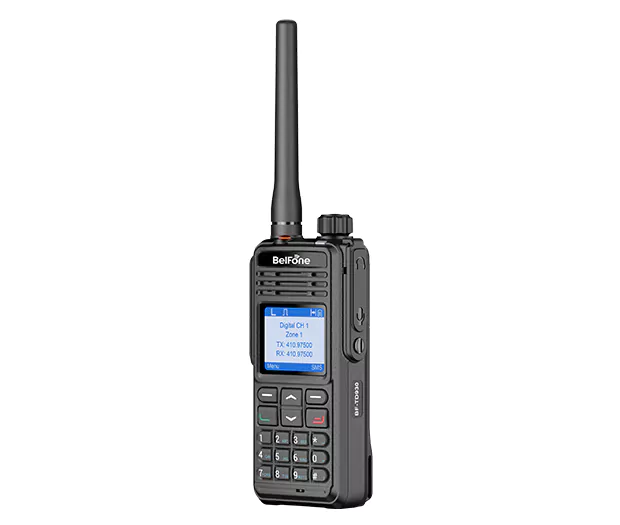

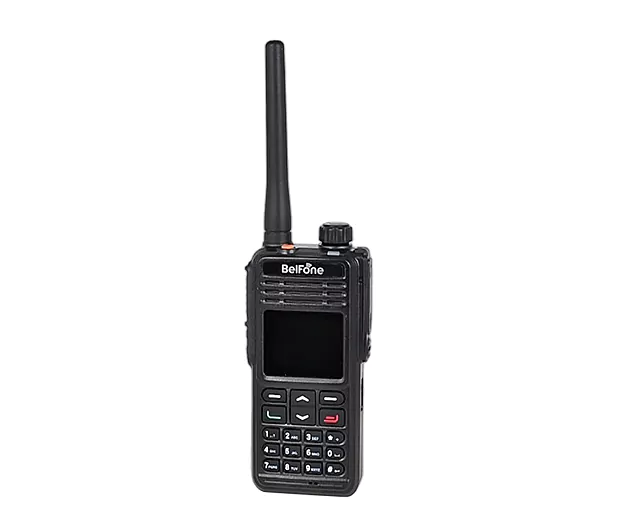

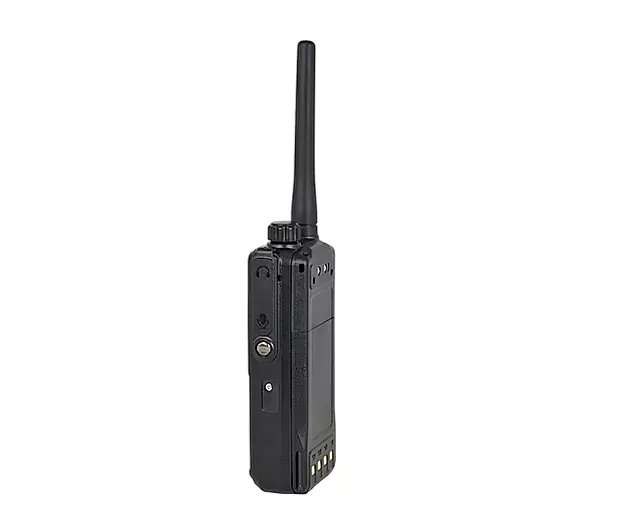

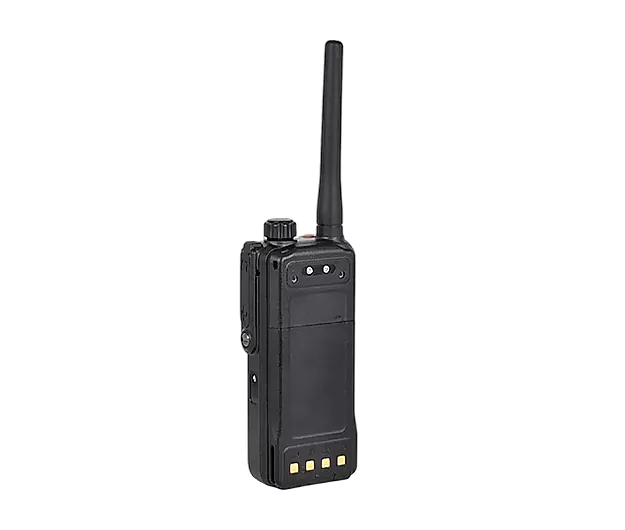

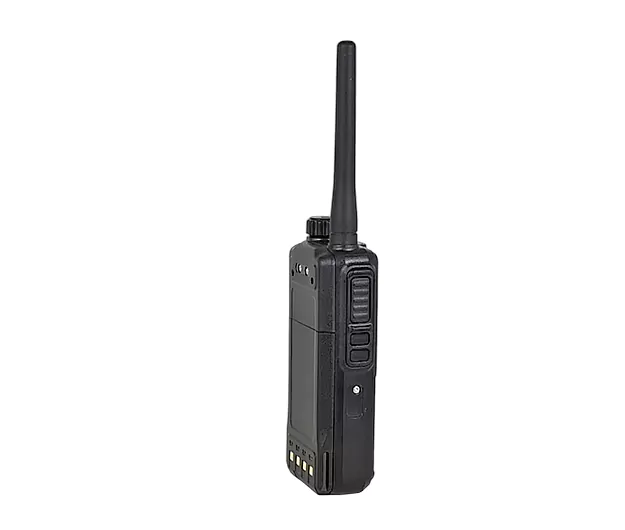

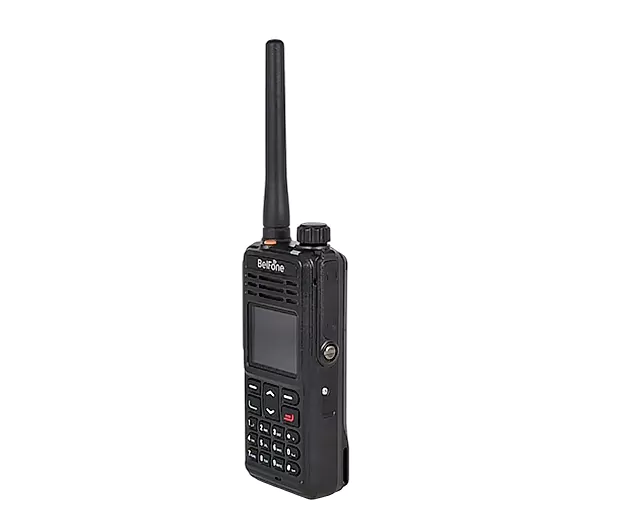

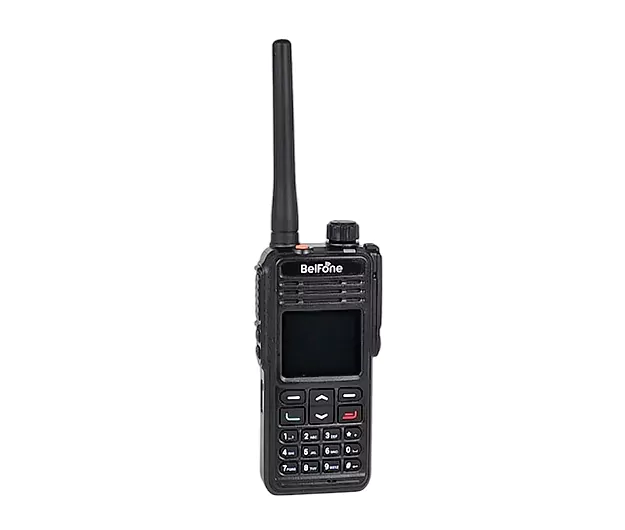

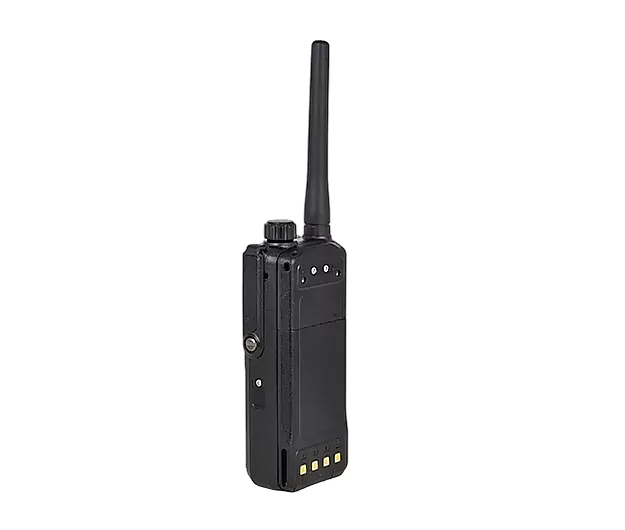

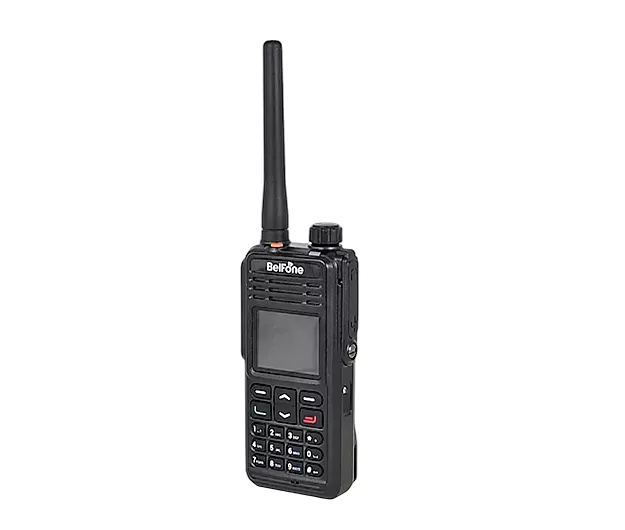

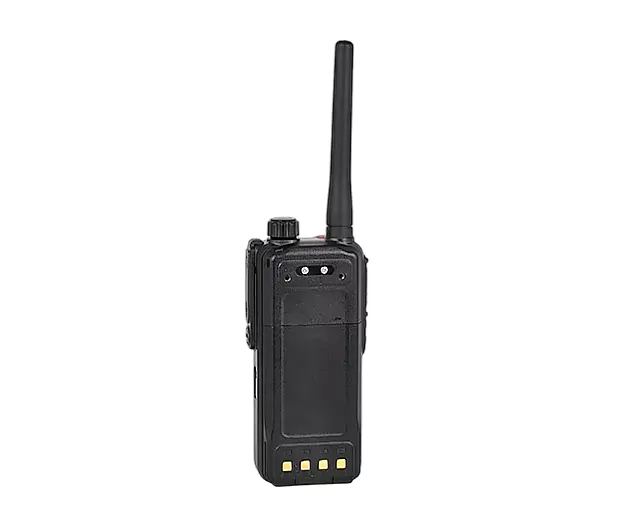

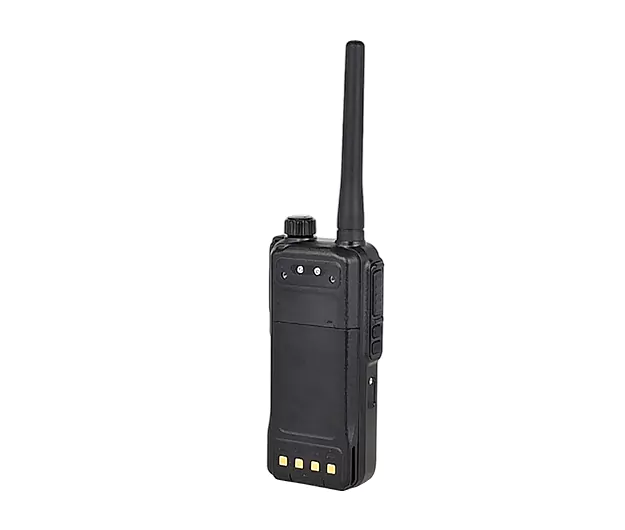

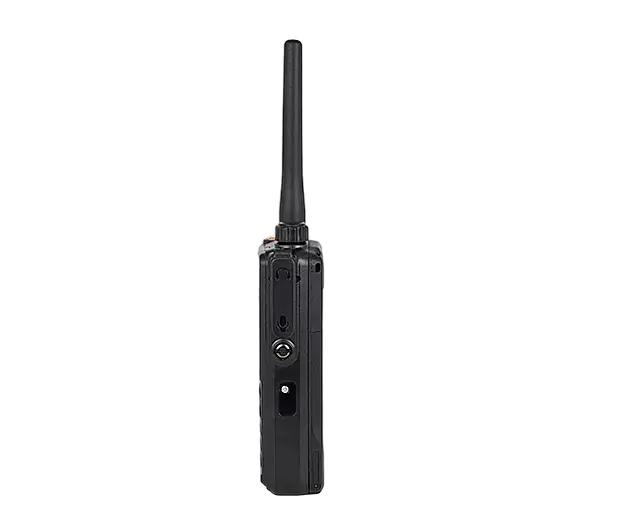

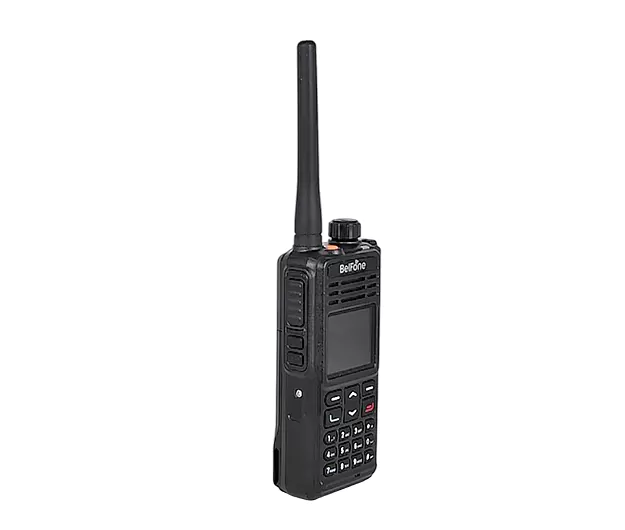

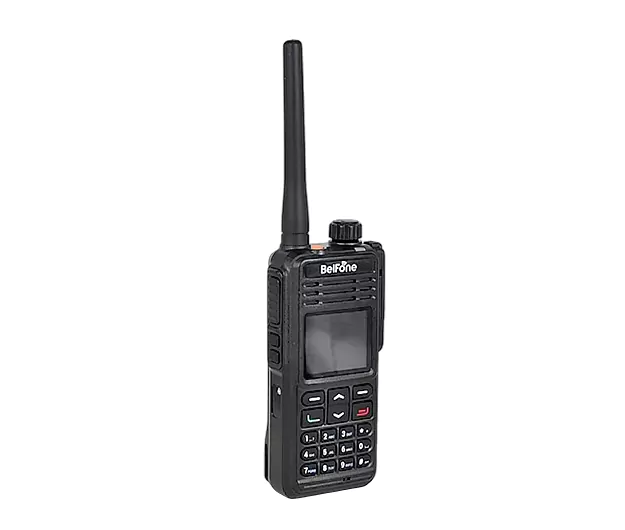

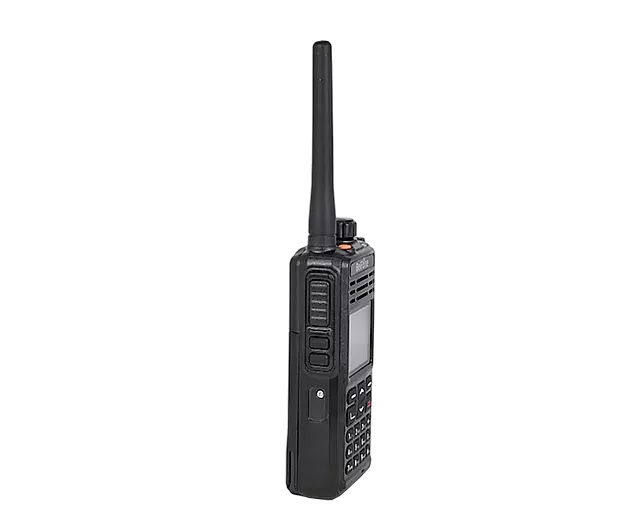

BF-TD930 Portable Trunking Radio
DMR OEM ODM
BF-TD930 is an upmarket digital two-way radio which incorporates such advanced features as Full Duplex Calls, Pseudo Trunk, IP68 Protection, ARC4&AES256 Encryption, GPS Positioning, Mandown, Lone Worker, and Emergency Alert, delivering a most advanced and rich DMR radio communication experience. Moreover, BF-TD930 can work as a system portable terminal within both SDC and BTX and ETX systems. This safe and versatile radio is designed to benefit users from fields ranging from commercial users to
Inquiry
Inquiry
Highlights
Full Duplex Calls
BF-TD930 incorporates full duplex calling technology to allow both parties to talk at the same time, which greatly facilitates the exchange of crucial information and increases communication efficiency.GPS Positioning
With better accuracy and precision, the built-in GPS enables the commander to locate and track his team members. This contributes a lot to personnel management and also promotes command and dispatch work as it equips the commander with clear location awareness.IP68 Protection
IP68 certified BF-TD930 is a tough radio designed to brave the challenges of harsh environments. So, environmental factors are one less thing to worry about.Automatic Roaming
BF-TD930 automatically roams among all sites in the network and always stays connected. This delivers more efficiency and flexibility to your radio communications.BF-TD930
-
DMO Pseudo Trunk
The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased. -
Personnel Safety
Mandown: If some worker slips or falls, the mandown function will automatically activate and transmit a signal to other radios for help. Built-in Lone Worker, and Emergency alarms are also available in case of any accident. -
Handheld/SFR Dual Modes
BF-TD930 can also function as a single frequency repeater, allocating one timeslot to receive and the other to transmit at the same frequency and using DMO mode to further extend radio coverage. One single device serves two purposes. -
Advanced Encryption with ARC4& AES256
The ARC4& AES256 encryption technology keeps your communications safe and private, optimizing your information safety.
-
Full Duplex
-
IP68 for Dust & Water Protection
-
Mandown, Lone Worker, Emergency Alarms
-
ARC4&AES256 Encryption
-
DMO True 2-Slot, Allowing for 2 Talk Paths at 1 Frequency
-
Transmit Interrupt/Radio Priority for Emergency or Urgent Communication
-
Integrated High Precision GPS
-
Can be updated to Trunking version
Specifications
General
| Frequency Range | VHF：136-174MHz / UHF：400-480MHz / UHF2：450-520MHz / UHF3：350-400MHz |
| Channel Capacity | 1024 |
| Zone | 128 |
| Channel Spacing | 12.5KHz/25KHz |
| Working Voltage | DC 7.4V(±20%) |
| Battery Capacity | Standard:2300 mAh Optional:3350mAh |
| Average Battery Life（5/5/90） | 2300mAh: Digital 21 hours / Analog 15 hours 3350mAh: Digital 30 hours/ Analog 23 hours |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 56（L）* 33(W)* 129 (H)mm |
| Weight | 315g(include battery) |
Transmitter
| Power Output | ≤5W |
| 4FSK Modulation | 12.5kHz only data：7K60FXD 12.5kHz data and audio：7K60FXE |
| FM Modulation | 12.5 kHz：8K50F3E； 25 kHz：16K0F3E； |
| Modulation Limitation | +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz |
| FM Noise | 40dB@12.5kHz / 45dB@25kHz |
| Spurious Emission | -36 dBm≤1GHz / -30 dBm≥1GHz |
| Adjacent Channel Power | ≤-60dB |
| Frequency Response | +1/-3 dB |
| Audio Distortion | ≤5% |
| Digital Vocoder | AMBE or NVOC |
Receiver
| Digital Sensitivity | 0.25μV /BER5% |
| Analog Sensitive | 0.25 uV (12 dB SINAD) |
| Intermodulation | 65dB@12.5/25kHz |
| Adjacent Channel Selection | 60dB@12.5kHz/70dB@25kHz |
| Spurious Suppression | 70dB@12.5/25kHz |
| FM Noise | 40dB @ 12.5kHz； 45dB @ 25kHz |
| Frequency Response | +1/-3 dB |
| Rated Audio Distortion | 0.5W(8 Ω load) |
| Maximum Audio Power | 1.5W |
| Rated Audio Distortion | ≤5% |
| Conduction Radiation | -57dBm |
| GPS Precision | Horizontal Accuracy≤-10m（with well signal） |
| TTFF（first location）Cold Boot | < 1 Minute （with well signal） |
| TTFF（first location）Hot Boot | < 10 Second （with well signal） |
Environmental Specifications
| Operational Temperature | -30℃—+70℃ |
| Storage Temperature | -40℃—+85℃ |
| Moisture Proof | MIL-STD-810G Standard |
| Shock & Vibration | MIL-STD-810G Standard |
| Dust & Water Proof | IP68 |
